T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
Wheel series 100mm black rubber on pressed steel centre 14mm bore hub length 39mm roller bearing 90kg
Wheel series 100mm black rubber on pressed steel centre 14mm bore hub length 39mm roller bearing 90kg
5.98 €
5.98 €

152mm swivel/brake castor with black elastic rubber on aluminium centre wheel, 330kg

https://www.parnells.eu/web/image/product.template/86089/image_1920?unique=1f40491

Part Number: 230041
Wheel Diameter: 152mm (6" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 330kg

93.40 € 93.4 EUR 93.40 €

108.48 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

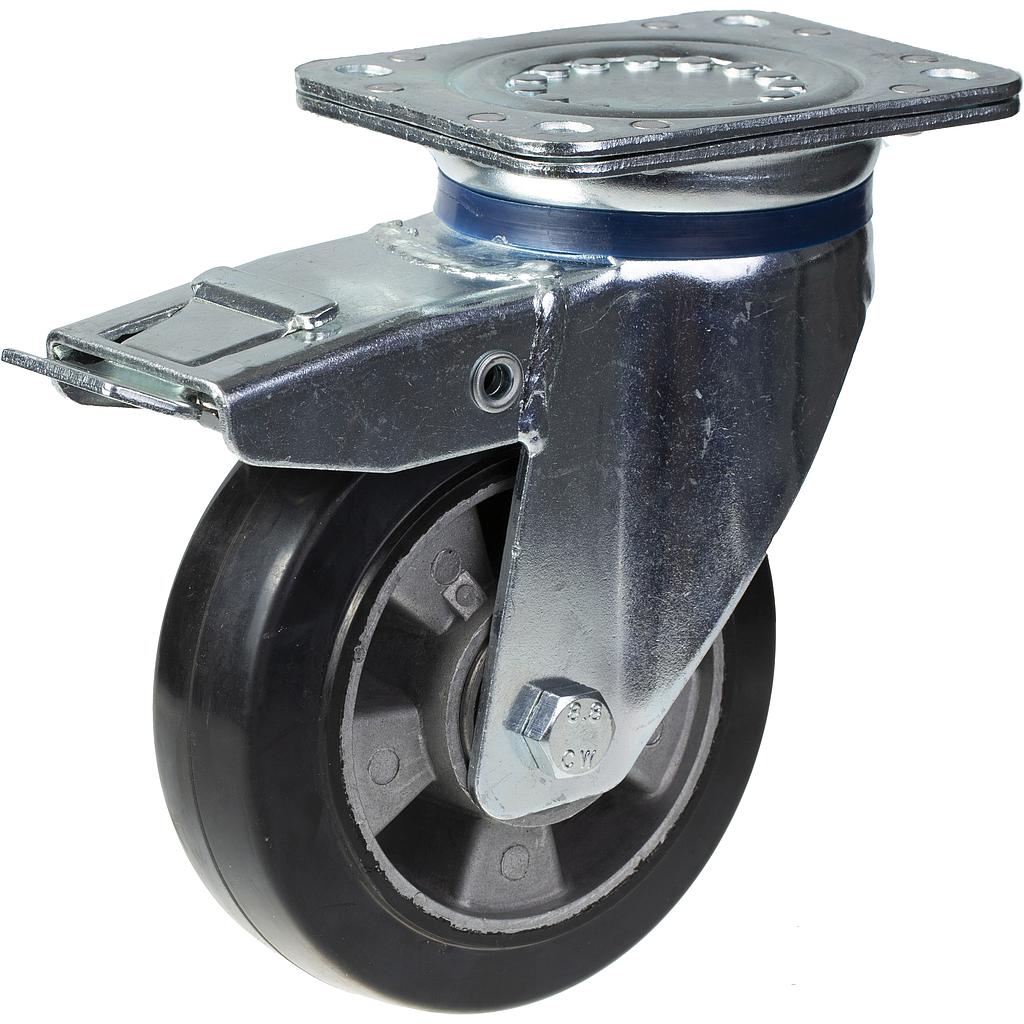

800 series 152mm swivel/brake top plate 135x110mm castor with black elastic rubber on aluminium centre ball bearing wheel 330kg

152mm swivel/brake castor with black elastic rubber on aluminium centre wheel, 330kg

  • Swivel/brake castor with strong top plate bracket made of zinc plated steel with sealed hardened double row ball race in swivel head, grease nipple and dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with black elastic rubber vulcanized on aluminium centre.

  • The hardness of the tread is 75° Shore A.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise. Very good floor preservation.

  • The high elasticity of the rubber makes the wheel resume to its round shape faster, avoiding flat spots, and therefore gives a lower rolling resistance than for standard grade rubber.

  • Good chemical resistance except to oils.

Part Number 230041
Wheel Diameter (mm) 152
Tread Width (mm) 50
Bearing Type Ball bearings
Top Plate Size (mm) 135x110
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 211
Load Capacity 3km/h (kg) 330

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 230041.pdf
Download

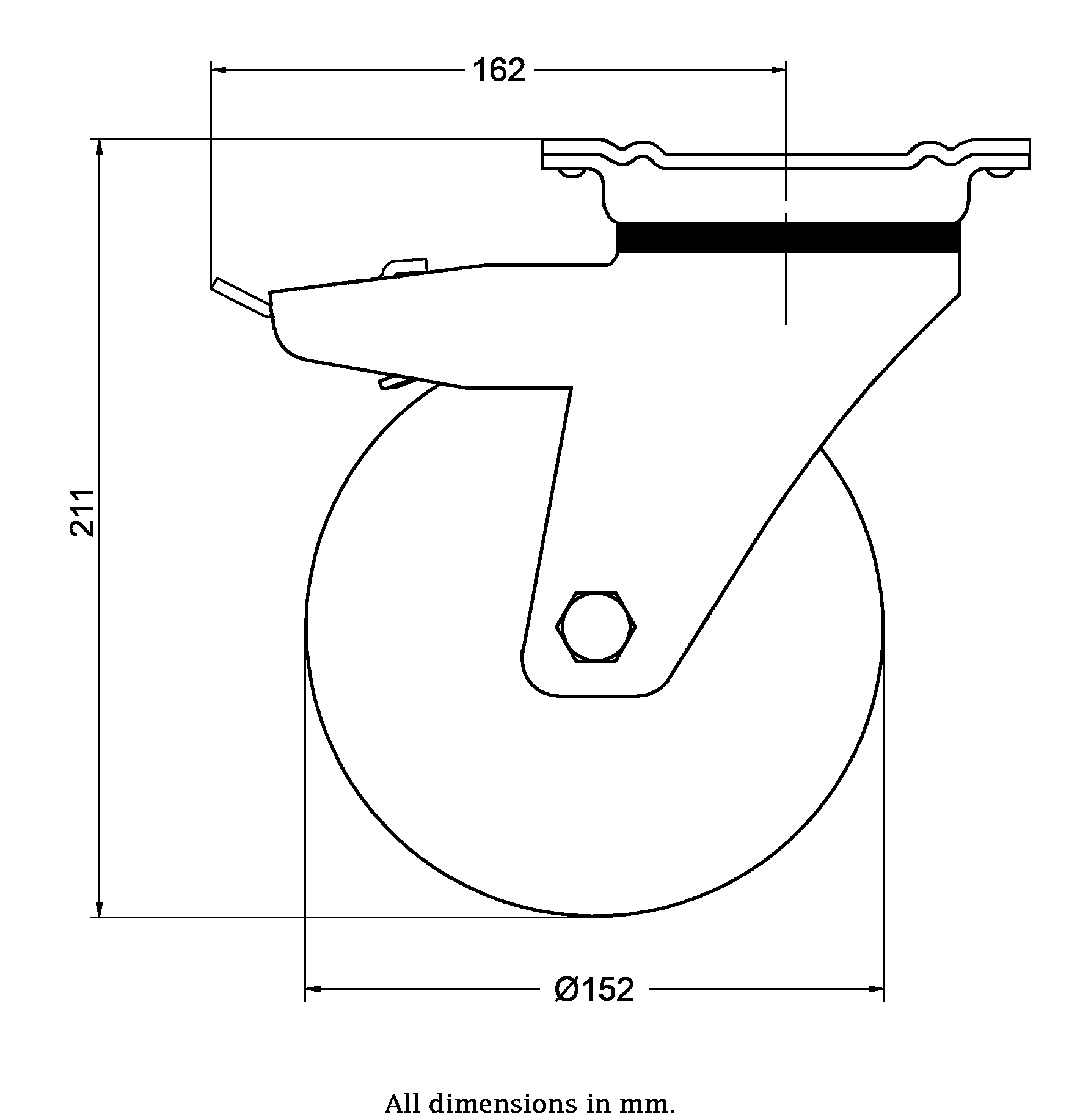

Dimensions for 230041.jpg
Download

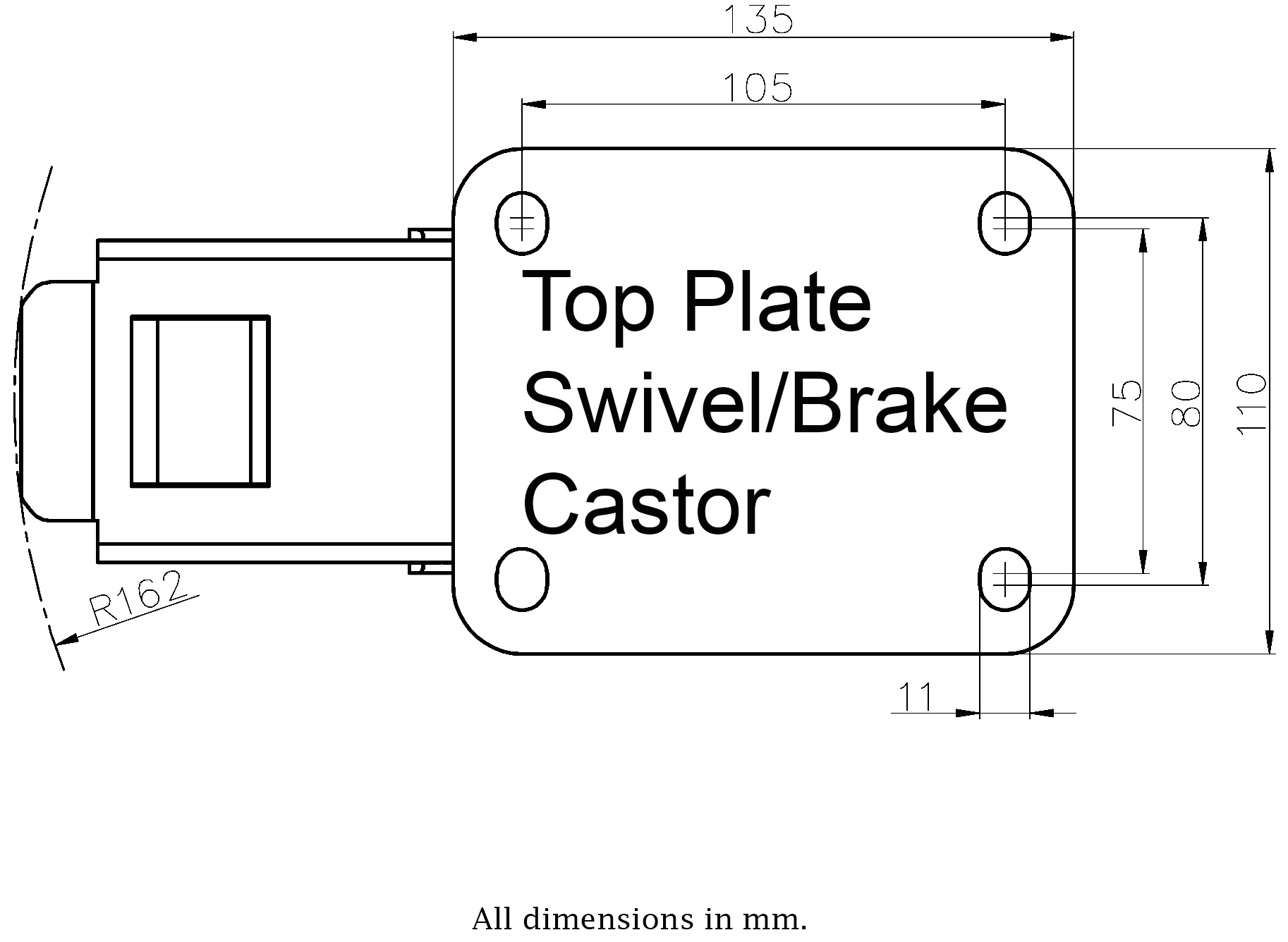

Dimensions for top plate brake, 125-200mm.jpg
Download

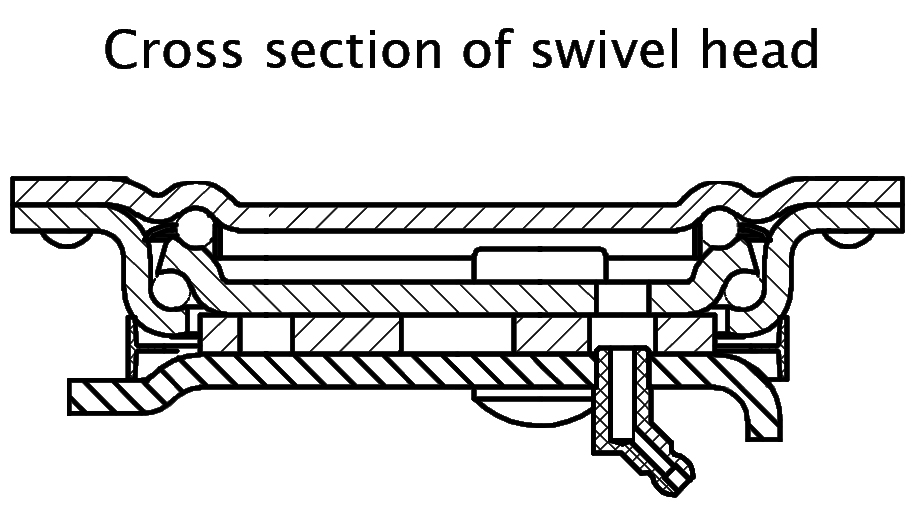

Image for cross section swivel head, 800 series.jpg
Download

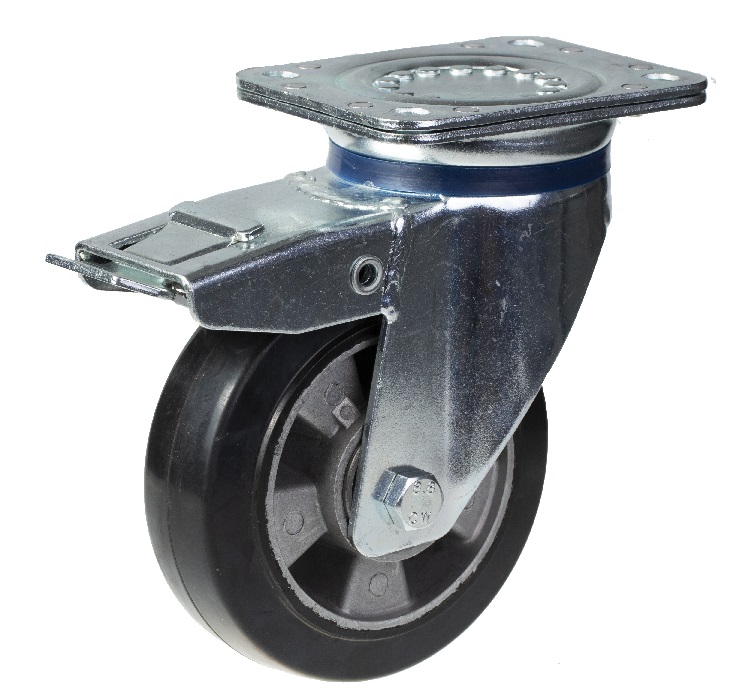

Image for 230041.jpg
Download
