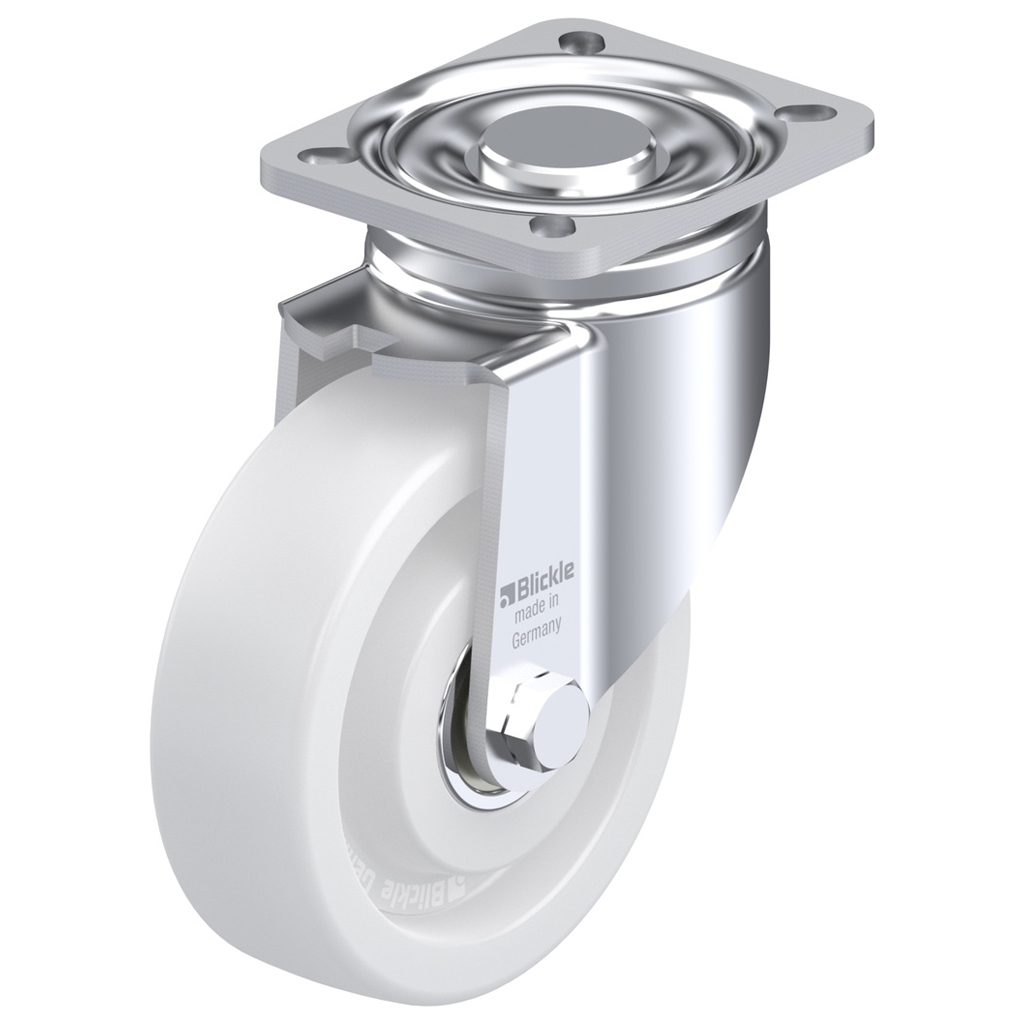

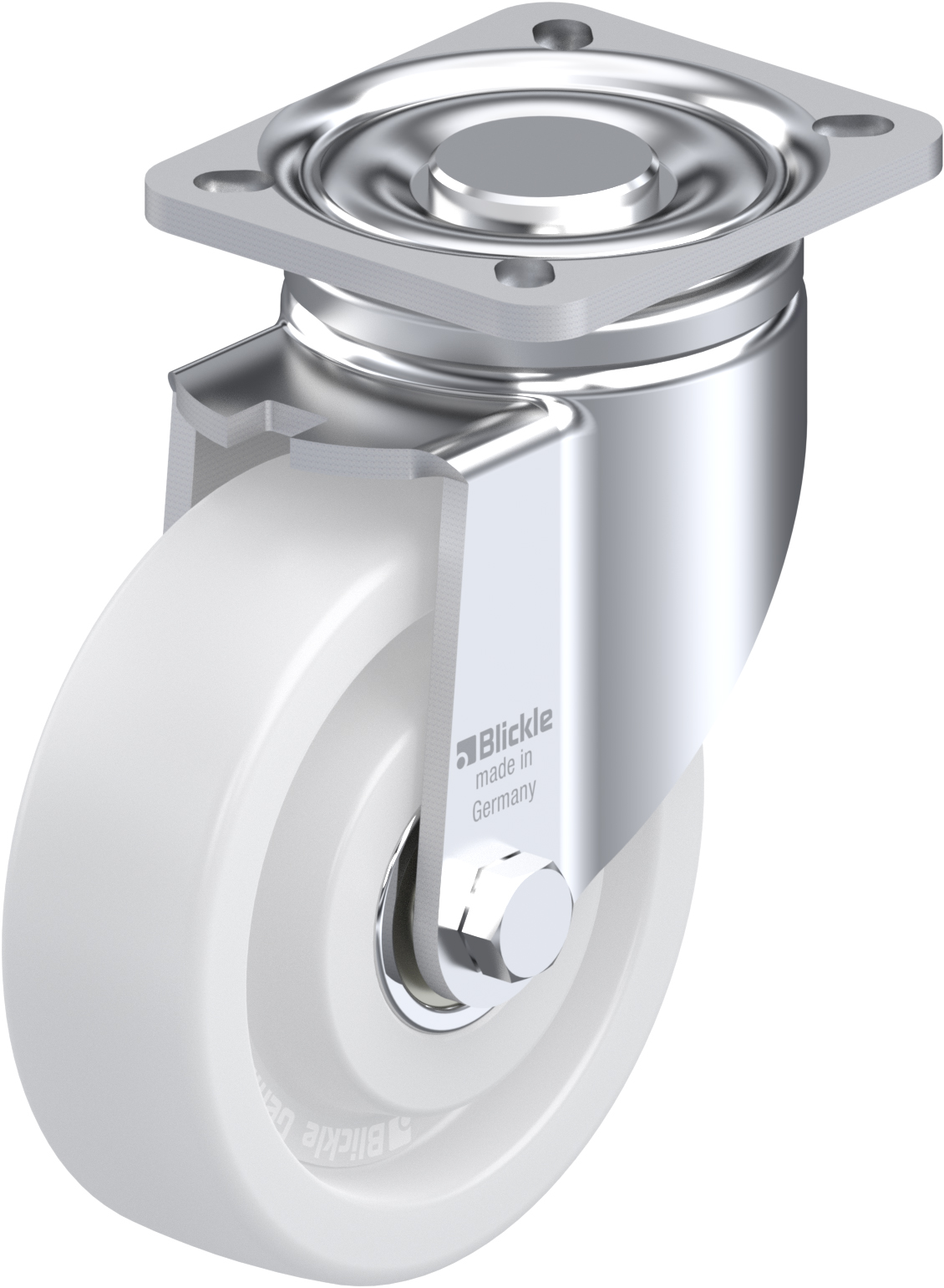

125mm swivel castor with white nylon wheel, 700kg

https://www.parnells.eu/web/image/product.template/34442/image_1920?unique=bbe5923

Part Number: 235366
Wheel Diameter: 125mm (5" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 700kg

103.38 € 103.38 EUR 103.38 €

120.07 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Brand
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
LH series 125mm swivel top plate 100x85mm castor with nylon ball bearing wheel 700kg

125mm swivel castor with white nylon wheel, 700kg

  • Swivel castor with strong top plate bracket made of zinc plated steel with hardened double row ball race in swivel head.

  • Wheel made of white nylon.

  • The hardness of the tread is 70° Shore D.

  • Bolted wheel axle.

  • Very low rolling resistance on clean and even surface.

  • Good chemical resistance to many aggressive substances.

Part Number 235366
Wheel Diameter (mm) 125
Brand Parnells
Tread Width (mm) 40
Bearing Type Ball bearings
Top Plate Size (mm) 100x85
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 165
Load Capacity 3km/h (kg) 700
Blickle Reference LH-SPO 125K-1

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery

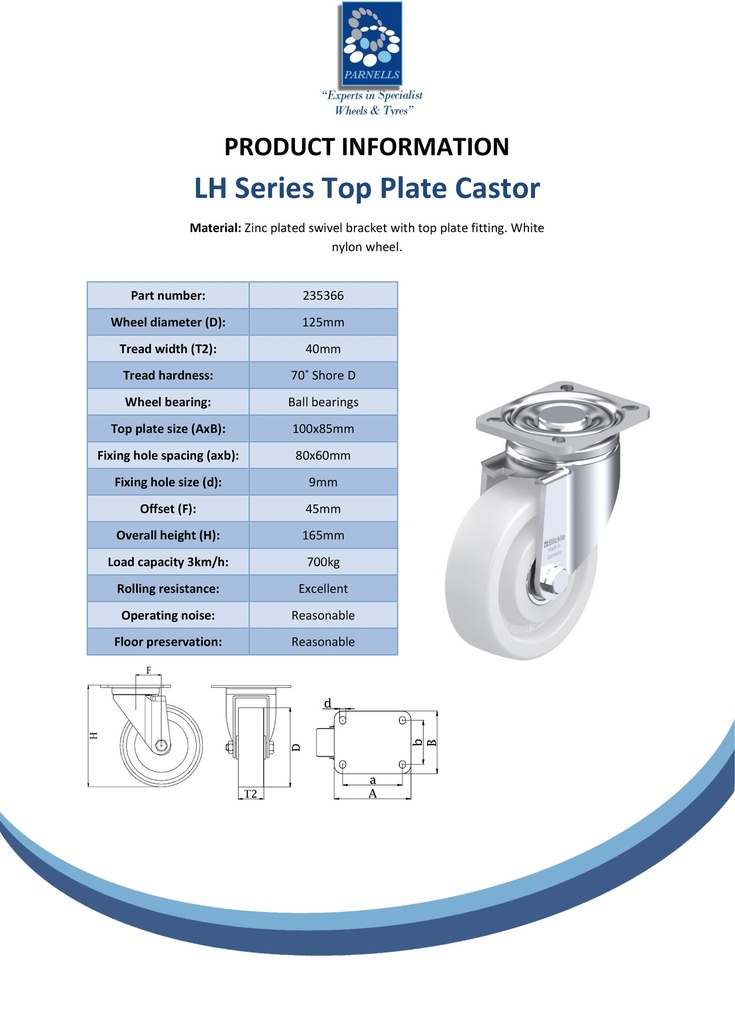

Spec Sheet for 235366.pdf
Download

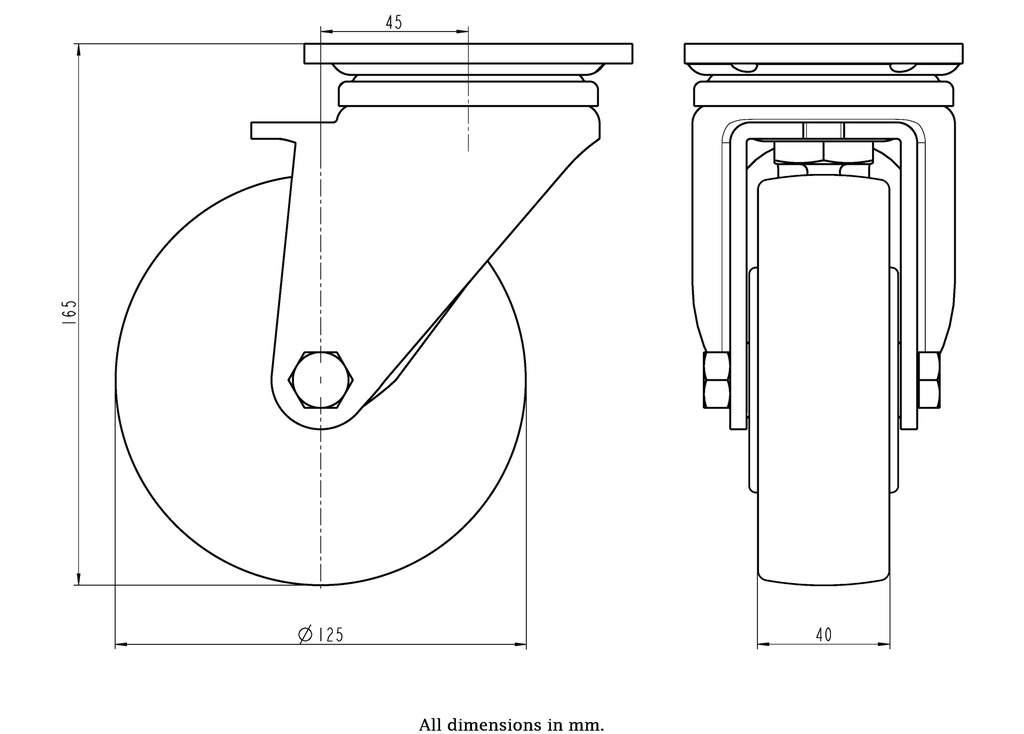

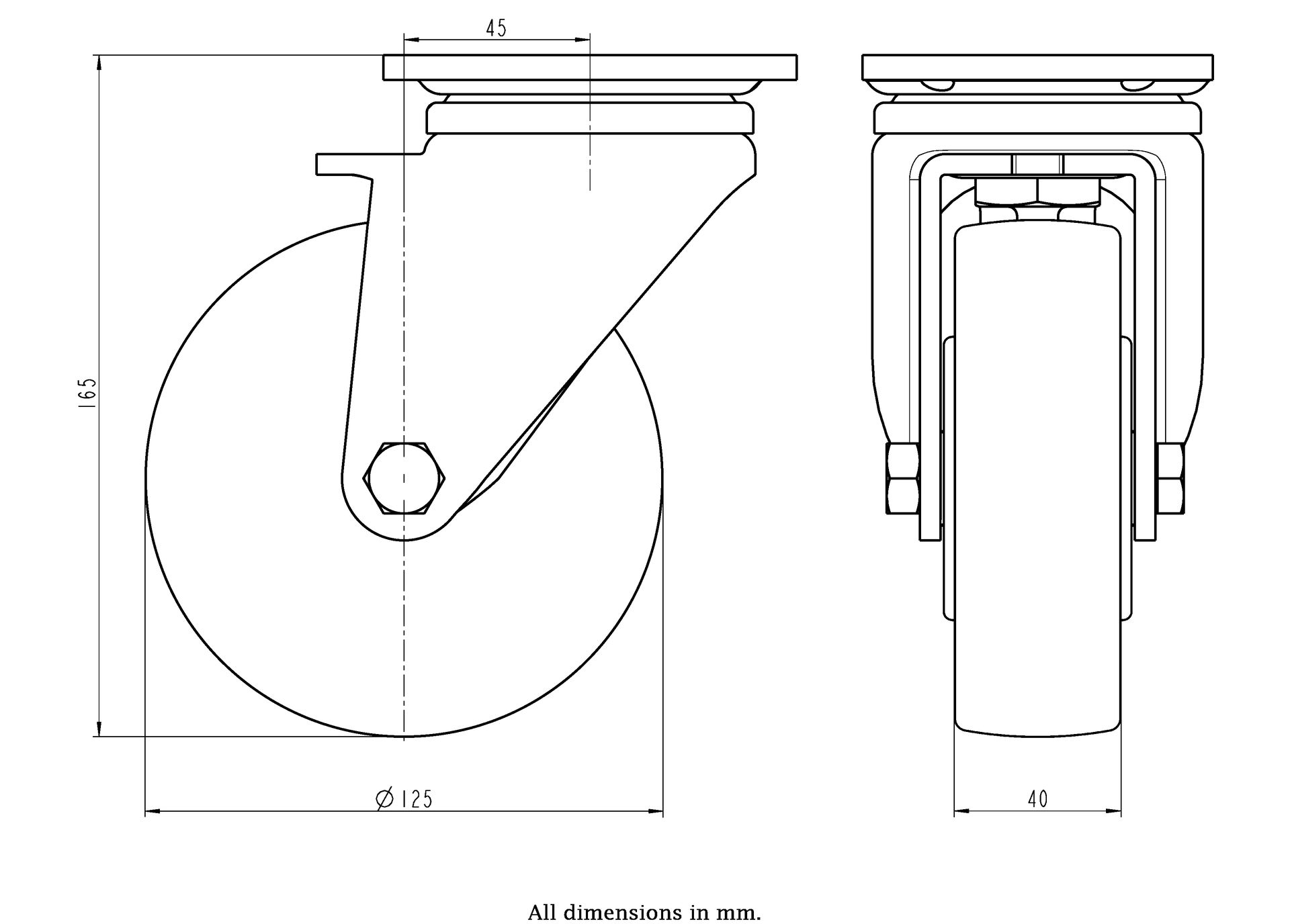

Dimensions for 235366.jpg
Download

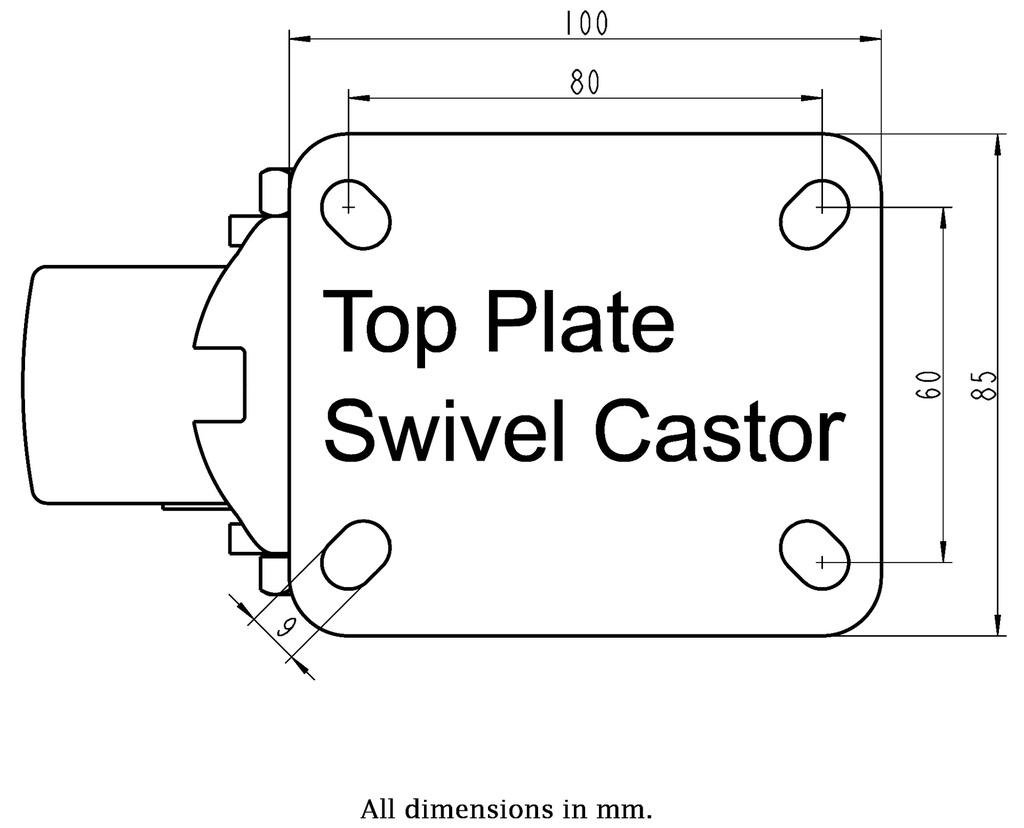

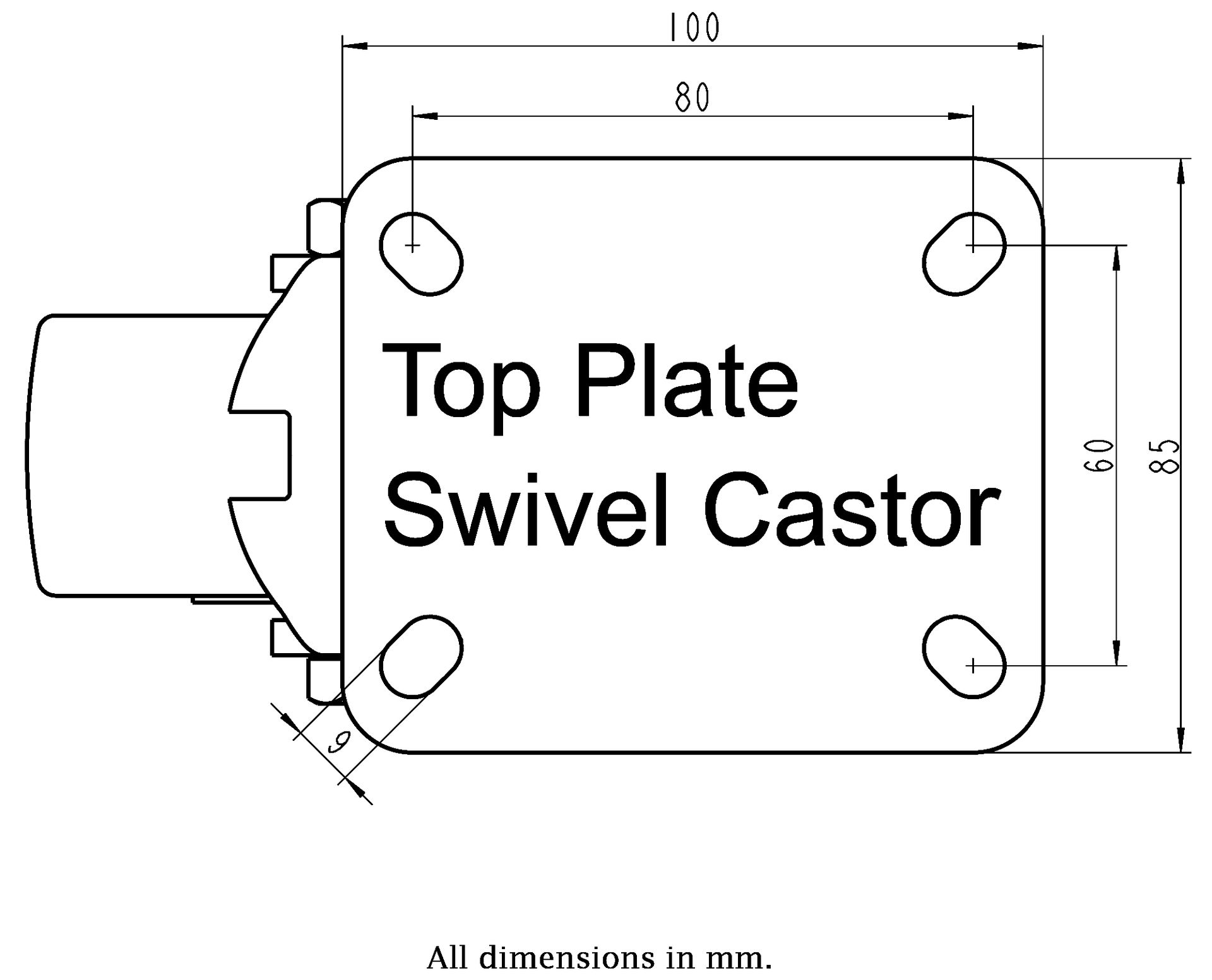

Dimensions for top plate swivel, 065-125mm (1).jpg
