Wheel series 100mm electrically conductive grey thermoplastic rubber on polypropylene centre 12mm bore hub length 45mm plain bearing 70kg
Wheel series 100mm electrically conductive grey thermoplastic rubber on polypropylene centre 12mm bore hub length 45mm plain bearing 70kg
16.69 €
16.69 €
Wheel series 180x50mm Extrathane polyurethane on cast iron centre bore 25mm H7 hub length 60mm plain bearing with keyway 8x3.3mm 850kg
Wheel series 180x50mm Extrathane polyurethane on cast iron centre bore 25mm H7 hub length 60mm plain bearing with keyway 8x3.3mm 850kg
197.56 €
197.56 €

160mm swivel/brake castor with blue elastic rubber on nylon centre wheel, 350kg

https://www.parnells.eu/web/image/product.template/87209/image_1920?unique=4563944

Part Number: 240009
Wheel Diameter: 160mm (6" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 350kg

67.60 € 67.6 EUR 67.60 €

78.51 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

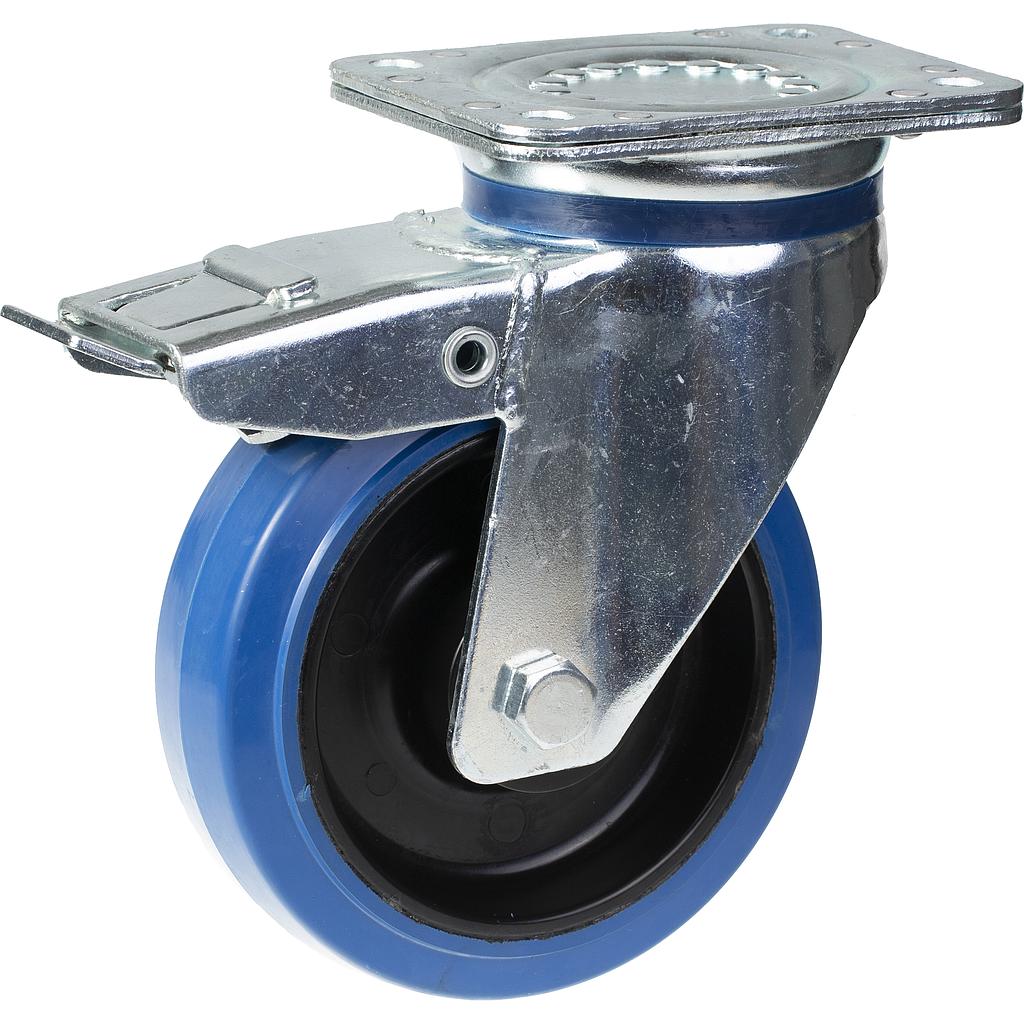

800 series 160mm swivel/brake top plate 135x110mm castor with blue elastic rubber on nylon centre ball bearing wheel 350kg

160mm swivel/brake castor with blue elastic rubber on nylon centre wheel, 350kg

  • Swivel/brake castor with strong top plate bracket made of zinc plated steel with sealed hardened double row ball race in swivel head, grease nipple and dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with blue elastic rubber vulcanized on nylon centre.

  • The hardness of the tread is 70° Shore A.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise. Very good floor preservation.

  • The high elasticity of the rubber makes the wheel resume to its round shape faster, avoiding flat spots, and therefore gives a lower rolling resistance than for standard grade rubber.

  • Good chemical resistance except to oils.

Wheel Diameter (mm) 160
Tread Width (mm) 42
Bearing Type Ball bearings
Top Plate Size (mm) 135x110
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 215
Load Capacity 3km/h (kg) 350

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 240009.pdf
Download

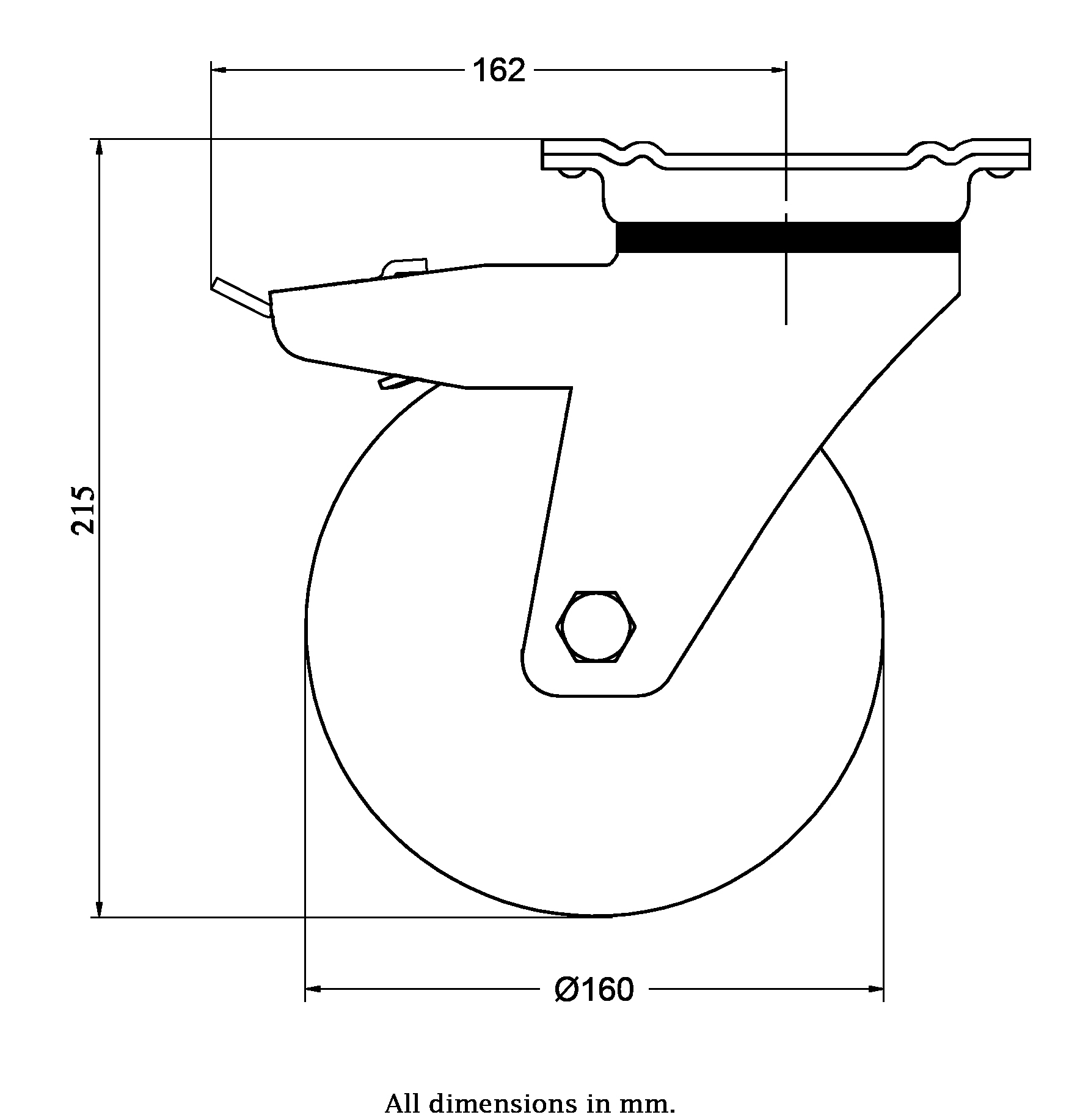

Dimensions for 240009.jpg
Download

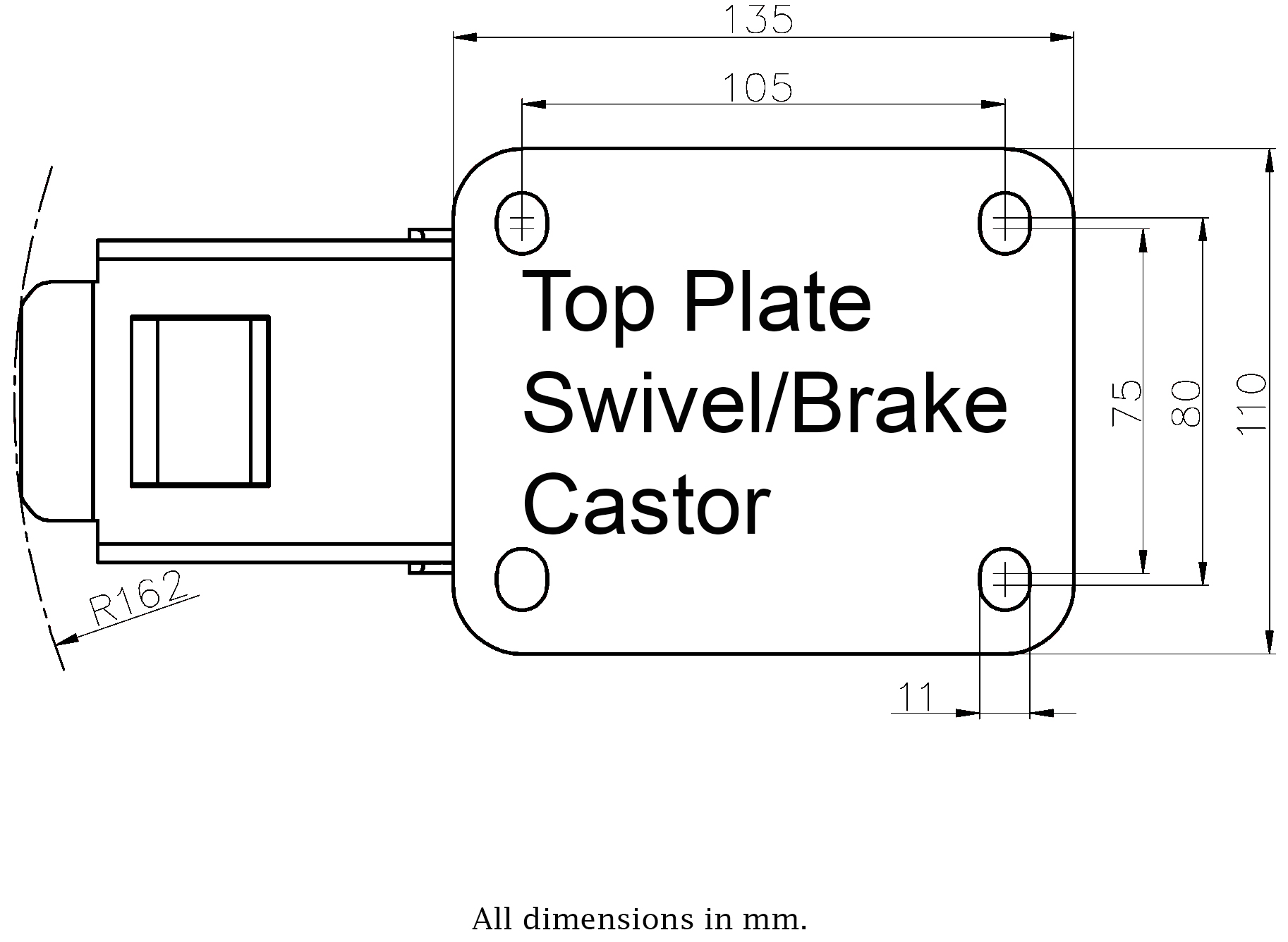

Dimensions for top plate brake, 125-200mm.jpg
Download

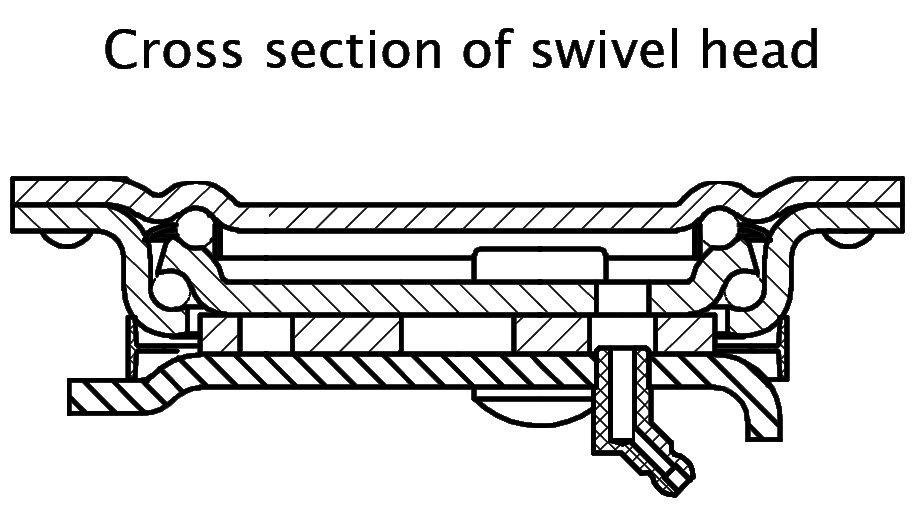

Image for cross section swivel head, 800 series.jpg
Download

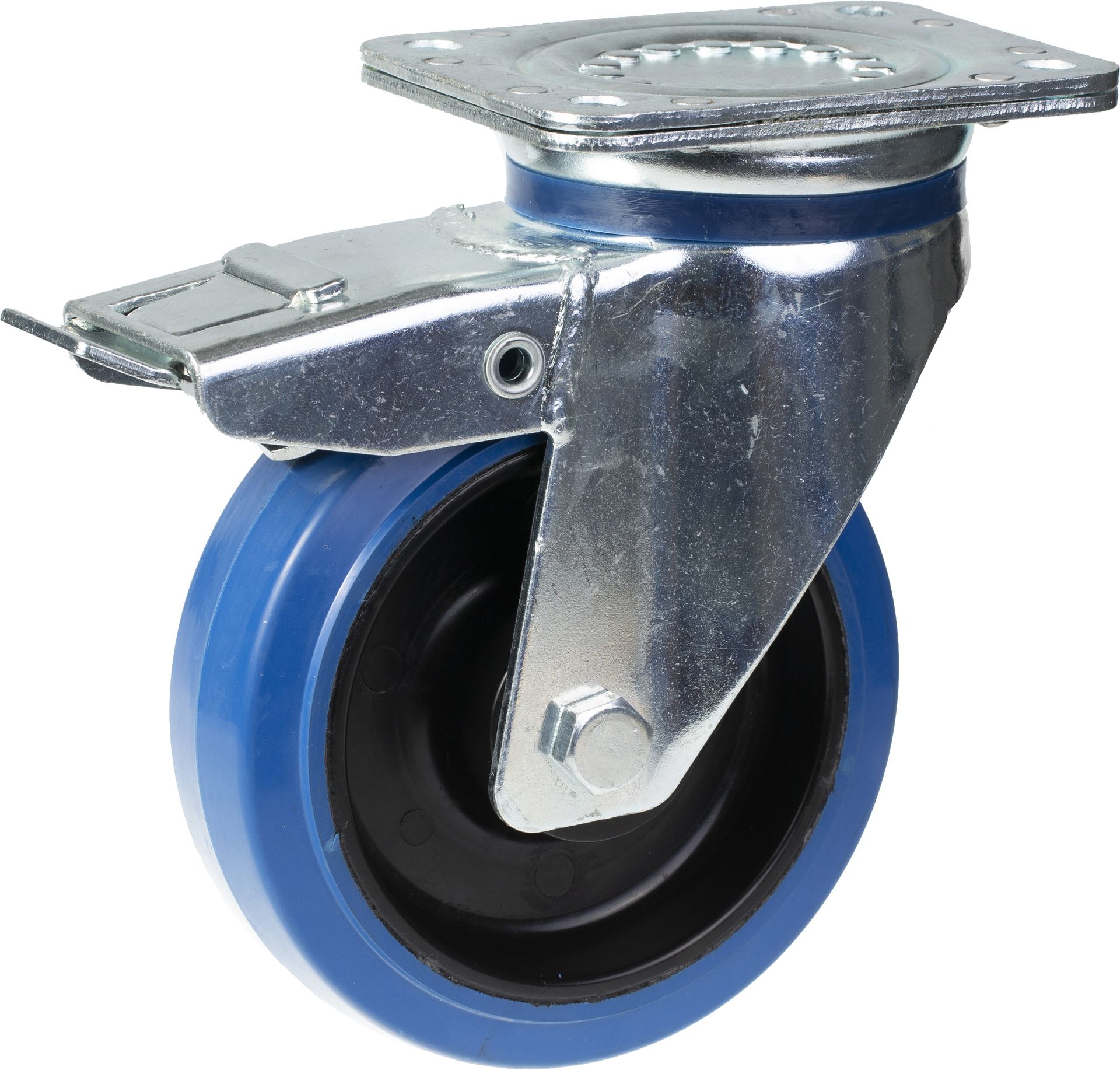

Image for 240009.jpg
Download
