80mm stainless steel swivel/brake castor with blue elastic rubber on nylon centre wheel, 140kg

https://www.parnells.eu/web/image/product.template/65154/image_1920?unique=ac3155a
(0 review)

Part Number: 250023
Wheel Diameter: 80mm
Castor Bracket Material: Stainless Steel
Load Capacity: 140kg

39.82 € 39.82 EUR 39.82 €

46.25 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

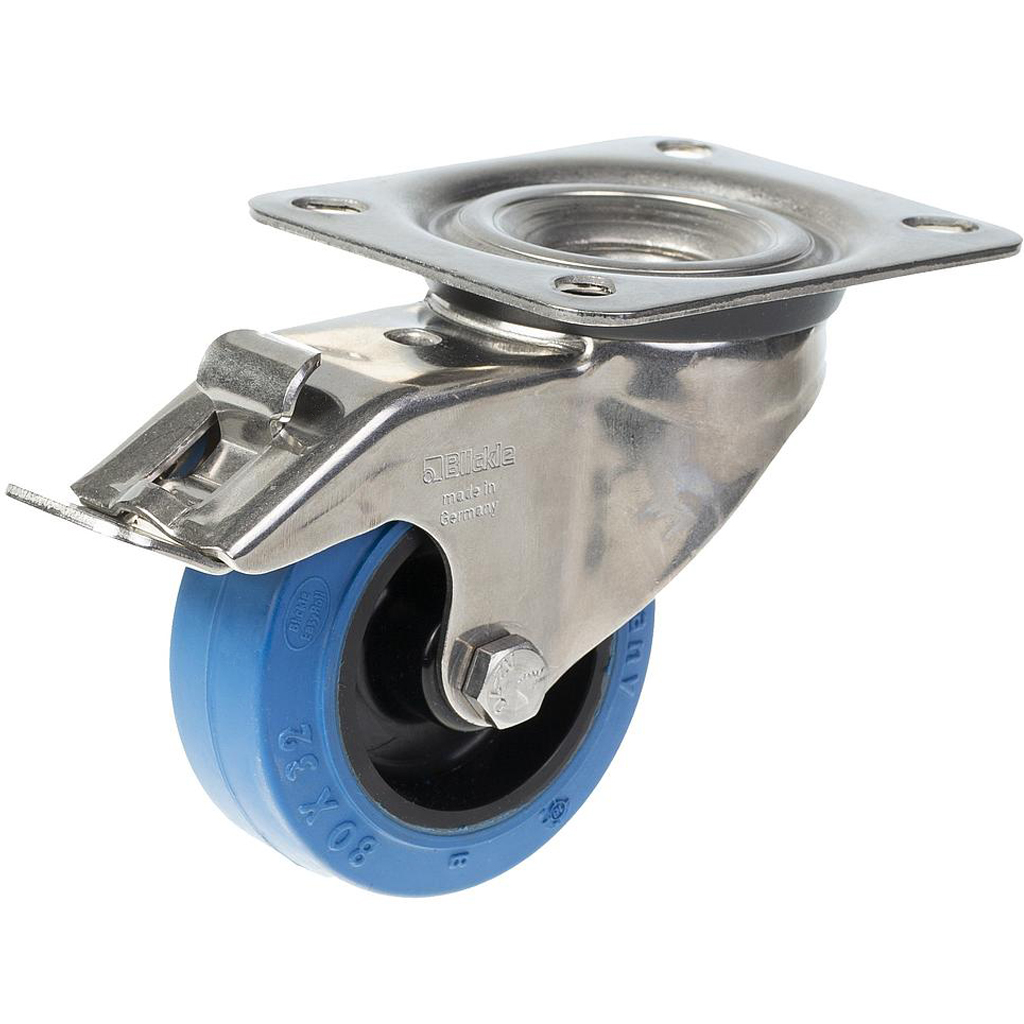

80mm stainless steel swivel/brake castor with blue elastic rubber on nylon centre wheel, 140kg

  • Swivel/brake castor with top plate bracket made of stainless steel with double row ball race in swivel head (material no. 1.4301/AISI 304), with dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with blue elastic rubber vulcanized on nylon centre.

  • The hardness of the tread is 70° Shore A.

  • Bolted wheel axle.

  • Low rolling resistance and operation noise. Very good floor preservation.

  • The high elasticity of the rubber makes the wheel resume to its round shape faster, avoiding flat spots, and therefore gives a lower rolling resistance than for standard grade rubber.

  • Good chemical resistance, except to oils.

300SS series 80mm stainless steel swivel/brake top plate 100x85mm castor with blue elastic rubber on nylon centre plain bearing wheel 140kg

Add to cart

Sign in

Pay

Get Delivered

Part Number 250023
Wheel Diameter (mm) 80
Tread Width (mm) 32
Bearing Type Plain bearing
Top Plate Size (mm) 100x85
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 105
Load Capacity 3km/h (kg) 140
Blickle Reference LEX-POEV 80G-FI
