100mm stainless steel swivel/brake castor with red thermoplastic polyurethane on nylon centre wheel, 300kg

https://www.parnells.eu/web/image/product.template/88419/image_1920?unique=4524058
(0 review)

Part Number: 283223
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Stainless Steel
Load Capacity: 300kg

110.95 € 110.95 EUR 110.95 €

128.86 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

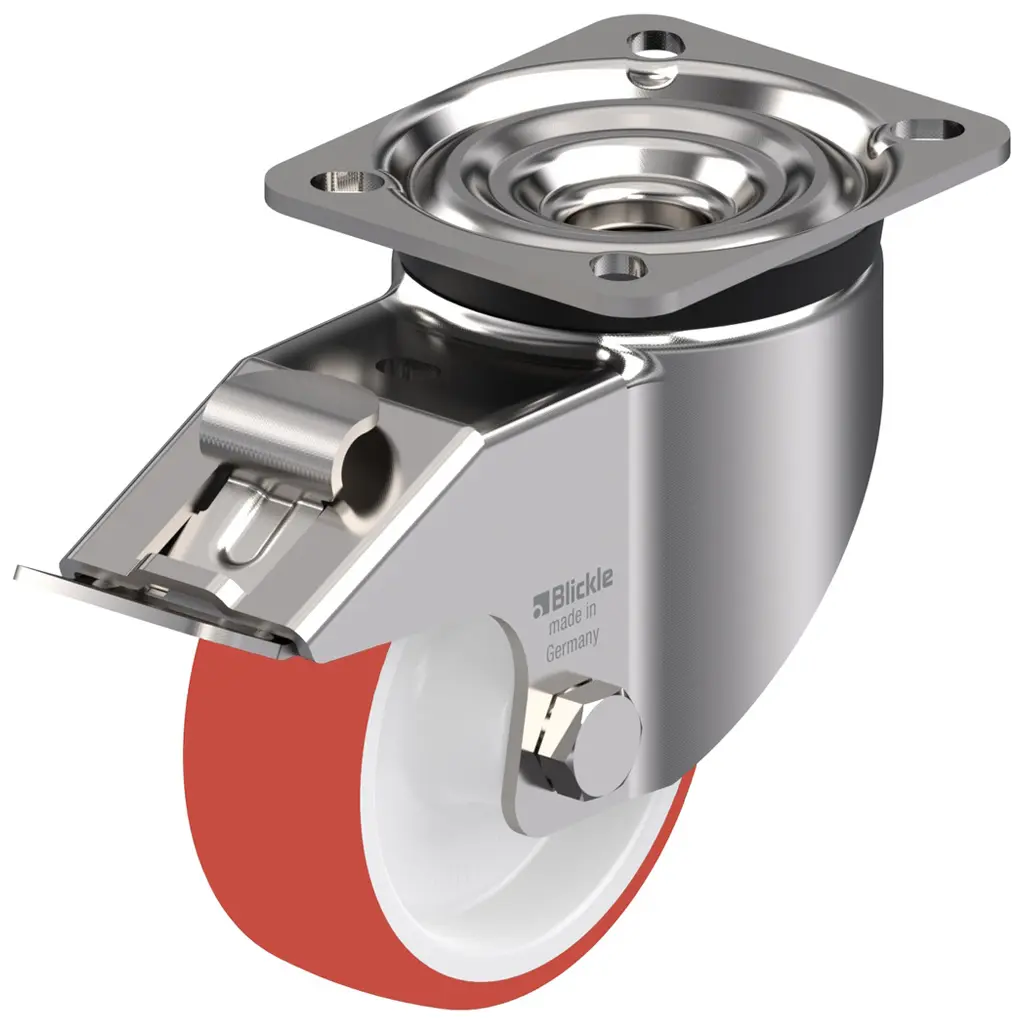

100mm stainless steel swivel/brake castor with red thermoplastic polyurethane on nylon centre wheel, 300kg

  • Swivel/brake castor with strong top plate bracket made of stainless steel with double row ball race in swivel head (material no. 1.4301/AISI 304), with dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with red thermoplastic polyurethane chemically bonded on nylon centre.

  • The hardness of the tread is 98° Shore A.

  • Bolted wheel axle.

  • High wear resistance and good floor preservation, non-marking.

  • Low rolling resistance and operating noise.

  • Good chemical resistance to many aggressive substances.

800SS series 100mm stainless steel swivel/brake top plate 100x85mm castor with polyurethane on nylon centre plain bearing wheel 300kg

Add to cart

Sign in

Pay

Get Delivered

Part Number 283223
Wheel Diameter (mm) 100
Tread Width (mm) 40
Bearing Type Plain bearing
Top Plate Size (mm) 100x85
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 130
Load Capacity 3km/h (kg) 300
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now
Dimensions for top plate brake, 100-125mm.jpg
Download

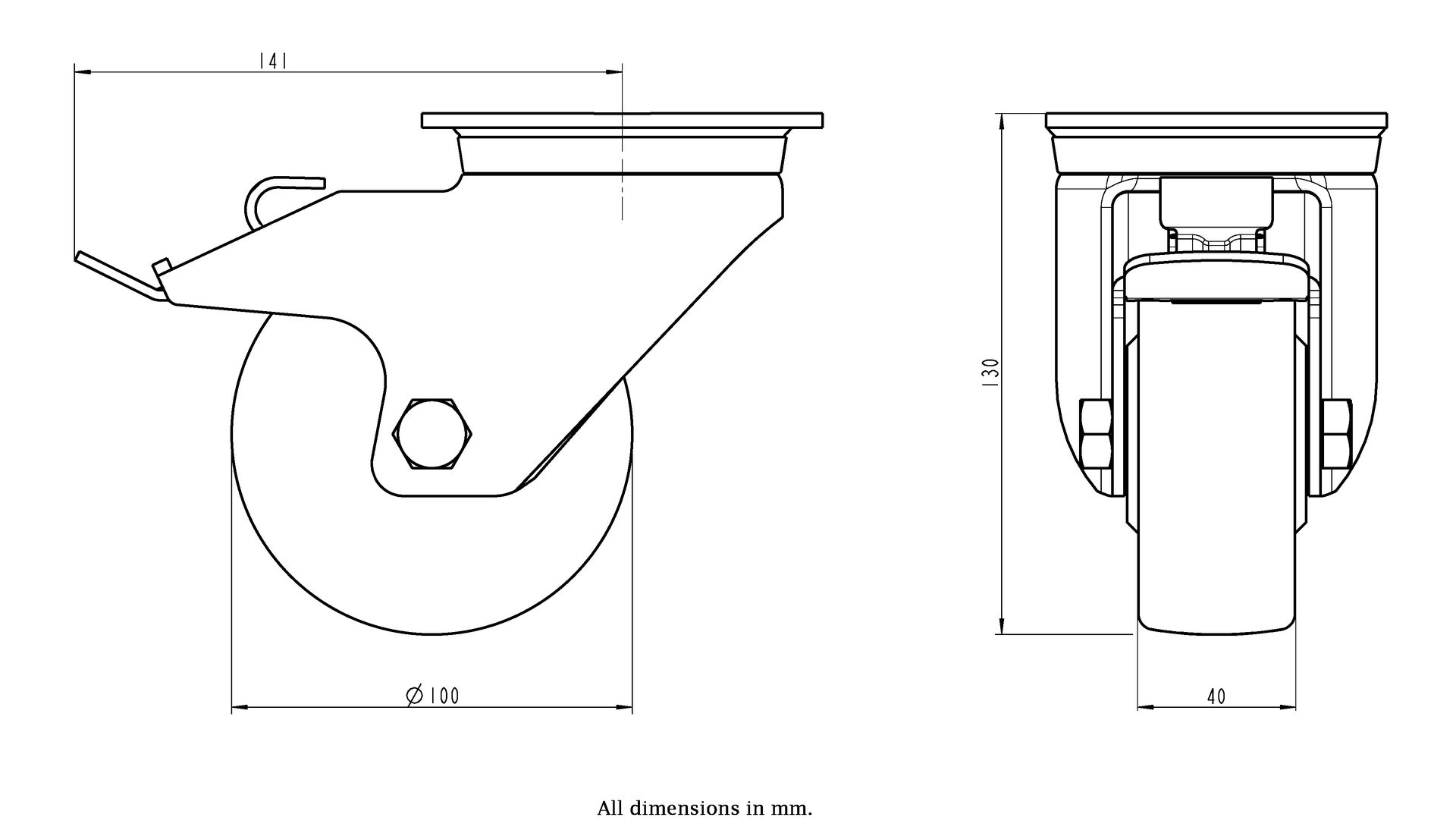

Dimensions for 283223.jpg
