125mm swivel/brake castor with yellow polyurethane on cast iron centre wheel, 280kg

https://www.parnells.eu/web/image/product.template/30752/image_1920?unique=79ed0c4

Part Number: 283302
Wheel Diameter: 125mm (5" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 280kg

52.03 € 52.03 EUR 52.03 €

60.43 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

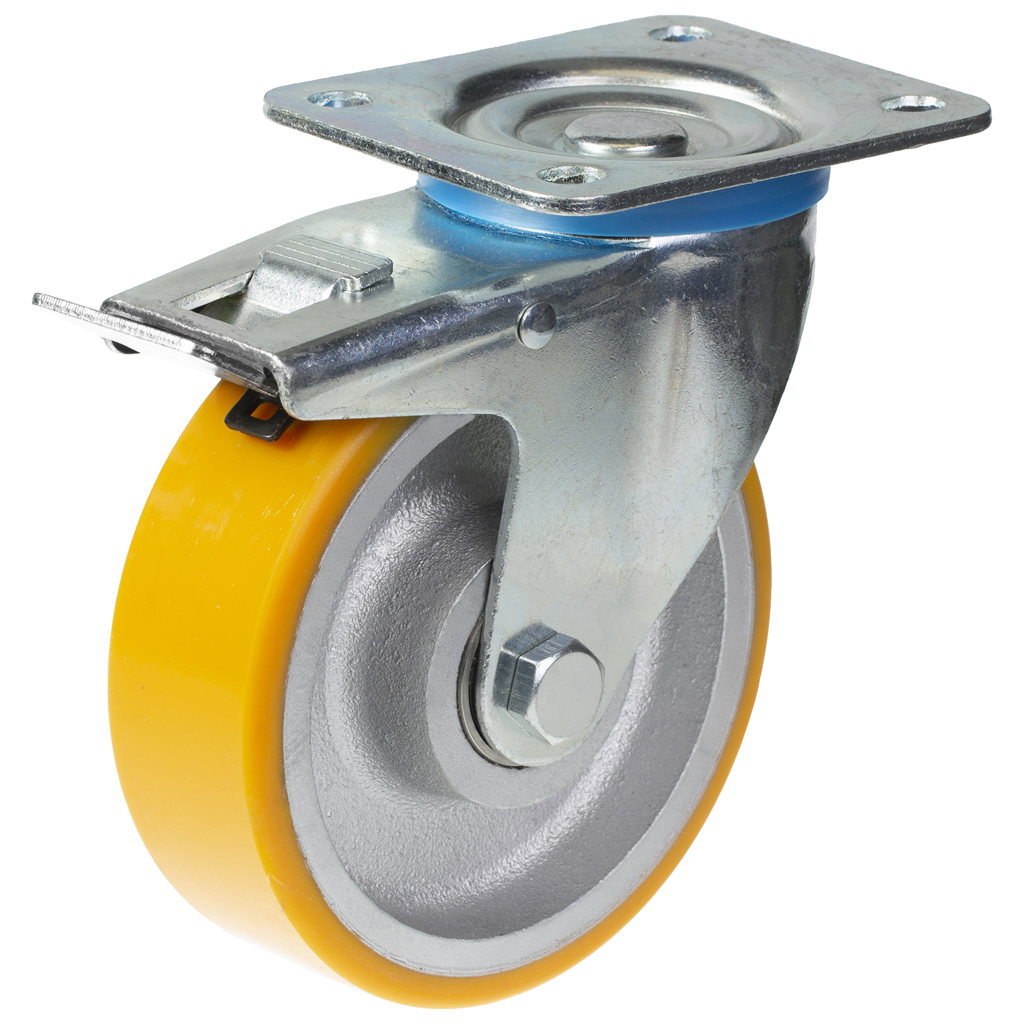

322 series 125mm swivel/brake top plate 106x86mm castor with polyurethane on cast iron centre ball bearing wheel 280kg

125mm swivel/brake castor with yellow polyurethane on cast iron centre wheel, 280kg

  • Swivel/brake castor with top plate bracket made of zinc plated steel with double row ball race in swivel head and dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with yellow polyurethane moulded on cast iron centre.

  • The hardness of the tread is 93° Shore A.

  • Bolted wheel axle.

  • High wear resistance and good floor preservation, non-marking.

  • Low rolling resistance and operating noise.

  • Good chemical resistance to many aggressive substances.

Wheel Diameter (mm) 125
Tread Width (mm) 40
Bearing Type Ball bearings
Top Plate Size (mm) 106x86
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 154
Load Capacity 3km/h (kg) 280
