160mm fixed castor with grey rubber on polypropylene centre wheel, 135kg

https://www.parnells.eu/web/image/product.template/86652/image_1920?unique=42e0aee

Part Number: 352047
Wheel Diameter: 160mm (6" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 135kg

25.52 € 25.52 EUR 25.52 €

29.64 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

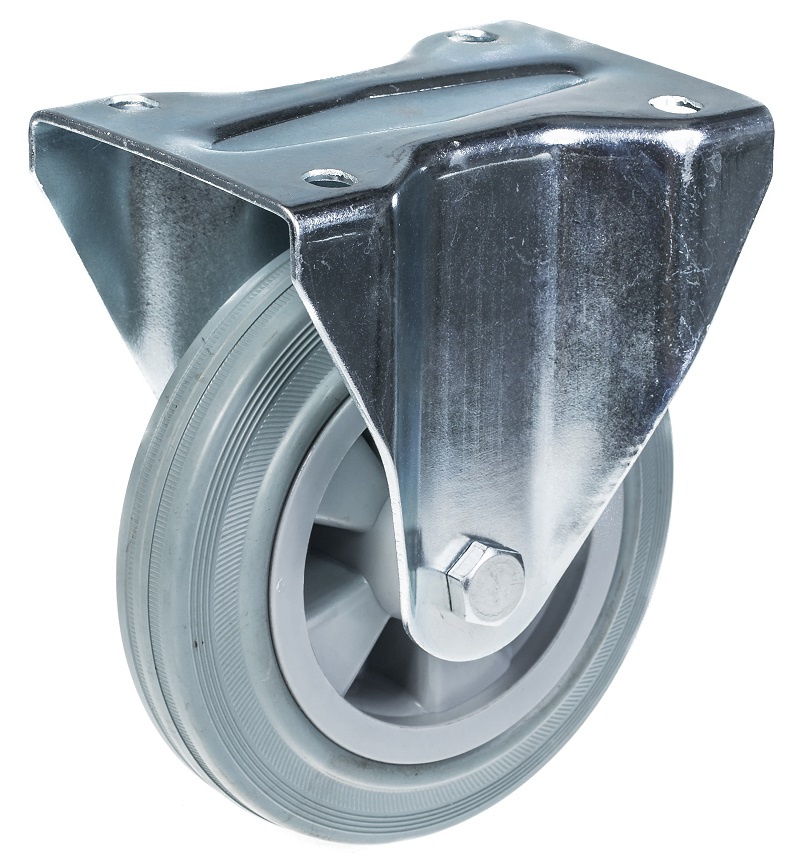

300 series 160mm fixed top plate 146x107mm castor with grey rubber on polypropylene centre plain bearing wheel 135kg

160mm fixed castor with grey rubber on polypropylene centre wheel, 135kg

  • Fixed castor with top plate bracket made of zinc plated steel.

  • Wheel with grey rubber on polypropylene centre.

  • The hardness of the tread is 85° Shore A.

  • Bolted wheel axle.

  • Reasonable rolling resistance and low operating noise. Very good floor preservation and non-marking.

  • Good chemical resistance except to oils.

Part Number 352047
Wheel Diameter (mm) 160
Tread Width (mm) 38
Bearing Type Plain bearing
Top Plate Size (mm) 146x107
Fixing Hole Spacing (mm) 105x80
Fixing Hole Size (mm) 11
Overall Height (mm) 193
Load Capacity 3km/h (kg) 135

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery

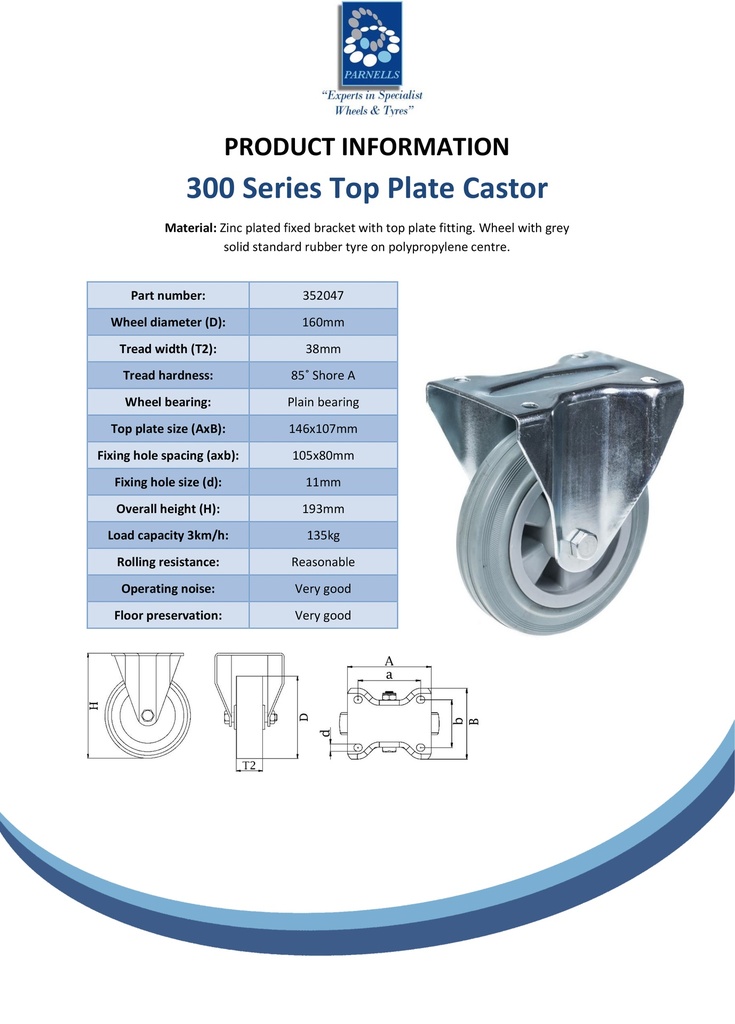

Spec Sheet for 352047.pdf
Download

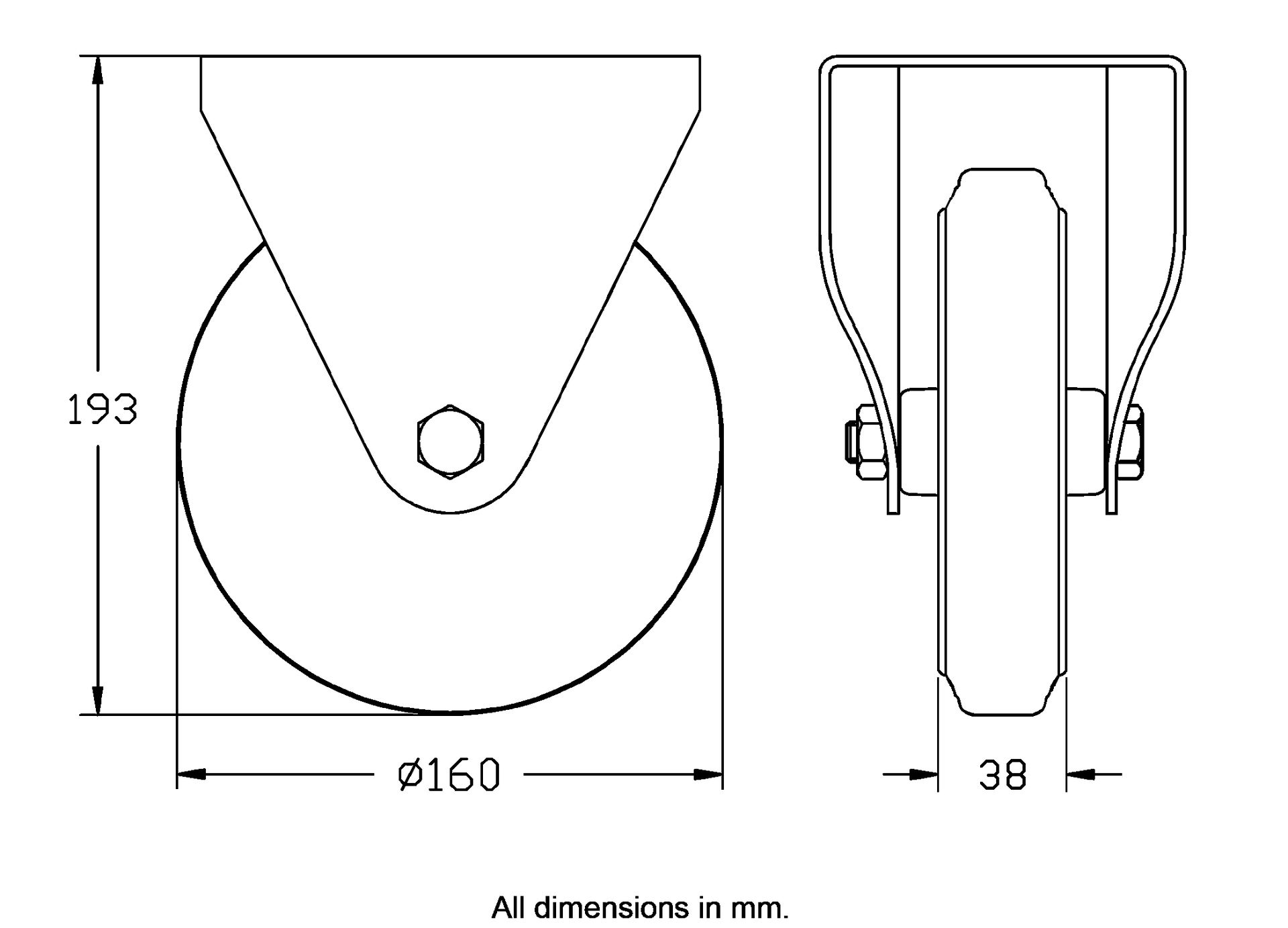

Dimensions for 352047.jpg
Download

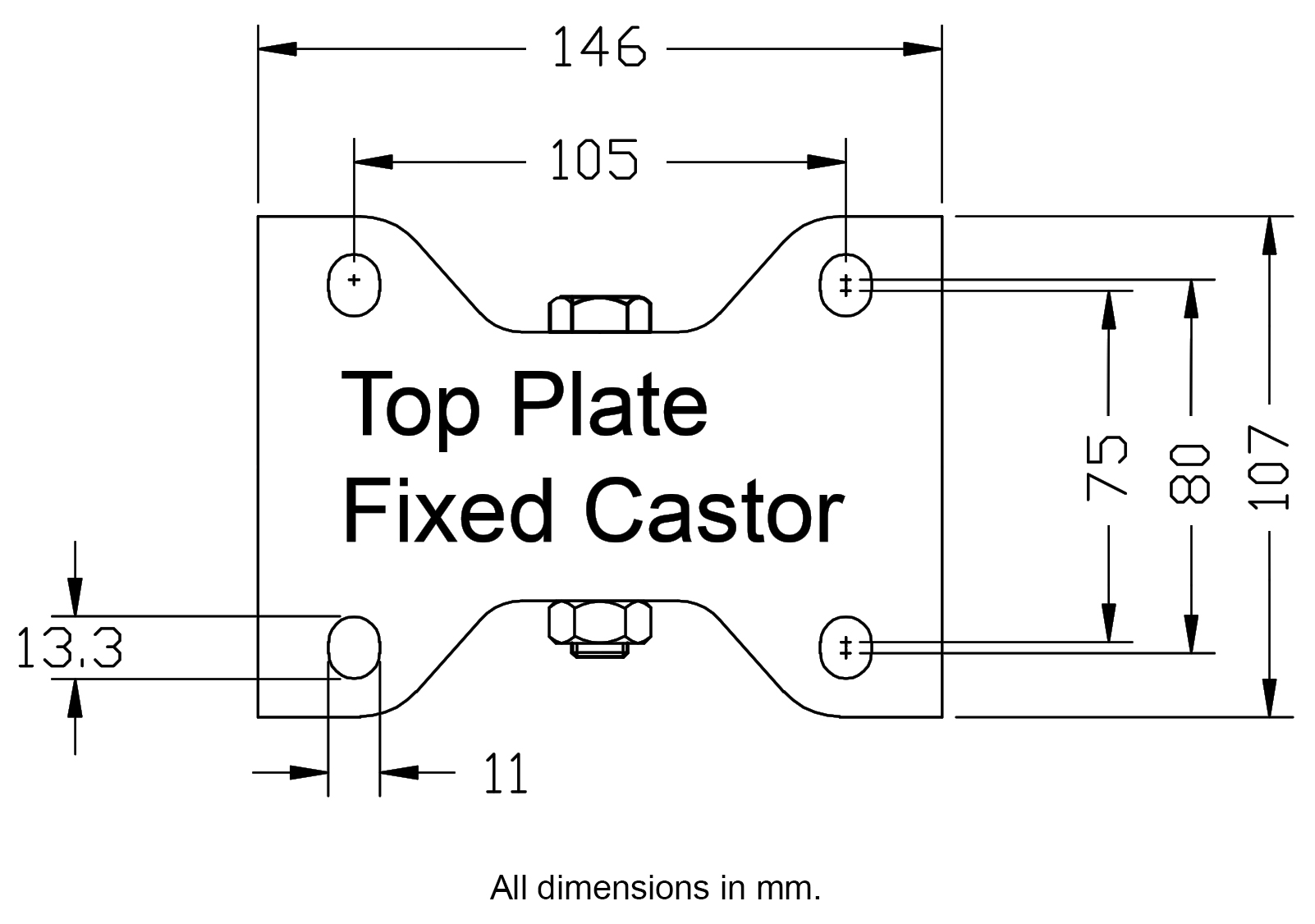

Dimensions for top plate fixed, 125-200mm.jpg
Download

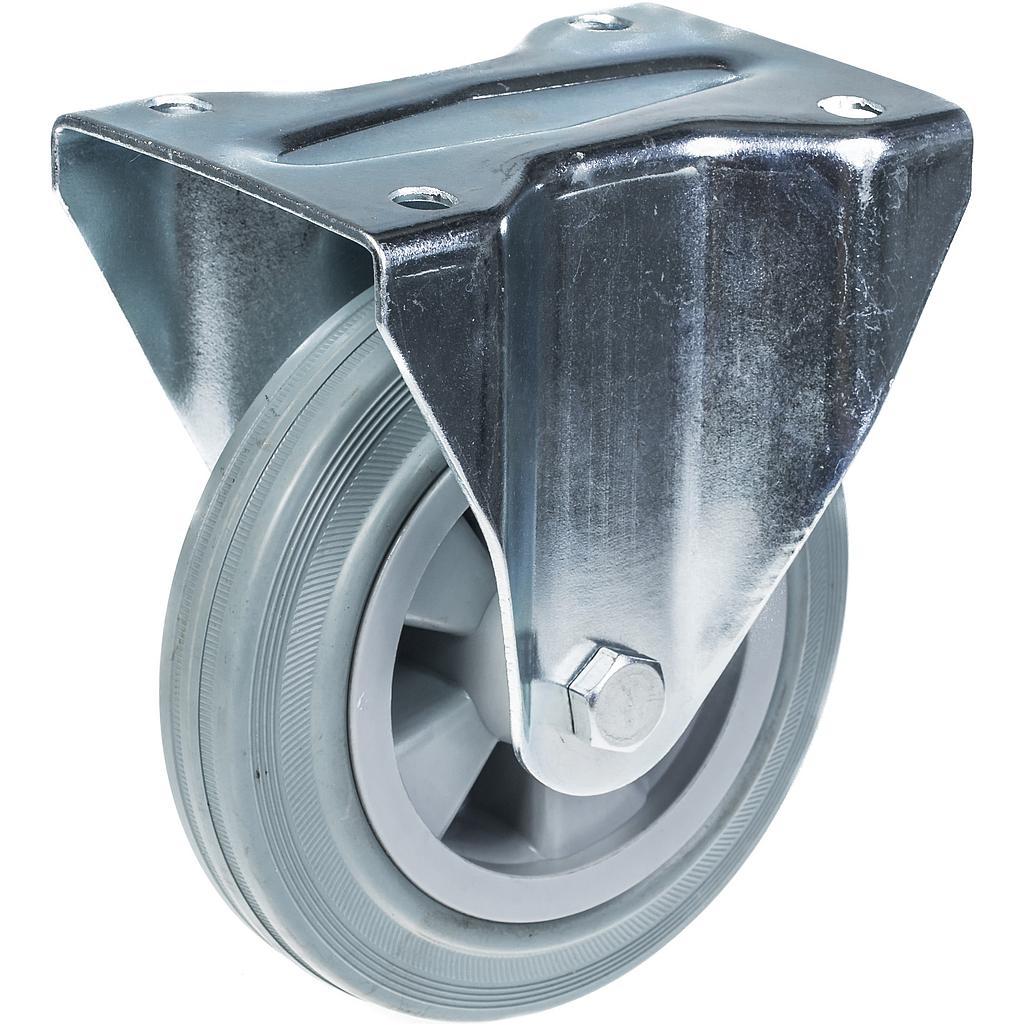

Image for 352047.jpg
Download
