Login for trade account prices

T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
80mm Steel drop profile weldable hinge, fixed pin (self colour)
80mm Steel drop profile weldable hinge, fixed pin (self colour)
2.31 €
2.31 €

200mm swivel/brake castor with red thermoplastic polyurethane on nylon centre wheel, 750kg

https://www.parnells.eu/web/image/product.template/87259/image_1920?unique=4cbeaa4
(0 review)

Part Number: 410023
Wheel Diameter: 200mm (8" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 750kg

161.10 € 161.1 EUR 161.10 €

187.11 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

200mm swivel/brake castor with red thermoplastic polyurethane on nylon centre wheel, 750kg

  • Swivel/brake castor with very strong top plate bracket made of zinc plated steel with a combination of thrust ball bearing and taper roller bearing in swivel head, with dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with red thermoplastic polyurethane chemically bonded on nylon centre.

  • The hardness of the tread is 98° Shore A.

  • Bolted wheel axle.

  • High wear resistance and good floor preservation, non-marking.

  • Low rolling resistance and operating noise.

  • Good chemical resistance to many aggressive substances.

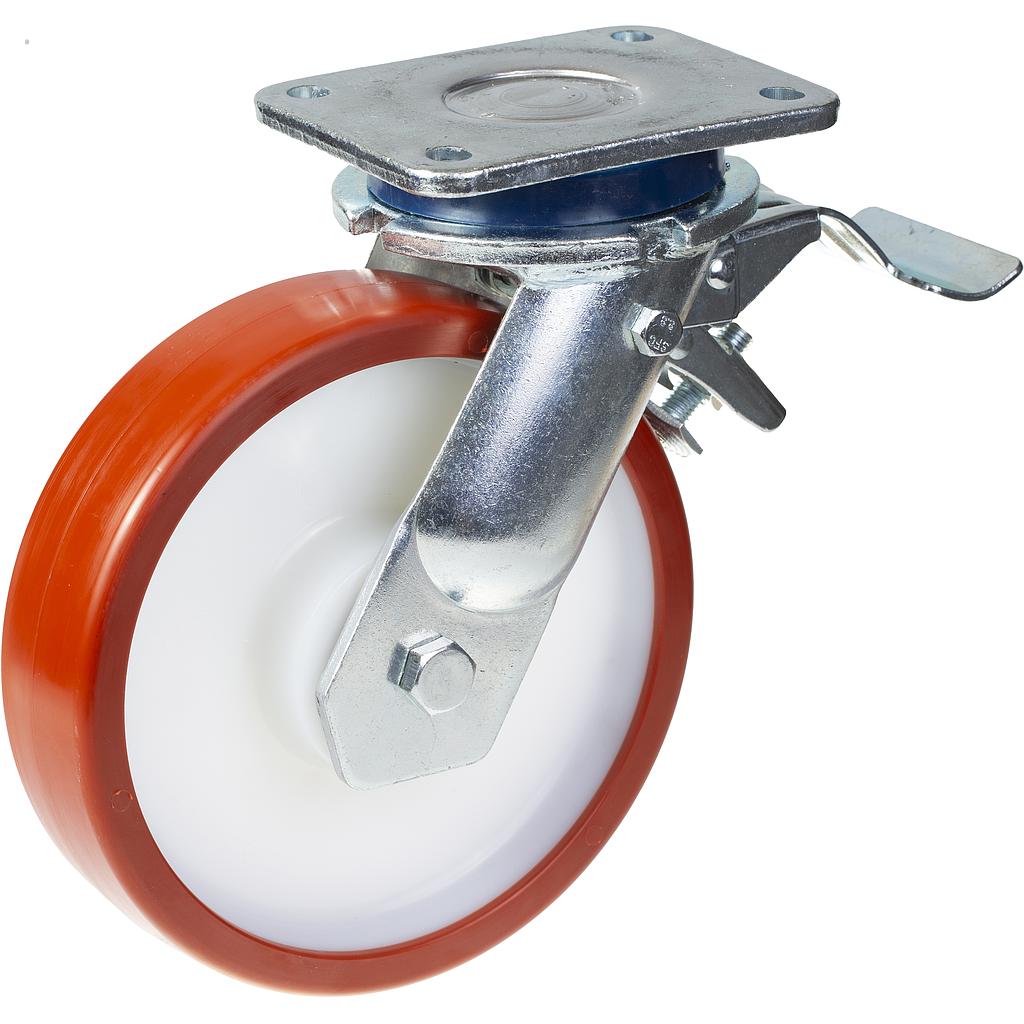

1500 series 200mm swivel/brake top plate 135x110mm castor with  polyurethane on nylon centre ball bearing wheel 750kg

Add to cart

Sign in

Pay

Get Delivered

Part Number 410023
Wheel Diameter (mm) 200
Tread Width (mm) 50
Bearing Type Ball bearings
Top Plate Size (mm) 135x110
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 245
Load Capacity 3km/h (kg) 750
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now

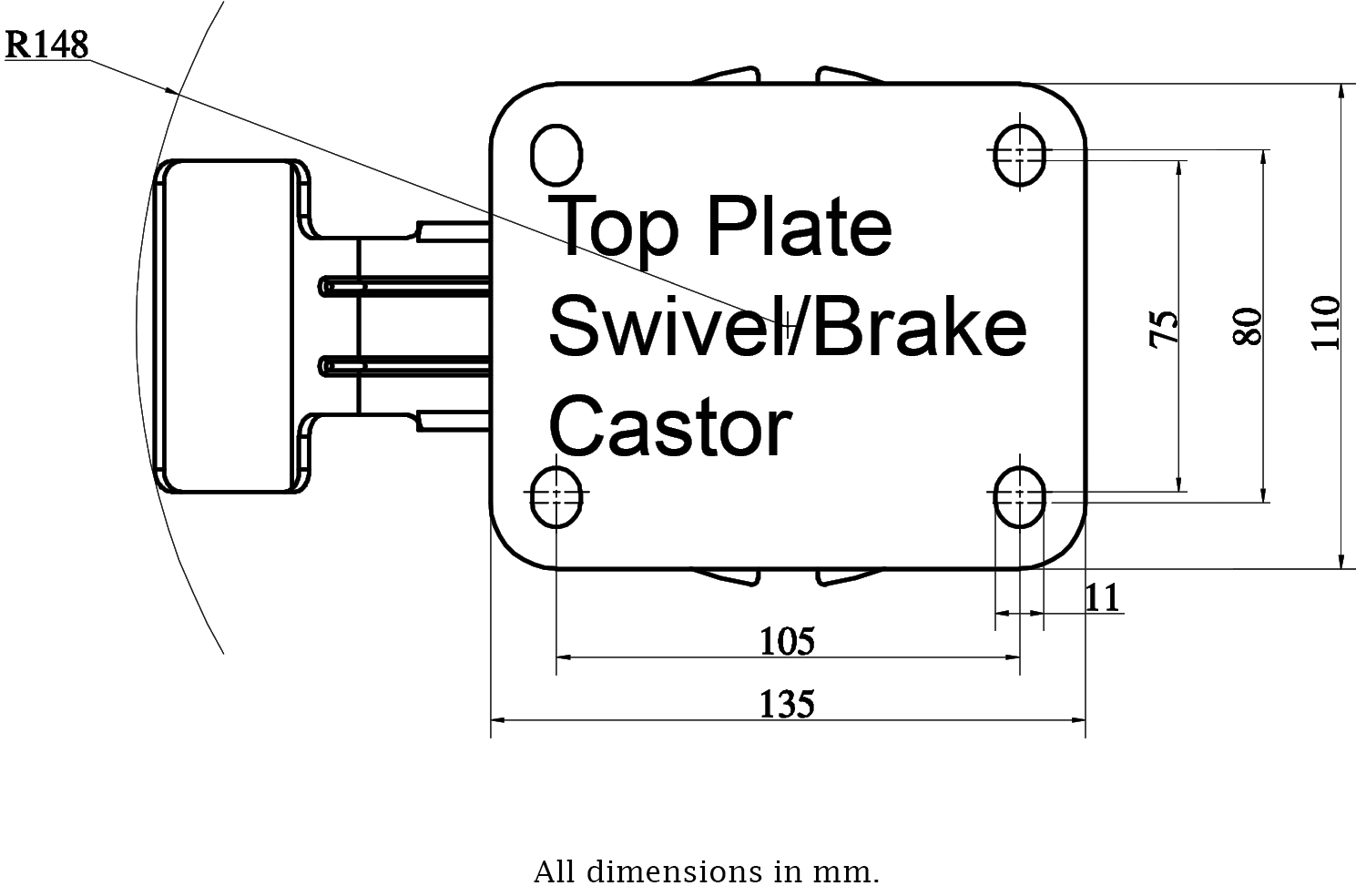

Dimensions for top plate brake, 125-250mm.jpg
Download

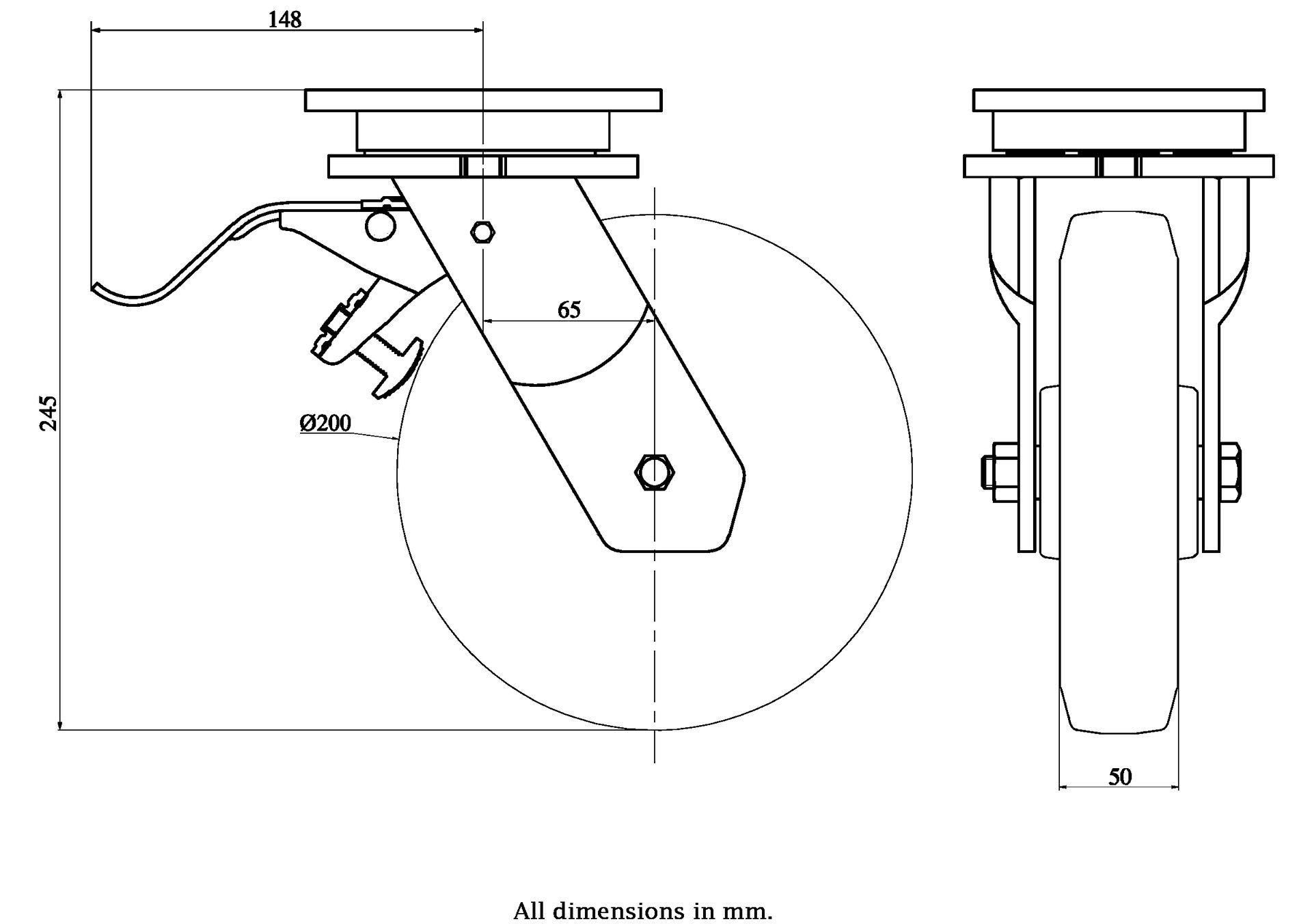

Dimensions for 410023.jpg
Download

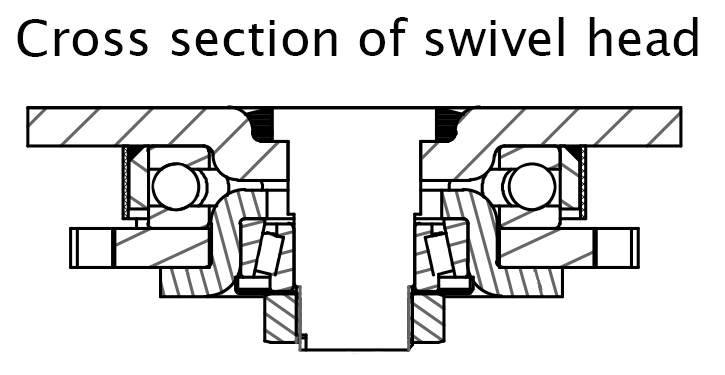

Image for cross section swivel head, 1500 series.jpg
Download

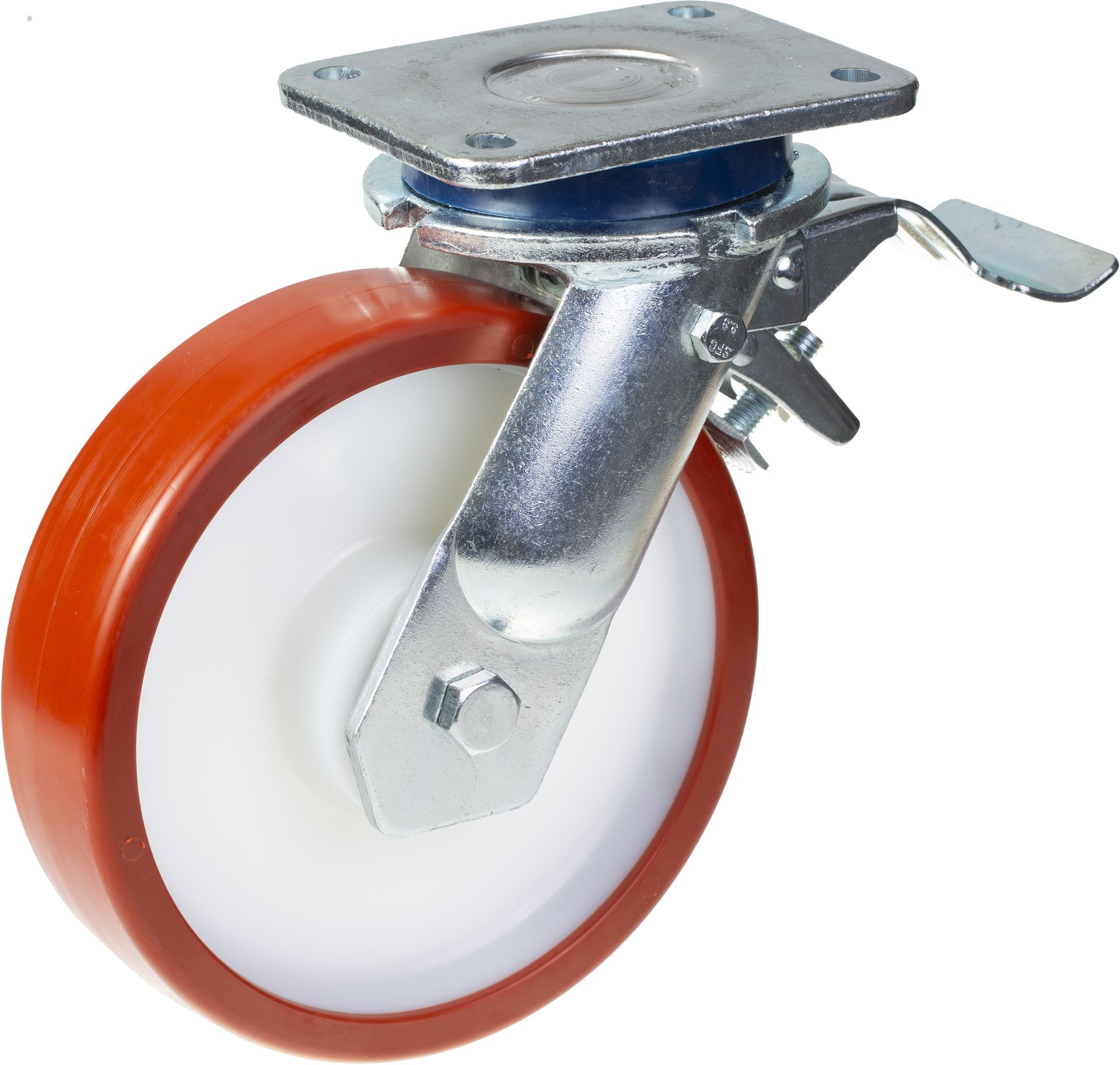

Image for 410023.jpg
Download
Spec Sheet for 410023.pdf
Download
