400mm wheel with brown polyurethane on cast iron centre with keyway, 2800kg

https://www.parnells.eu/web/image/product.template/48106/image_1920?unique=09ab522

Part Number: 459990
Wheel Size: 400x80mm
Bearing Type: Plain Bearing + Keyway
Load Capacity: 2800kg

1,064.84 € 1064.84 EUR 1,064.84 €

1,236.75 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Wheel Bore (mm)
  • Hub Groove Length (mm)
  • Hub Groove Height (mm)
  • Hub Length (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
Wheel series 400x80mm Extrathane polyurethane on a cast iron centre bore 50mm H7 hub length 80mm plain bearing with keyway 14x3.8mm 2800kg

400mm wheel with brown polyurethane on cast iron centre with keyway, 2800kg

  • Plain bore keywayed in according to DIN 6885.

  • High wear resistance and good floor preservation, non-marking.

  • Low rolling resistance and operating noise.

  • The hardness of the tread is 92° Shore A.

  • Good chemical resistance to many aggressive substances.

Part Number 459990
Wheel Diameter (mm) 400
Tread Width (mm) 80
Bearing Type Plain bearing + keyway
Wheel Bore (mm) 50 H7
Hub Groove Length (mm) 14 JS9
Hub Groove Height (mm) 53.8
Hub Length (mm) 80
Load Capacity 3km/h (kg) 2800
Blickle Reference GTHN 402/50H7

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 459990.pdf
Download
Image for 459990.jpg
Download

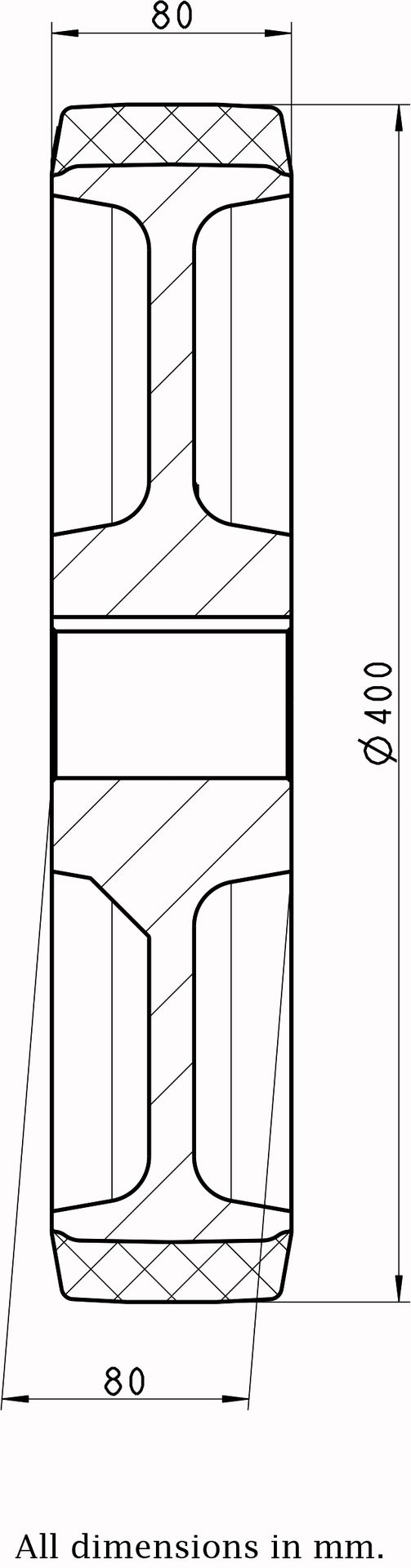

Dimensions for 459990 - Wheel.jpg
Download

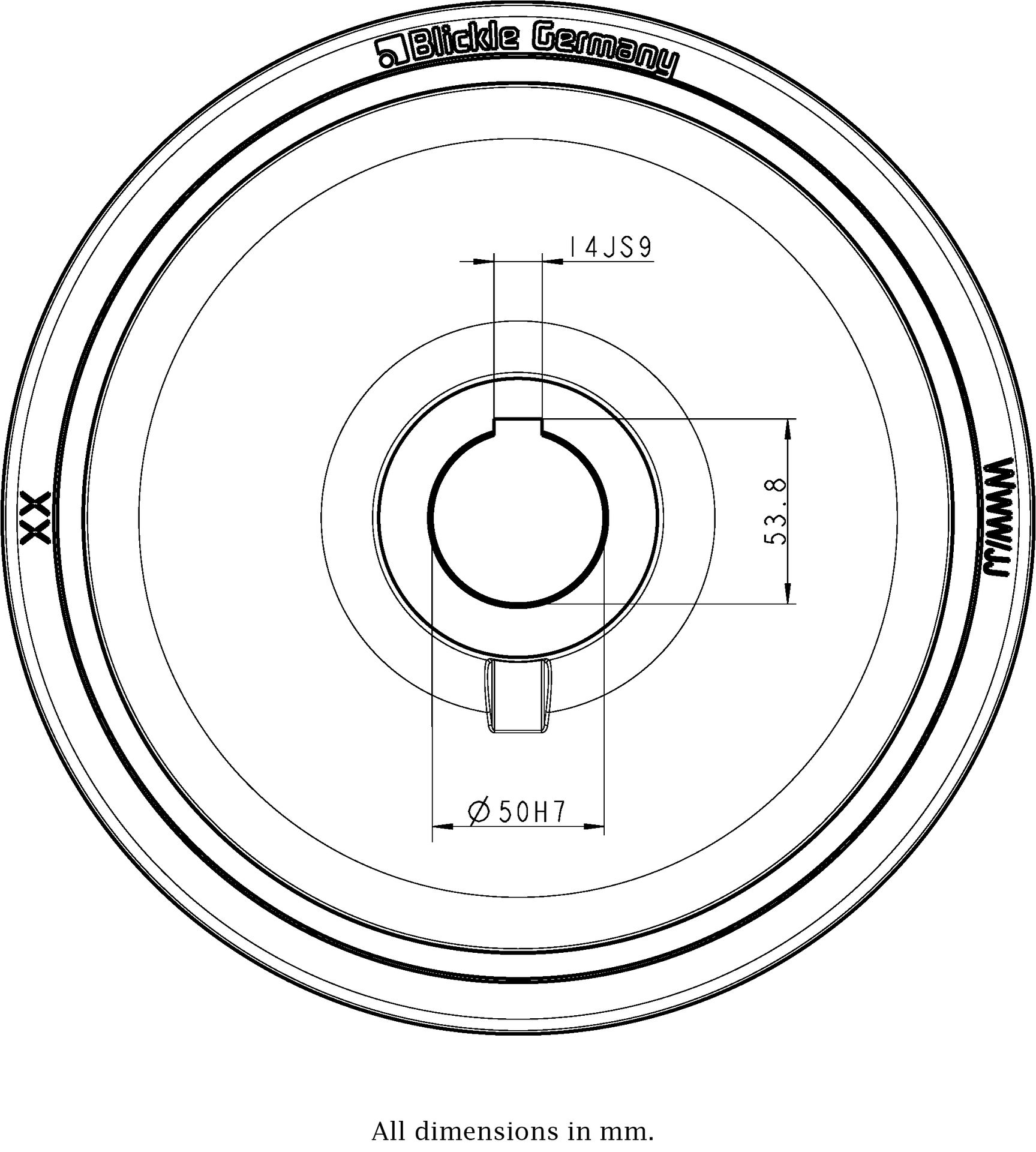

Dimensions for 459990 - Keyway.jpg
