322 series 100mm fixed top plate 105x88mm castor with cast iron plain bearing wheel 250kg
322 series 100mm fixed top plate 105x88mm castor with cast iron plain bearing wheel 250kg
29.71 €
29.71 €
Triangular Cam lock only
Triangular Cam lock only
10.13 €
10.13 €

100mm swivel castor with black cast iron wheel, 250kg

https://www.parnells.eu/web/image/product.template/87414/image_1920?unique=6a81d86

Part Number: 516401
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 250kg

36.62 € 36.62 EUR 36.62 €

42.53 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Brand
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

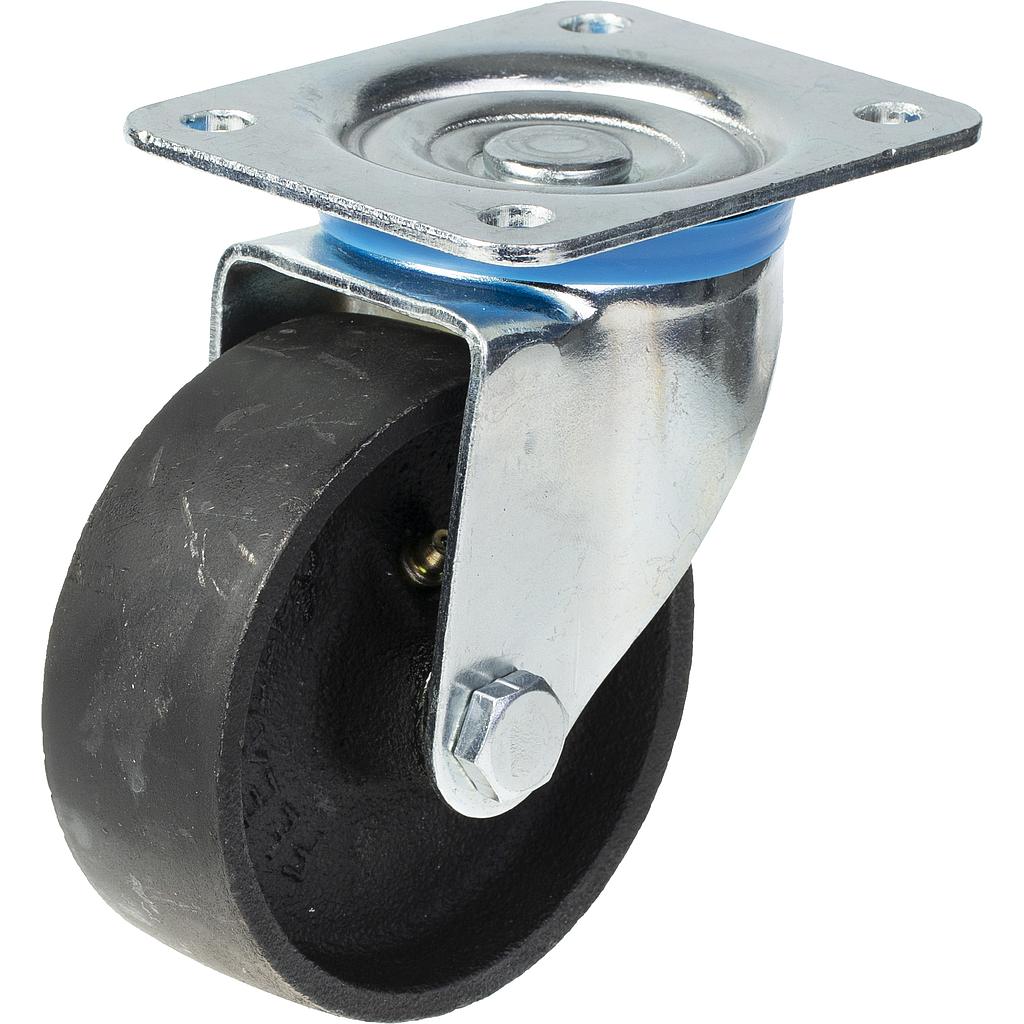

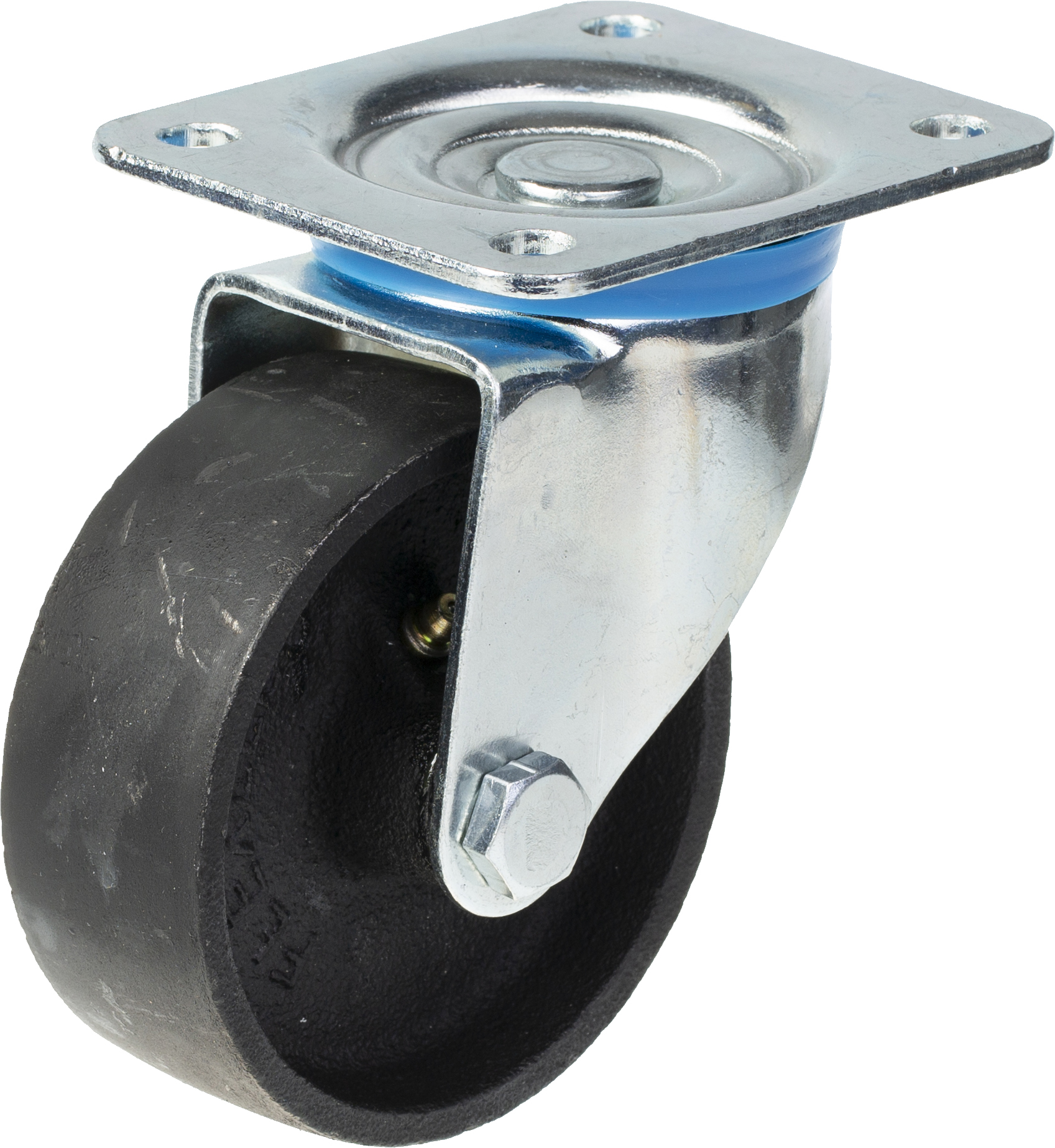

322 series 100mm swivel top plate 106x86mm castor with cast iron plain bearing wheel 250kg

100mm swivel castor with black cast iron wheel, 250kg

  • Swivel castor with top plate bracket made of zinc plated steel with double row ball race in swivel head and dust protection ring.

  • Wheel made of black cast iron.

  • Bolted wheel axle.

  • Very low rolling resistance on clean and even surface.

  • High wear resistance.

Part Number 516401
Wheel Diameter (mm) 100
Brand Parnells
Tread Width (mm) 38
Bearing Type Plain bearing

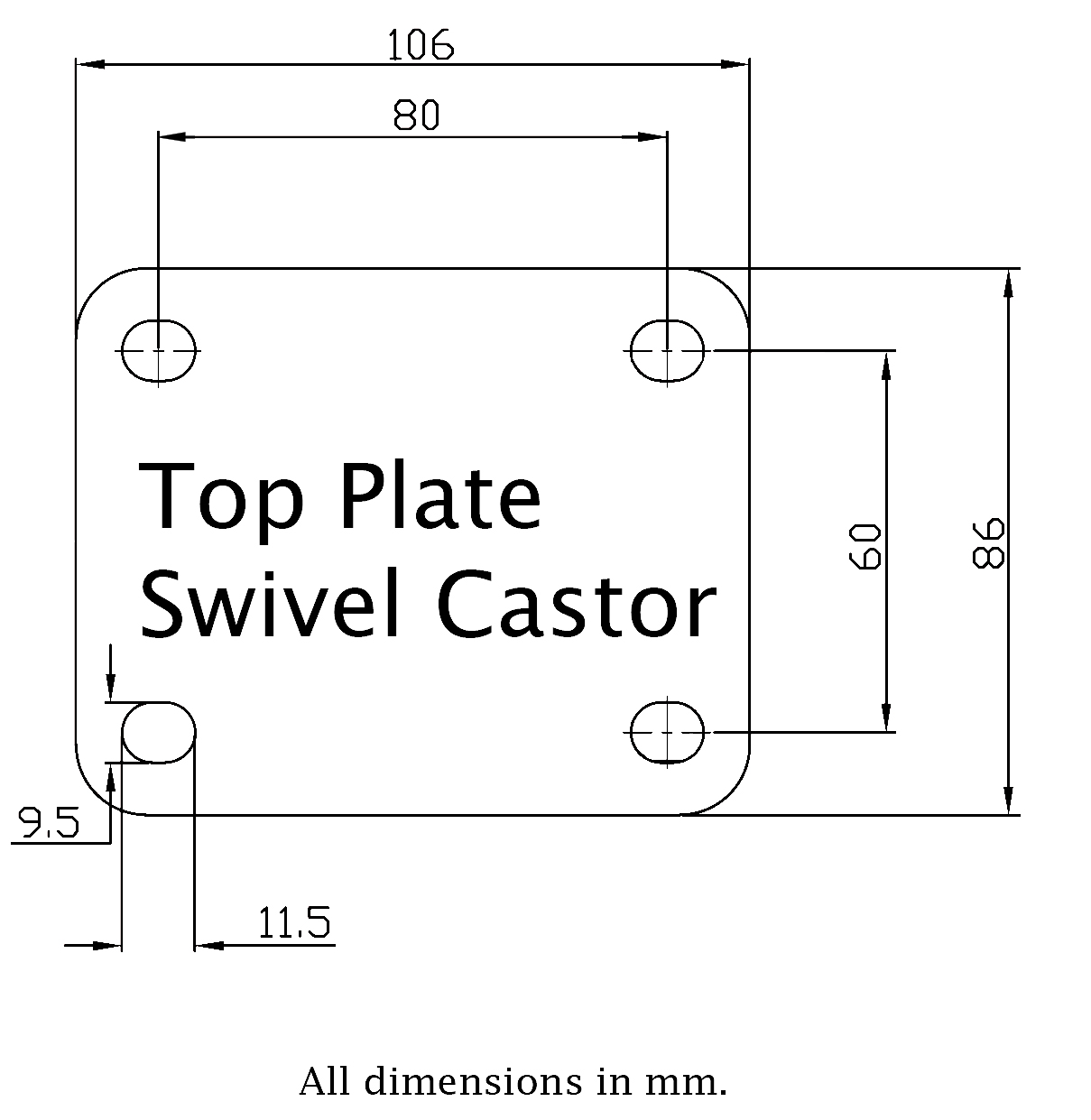

Top Plate Size (mm) 106x86
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 129
Load Capacity 3km/h (kg) 250

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery

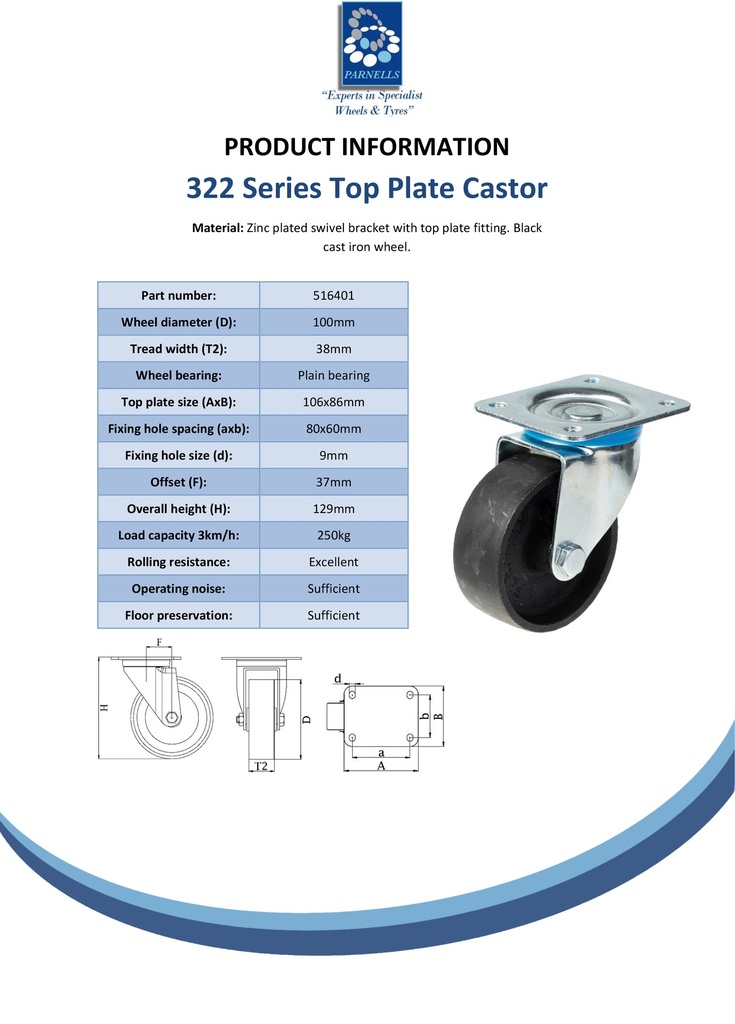

Spec Sheet for 516401.pdf
Download

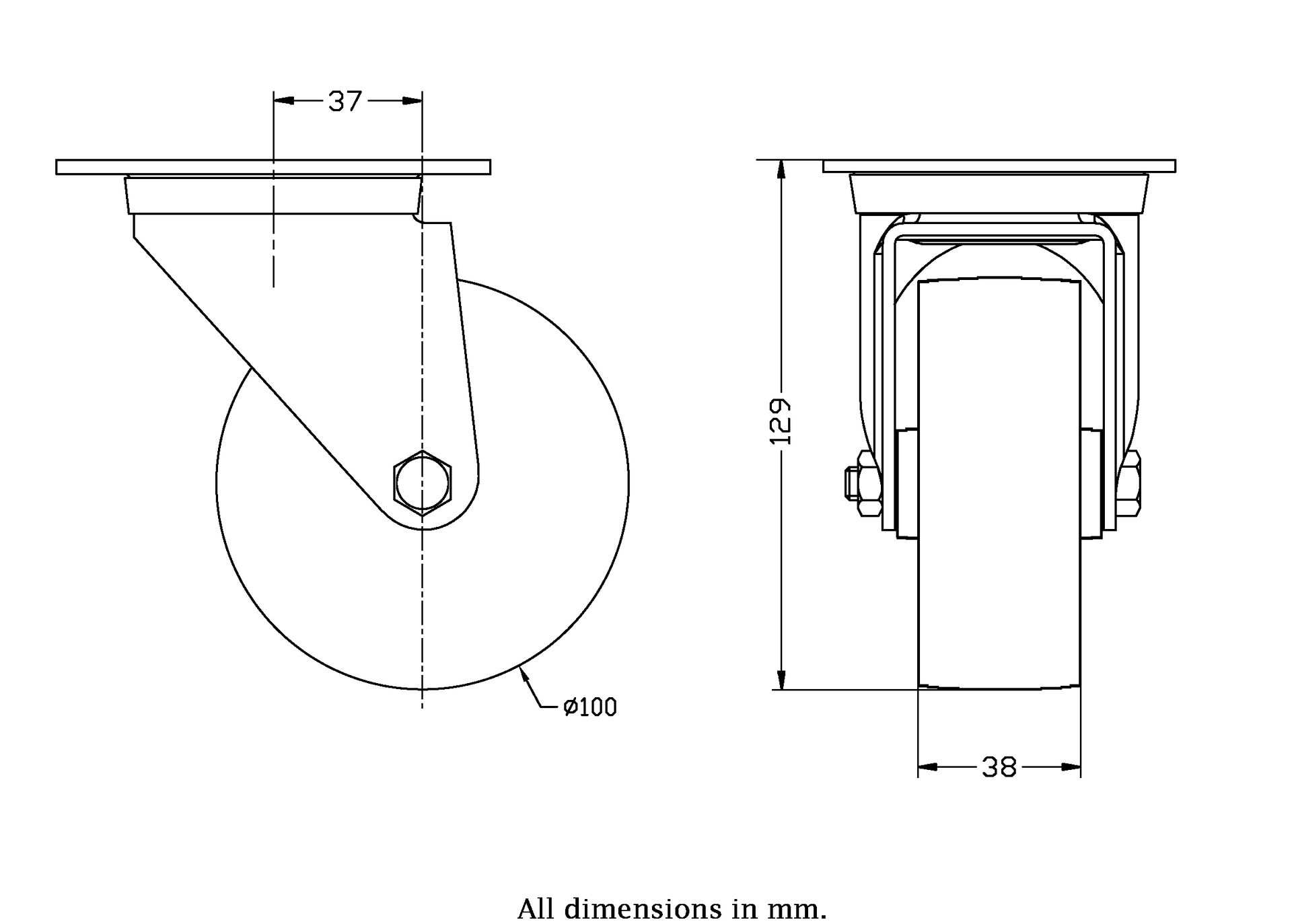

Dimensions for 516401.jpg
