100mm stainless steel fixed castor with grey electrically conductive thermoplastic rubber on polypropylene centre wheel, 70kg

https://www.parnells.eu/web/image/product.template/75365/image_1920?unique=4f0a4c3
(0 review)

Part Number: 530010
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Stainless Steel
Load Capacity: 70kg

42.16 € 42.160000000000004 EUR 42.16 €

48.97 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

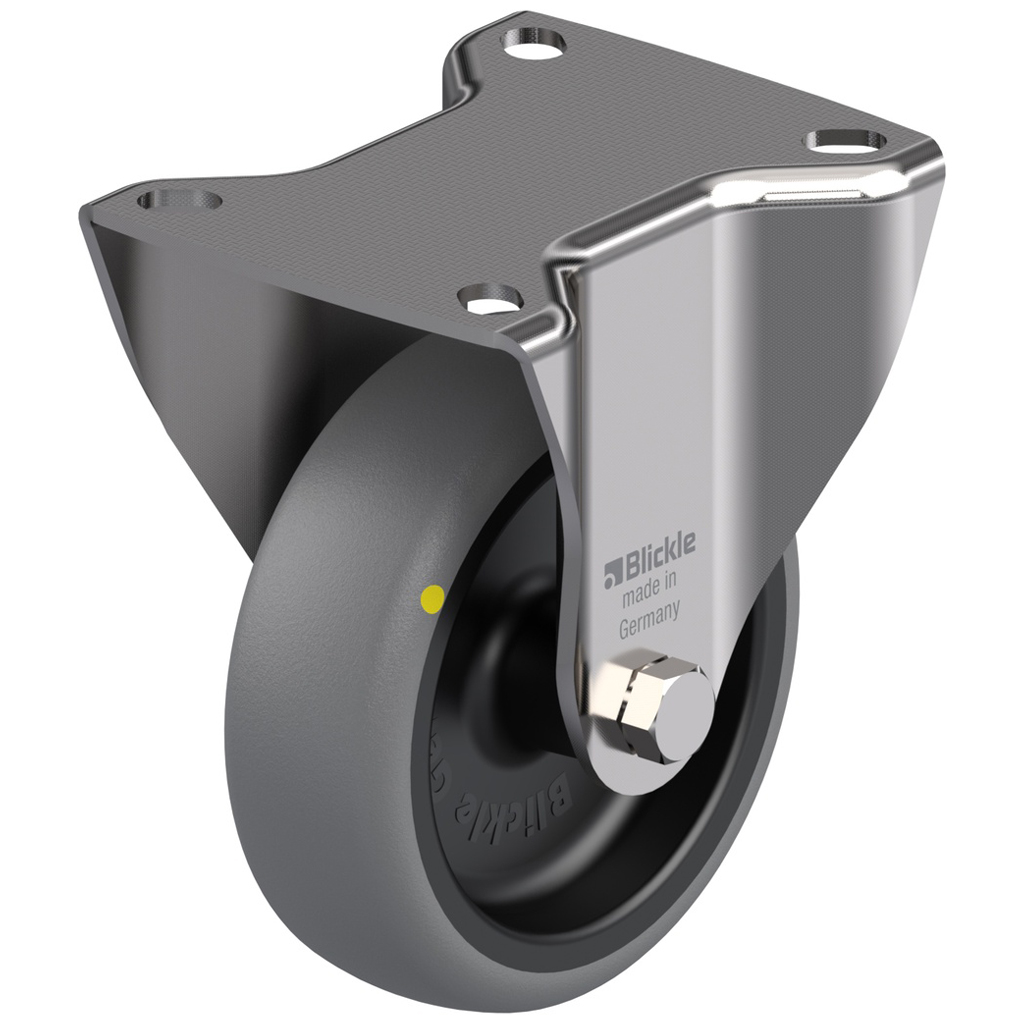

100mm stainless steel fixed castor with grey electrically conductive thermoplastic rubber on polypropylene centre wheel, 70kg

  • Fixed castor with top plate bracket made of stainless steel (material no. 1.4301/AISI 304).

  • Wheel with grey electrically conductive thermoplastic rubber on polypropylene centre.

  • The hardness of the tread is 85° Shore A.

  • Electrical conductivity 10⁴Ω.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise.

  • Good floor preservation and non-marking, but thermoplastic rubber contains traces of oil and may make stains on absorbent floors.

  • Good chemical resistance to many substances.

300SS series 100mm stainless steel fixed top plate 100x85mm castor with electrically conductive grey thermoplastic rubber on polypropylene centre plain bearing wheel 70kg

Add to cart

Sign in

Pay

Get Delivered

Part Number 530010
Wheel Diameter (mm) 100
Tread Width (mm) 32
Bearing Type Plain bearing
Top Plate Size (mm) 100x84
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 128
Load Capacity 3km/h (kg) 70
Blickle Reference BX-TPA 102G-ELS
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now
BX-TPA_102G-ELS_853599-203.step.zip
Download
Spec Sheet for 530010.pdf
Download
Image for 530010.jpg
Download

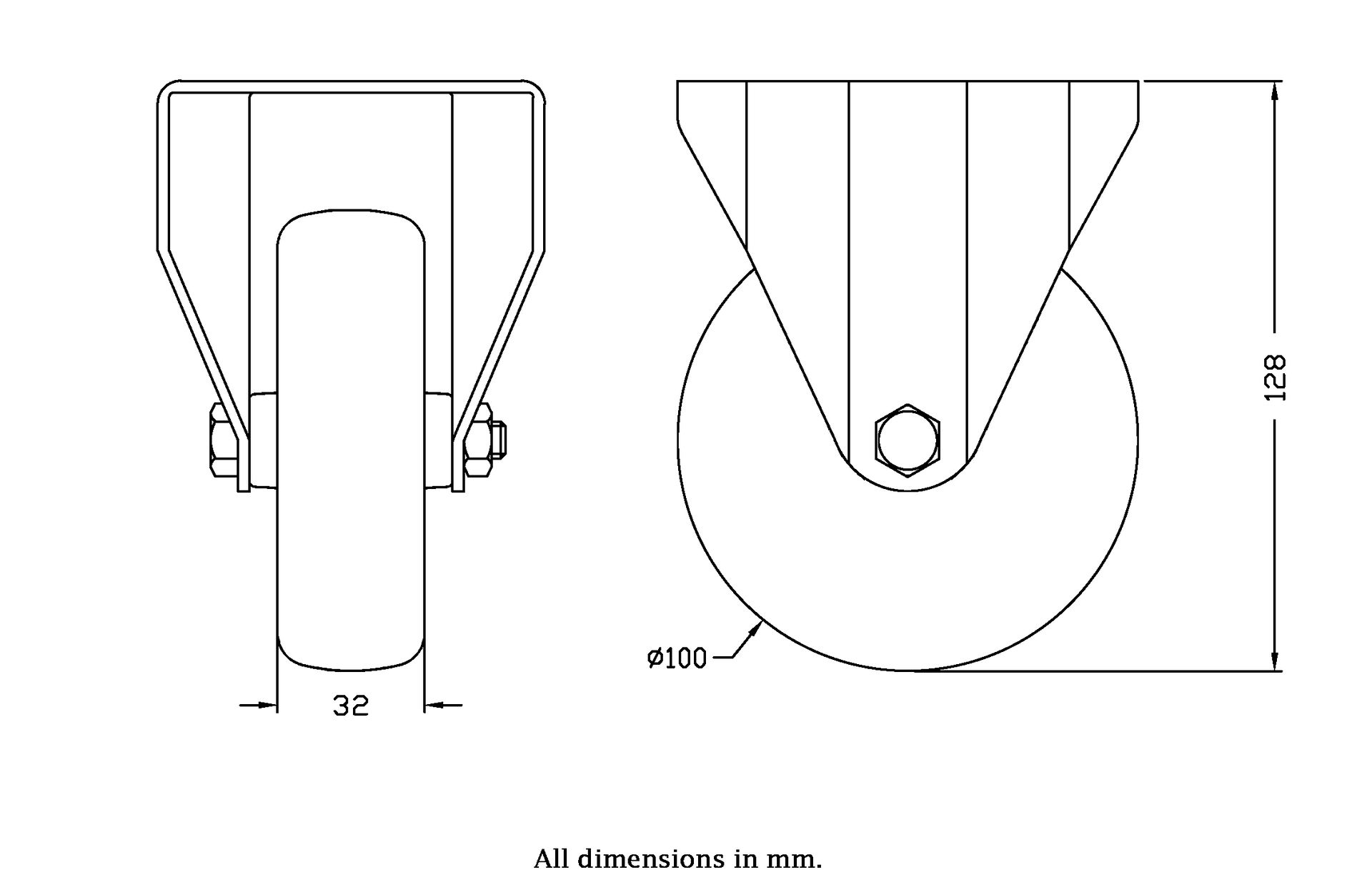

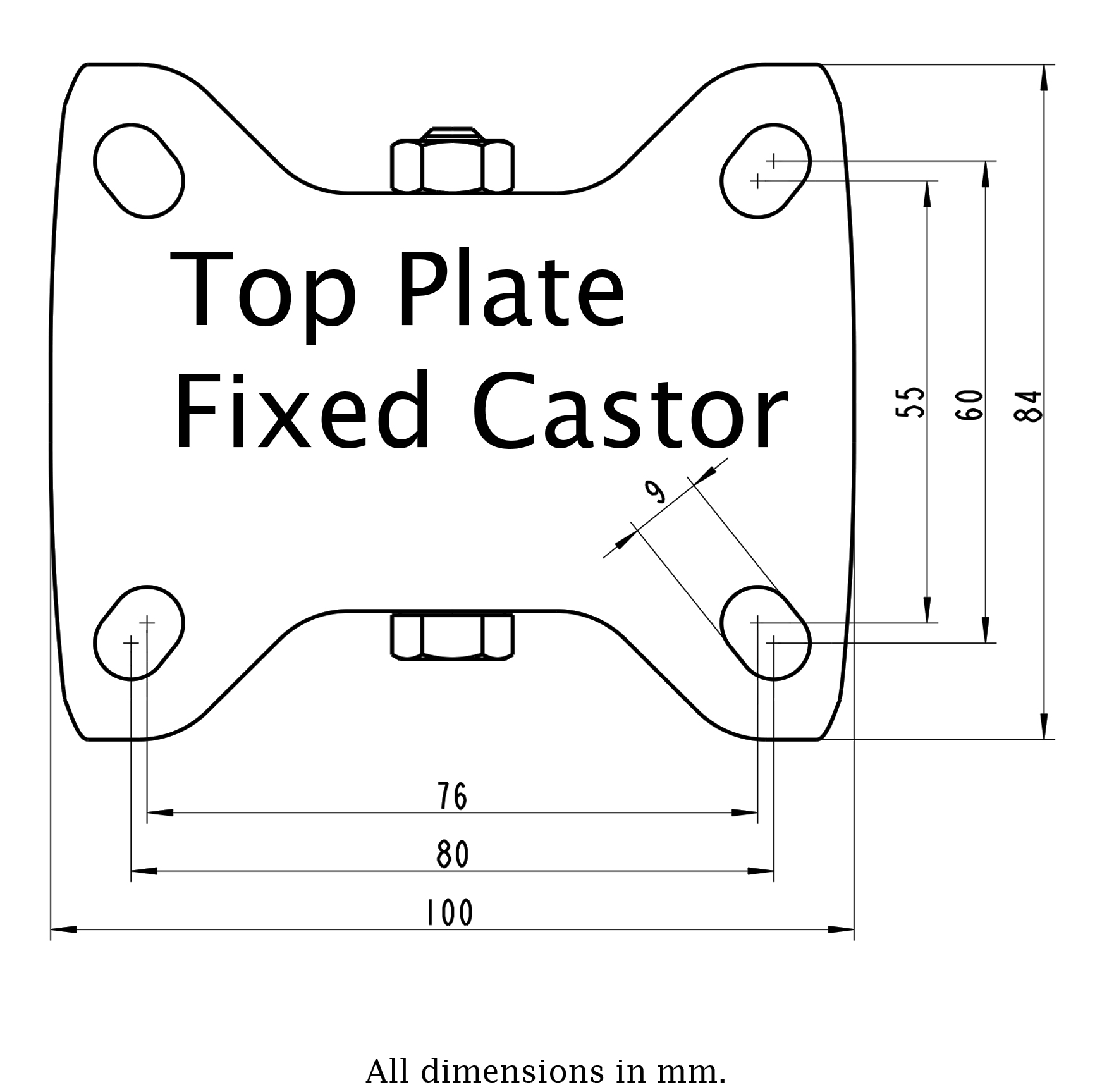

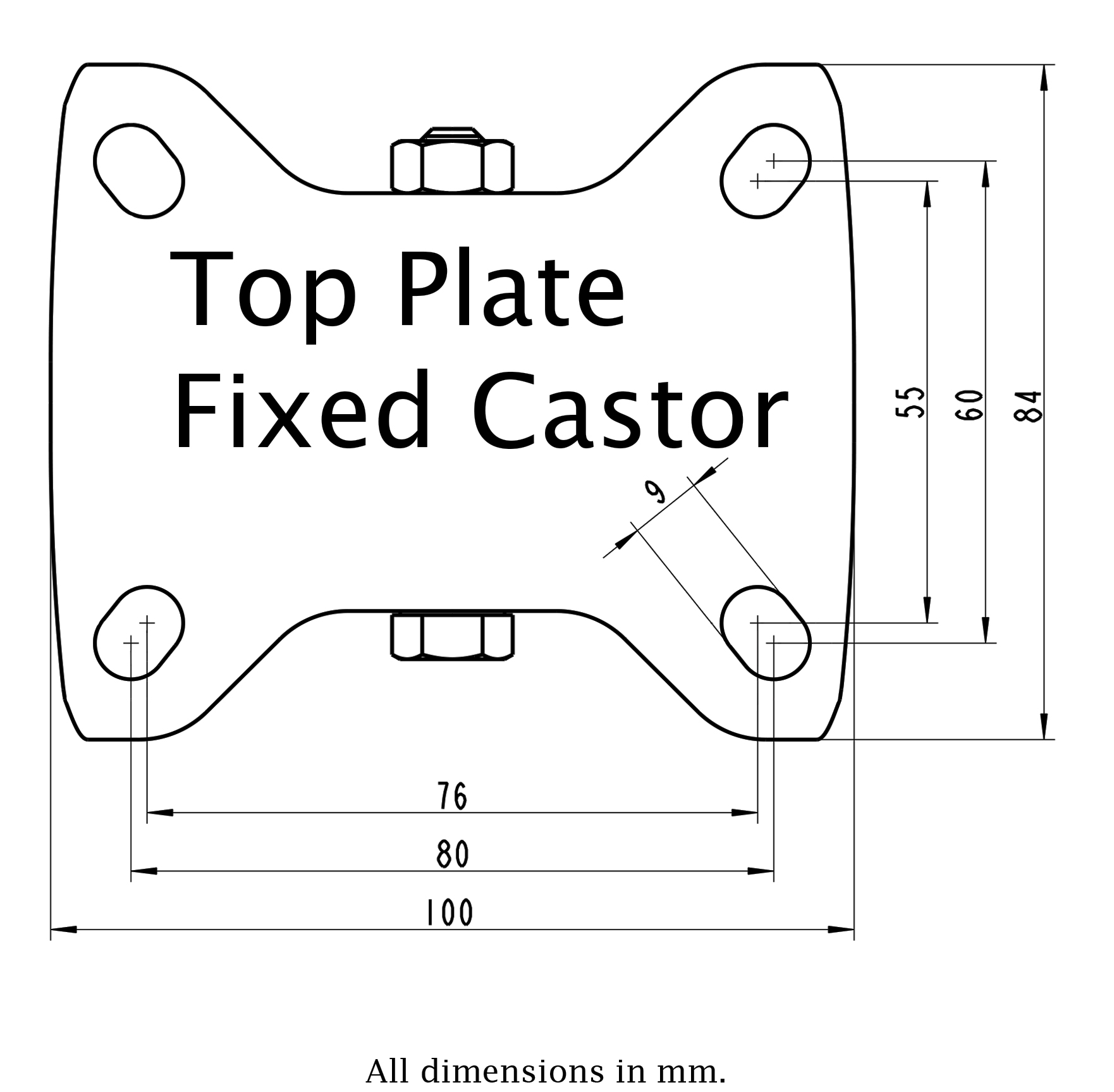

Dimensions for top plate fixed, 100mm.jpg
Download
Dimensions for 530010.jpg
Download
