100mm stainless steel swivel/brake castor with grey electrically conductive thermoplastic rubber on polypropylene centre wheel, 70kg

https://www.parnells.eu/web/image/product.template/52775/image_1920?unique=4f0a4c3
(0 review)

Part Number: 530011
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Stainless Steel
Load Capacity: 70kg

55.09 € 55.09 EUR 55.09 €

63.98 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

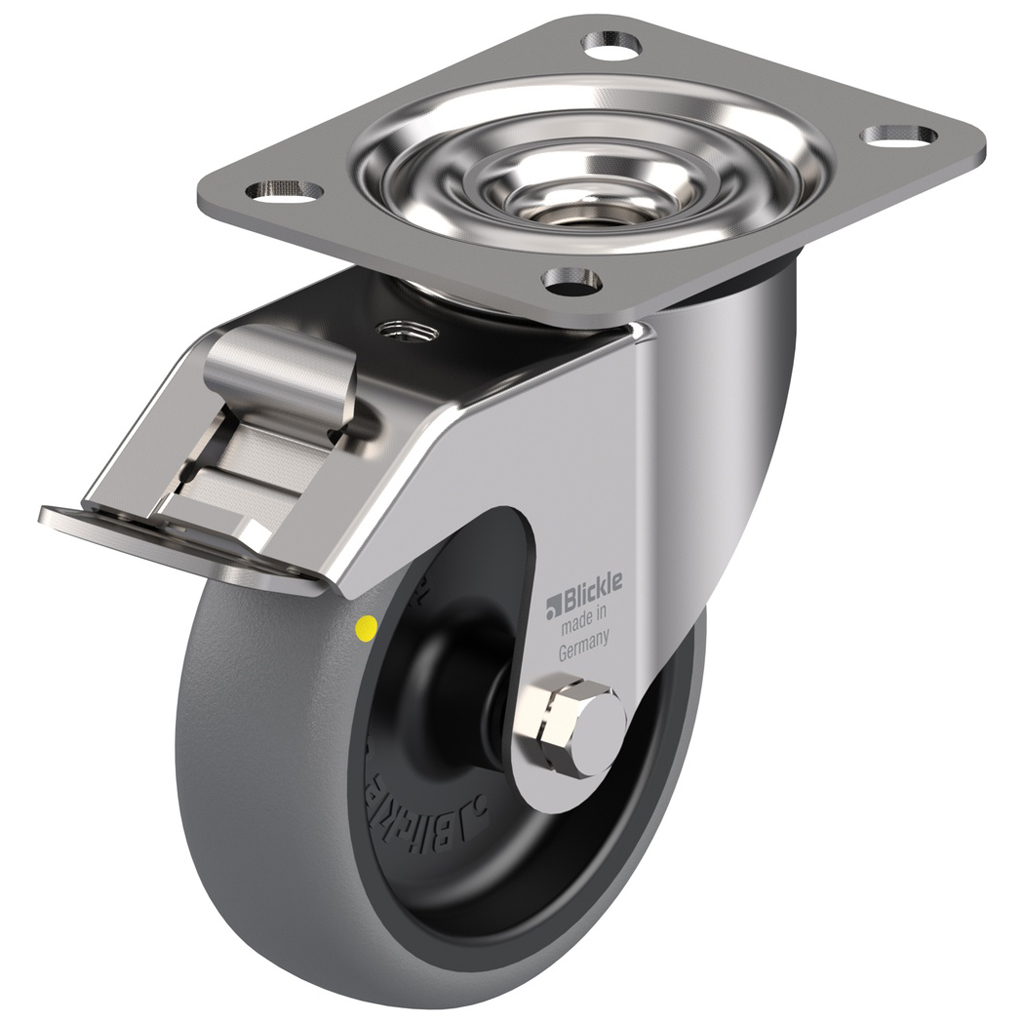

100mm stainless steel swivel/brake castor with grey electrically conductive thermoplastic rubber on polypropylene centre wheel, 70kg

  • Swivel/brake castor with top plate bracket made of stainless steel with double row ball race in swivel head (material no. 1.4301/AISI 304), with dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with grey electrically conductive thermoplastic rubber on polypropylene centre.

  • The hardness of the tread is 85° Shore A.

  • Electrical conductivity 10⁴Ω.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise.

  • Good floor preservation and non-marking, but thermoplastic rubber contains traces of oil and may make stains on absorbent floors.

  • Good chemical resistance to many substances.

300SS series 100mm stainless steel swivel/brake top plate 100x85mm castor with electrically conductive grey thermoplastic rubber on polypropylene centre plain bearing wheel 70kg

Add to cart

Sign in

Pay

Get Delivered

Part Number 530011
Wheel Diameter (mm) 100
Tread Width (mm) 32
Bearing Type Plain bearing
Top Plate Size (mm) 100x85
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 128
Load Capacity 3km/h (kg) 70
Blickle Reference LEX-TPA 102G-FI-ELS
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now
LEX-TPA_102G-FI-ELS_624833-203.step.zip
Download
Spec Sheet for 530011.pdf
Download
Image for 530011.jpg
Download

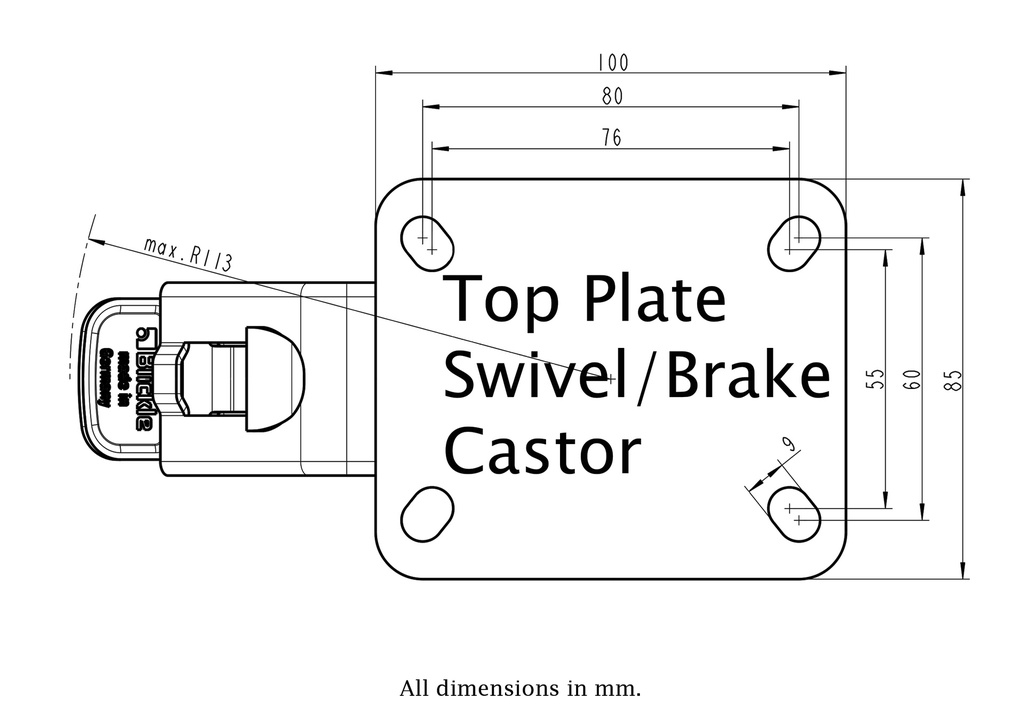

Dimensions for top plate brake, 100mm.jpg
