T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
80mm Steel drop profile weldable hinge, fixed pin (self colour)
80mm Steel drop profile weldable hinge, fixed pin (self colour)
2.31 €
2.31 €

80mm stainless steel swivel/brake castor with grey electrically conductive thermoplastic polyurethane on nylon centre wheel, 100kg

https://www.parnells.eu/web/image/product.template/32383/image_1920?unique=5991351
(0 review)

Part Number: 530019
Wheel Diameter: 80mm
Castor Bracket Material: Stainless Steel
Load Capacity: 100kg

58.38 € 58.38 EUR 58.38 €

67.81 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

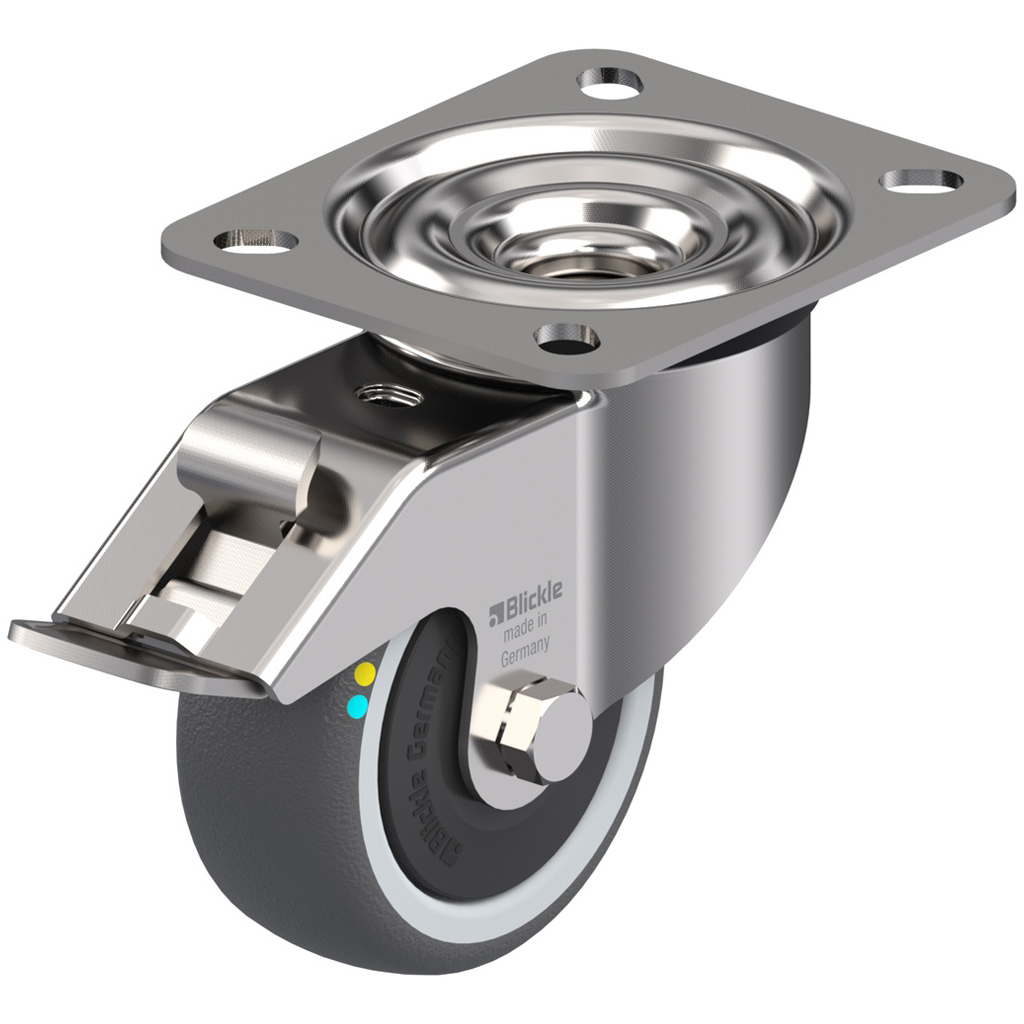

80mm stainless steel swivel/brake castor with grey electrically conductive thermoplastic polyurethane on nylon centre wheel, 100kg

  • Swivel/brake castor with top plate bracket made of stainless steel with double row ball race in swivel head (material no. 1.4301/AISI 304), with dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with electrically conductive thermoplastic polyurethane chemically bonded on nylon centre.

  • The hardness of the tread is 94° Shore A.

  • Electrical conductivity 10⁴Ω.

  • Additional sealed single ball bearing.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise.

  • Good floor preservation and non-marking.

  • Very good chemical resistance to many substances.

300SS series 80mm stainless steel swivel/brake top plate 100x85mm castor with electrically conductive grey polyurethane on nylon centre additional sealed single ball bearing wheel 100kg

Add to cart

Sign in

Pay

Get Delivered

Part Number 530019
Wheel Diameter (mm) 80
Tread Width (mm) 32
Bearing Type Additional sealed single ball bearing
Top Plate Size (mm) 100x85
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 105
Load Capacity 3km/h (kg) 100
Blickle Reference LEX-PATH 80KD-ELS-FK
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now
Spec Sheet for 530019.pdf
Download
Image for 530019.jpg
Download

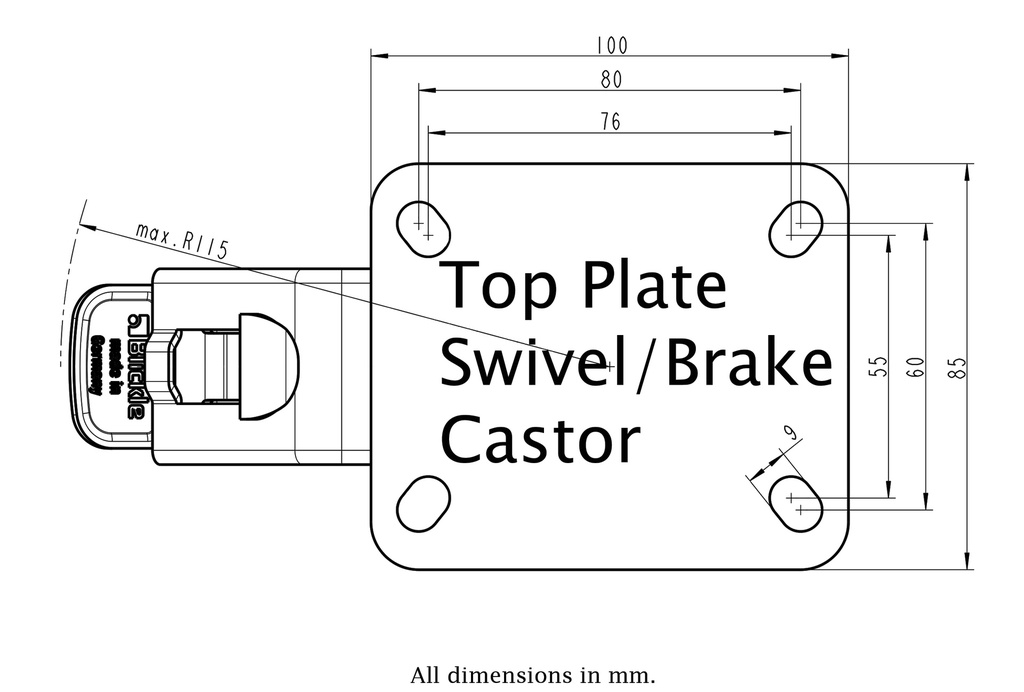

Dimensions for top plate brake, 80mm.jpg
Download
Dimensions for 530019.jpg
Download
