100mm stainless steel swivel castor with grey electrically conductive thermoplastic polyurethane on nylon centre wheel, 130kg

https://www.parnells.eu/web/image/product.template/32065/image_1920?unique=3dad6f8

Part Number: 530020
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Stainless Steel
Load Capacity: 130kg

71.63 € 71.63 EUR 71.63 €

83.19 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Brand
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

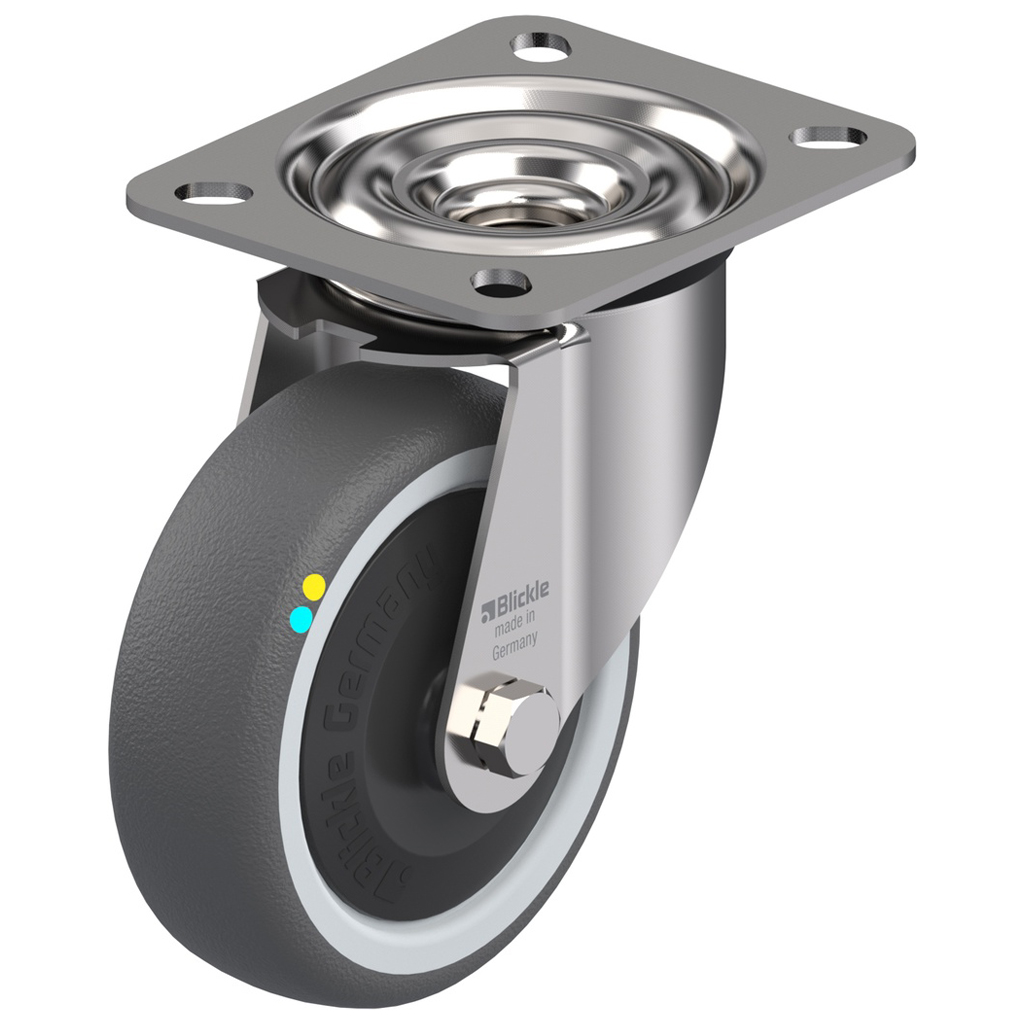

300SS series 100mm stainless steel swivel top plate 100x85mm castor with electrically conductive grey polyurethane on nylon centre additional sealed single ball bearing wheel 130kg

100mm stainless steel swivel castor with grey electrically conductive thermoplastic polyurethane on nylon centre wheel, 130kg

  • Swivel castor with top plate bracket made of stainless steel with double row ball race in swivel head (material no. 1.4301/AISI 304), with dust protection ring.

  • Wheel with electrically conductive thermoplastic polyurethane chemically bonded on nylon centre.

  • The hardness of the tread is 94° Shore A.

  • Electrical conductivity 10⁴Ω.

  • Additional sealed single ball bearing.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise.

  • Good floor preservation and non-marking.

  • Very good chemical resistance to many substances.

  • Can be equipped with a separate 1-way directional lock, part no. 573709.

Part Number 530020
Wheel Diameter (mm) 100
Brand Parnells
Tread Width (mm) 32
Bearing Type Additional sealed single ball bearing

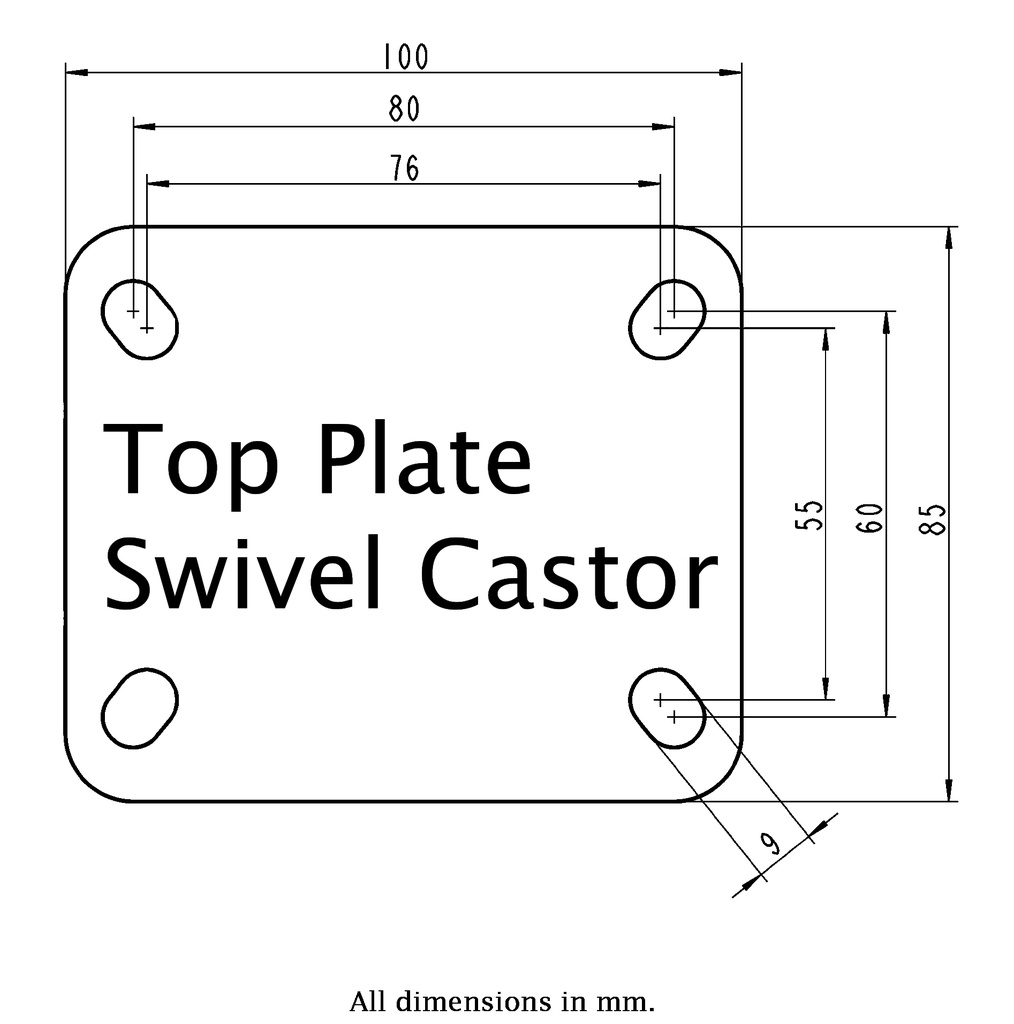

Top Plate Size (mm) 100x85
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 128
Load Capacity 3km/h (kg) 130
Blickle Reference LEX-PATH 100KD-ELS-FK
