T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
Wheel series 100mm YELLOW polyurethane on cast iron centre 15mm bore hub length 40mm ball bearing 300kg
Wheel series 100mm YELLOW polyurethane on cast iron centre 15mm bore hub length 40mm ball bearing 300kg
27.97 €
27.97 €

100mm stainless steel swivel/brake castor with grey electrically conductive thermoplastic polyurethane on nylon centre wheel, 130kg

https://www.parnells.eu/web/image/product.template/32057/image_1920?unique=62d2641
(0 review)

Part Number: 530022
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Stainless Steel
Load Capacity: 130kg

57.50 € 57.5 EUR 57.50 €

93.50 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

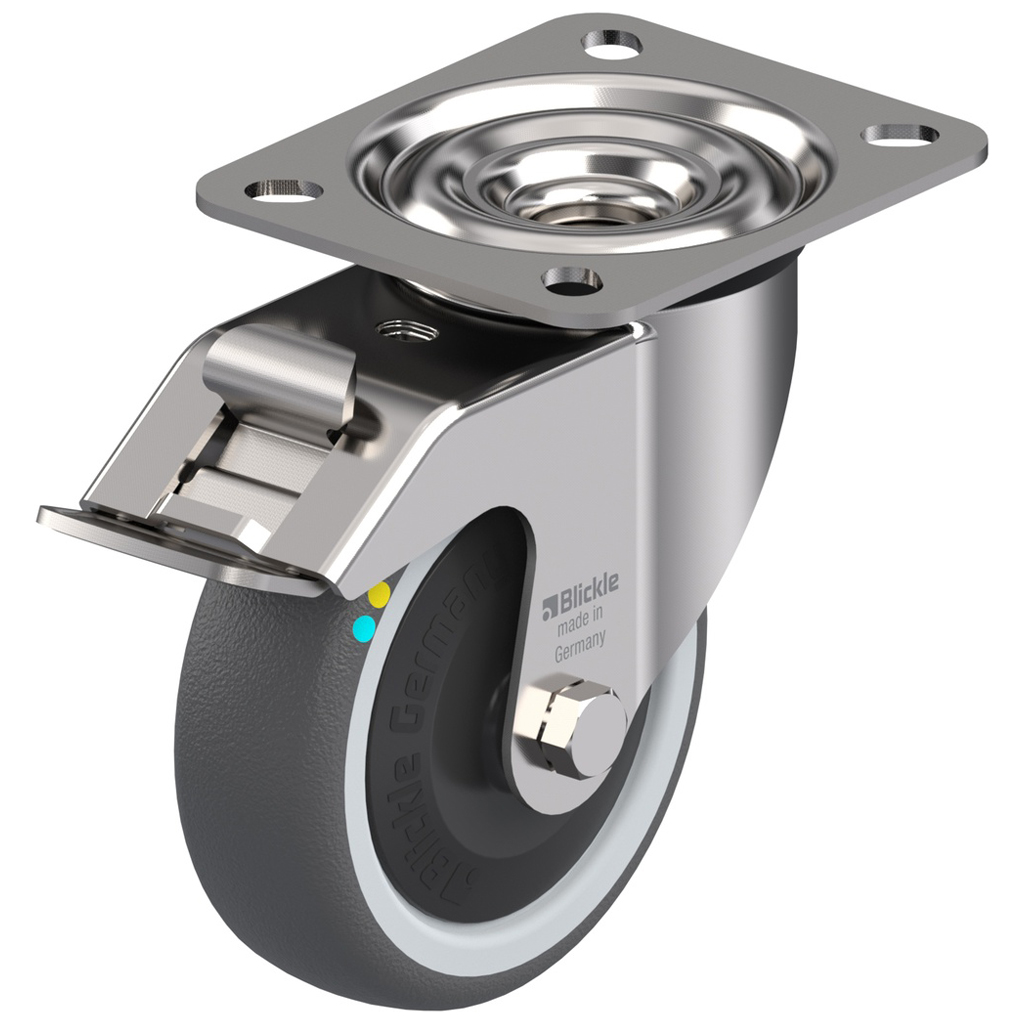

300SS series 100mm stainless steel swivel/brake top plate 100x85mm castor with electrically conductive grey polyurethane on nylon centre additional sealed single ball bearing wheel 130kg

100mm stainless steel swivel/brake castor with grey electrically conductive thermoplastic polyurethane on nylon centre wheel, 130kg

  • Swivel/brake castor with top plate bracket made of stainless steel with double row ball race in swivel head (material no. 1.4301/AISI 304), with dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with electrically conductive thermoplastic polyurethane chemically bonded on nylon centre.

  • The hardness of the tread is 94° Shore A.

  • Electrical conductivity 10⁴Ω.

  • Additional sealed single ball bearing.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise.

  • Good floor preservation and non-marking.

  • Very good chemical resistance to many substances.

Add to cart

Sign in

Pay

Get Delivered

Part Number 530022
Wheel Diameter (mm) 100
Tread Width (mm) 32
Bearing Type Additional sealed single ball bearing
Top Plate Size (mm) 100x85
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 128
Load Capacity 3km/h (kg) 130
Blickle Reference LEX-PATH 100KD-FI-ELS-FK
Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 530022.pdf
Download
Image for 530022.jpg
Download

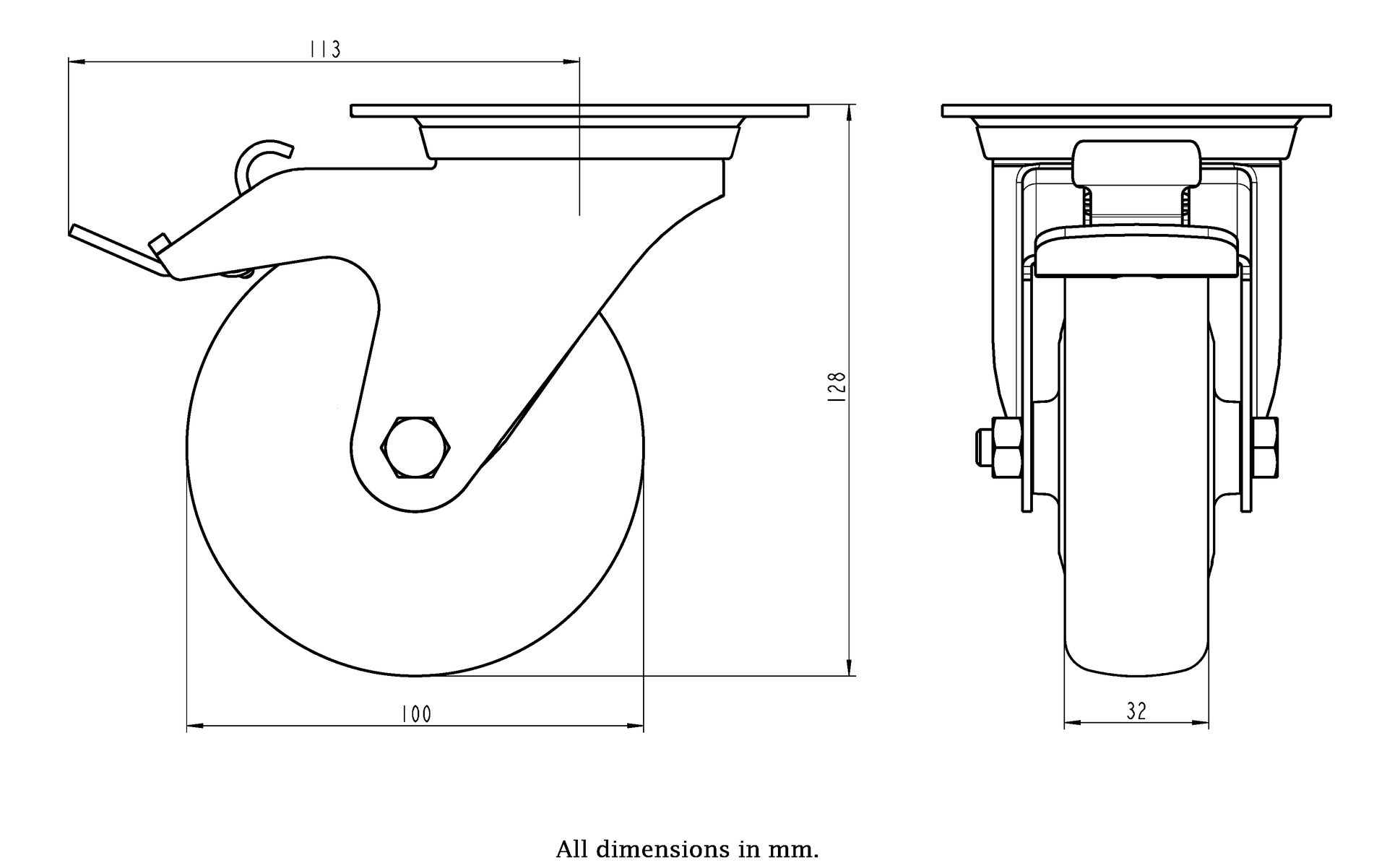

Dimensions for top plate brake, 100mm.jpg
