160mm stainless steel fixed castor with grey electrically conductive thermoplastic polyurethane on nylon centre wheel, 260kg

https://www.parnells.eu/web/image/product.template/91151/image_1920?unique=3ae4e0e

Part Number: 530068
Wheel Diameter: 160mm (6" inches)
Castor Bracket Material: Stainless Steel
Load Capacity: 260kg

159.63 € 159.63 EUR 159.63 €

185.40 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

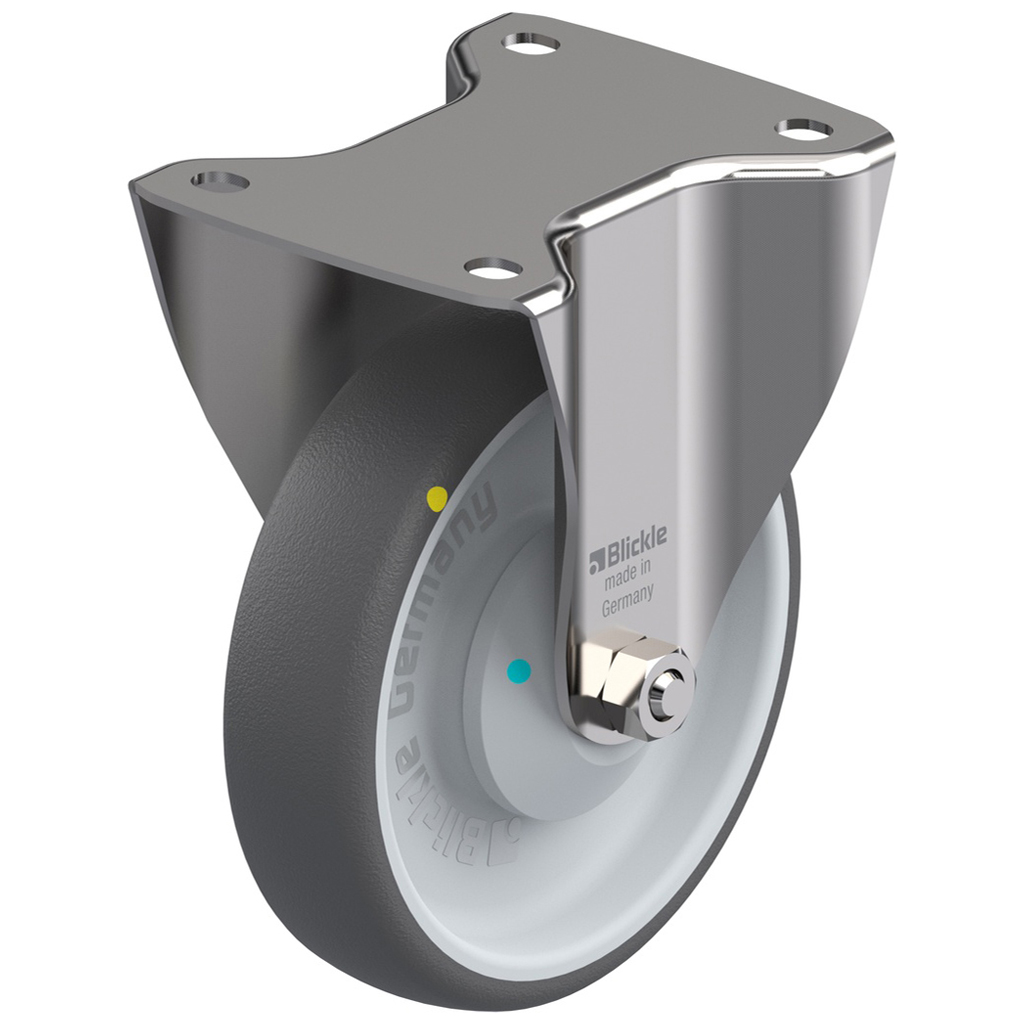

300SS series 160mm  stainless steel fixed top plate 140x110mm castor with PATH electrically conductive grey polyurethane on nylon centre additional sealed single ball bearing wheel 260kg

160mm stainless steel fixed castor with grey electrically conductive thermoplastic polyurethane on nylon centre wheel, 260kg

  • Fixed castor with top plate bracket made of stainless steel (material no. 1.4301/AISI 304).

  • Wheel with electrically conductive thermoplastic polyurethane chemically bonded on nylon centre.

  • The hardness of the tread is 94° Shore A.

  • Electrical conductivity 10⁴Ω.

  • Additional sealed single ball bearing.

  • Bolted wheel axle.

  • Low rolling resistance and operating noise.

  • Good floor preservation and non-marking.

  • Very good chemical resistance to many substances.

Wheel Diameter (mm) 160
Tread Width (mm) 40
Bearing Type Additional sealed single ball bearing
Top Plate Size (mm) 138x116
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 195
Load Capacity 3km/h (kg) 260
Blickle Reference BX-PATH 160KAD-ELS

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 530068.pdf
Download
Image for 530068.jpg
Download

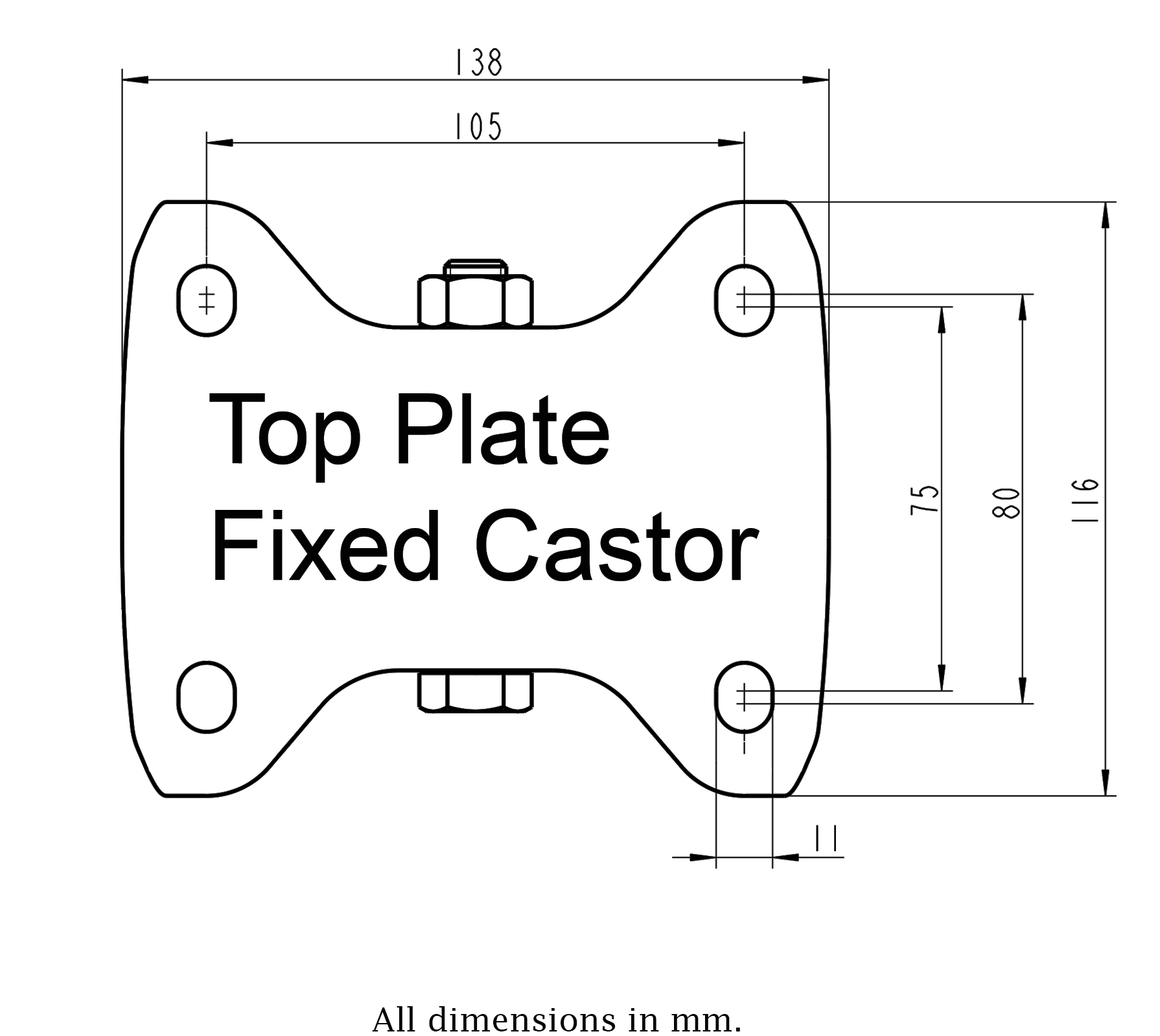

Dimensions for top plate fixed, 150-200mm.jpg
Download

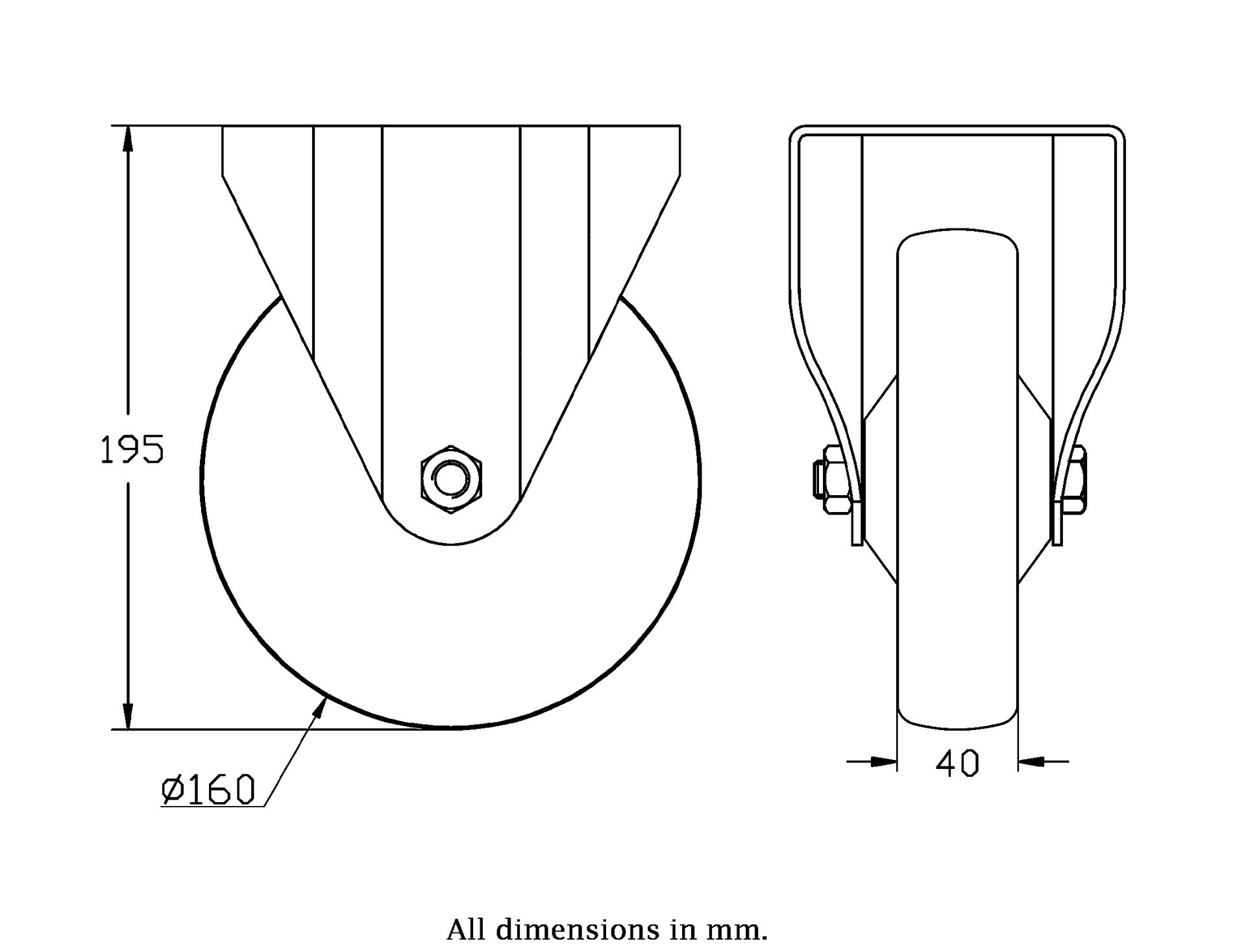

Dimensions for 530068.jpg
