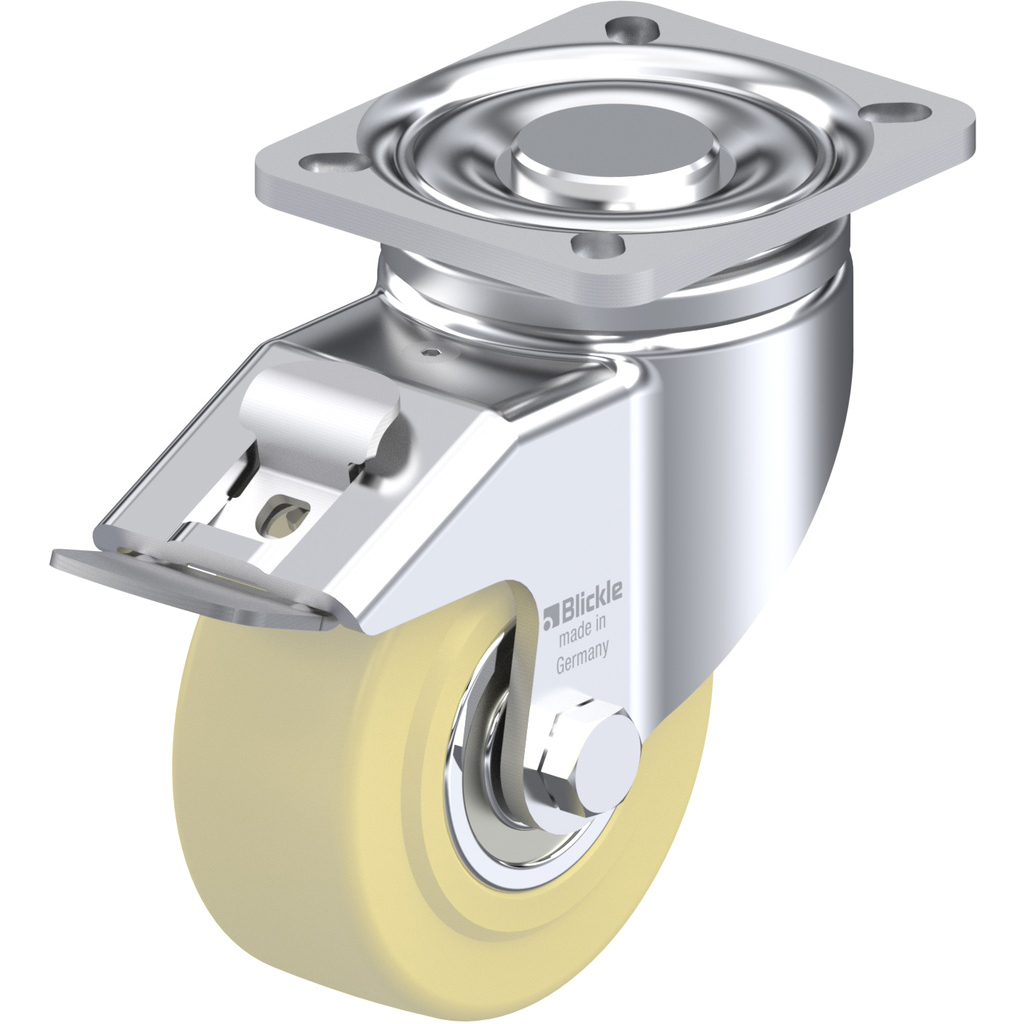

LH series 100mm swivel/brake top plate 100x85mm castor with cast nylon ball bearing wheel 700kg

100mm swivel/brake castor with cast nylon wheel, 700kg

  • Swivel/brake castor with strong top plate bracket made of zinc plated steel with hardened double row ball race in swivel head.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel made of natural beige cast nylon.

  • The hardness of the tread is 80° Shore D.

  • Bolted wheel axle.

  • Impact-resistant and high wear resistance.

  • Very low rolling resistance on clean and even surface.

  • High chemical resistance to many aggressive substances.

Wheel Diameter (mm) 100
Tread Width (mm) 40
Bearing Type Ball bearings
Top Plate Size (mm) 100x85
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 140
Load Capacity 3km/h (kg) 700

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 610717.pdf
Download

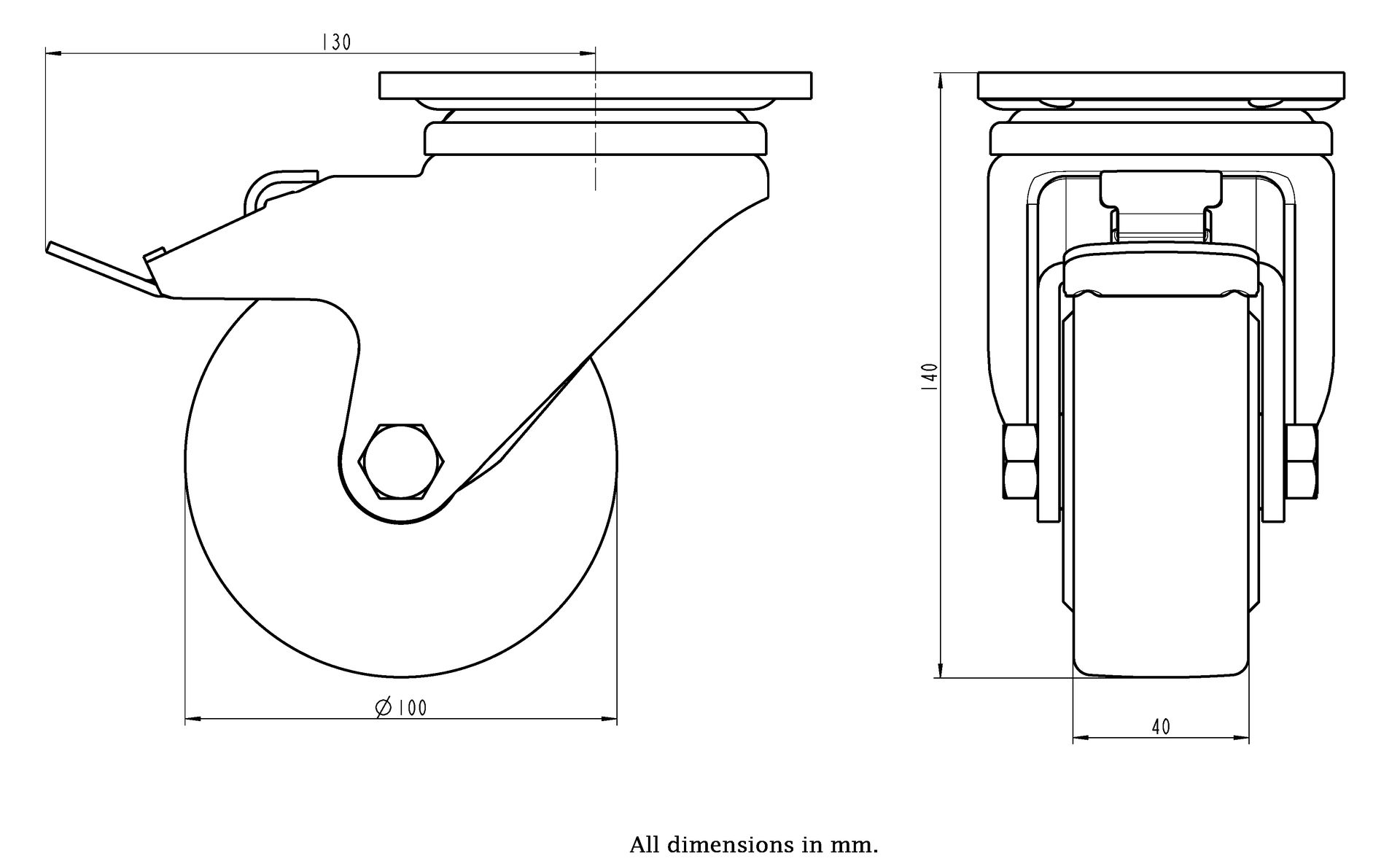

Dimensions for 610717.jpg
Download
Image for 610717.jpg
Download

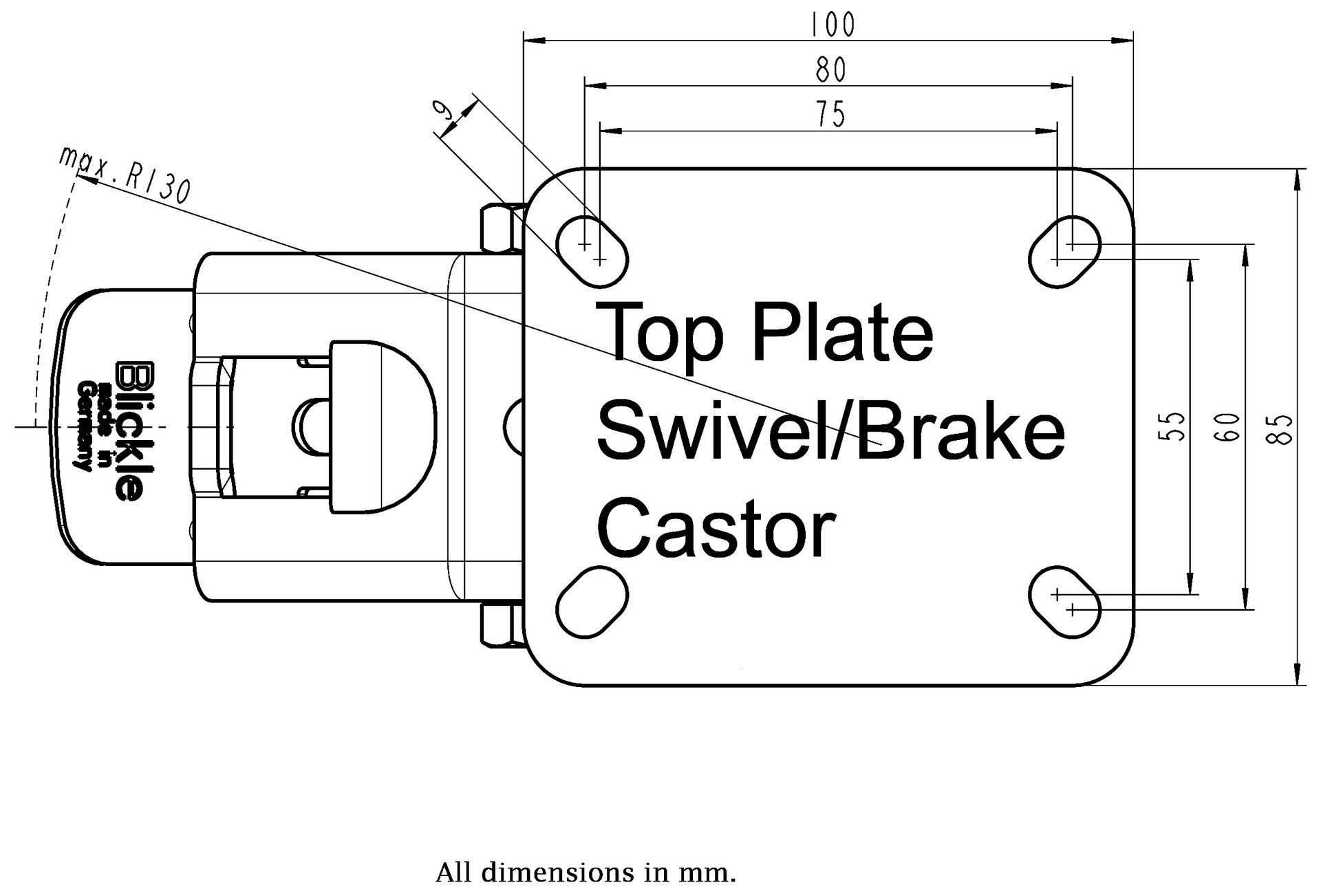

Dimensions for top plate brake, 065-100mm (1).jpg
