T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
80mm Steel drop profile weldable hinge, fixed pin (self colour)
80mm Steel drop profile weldable hinge, fixed pin (self colour)
2.31 €
2.31 €

100mm swivel/brake castor with cast nylon wheel, 1500kg

https://www.parnells.eu/web/image/product.template/52197/image_1920?unique=5991351
(0 review)

Part Number: 621938
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Zinc Plated Yellow-Passivated Steel
Load Capacity: 1500kg

440.29 € 440.29 EUR 440.29 €

511.37 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

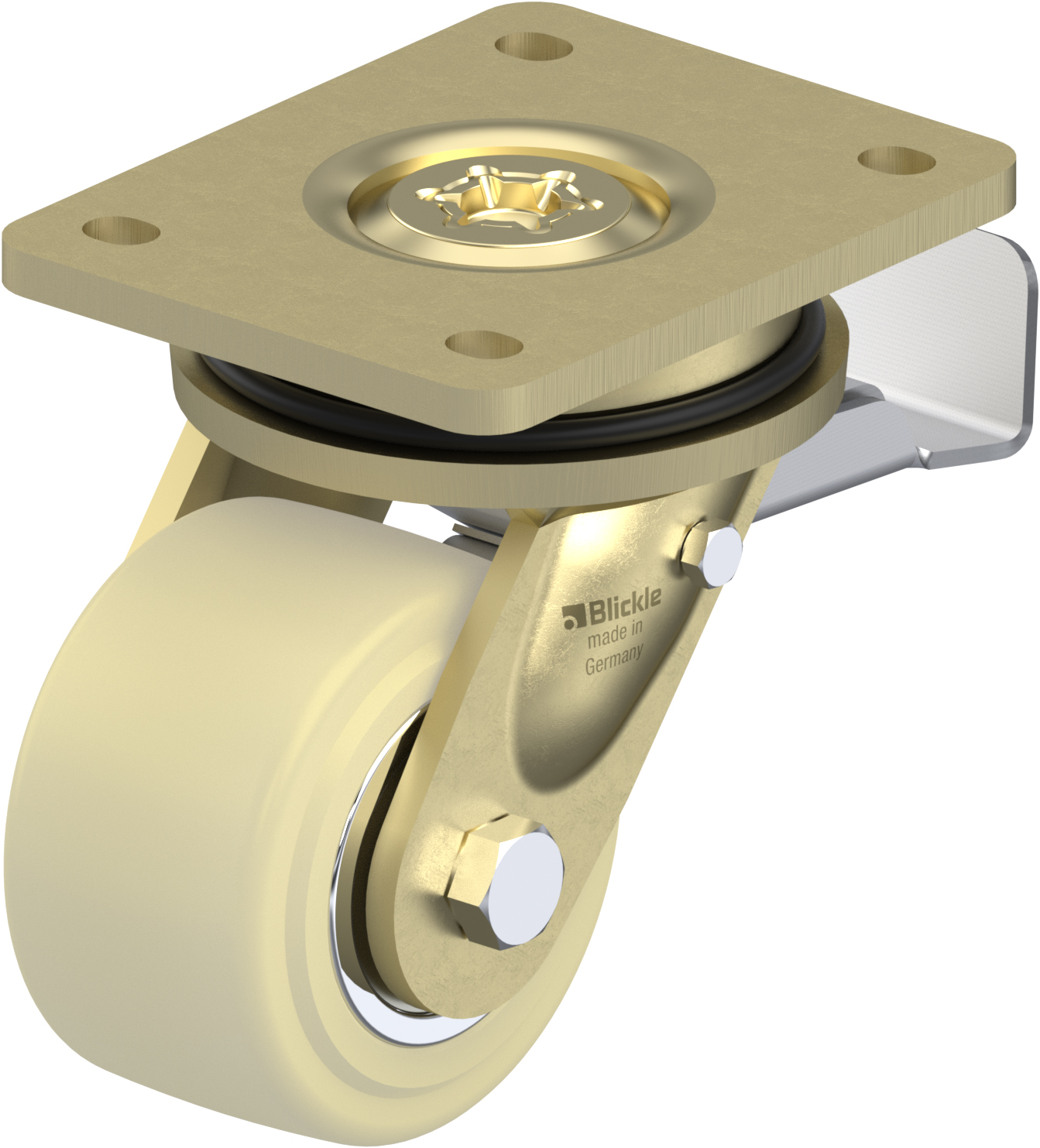

100mm swivel/brake castor with cast nylon wheel, 1500kg

  • Swivel/brake castor with very strong top plate bracket made of zinc plated yellow-passivated steel with a combination of thrust ball bearing and taper roller bearing in swivel head, with dust protection ring and grease nipple.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel made of natural beige cast nylon.

  • The hardness of the tread is 80° Shore D.

  • Bolted wheel axle.

  • Impact-resistant and high wear resistance.

  • Very low rolling resistance on clean and even surface.

  • High chemical resistance to many aggressive substances.

LS series 100mm swivel/brake top plate 140x110mm castor with cast nylon ball bearing wheel 1500kg

Add to cart

Sign in

Pay

Get Delivered

Part Number 621938
Wheel Diameter (mm) 100
Tread Width (mm) 55
Bearing Type Ball bearings
Top Plate Size (mm) 140x110
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 145
Load Capacity 3km/h (kg) 1500
Blickle Reference LS-GSPO 101K-ST
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now

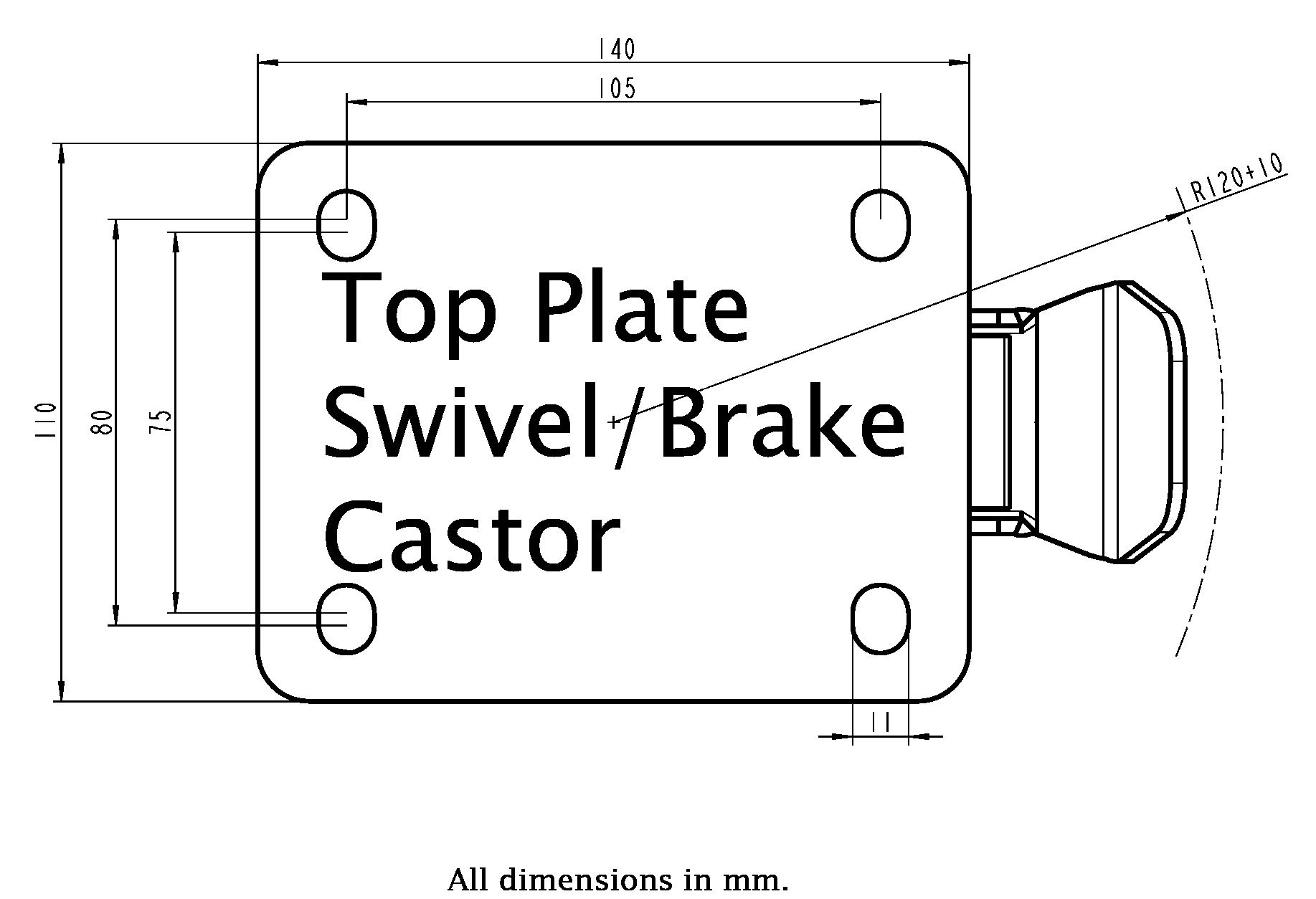

Dimensions for top plate brake, 100-125mm (3).jpg
