T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
800 series 125mm swivel top plate 135x110mm castor with blue elastic rubber on nylon centre ball bearing wheel 250kg
800 series 125mm swivel top plate 135x110mm castor with blue elastic rubber on nylon centre ball bearing wheel 250kg
50.92 €
50.92 €

100mm swivel/brake castor with cast nylon wheel, 700kg

https://www.parnells.eu/web/image/product.template/53062/image_1920?unique=68a87cc
(0 review)

Part Number: 636480
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 700kg

214.95 € 214.95000000000002 EUR 214.95 €

249.65 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

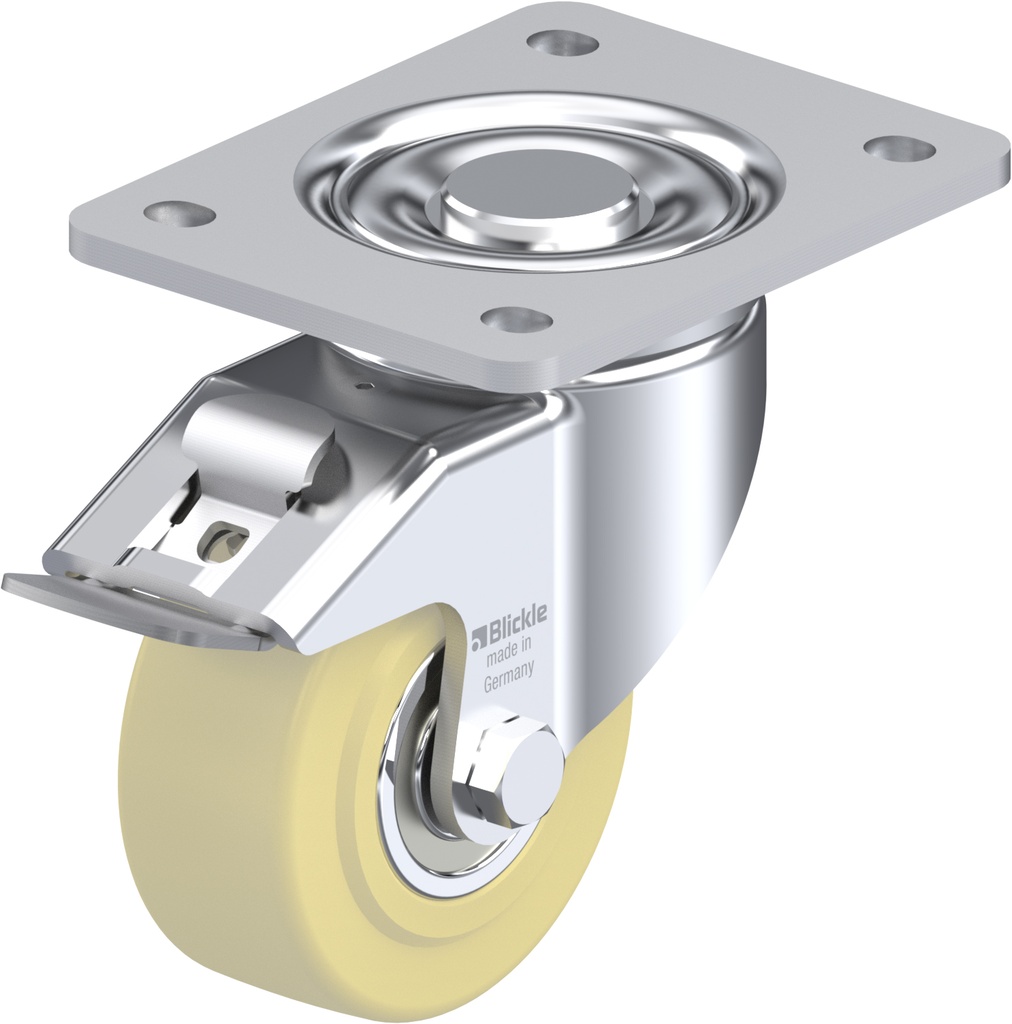

LH series 100mm swivel/brake top plate 140x110mm castor with cast nylon ball bearing wheel 700kg

100mm swivel/brake castor with cast nylon wheel, 700kg

  • Swivel/brake castor with strong top plate bracket made of zinc plated steel with hardened double row ball race in swivel head.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel made of natural beige cast nylon.

  • The hardness of the tread is 80° Shore D.

  • Bolted wheel axle.

  • Impact-resistant and high wear resistance.

  • Very low rolling resistance on clean and even surface.

  • High chemical resistance to many aggressive substances.

Add to cart

Sign in

Pay

Get Delivered

Part Number 636480
Wheel Diameter (mm) 100
Tread Width (mm) 40
Bearing Type Ball bearings
Top Plate Size (mm) 140x110
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 140
Load Capacity 3km/h (kg) 700
