Login for trade account prices

T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
Wheel series 100mm black rubber on pressed steel centre 14mm bore hub length 39mm roller bearing 90kg
Wheel series 100mm black rubber on pressed steel centre 14mm bore hub length 39mm roller bearing 90kg
5.98 €
5.98 €

150mm heat resistant swivel/brake castor with thermoplastic wheel, 300kg

https://www.parnells.eu/web/image/product.template/87296/image_1920?unique=f00b7a1

Part Number: 754704
Wheel Diameter: 150mm (6" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 300kg

231.55 € 231.55 EUR 231.55 €

268.93 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Load Capacity 3km/h up to +70°C (kg)
  • Load Capacity 3km/h at +170°C (kg)
  • Load Capacity 3km/h at +250°C (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

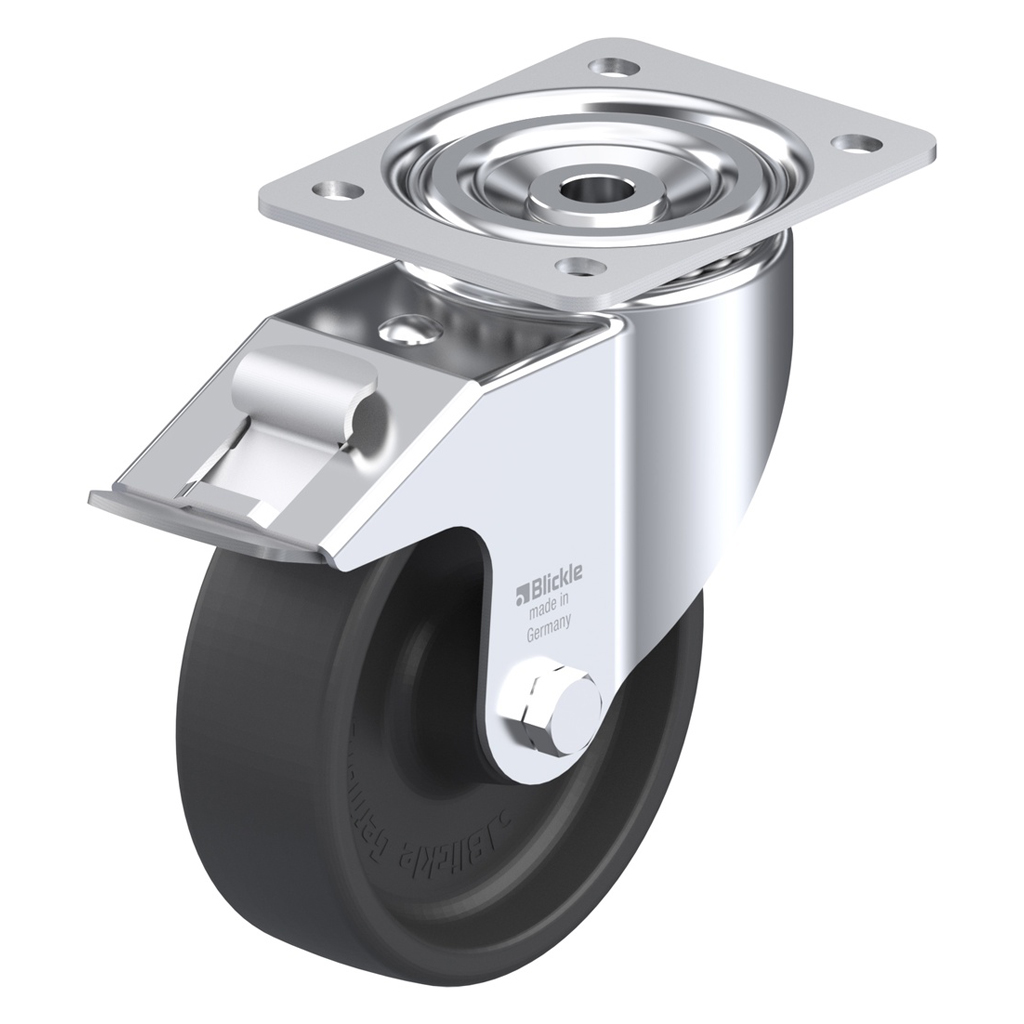

LI series 150mm swivel/brake top plate 140x110mm castor with heat resistant thermoplastic plain bearing wheel 300kg

150mm heat resistant swivel/brake castor with thermoplastic wheel, 300kg

  • Swivel/brake castor with heat resistant top plate bracket made of zinc plated steel with double row ball race in swivel head.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel made of heat resistant grey nylon.

  • The hardness of the tread is 85° Shore D.

  • Temperature range: -25°C - +250°C.

  • Bolted wheel axle.

  • Very low rolling resistance on clean and even surface.

  • Good chemical resistance to many substances.

Wheel Diameter (mm) 150
Tread Width (mm) 50
Bearing Type Plain bearing
Top Plate Size (mm) 140x110
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 190
Load Capacity 3km/h (kg) 300
Load Capacity 3km/h up to +70°C (kg) 350
Load Capacity 3km/h at +170°C (kg) 350
Load Capacity 3km/h at +250°C (kg) 300
Blickle Reference LI-POHI 150G-FI

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 754704.pdf
Download
Dimensions for 754704.jpg
Download
Image for 754704.jpg
Download
Dimensions for top plate brake, 150-160mm.jpg
Download
