T-Bush 25x12x02mm
T-Bush 25x12x02mm
2.91 €
2.91 €
Wheel series 100mm black rubber on pressed steel centre 14mm bore hub length 39mm roller bearing 90kg
Wheel series 100mm black rubber on pressed steel centre 14mm bore hub length 39mm roller bearing 90kg
5.98 €
5.98 €

200mm heat resistant swivel castor with thermoplastic wheel, 350kg

https://www.parnells.eu/web/image/product.template/87297/image_1920?unique=e8d62eb

Part Number: 754707
Wheel Diameter: 200mm (8" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 350kg

232.81 € 232.81 EUR 232.81 €

270.40 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Load Capacity 3km/h up to +70°C (kg)
  • Load Capacity 3km/h at +170°C (kg)
  • Load Capacity 3km/h at +250°C (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

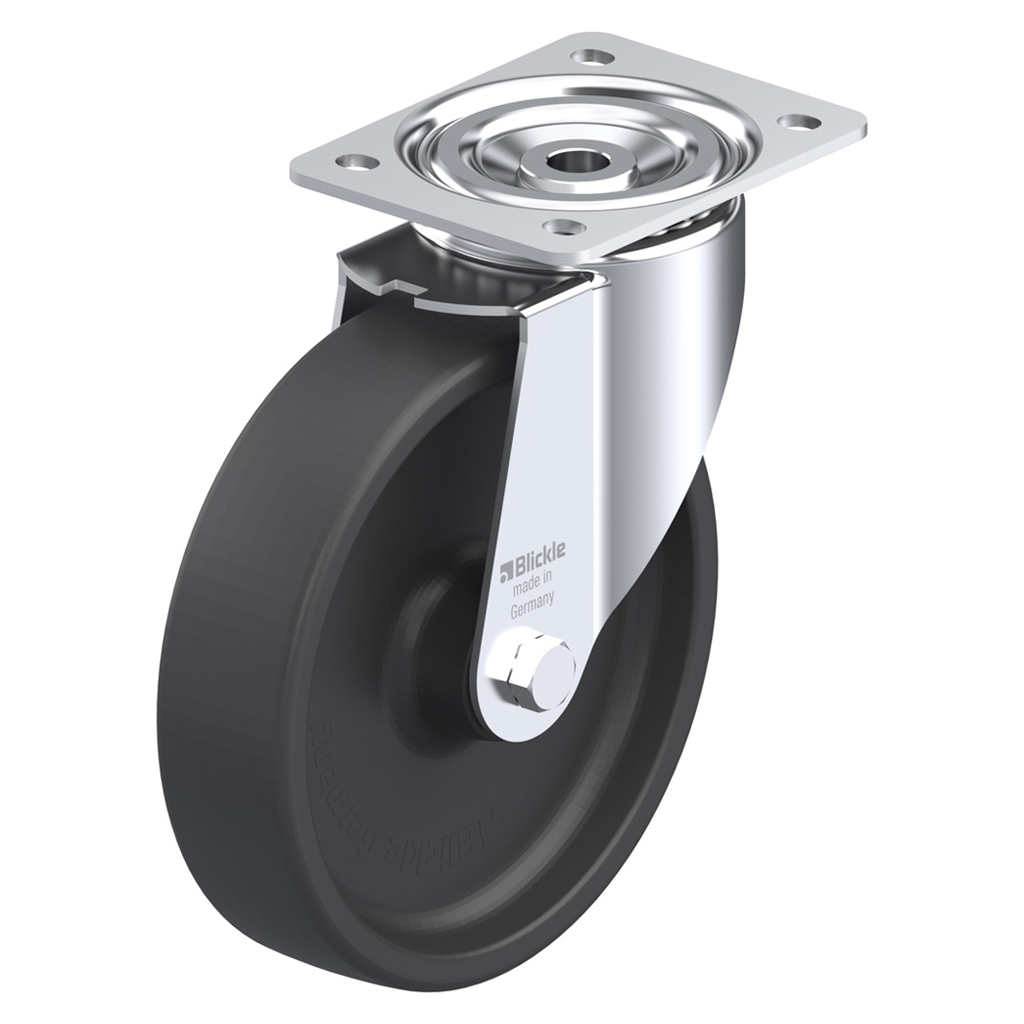

LI series 200mm swivel top plate 140x110mm castor with heat resistant thermoplastic plain bearing wheel 350kg

200mm heat resistant swivel castor with thermoplastic wheel, 350kg

  • Swivel castor with heat resistant top plate bracket made of zinc plated steel with double row ball race in swivel head.

  • Wheel made of heat resistant grey nylon.

  • The hardness of the tread is 85° Shore D.

  • Temperature range: -25°C - +250°C.

  • Bolted wheel axle.

  • Very low rolling resistance on clean and even surface.

  • Good chemical resistance to many substances.

Part Number 754707

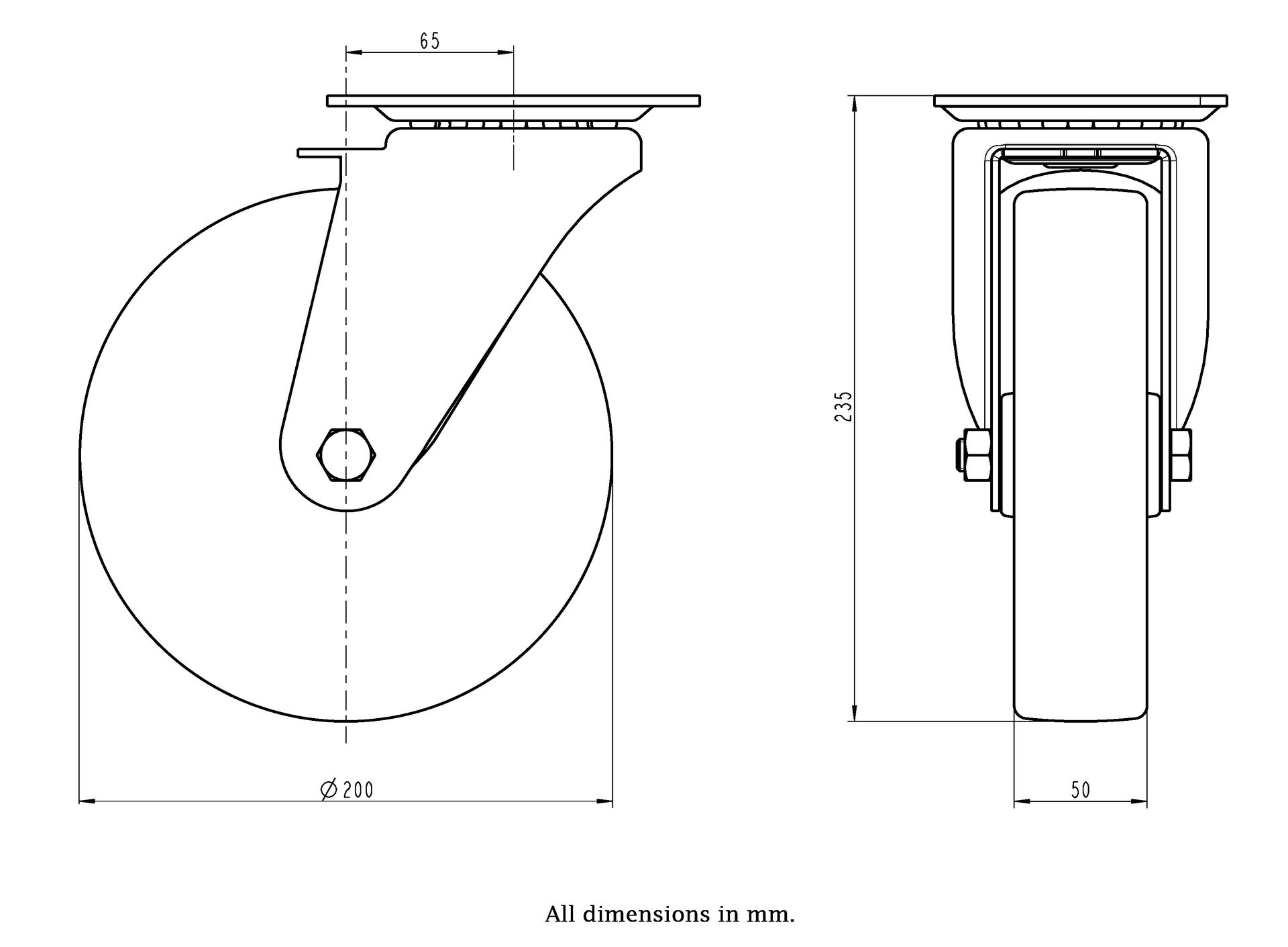

Wheel Diameter (mm) 200
Tread Width (mm) 50
Bearing Type Plain bearing

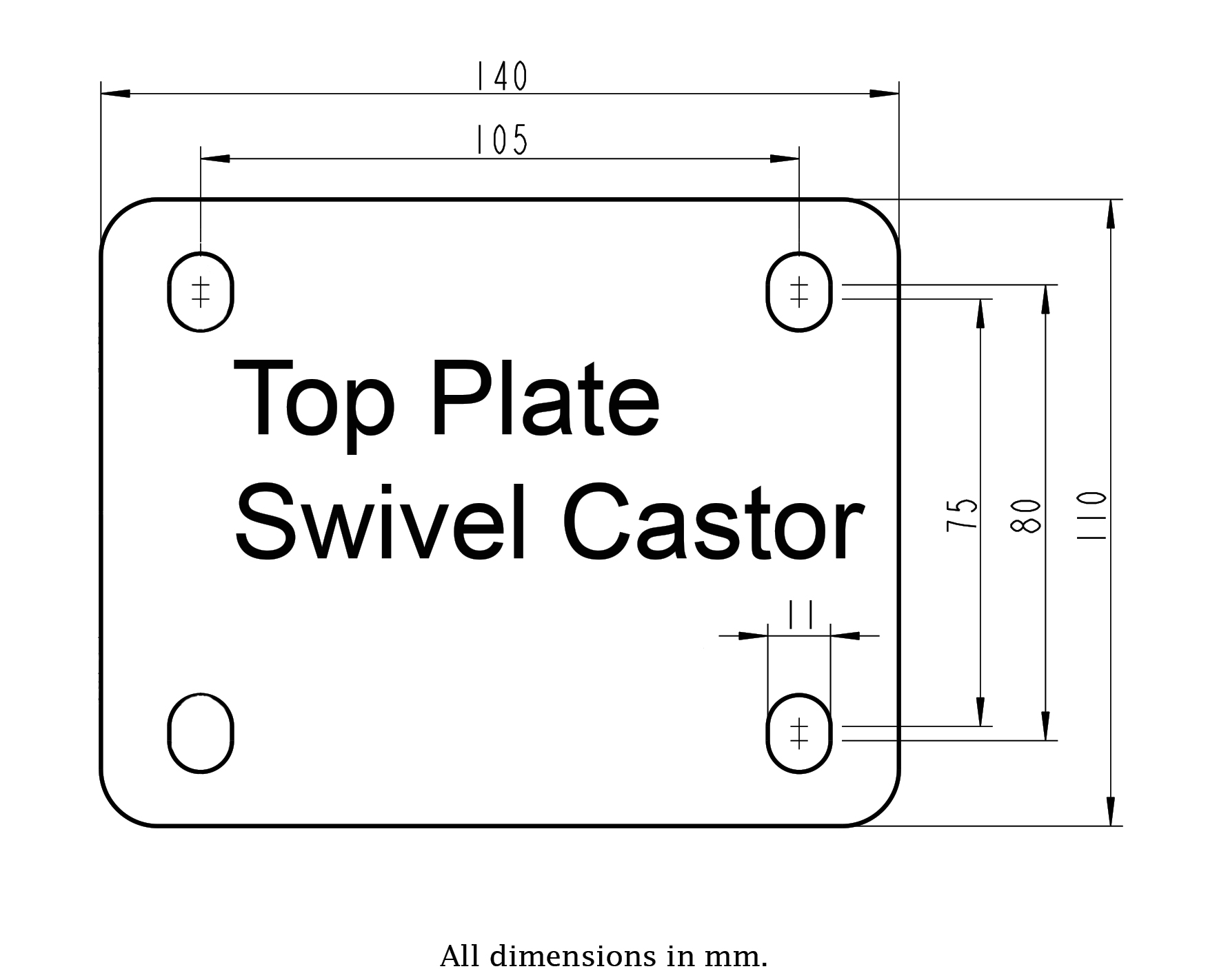

Top Plate Size (mm) 140x110
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 235
Load Capacity 3km/h (kg) 350
Load Capacity 3km/h up to +70°C (kg) 350
Load Capacity 3km/h at +170°C (kg) 350
Load Capacity 3km/h at +250°C (kg) 350
Blickle Reference LI-POHI 200G
