100mm heat resistant swivel castor with thermoplastic wheel, 120kg

https://www.parnells.eu/web/image/product.template/62066/image_1920?unique=332f833

Part Number: 754717
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 120kg

34.79 € 34.79 EUR 34.79 €

40.41 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Diameter (mm)
  • Bolt Hole (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Load Capacity 3km/h up to +70°C (kg)
  • Load Capacity 3km/h at +170°C (kg)
  • Load Capacity 3km/h at +250°C (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
LIR series 100mm swivel bolt hole 13mm castor with heat resistant thermoplastic plain bearing wheel 150kg

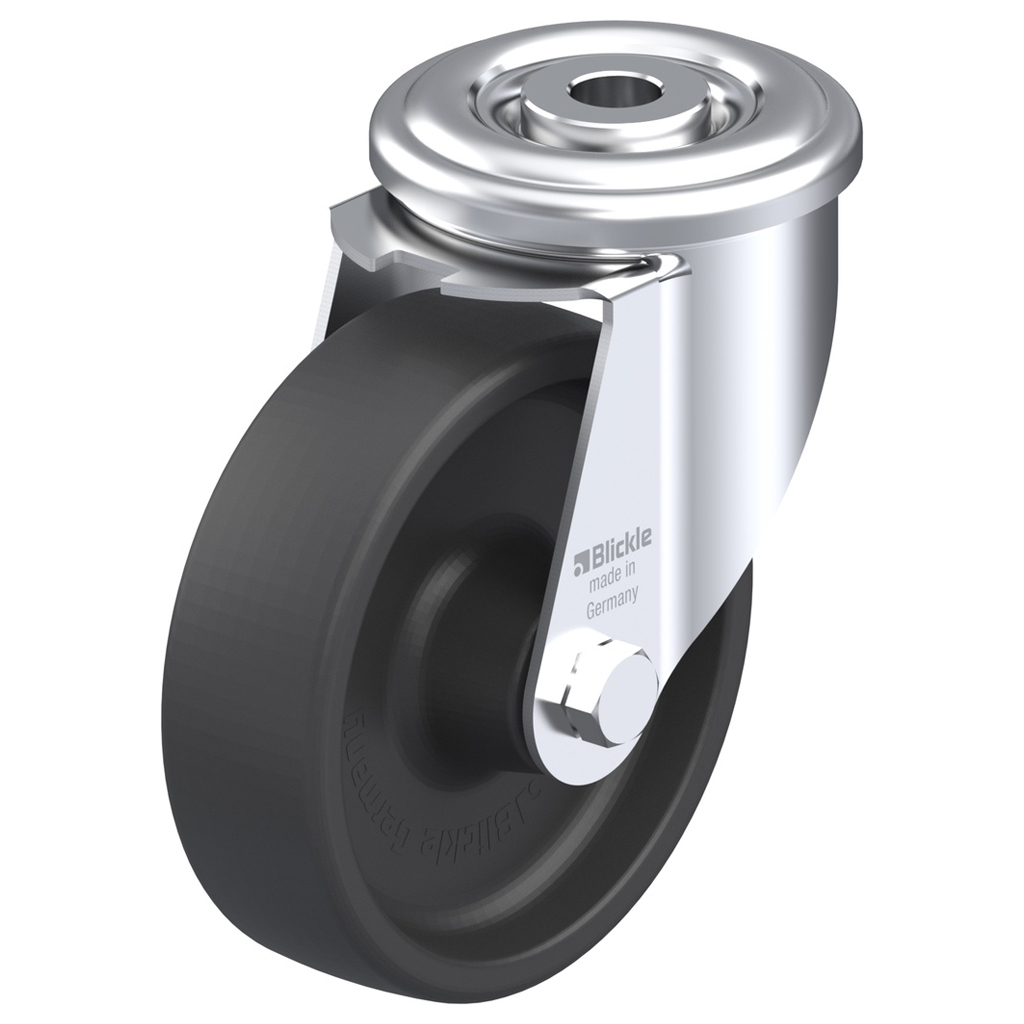

100mm heat resistant swivel castor with thermoplastic wheel, 120kg

  • Swivel castor with heat resistant bolt hole bracket made of zinc plated steel with double row ball race in swivel head.

  • Wheel made of heat resistant grey nylon.

  • The hardness of the tread is 85° Shore D.

  • Temperature range: -25°C - +250°C.

  • Bolted wheel axle.

  • Very low rolling resistance on clean and even surface.

  • Good chemical resistance to many substances.

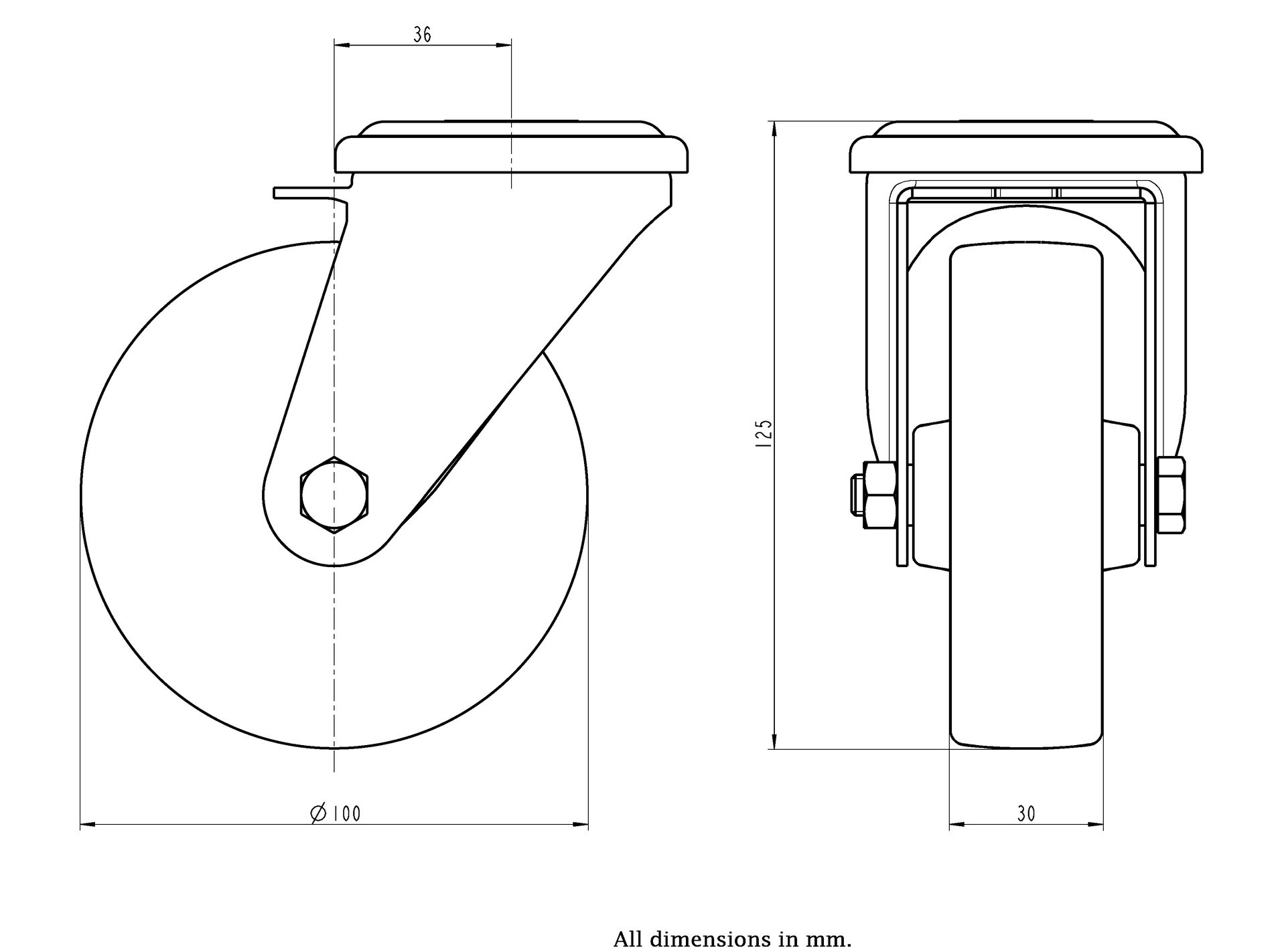

Wheel Diameter (mm) 100
Tread Width (mm) 30
Bearing Type Plain bearing

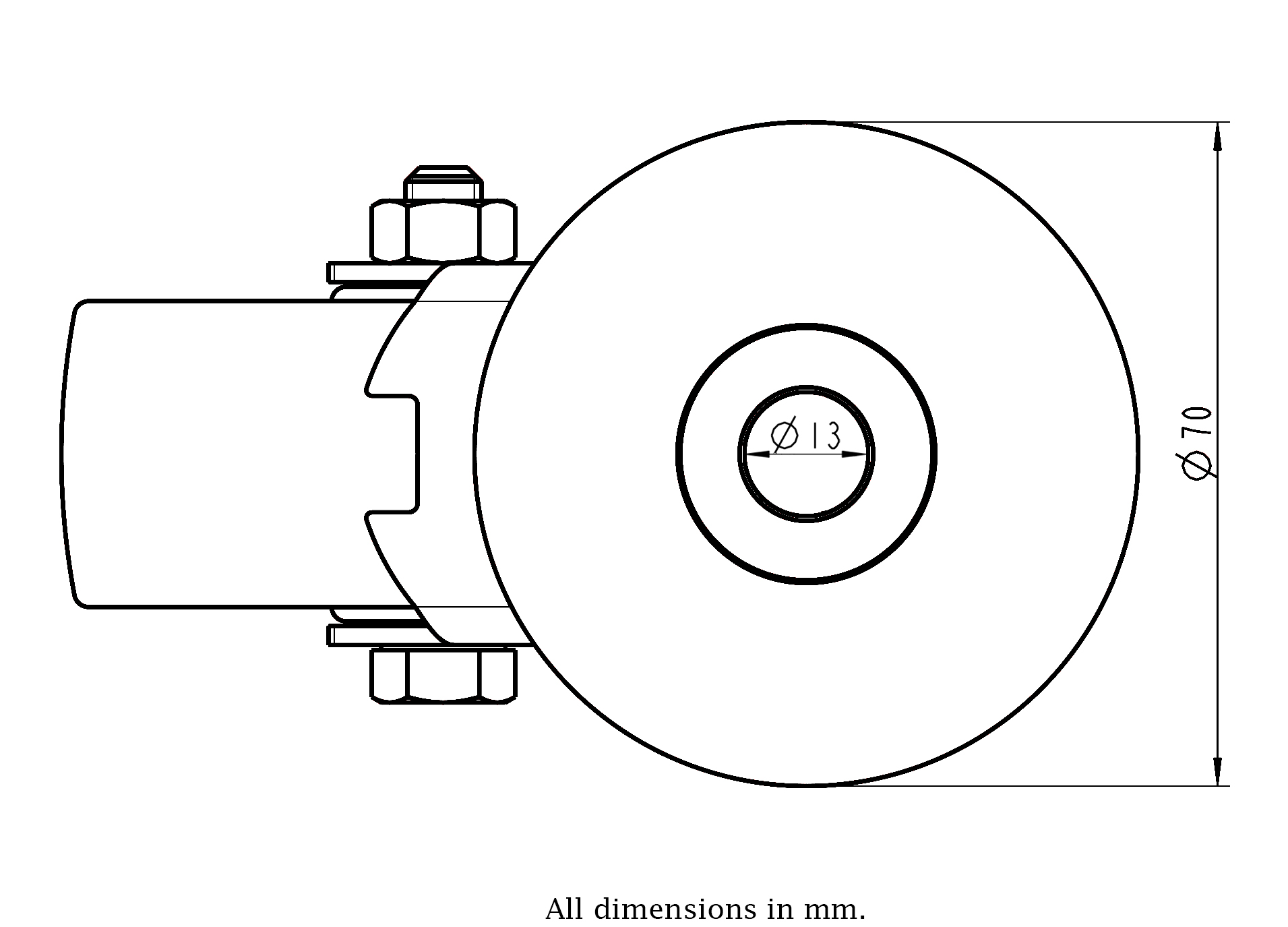

Top Plate Diameter (mm) 70
Bolt Hole (mm) 13
Overall Height (mm) 125
Load Capacity 3km/h (kg) 120
Load Capacity 3km/h up to +70°C (kg) 150
Load Capacity 3km/h at +170°C (kg) 150
Load Capacity 3km/h at +250°C (kg) 120
Blickle Reference LIR-POHI 100G
