80mm heat resistant swivel castor with thermoplastic wheel, 100kg

https://www.parnells.eu/web/image/product.template/87313/image_1920?unique=8f985a1

Part Number: 754727
Wheel Diameter: 80mm
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 100kg

65.29 € 65.29 EUR 65.29 €

75.83 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Diameter (mm)
  • Bolt Hole (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Load Capacity 3km/h up to +70°C (kg)
  • Load Capacity 3km/h at +170°C (kg)
  • Load Capacity 3km/h at +250°C (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

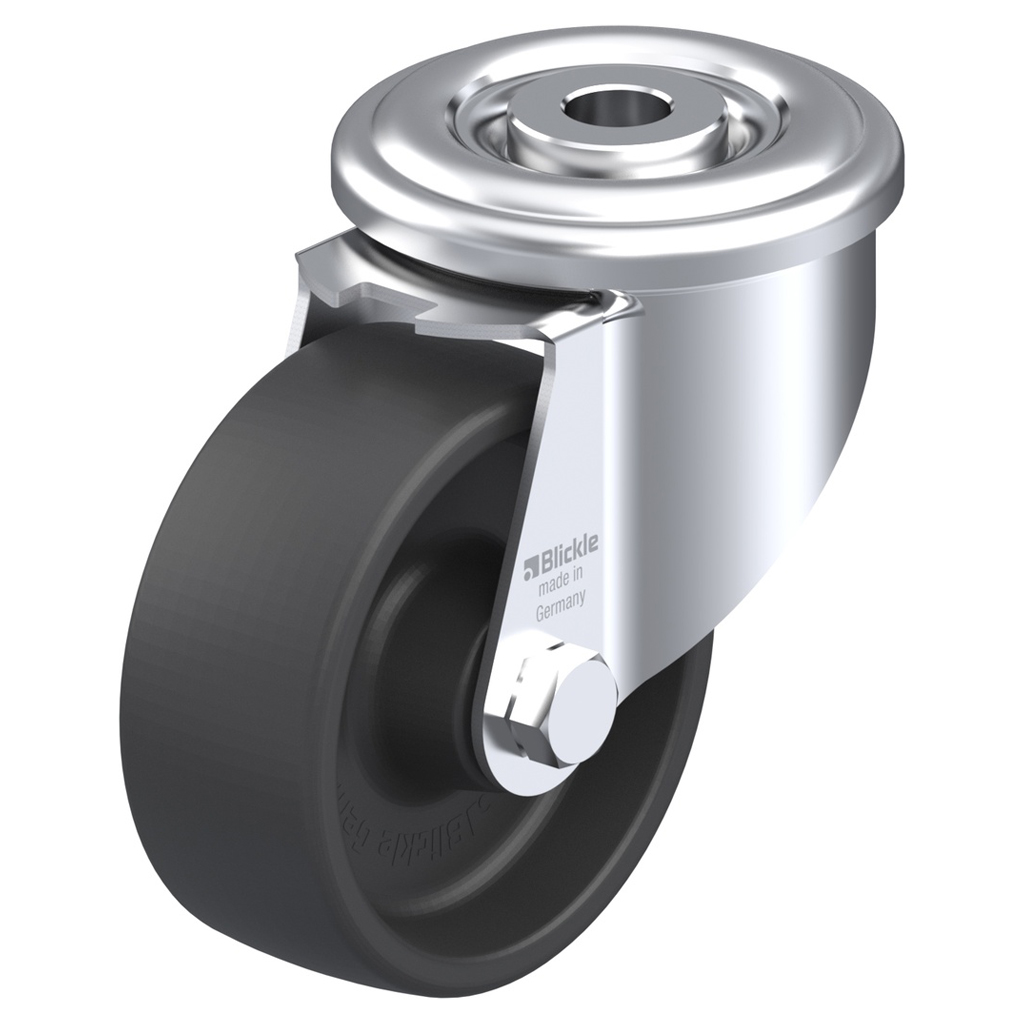

LIR series 80mm swivel bolt hole 13mm castor with heat resistant thermoplastic plain bearing wheel 100kg

80mm heat resistant swivel castor with thermoplastic wheel, 100kg

  • Swivel castor with heat resistant bolt hole bracket made of zinc plated steel with double row ball race in swivel head.

  • Wheel made of heat resistant grey nylon.

  • The hardness of the tread is 85° Shore D.

  • Temperature range: -25°C - +250°C.

  • Bolted wheel axle.

  • Very low rolling resistance on clean and even surface.

  • Good chemical resistance to many substances.

Part Number 754727
Wheel Diameter (mm) 80
Tread Width (mm) 32
Bearing Type Plain bearing
Top Plate Diameter (mm) 70
Bolt Hole (mm) 13
Overall Height (mm) 102
Load Capacity 3km/h (kg) 100
Load Capacity 3km/h up to +70°C (kg) 150
Load Capacity 3km/h at +170°C (kg) 140
Load Capacity 3km/h at +250°C (kg) 100
Blickle Reference LIR-POHI 81G

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 754727.pdf
Download

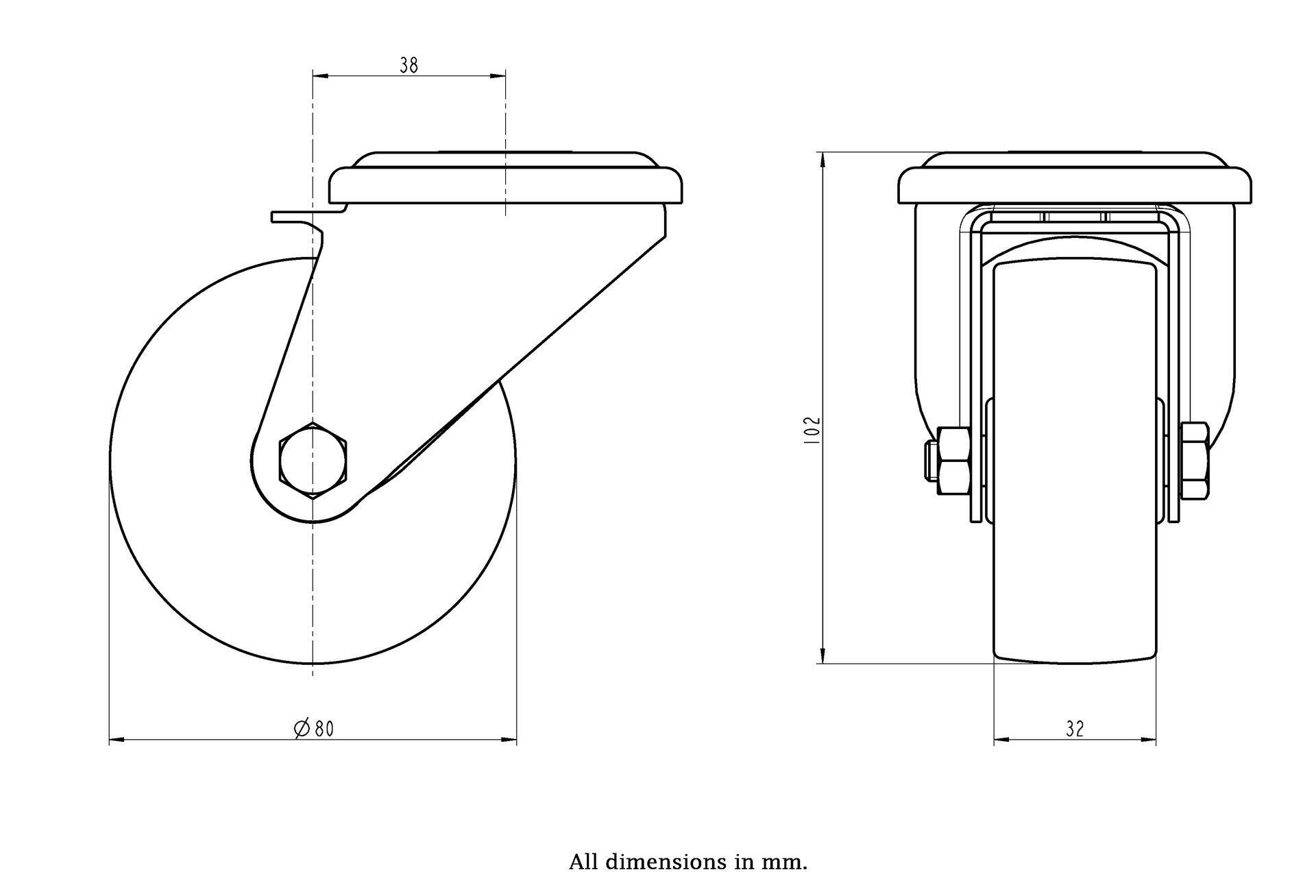

Dimensions for 754727.jpg
Download
Image for 754727.jpg
Download

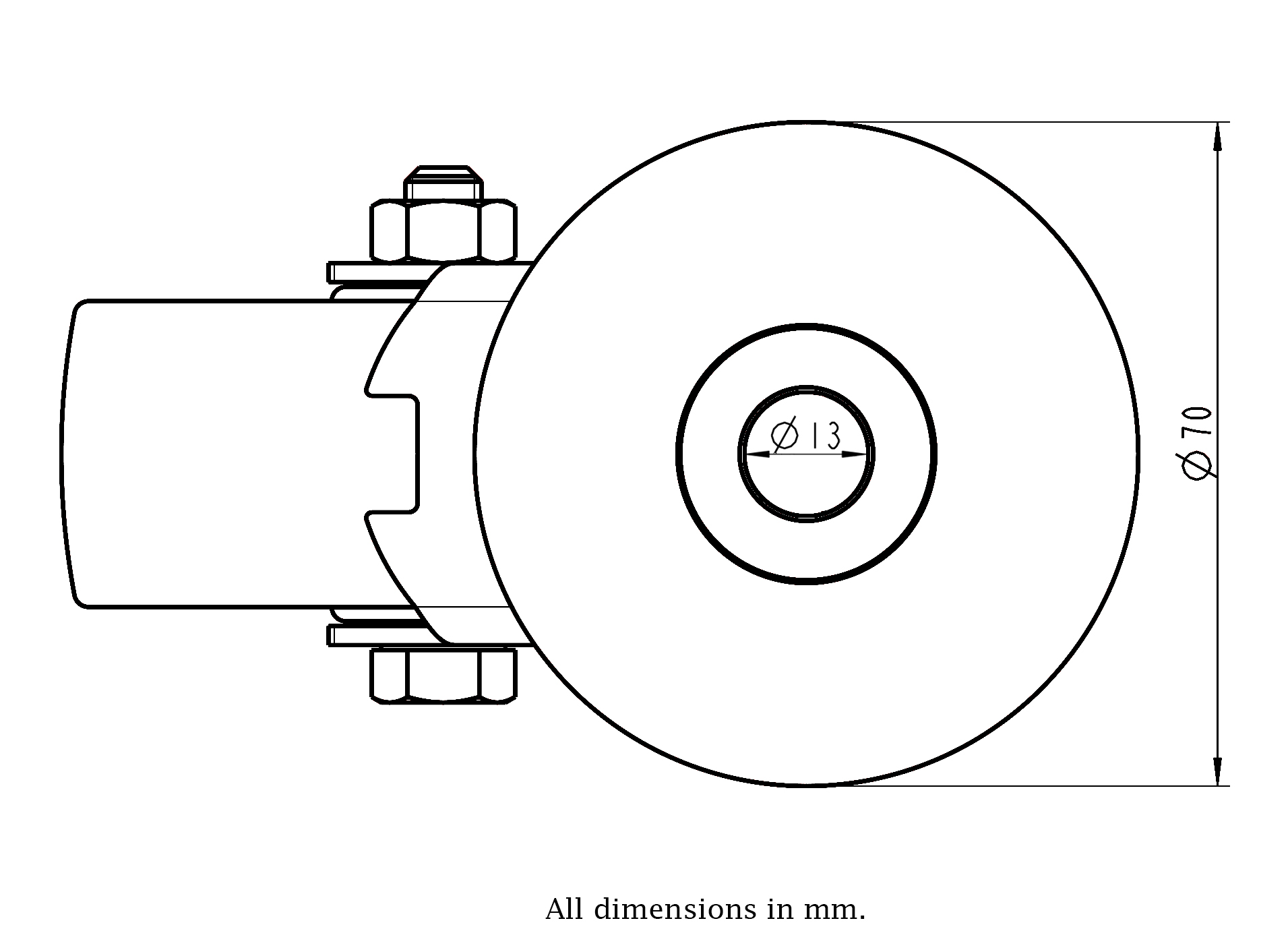

Dimensions for bolt hole swivel, 080-125mm.jpg
