200mm heat resistant stainless steel swivel castor with thermoplastic wheel, 350kg

https://www.parnells.eu/web/image/product.template/87329/image_1920?unique=554b3d1

Part Number: 754740
Wheel Diameter: 200mm (8" inches)
Castor Bracket Material: Stainless Steel
Load Capacity: 350kg

310.03 € 310.03000000000003 EUR 310.03 €

360.08 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Load Capacity 3km/h up to +70°C (kg)
  • Load Capacity 3km/h at +170°C (kg)
  • Load Capacity 3km/h at +250°C (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
LIX series 200mm stainless steel swivel top plate 140x110mm castor with heat resistant thermoplastic plain bearing wheel 350kg

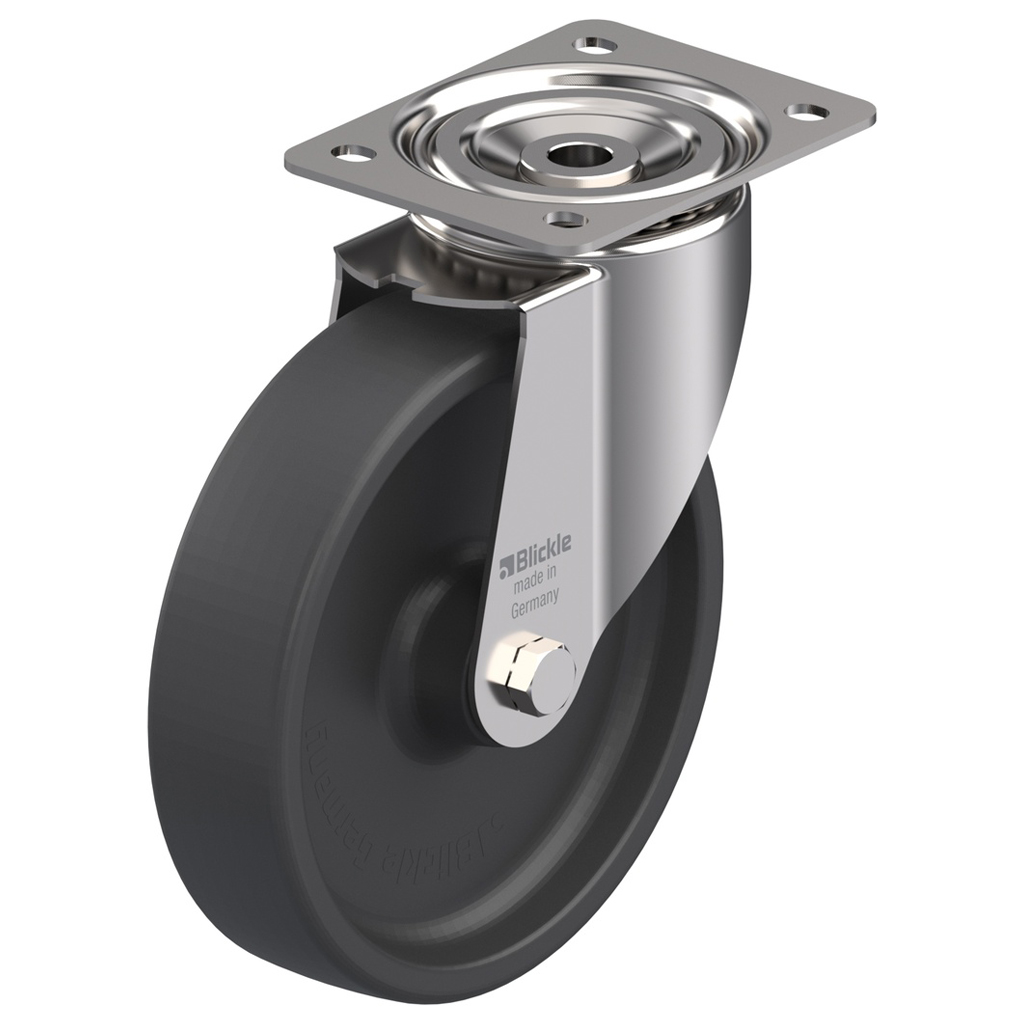

200mm heat resistant stainless steel swivel castor with thermoplastic wheel, 350kg

  • Swivel castor with heat resistant top plate bracket made of stainless steel with double row ball race in swivel head (material no. 1.4301/AISI 304).

  • Wheel made of heat resistant grey nylon.

  • The hardness of the tread is 85° Shore D.

  • Temperature range: -25°C - +250°C.

  • Bolted wheel axle.

  • Very low rolling resistance on clean and even surface.

  • Good chemical resistance to many substances.

Wheel Diameter (mm) 200
Tread Width (mm) 50
Bearing Type Plain bearing
Top Plate Size (mm) 140x110
Fixing Hole Spacing (mm) 105x75-80
Fixing Hole Size (mm) 11
Overall Height (mm) 235
Load Capacity 3km/h (kg) 350
Load Capacity 3km/h up to +70°C (kg) 350
Load Capacity 3km/h at +170°C (kg) 350
Load Capacity 3km/h at +250°C (kg) 350
Blickle Reference LIX-POHI 200G
