50mm levelling swivel castor with black nylon wheel, 250kg

https://www.parnells.eu/web/image/product.template/63763/image_1920?unique=95ad259
(0 review)

Part Number: 757012
Wheel Diameter: 50mm (2" inches)
Castor Bracket Material: Die-Cast Aluminium
Load Capacity: 250kg

81.01 € 81.01 EUR 81.01 €

94.09 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Width (mm)
  • Bolt Hole (mm)
  • Overall Height (mm)
  • Load Capacity 1km/h (kg)
  • Blickle Reference
  • Top plate Diameter (mm)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

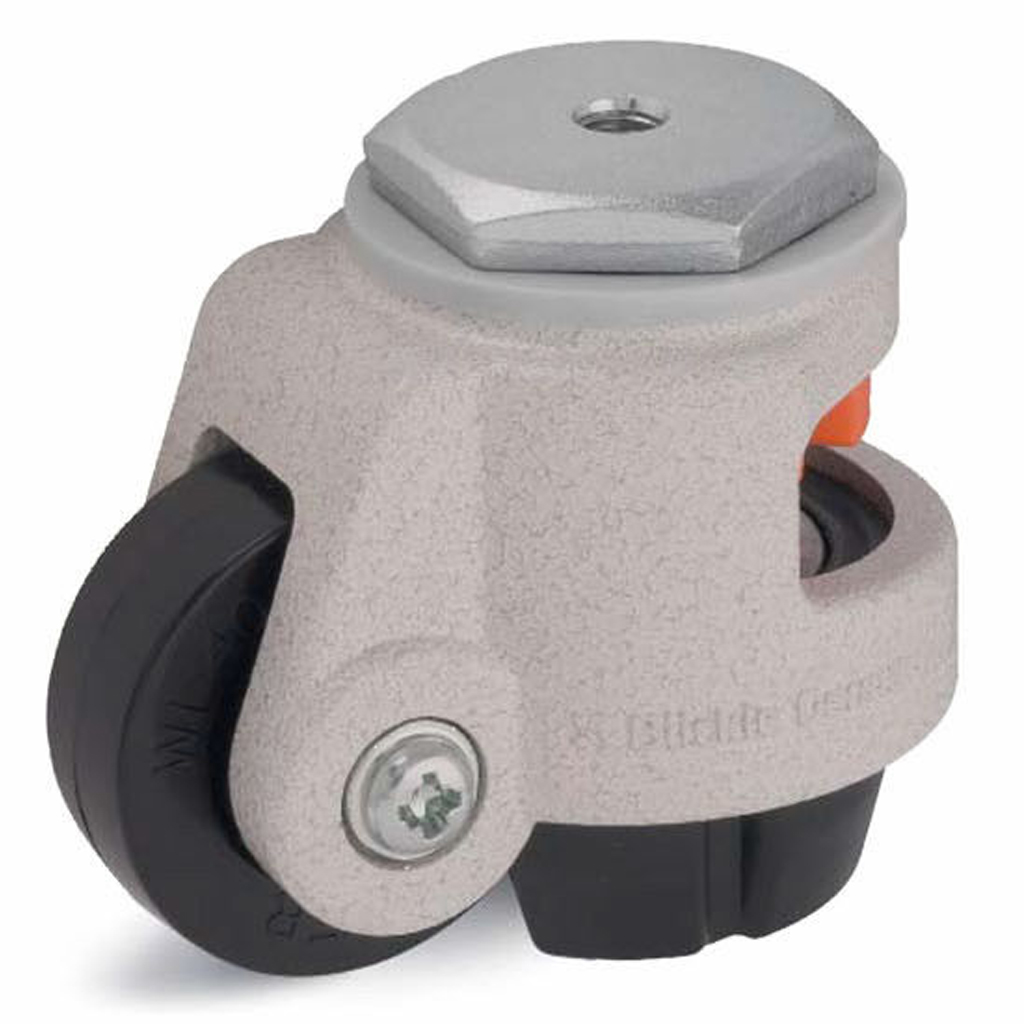

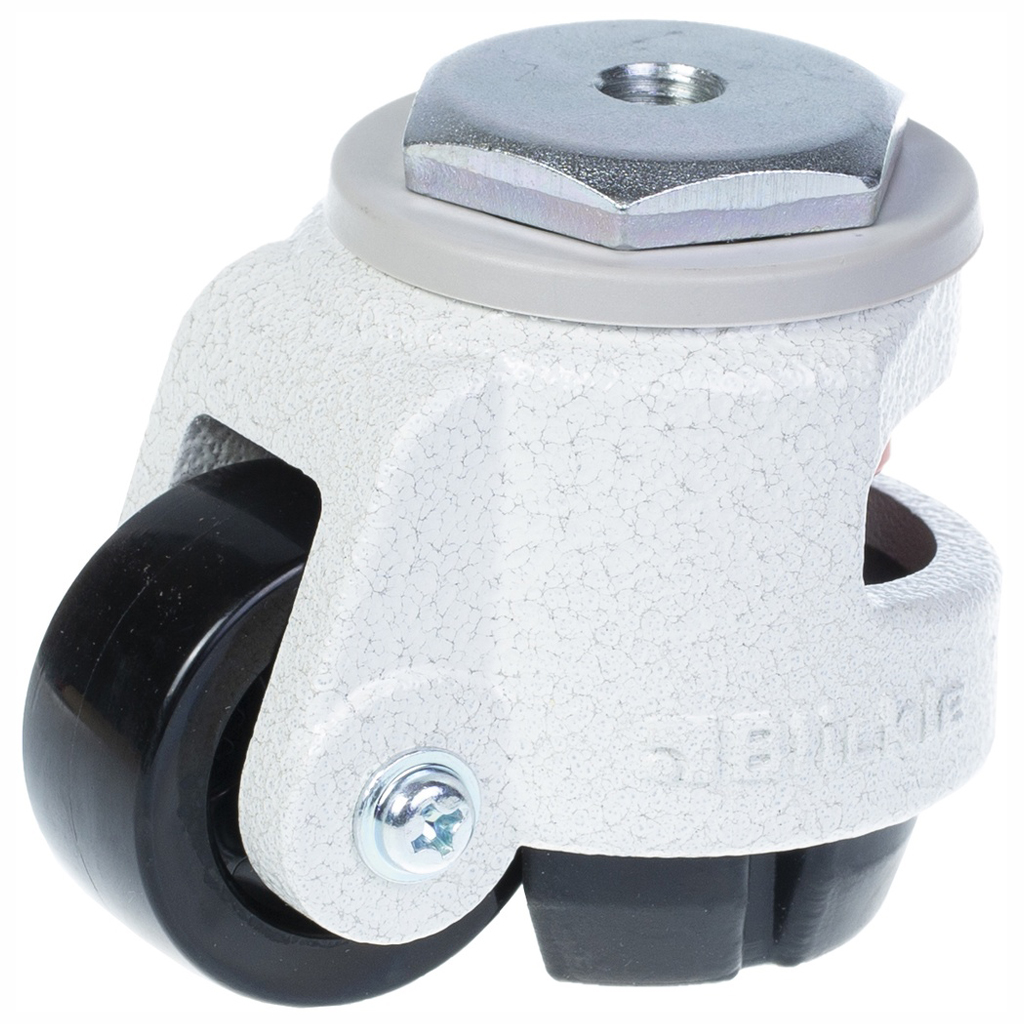

50mm levelling swivel castor with black nylon wheel, 250kg

  • Levelling swivel castor with zinc plated hexagon steel plate, female thread (M12x15mm) in the single bolt hole.

  • Bracket made of die-cast aluminium. Powder coated, colour ivory. Sealed double row ball race in swivel head.

  • Height adjustment with flat spanner or integrated adjustment wheel.

  • Truck lock made of hard rubber.

  • Wheel made of black nylon.

  • The hardness of the wheel tread is 70° Shore D.

  • Overall height (H): 84mm. Max overall height (h): 90mm. Adjustment range (T4): 6mm.

  • Speed: Max 1km/h.

  • Temperature range: +15°C - +30°C.

  • To be used on hard horizontal surface without obstacles.

  • Cool down periods of 15 minutes are required after max. 50 meters.

Levelling series HRIG-POA 50G 50mm swivel threaded bolt hole M12x15mm castor with nylon plain bearing wheel 250kg

Add to cart

Sign in

Pay

Get Delivered

Part Number 757012
Wheel Diameter (mm) 50
Tread Width (mm) 24
Bearing Type Plain bearing
Top Plate Width (mm) 46
Bolt Hole (mm) M12x15
Overall Height (mm) 84
Load Capacity 1km/h (kg) 250
Blickle Reference HRIG-POA 50G
Top plate Diameter (mm) 46
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now
Image for 757012.jpg
Download

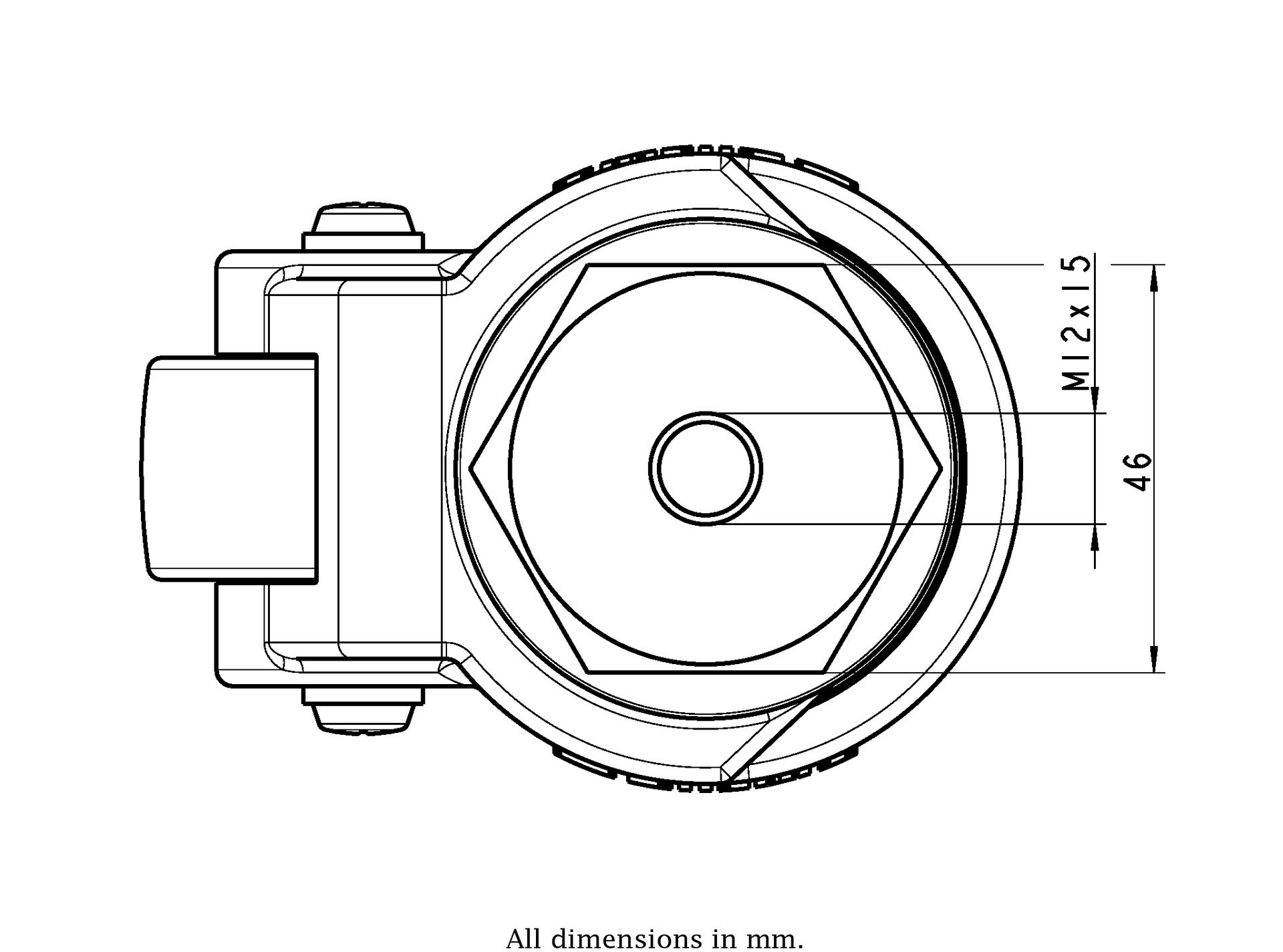

Dimensions for bolt hole swivel, 50mm.jpg
Download

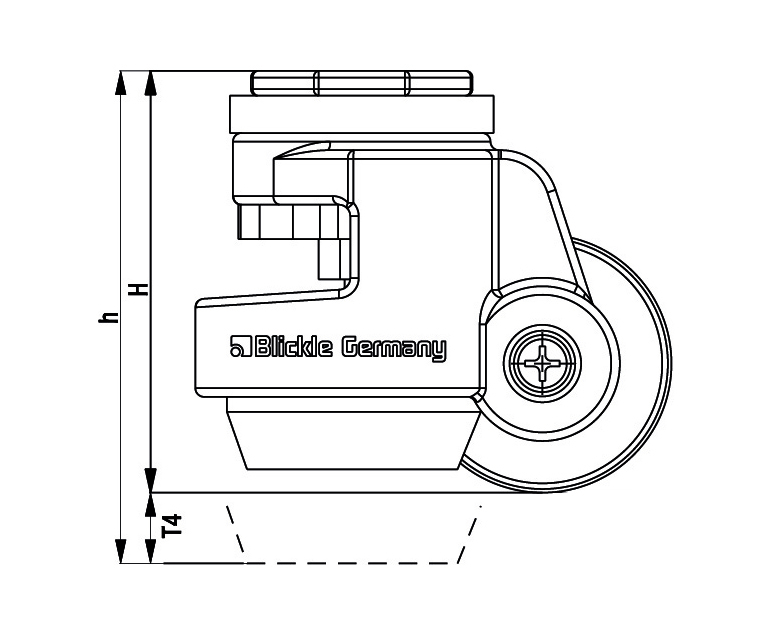

Height image with bolt hole.jpg
Download

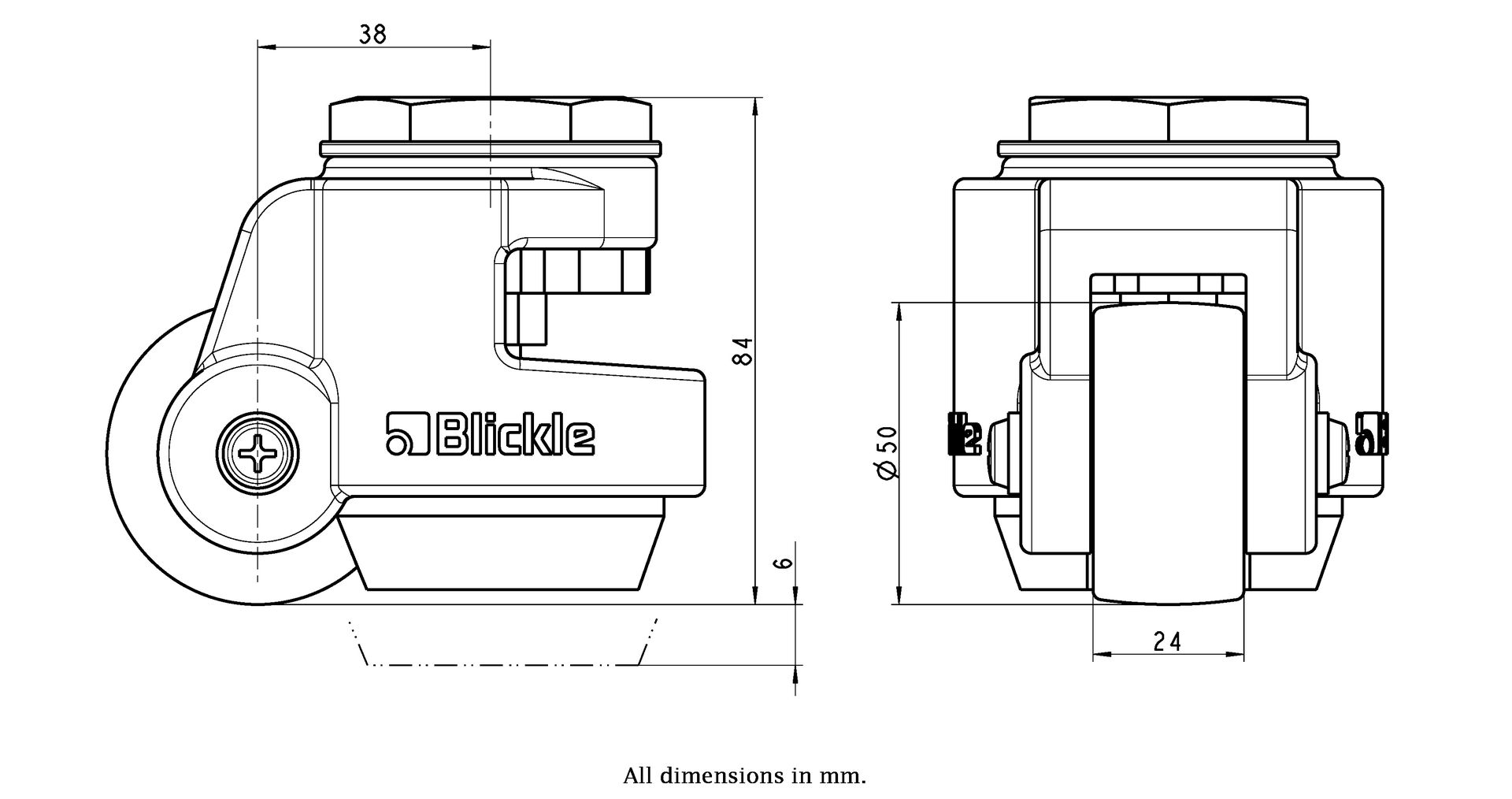

Dimensions for 757012.jpg
