63mm levelling swivel castor with black nylon wheel, 500kg

https://www.parnells.eu/web/image/product.template/63764/image_1920?unique=8e32141
(0 review)

Part Number: 757013
Wheel Diameter: 63mm (2.5" inches)
Castor Bracket Material: Die-Cast Aluminium
Load Capacity: 500kg

107.56 € 107.56 EUR 107.56 €

124.92 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Width (mm)
  • Bolt Hole (mm)
  • Overall Height (mm)
  • Load Capacity 1km/h (kg)
  • Blickle Reference
  • Top plate Diameter (mm)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

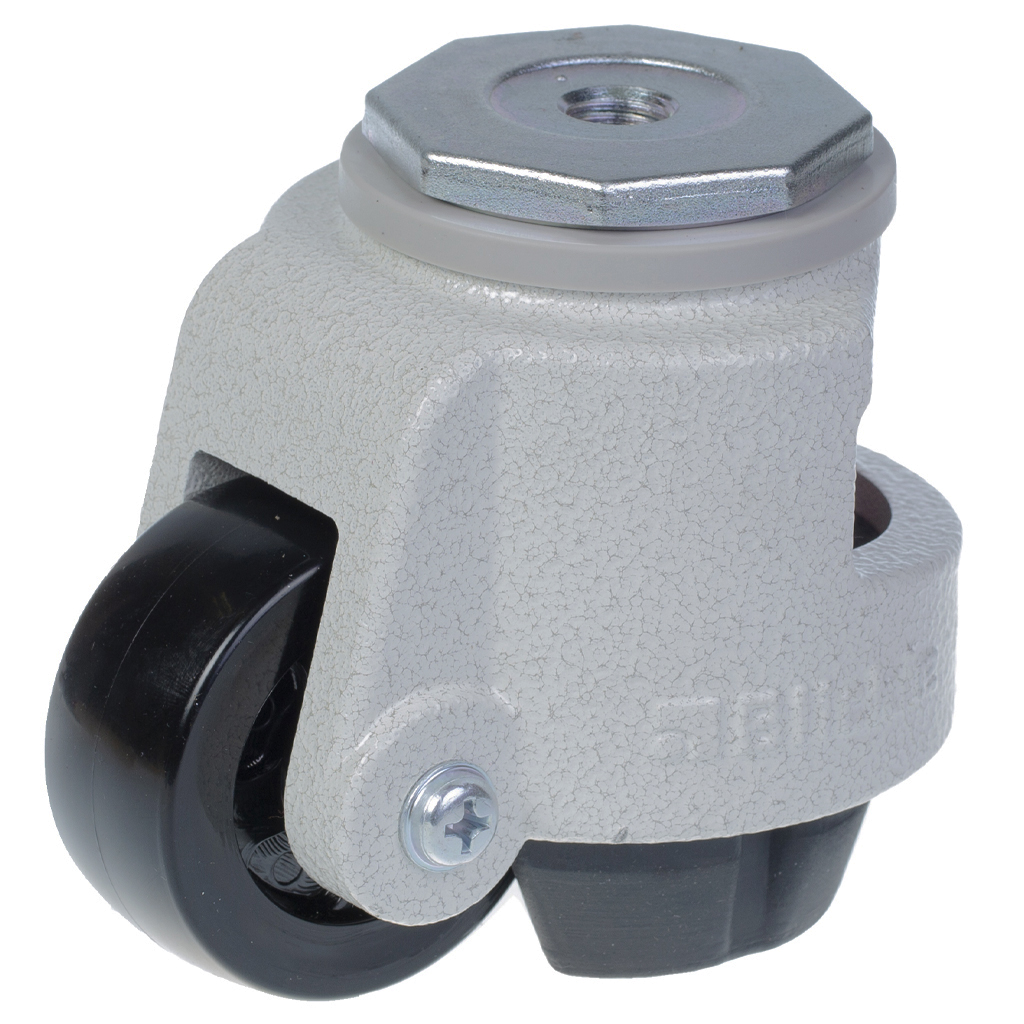

63mm levelling swivel castor with black nylon wheel, 500kg

  • Levelling swivel castor with zinc plated hexagon steel plate, female thread (M12x15mm) in the single bolt hole.

  • Bracket made of die-cast aluminium. Powder coated, colour ivory. Sealed double row ball race in swivel head.

  • Height adjustment with flat spanner or integrated adjustment wheel.

  • Truck lock made of hard rubber.

  • Wheel made of black nylon.

  • The hardness of the wheel tread is 70° Shore D.

  • Overall height (H): 104mm. Max overall height (h): 114mm. Adjustment range (T4): 10mm.

  • Speed: Max 1km/h.

  • Temperature range: +15°C - +30°C.

  • To be used on hard horizontal surface without obstacles.

  • Cool down periods of 15 minutes are required after max. 50 meters.

Levelling series HRIG-POA 63G 63mm swivel threaded bolt hole M12x15mm castor with nylon plain bearing wheel 500kg

Add to cart

Sign in

Pay

Get Delivered

Part Number 757013
Wheel Diameter (mm) 63
Tread Width (mm) 30
Bearing Type Plain bearing
Top Plate Width (mm) 65
Bolt Hole (mm) M12x15
Overall Height (mm) 104
Load Capacity 1km/h (kg) 500
Blickle Reference HRIG-POA 63G
Top plate Diameter (mm) 65
