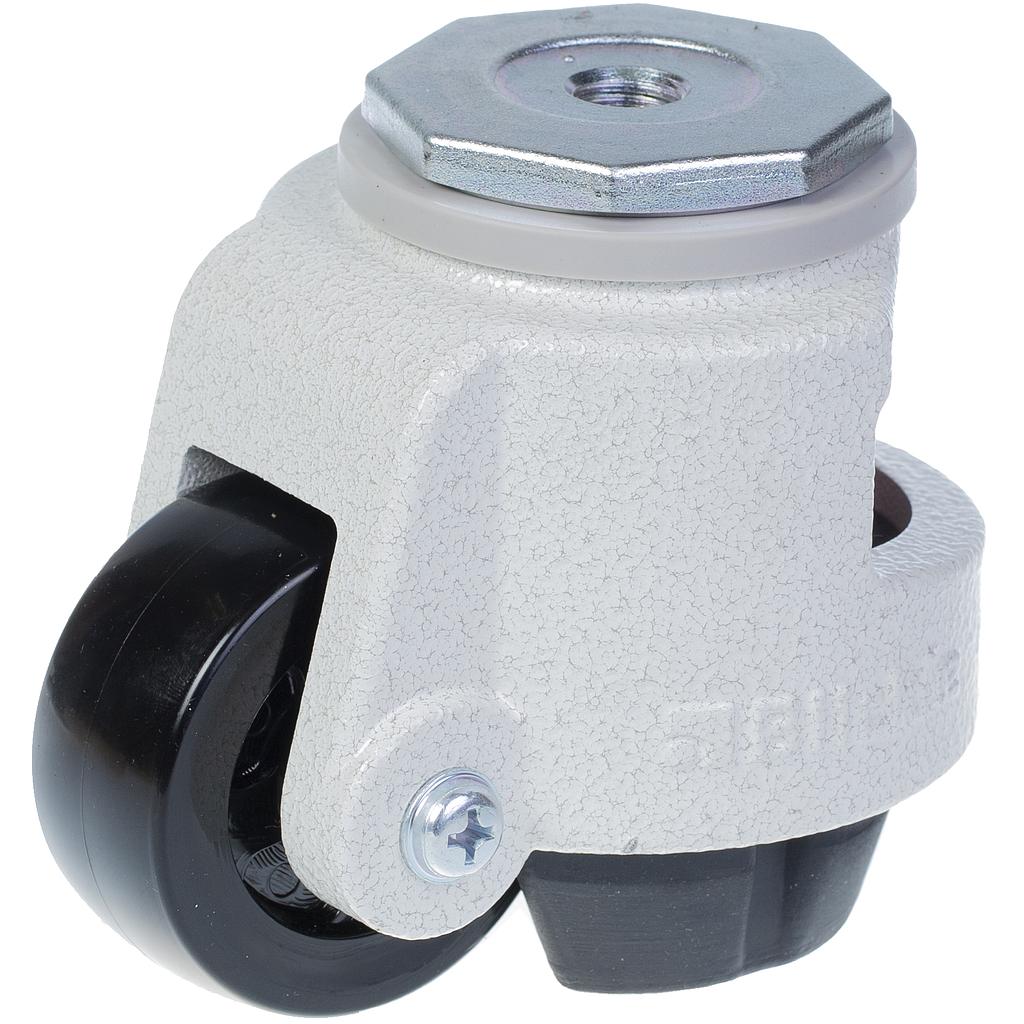

Levelling series HRIG-POA 72G 72mm swivel threaded bolt hole M16x16mm castor with nylon plain bearing wheel 750kg

72mm levelling swivel castor with black nylon wheel, 750kg

  • Levelling swivel castor with zinc plated hexagon steel plate, female thread (M16x16mm) in the single bolt hole.

  • Bracket made of die-cast aluminium. Powder coated, colour ivory. Sealed double row ball race in swivel head.

  • Height adjustment with flat spanner or integrated adjustment wheel.

  • Truck lock made of hard rubber.

  • Wheel made of black nylon.

  • The hardness of the wheel tread is 70° Shore D.

  • Overall height (H): 122mm. Max overall height (h): 132mm. Adjustment range (T4): 10mm.

  • Speed: Max 1km/h.

  • Temperature range: +15°C - +30°C.

  • To be used on hard horizontal surface without obstacles.

  • Cool down periods of 15 minutes are required after max. 50 meters.

Part Number 757014
Wheel Diameter (mm) 72
Brand Blickle
Tread Width (mm) 32
Bearing Type Plain bearing
Top Plate Width (mm) 67
Bolt Hole (mm) M16x16
Overall Height (mm) 122
Load Capacity 1km/h (kg) 750
Blickle Reference HRIG-POA 72G
Top plate Diameter (mm) 67
