45mm levelling swivel castor with black nylon wheel, 180kg

(0 review)

Part Number: 757018
Wheel Diameter: 45mm
Castor Bracket Material: Die-Cast Aluminium
Load Capacity: 180kg

53.00 € 53.0 EUR 53.00 €

61.56 €

Login for trade prices

Not Available For Sale

  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 1km/h (kg)
  • Blickle Reference

This combination does not exist.

Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

45mm levelling swivel castor with black nylon wheel, 180kg

  • Levelling swivel castor with zinc plated steel top plate.

  • Bracket made of die-cast aluminium. Powder coated, colour ivory. Sealed double row ball race in swivel head.

  • Height adjustment with flat spanner or integrated adjustment wheel.

  • Truck lock made of hard rubber.

  • Wheel made of black nylon.

  • The hardness of the wheel tread is 70° Shore D.

  • Bolted wheel axle.

  • Overall height (H): 72mm. Max overall height (h): 80mm. Adjustment range (T4): 8mm.

  • Speed: Max 1km/h.

  • Temperature range: +15°C - +30°C.

  • To be used on hard horizontal surface without obstacles.

  • Cool down periods of 15 minutes are required after max. 50 meters.

Levelling series HRP-POA 45G 45mm swivel top plate 55x55mm castor with nylon plain bearing wheel 180kg

Add to cart

Sign in


Get Delivered

Part Number 757018
Wheel Diameter (mm) 45
Tread Width (mm) 18
Bearing Type Plain bearing
Top Plate Size (mm) 55x55
Fixing Hole Spacing (mm) 42x42
Fixing Hole Size (mm) 7
Overall Height (mm) 72
Load Capacity 1km/h (kg) 180
Blickle Reference HRP-POA 45G
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now

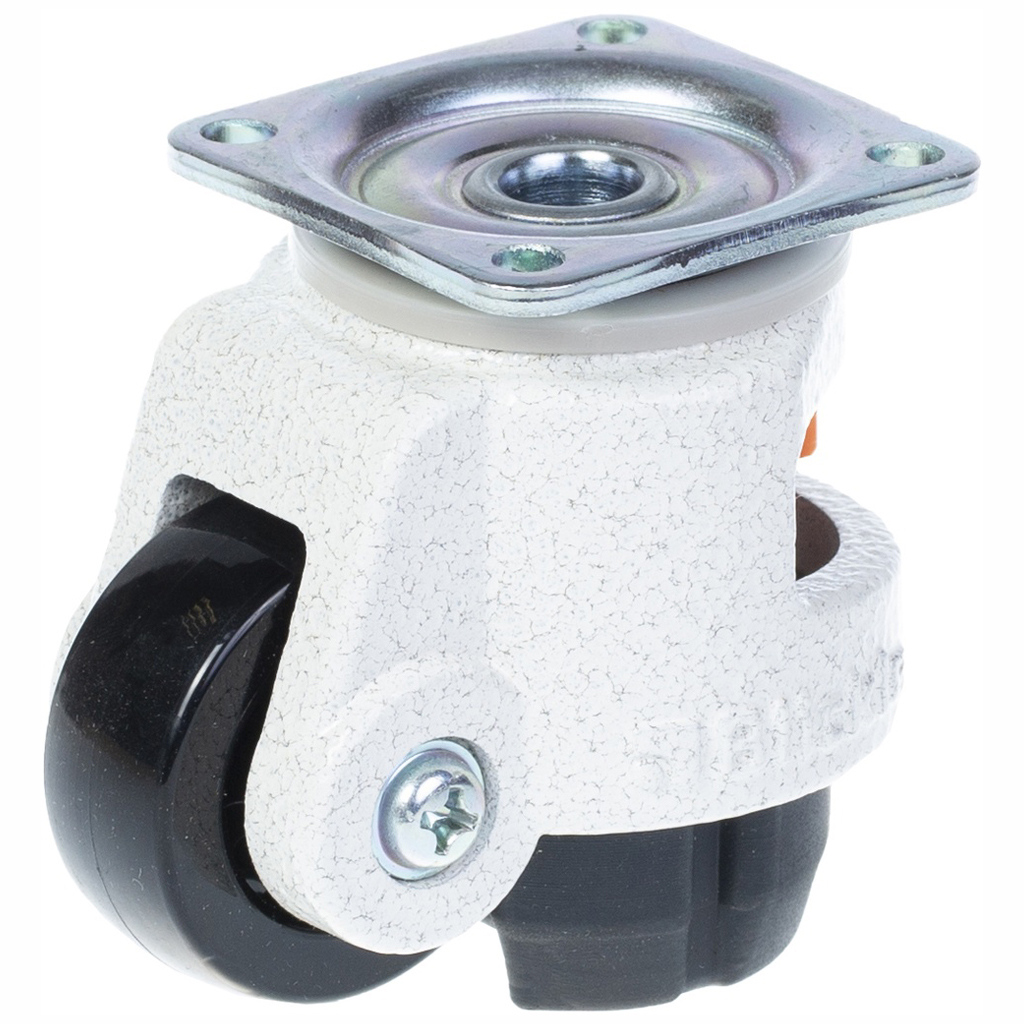

Image for 757018.jpg

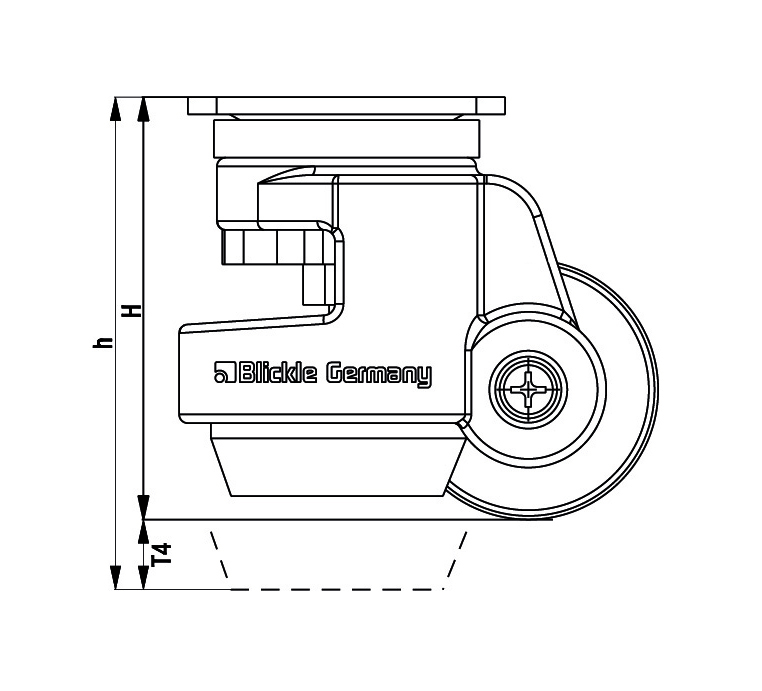

Height image with top plate.jpg

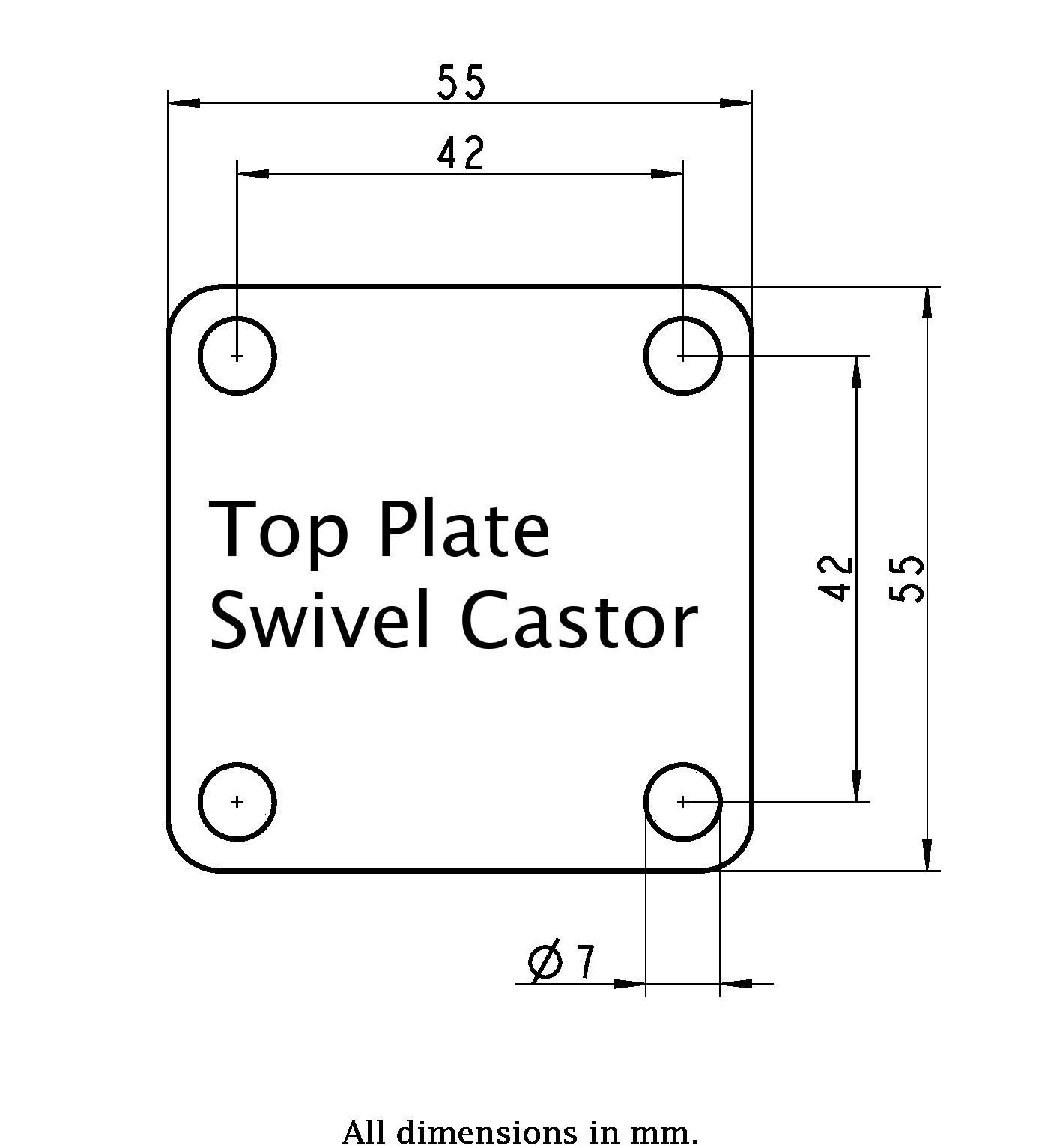

Dimensions for top plate swivel, 45mm.jpg

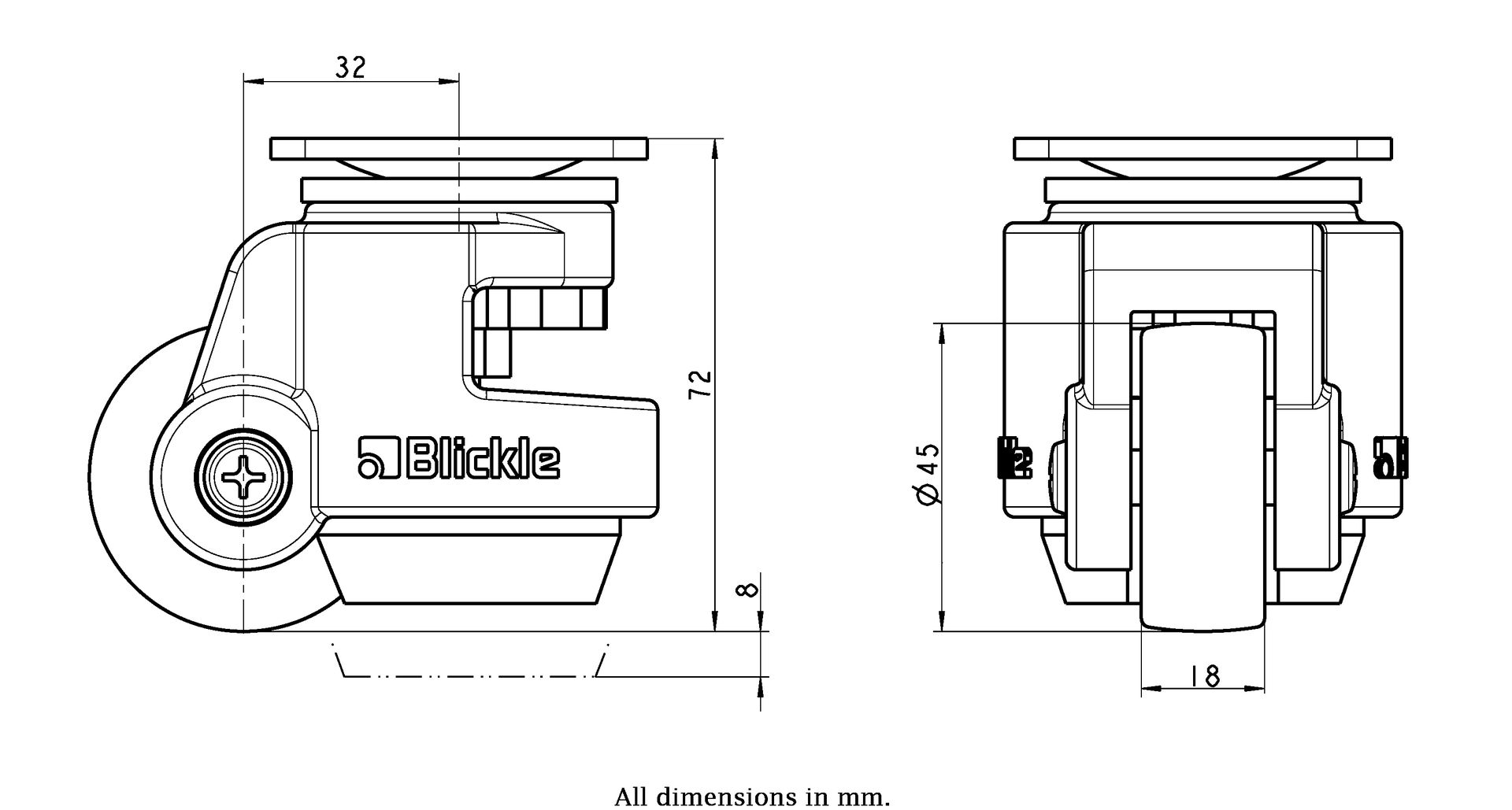

Dimensions for 757018.jpg
