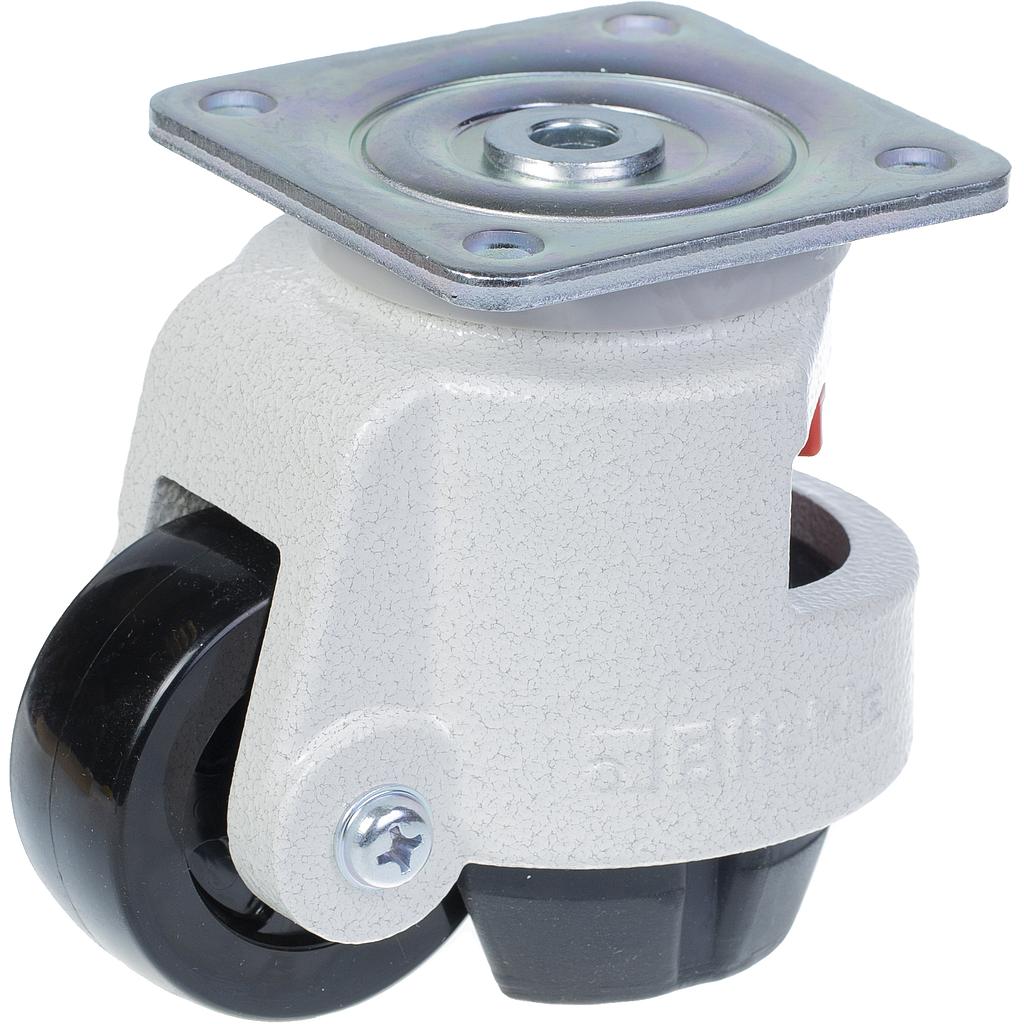

63mm levelling swivel castor with black nylon wheel, 500kg
Part Number: 757020
Wheel Diameter: 63mm (2.5" inches)
Castor Bracket Material: Die-Cast Aluminium
Load Capacity: 500kg
63mm levelling swivel castor with black nylon wheel, 500kg
Levelling swivel castor with zinc plated steel top plate.
Bracket made of die-cast aluminium. Powder coated, colour ivory. Sealed double row ball race in swivel head.
Height adjustment with flat spanner or integrated adjustment wheel.
Truck lock made of hard rubber.
Wheel made of black nylon.
The hardness of the wheel tread is 70° Shore D.
Bolted wheel axle.
Overall height (H): 104mm. Max overall height (h): 116mm. Adjustment range (T4): 12mm.
Speed: Max 1km/h.
Temperature range: +15°C - +30°C.
To be used on hard horizontal surface without obstacles.
Cool down periods of 15 minutes are required after max. 50 meters.
Part Number | 757020 |
Wheel Diameter (mm) | 63 |
Brand | Blickle |
Tread Width (mm) | 30 |
Bearing Type | Plain bearing |
Top Plate Size (mm) | 90x90 |
Fixing Hole Spacing (mm) | 70x70 |
Fixing Hole Size (mm) | 9 |
Overall Height (mm) | 104 |
Load Capacity 1km/h (kg) | 500 |
Blickle Reference | HRP-POA 63G |
