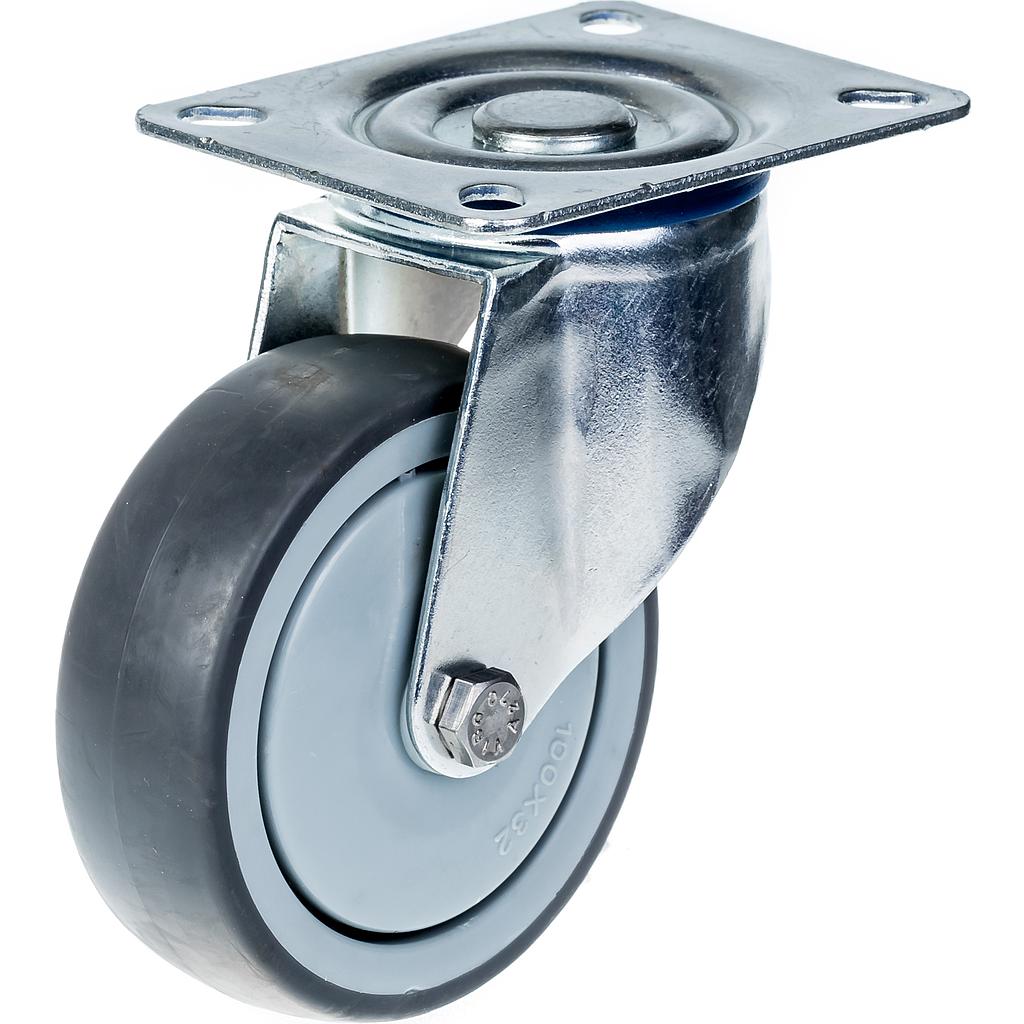

300 series 100mm swivel top plate 100x80mm castor with grey thermoplastic rubber on polypropylene centre single ball bearing wheel 110kg

100mm swivel castor with grey thermoplastic rubber on polypropylene centre wheel, 110kg

  • Swivel castor with top plate bracket made of zinc plated steel with double row ball race in swivel head and dust protection ring.

  • Wheel with grey thermoplastic rubber on polypropylene centre.

  • The hardness of the tread is 85° Shore A.

  • Bolted wheel axle.

  • Reasonable rolling resistance and low operating noise. Very good floor preservation, non-marking, but thermoplastic rubber contains traces of oil and may make stains on absorbent floors.

  • Good chemical resistance to many substances.

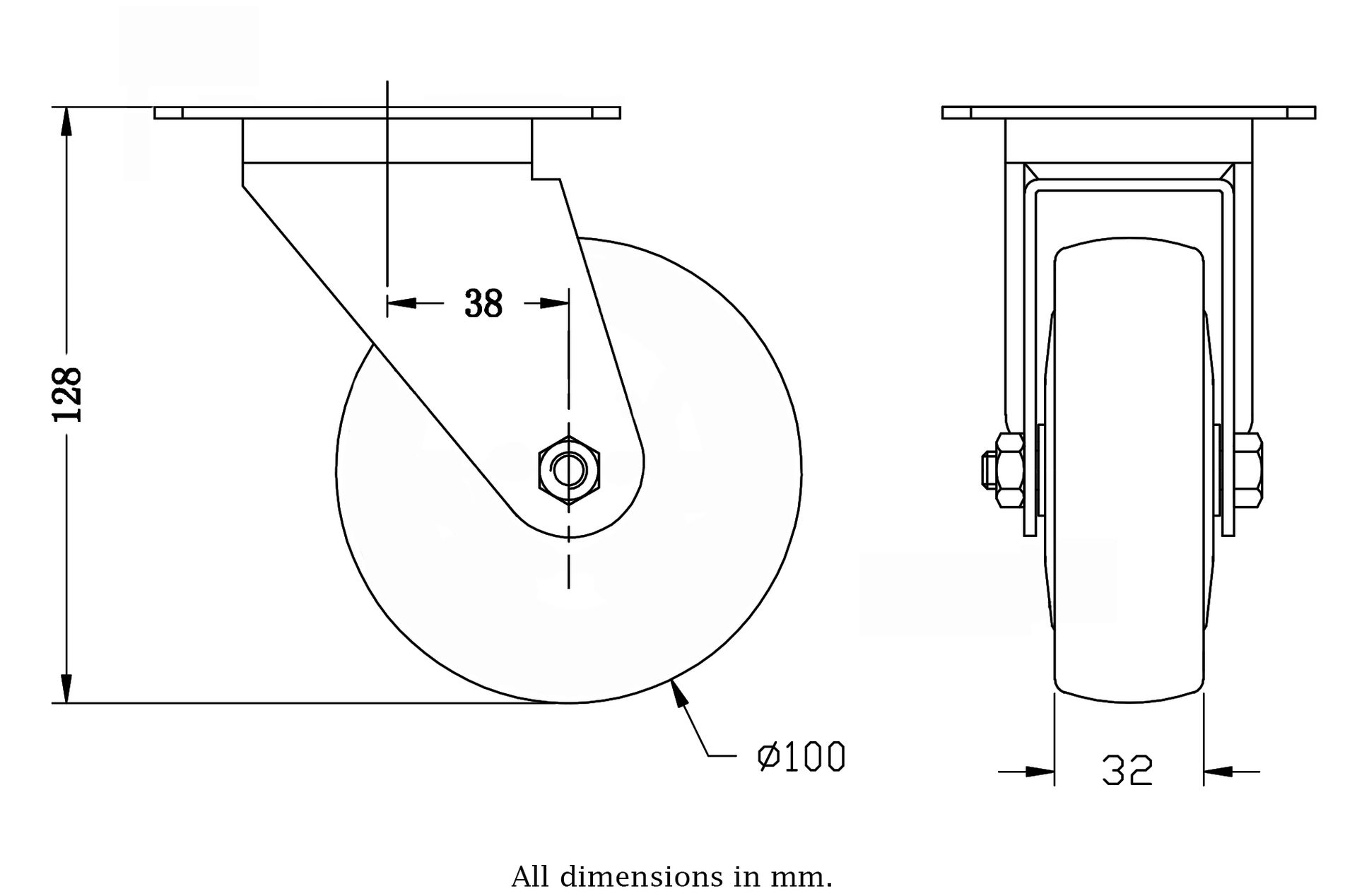

Wheel Diameter (mm) 100
Tread Width (mm) 32
Bearing Type Single ball bearing

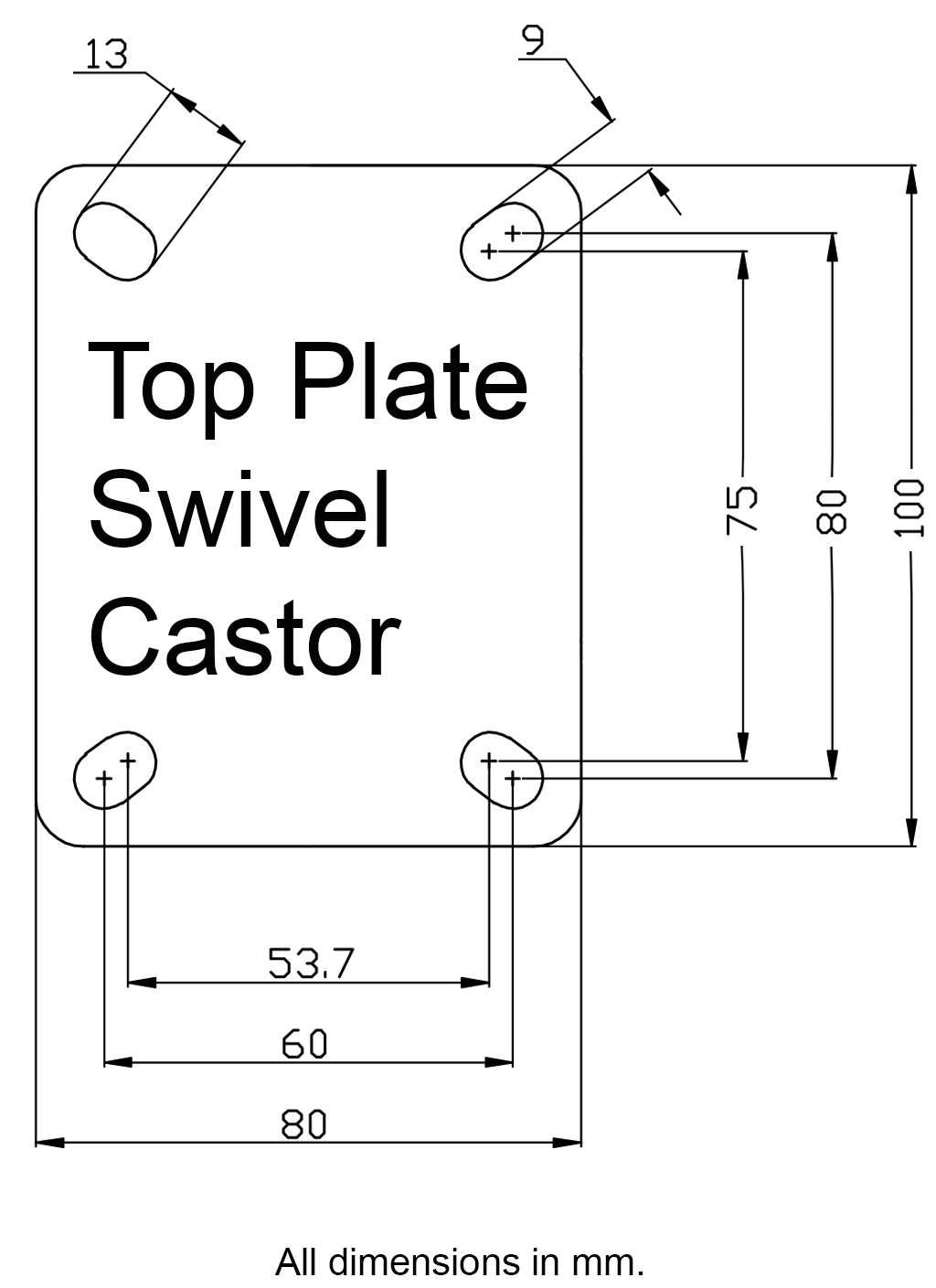

Top Plate Size (mm) 100x80
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 128
Load Capacity 3km/h (kg) 110
