100mm swivel/brake castor with grey thermoplastic rubber on polypropylene centre wheel, 110kg

https://www.parnells.eu/web/image/product.template/30169/image_1920?unique=0cd3caa
(0 review)

Part Number: 762680
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 110kg

12.67 € 12.67 EUR 12.67 €

14.72 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

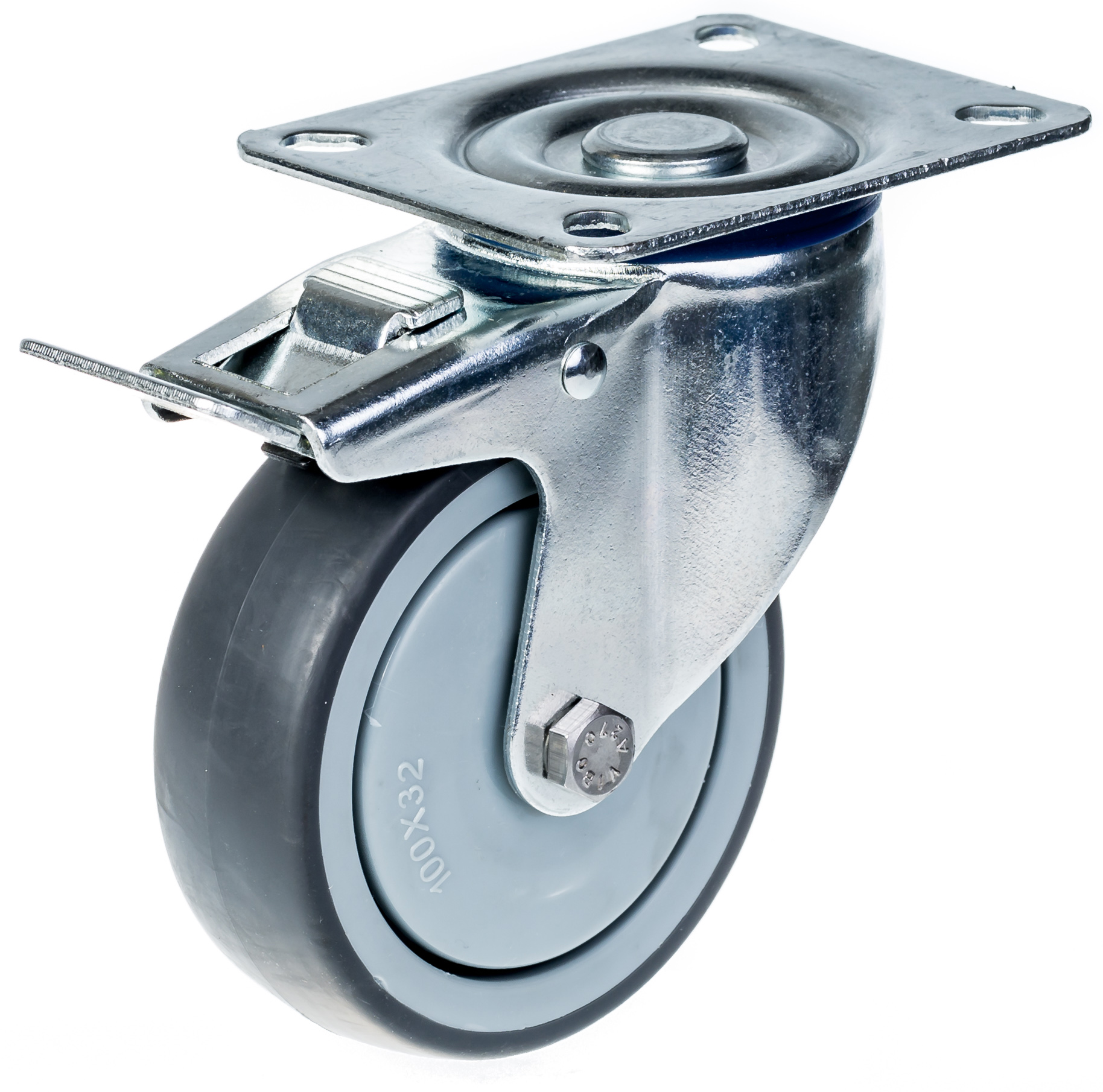

100mm swivel/brake castor with grey thermoplastic rubber on polypropylene centre wheel, 110kg

  • Swivel/brake castor with top plate bracket made of zinc plated steel with double row ball race in swivel head and dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with grey thermoplastic rubber on polypropylene centre.

  • The hardness of the tread is 85° Shore A.

  • Bolted wheel axle.

  • Reasonable rolling resistance and low operating noise. Very good floor preservation, non-marking, but thermoplastic rubber contains traces of oil and may make stains on absorbent floors.

  • Good chemical resistance to many substances.

300 series 100mm swivel/brake top plate 100x80mm castor with grey thermoplastic rubber on polypropylene centre single ball bearing wheel 110kg

Add to cart

Sign in

Pay

Get Delivered

Part Number 762680
Wheel Diameter (mm) 100
Tread Width (mm) 32
Bearing Type Single ball bearing
Top Plate Size (mm) 100x80
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 128
Load Capacity 3km/h (kg) 110
Fast Service

Shipping Products

We add new products every day. Explore our great range of products.

Info Block Image 01
Info Block Image 02
Within 48 hours

Shipping & Delivery

Shop Now

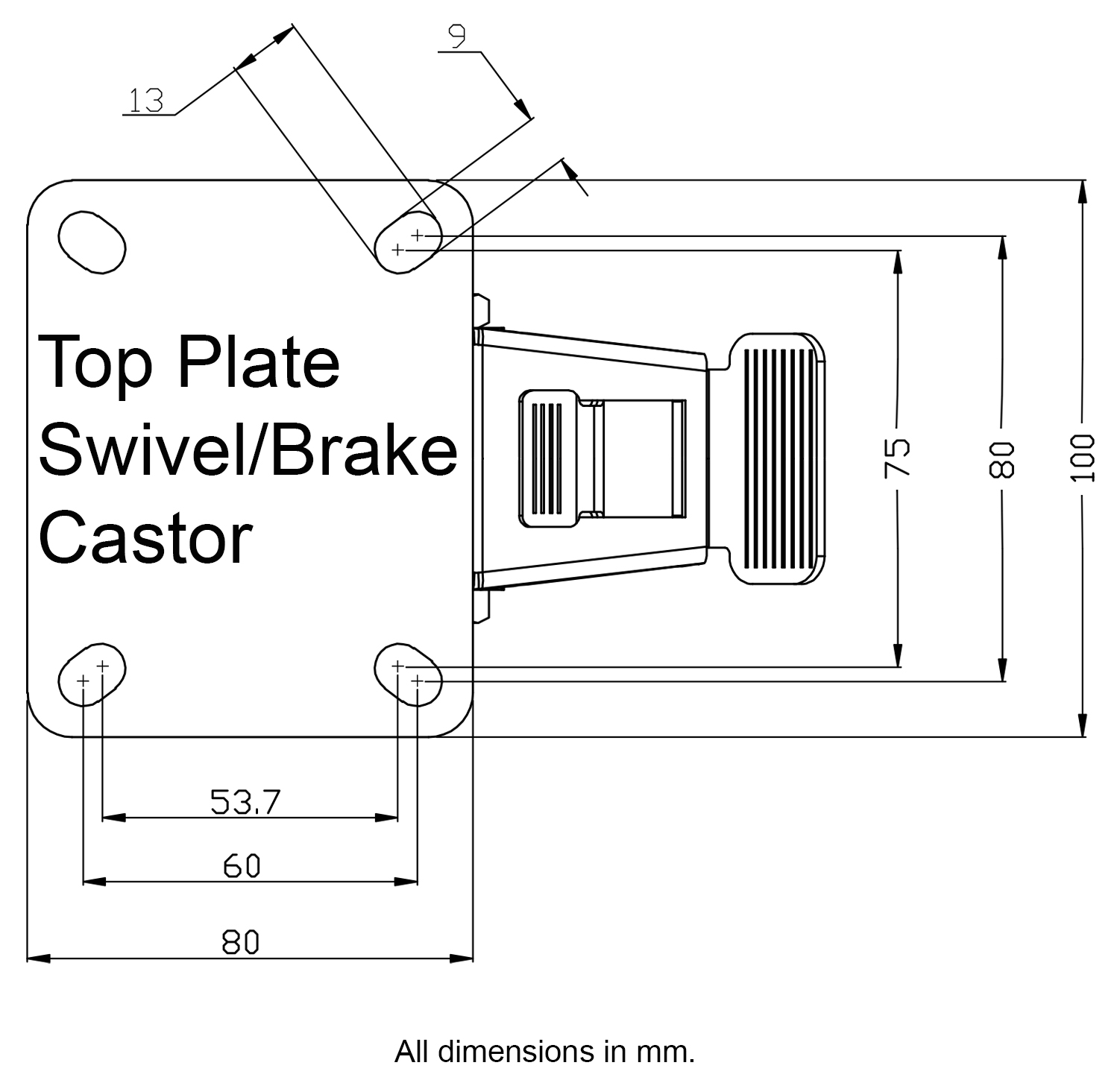

Dimensions for top plate brake, 080-125mm.jpg
Download

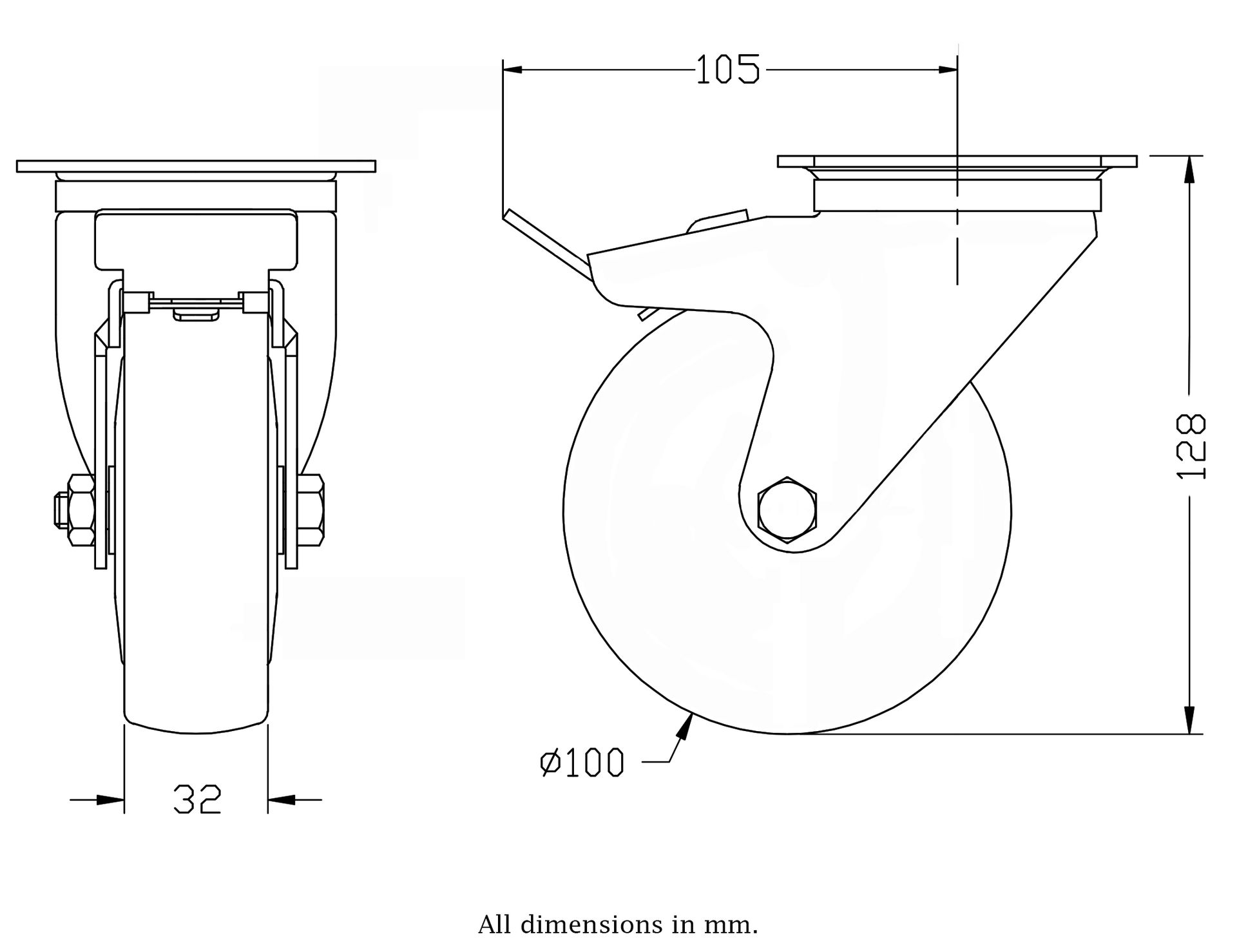

Dimensions for 762680.jpg
Download
Spec Sheet for 762680.pdf
Download
Image for 762680.jpg
Download
