322 series 100mm fixed top plate 105x88mm castor with cast iron plain bearing wheel 250kg
322 series 100mm fixed top plate 105x88mm castor with cast iron plain bearing wheel 250kg
29.71 €
29.71 €
Triangular Cam lock only
Triangular Cam lock only
10.13 €
10.13 €

100mm fixed castor with grey thermoplastic rubber on polypropylene centre wheel, 110kg

https://www.parnells.eu/web/image/product.template/30178/image_1920?unique=3dad6f8

Part Number: 762686
Wheel Diameter: 100mm (4" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 110kg

8.44 € 8.44 EUR 8.44 €

9.80 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Brand
  • Tread Width (mm)
  • Bearing Type
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

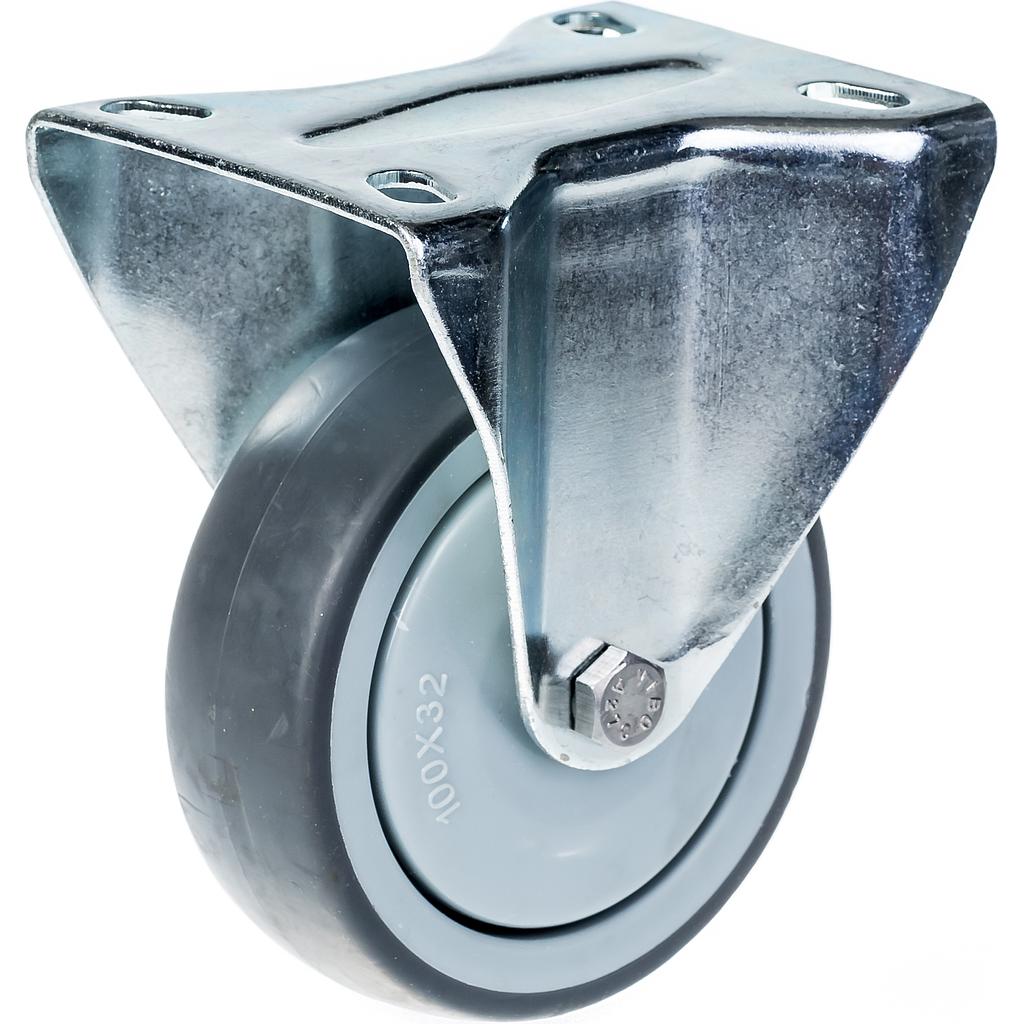

300 series 100mm fixed top plate 100x84mm castor with grey thermoplastic rubber on polypropylene centre single ball bearing wheel 110kg

100mm fixed castor with grey thermoplastic rubber on polypropylene centre wheel, 110kg

  • Fixed castor with top plate bracket made of zinc plated steel.
  • Wheel with grey thermoplastic rubber on polypropylene centre.
  • The hardness of the tread is 85° Shore A.
  • Bolted wheel axle.
  • Reasonable rolling resistance and low operating noise. Very good floor preservation, non-marking, but thermoplastic rubber contains traces of oil and may make stains on absorbent floors.
  • Good chemical resistance to many substances.

Part Number 762686
Wheel Diameter (mm) 100
Brand ZHONGSHAN
Tread Width (mm) 32
Bearing Type Single ball bearing
Top Plate Size (mm) 100x84
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 128
Load Capacity 3km/h (kg) 110
