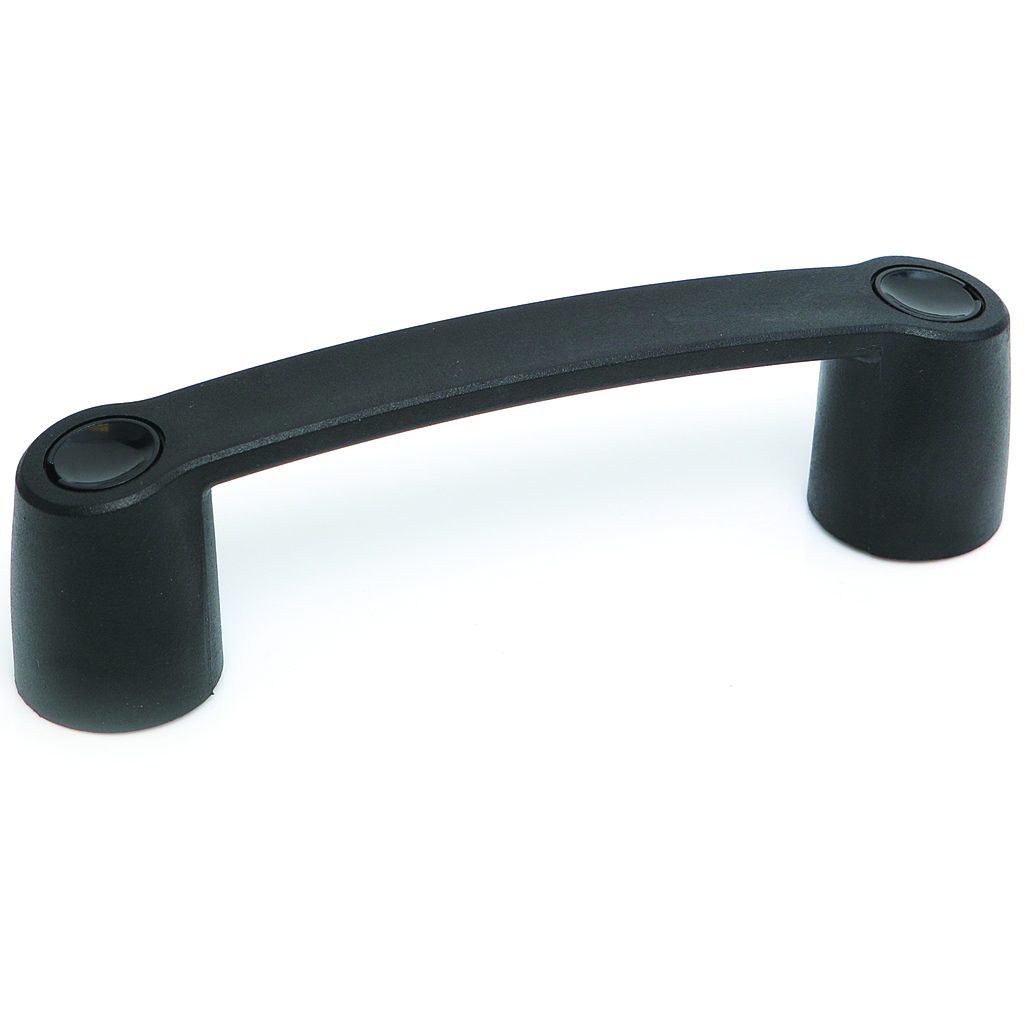

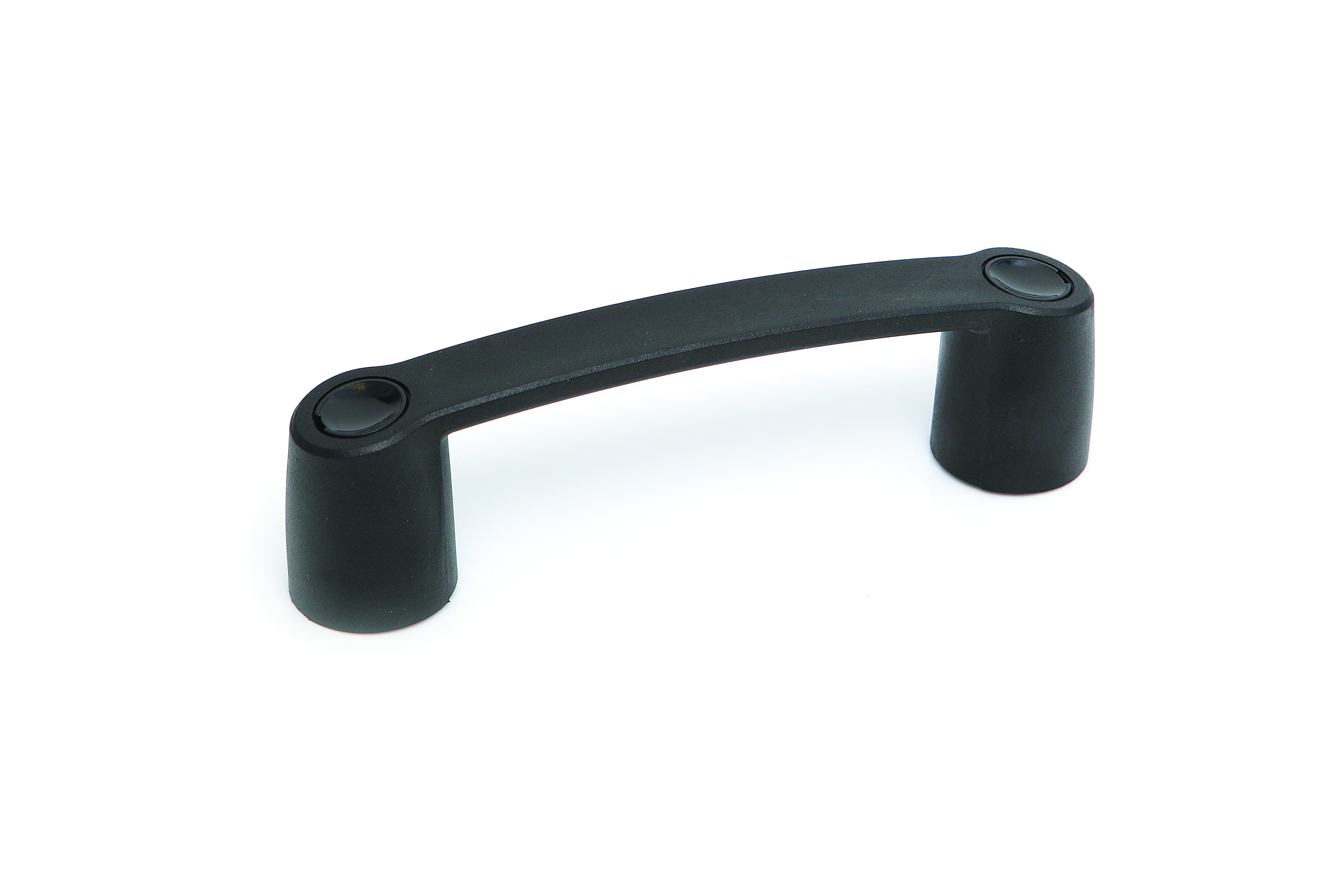

Nylon bridge handle - 132mm hole centre - M8 brass thread

132mm mounting hole centre

Fixing Type: Threaded inserts for fixing with M8 screws from below

Material: Reinforced nylon (15% glass filled PA6)

Standard handle colour: Black

Finish: Matt

Part Number 7800W
Thread Size M8
Brand Rencol
Type Female Thread
Material Nylon

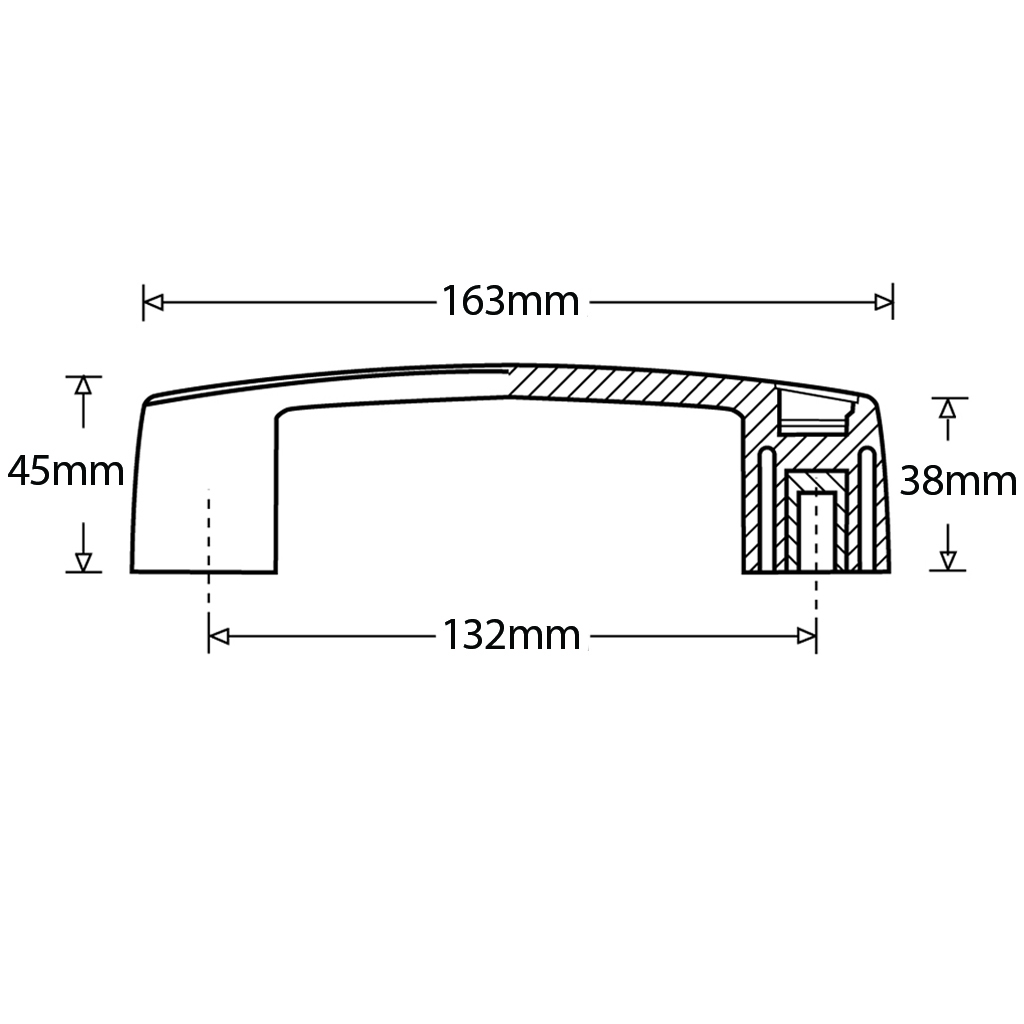

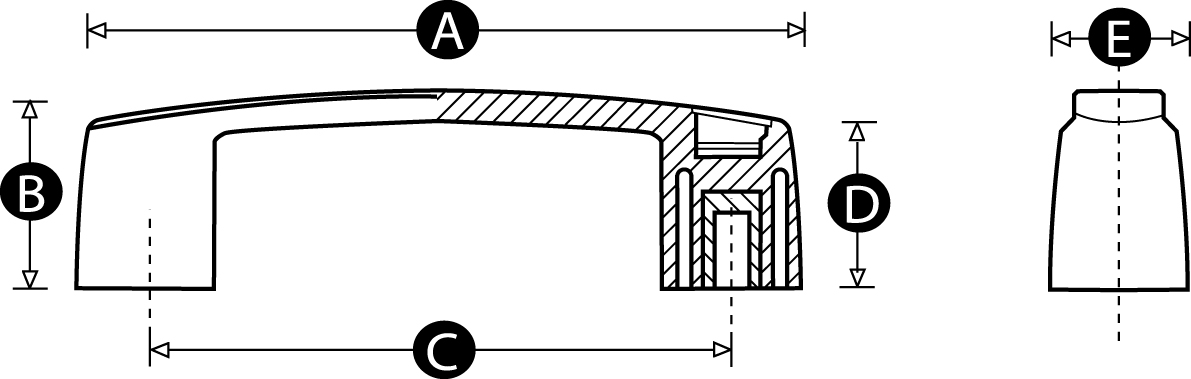

Dimension 'A' (mm) 163
Dimension 'B' (mm) 45.0
Dimension 'C' (mm) 132.0
Dimension 'D' (mm) 38.0

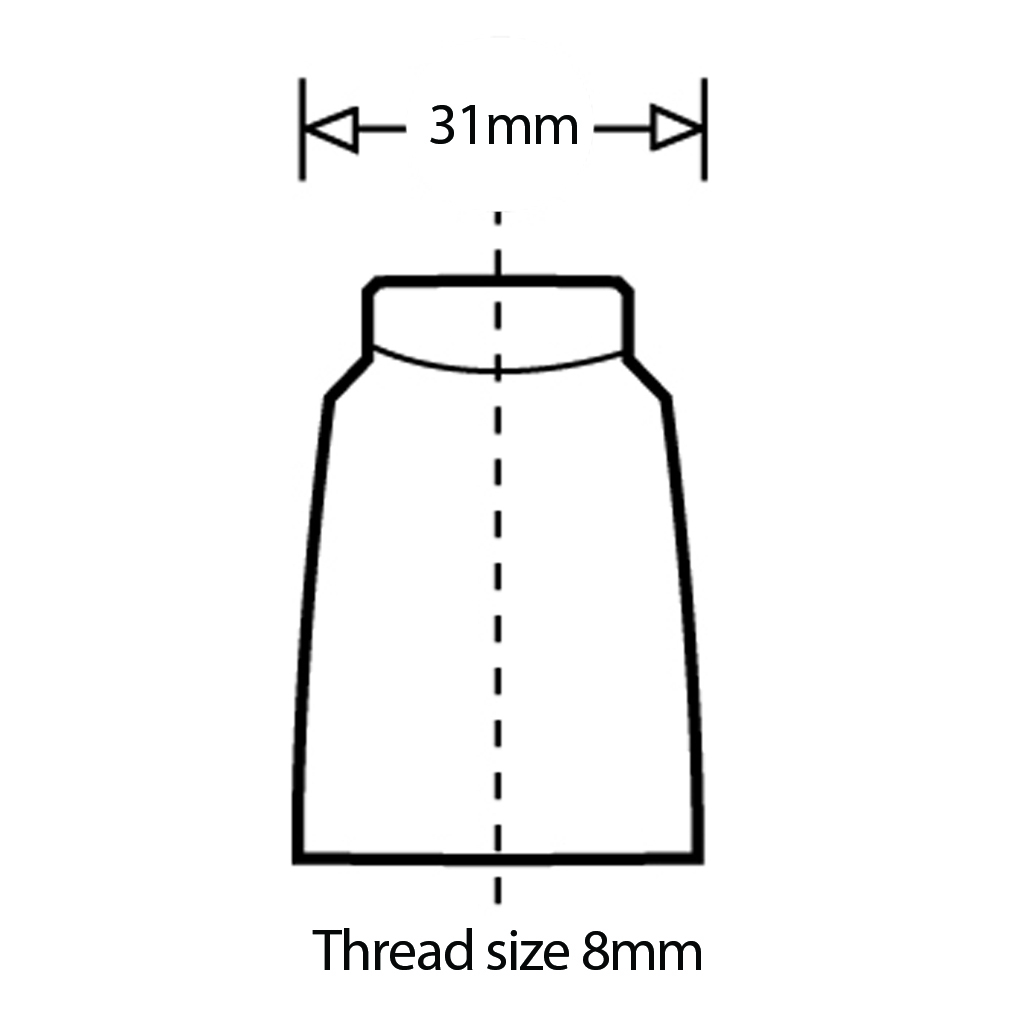

Dimension 'E' (mm) 31.0
Colour Black
Material / Finish Nylon

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
7800W 132mm M8.iges
Download
7800W 132mm M8.stp
Download
Bridge handle 7762U-7800W-7999S data.jpg
Download
Bridge handle 7762U-7800W-7999S.JPG
Download

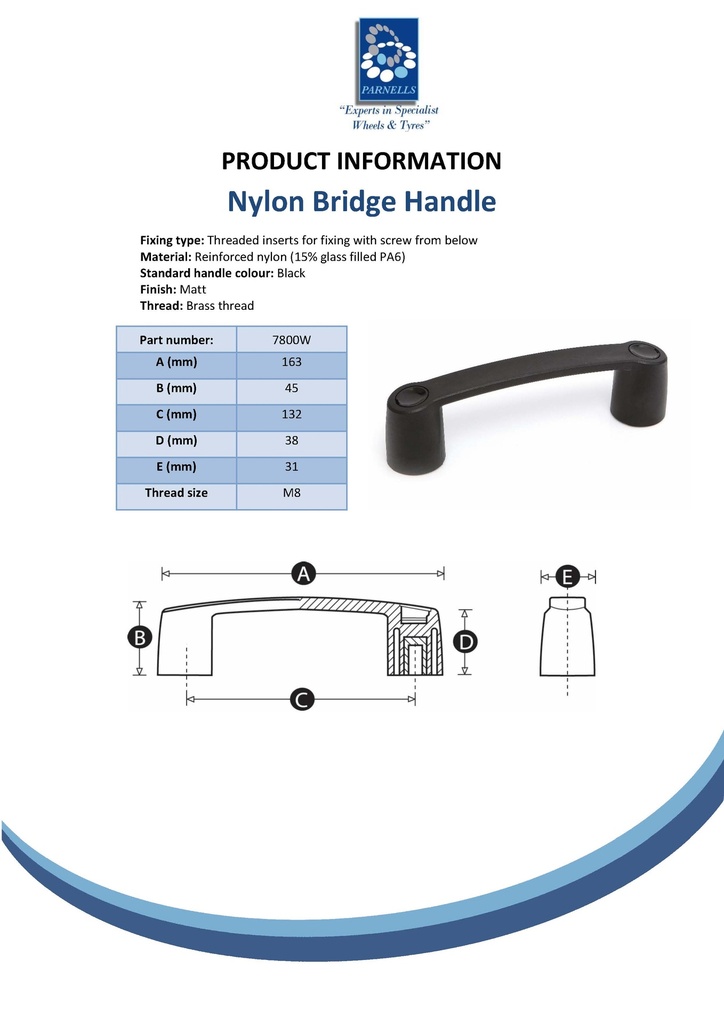

Parnells Bridge Handle Spec Sheet - 7800W.pdf
