140mm Steel drop profile weldable hinge with ball bearing, fixed pin (self colour)
140mm Steel drop profile weldable hinge with ball bearing, fixed pin (self colour)
4.37 €
5.67 € (23% OFF)
Wheel series 100mm BLUE/GREY polyurethane on nylon centre 15mm bore hub length 49mm roller bearing 220kg
Wheel series 100mm BLUE/GREY polyurethane on nylon centre 15mm bore hub length 49mm roller bearing 220kg
9.64 €
12.52 € (23% OFF)

75mm fixed castor with grey thermoplastic rubber on polypropylene centre wheel

https://www.parnells.eu/web/image/product.template/31316/image_1920?unique=770af99
3 sold in last 24 hours
Part Number: 798525
Wheel Diameter: 75mm (3" inches)
Castor Bracket Material: Zinc Plated Steel
Load Capacity: 60kg

4.23 € 4.23 EUR 5.49 €

5.49 €

Login for trade prices

Not Available For Sale

6 people are viewing this right now

  • Wheel Diameter (mm)
  • Tread Width (mm)
  • Top Plate Size (mm)
  • Fixing Hole Spacing (mm)
  • Fixing Hole Size (mm)
  • Bearing Type
  • Overall Height (mm)
  • Load Capacity 3km/h (kg)
  • Brand

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 3-7 Business Days

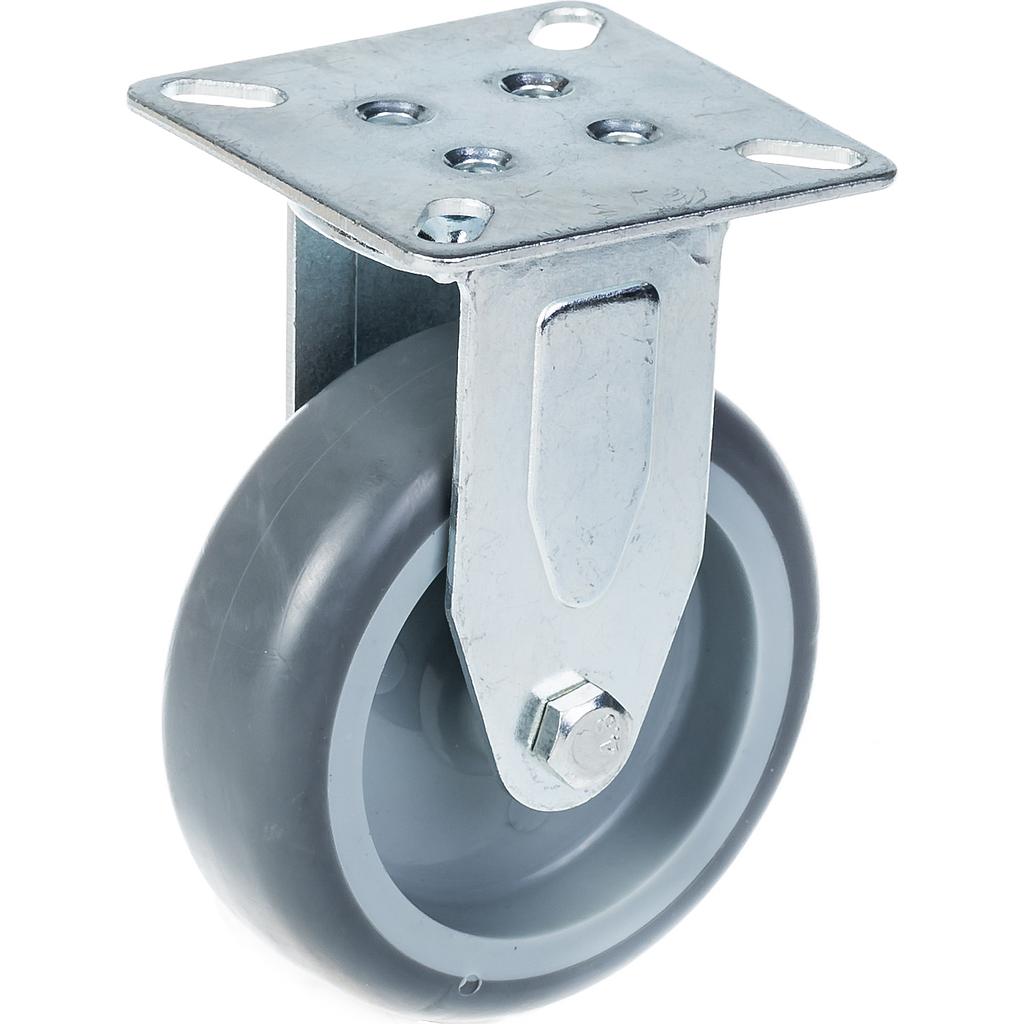

100 series 75mm fixed top plate 60x60mm castor with grey thermoplastic rubber on polypropylene centre plain bearing wheel 60kg

75mm fixed castor with grey thermoplastic rubber on polypropylene centre wheel

  • Fixed castor with top plate bracket made of zinc plated steel.
  • Wheel with grey thermoplastic rubber on polypropylene centre.
  • The hardness of the tread is 85° Shore A.
  • Bolted wheel axle.
  • Reasonable rolling resistance and low operating noise. Very good floor preservation, non-marking, but thermoplastic rubber contains traces of oil and may make stains on absorbent floors.
  • Good chemical resistance to many substances.
Part Number 798525
Wheel Diameter (mm) 75
Tread Width (mm) 25
Top Plate Size (mm) 60x60
Fixing Hole Spacing (mm) 43x43
Fixing Hole Size (mm) 6
Bearing Type Plain bearing
Overall Height (mm) 100
Load Capacity 3km/h (kg) 60
Brand ZHONGSHAN

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Dimensions for 798525.jpg
Download
Dimensions for top plate fixed, 50-75mm.jpg
Download
Image for 798525.jpg
Download
Spec Sheet for 798525.pdf
Download
