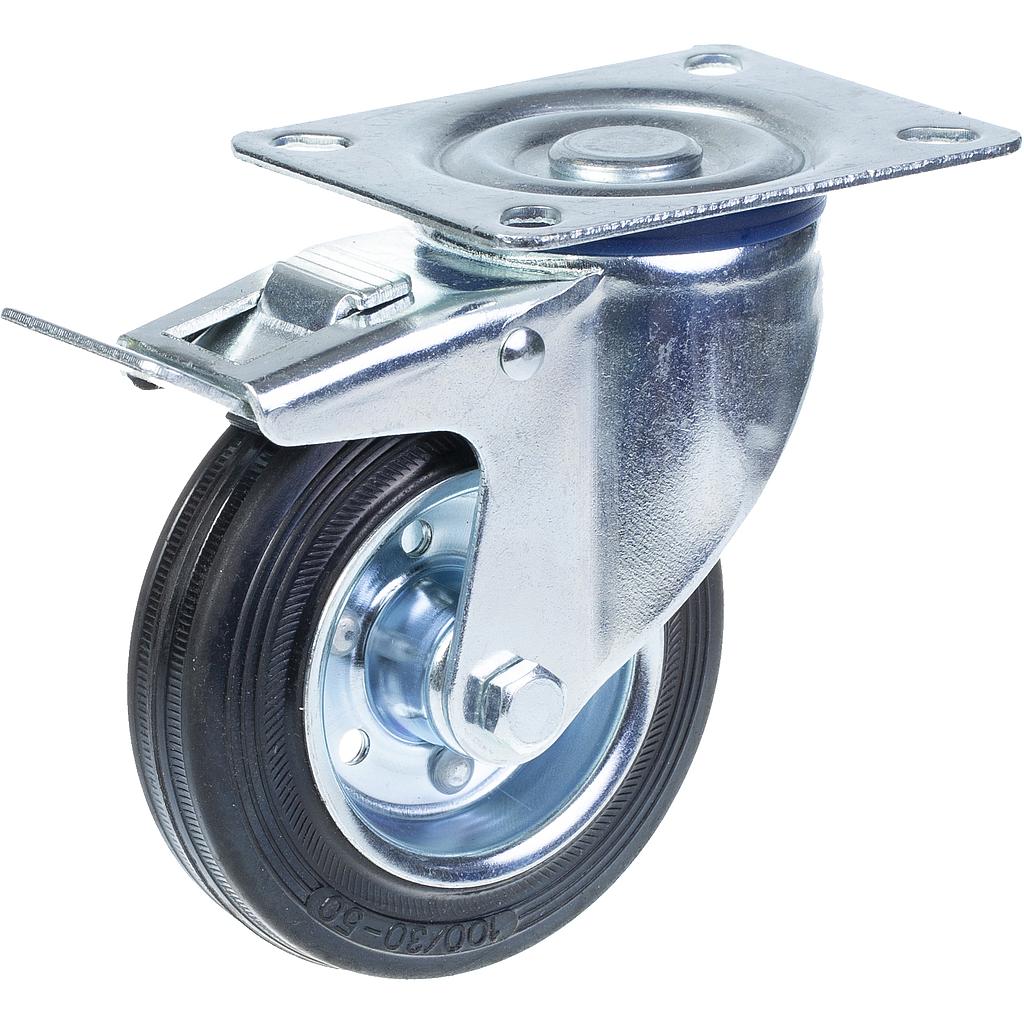

300 series 100mm swivel/brake top plate 100x80mm castor with black rubber on pressed steel centre roller bearing wheel 90kg

100mm swivel/brake castor with black rubber on pressed steel centre wheel, 90kg

  • Swivel/brake castor with top plate bracket made of zinc plated steel with double row ball race in swivel head and dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with black rubber on pressed steel centre.

  • The hardness of the tread is 85° Shore A.

  • Bolted wheel axle.

  • Reasonable rolling resistance, low operating noise, and very good floor preservation.

  • Good chemical resistance, except to oils.



Wheel Diameter (mm) 100
Tread Width (mm) 30
Bearing Type Roller bearing
Top Plate Size (mm) 100x80
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 128
Load Capacity 3km/h (kg) 90

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 798677.pdf
Download

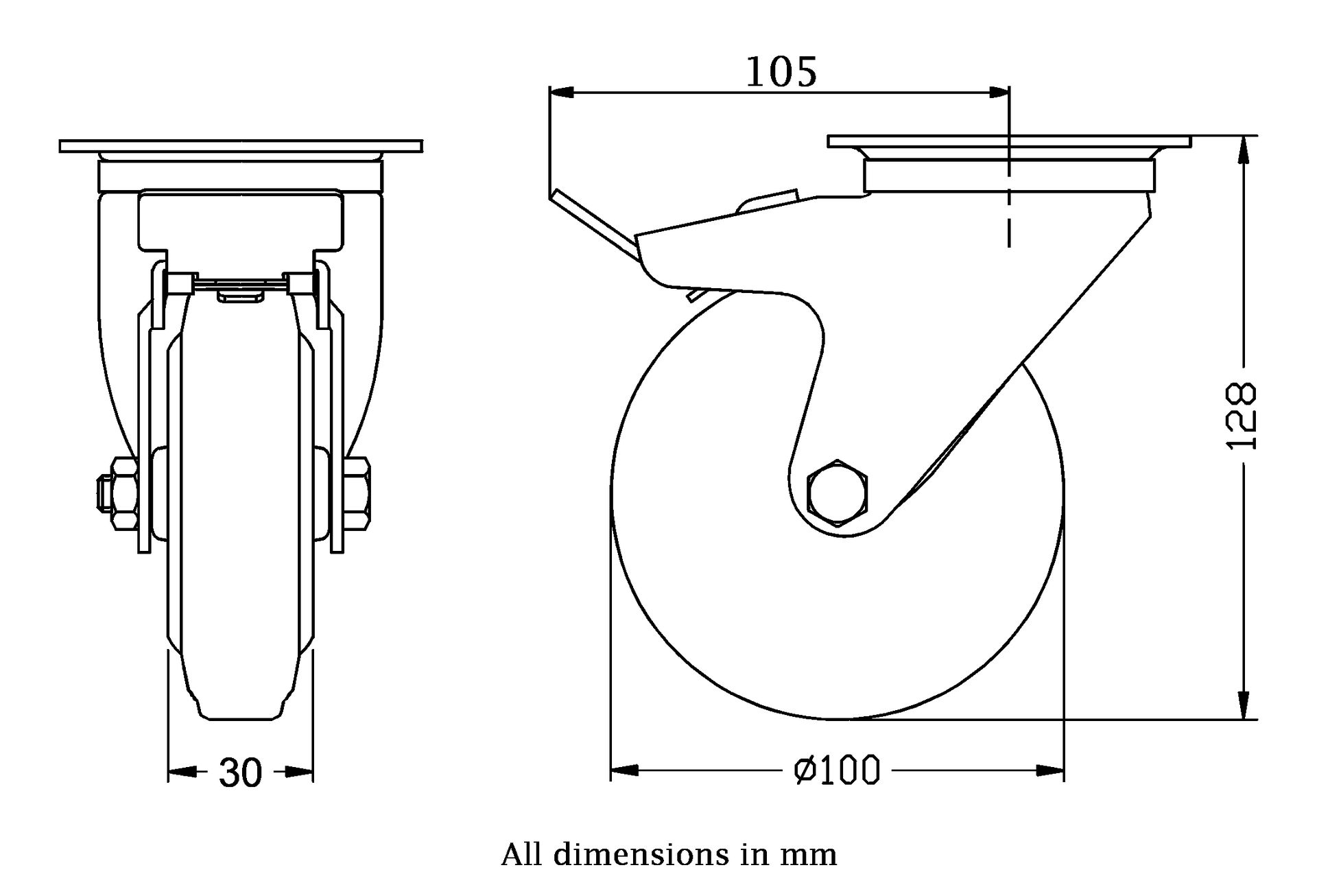

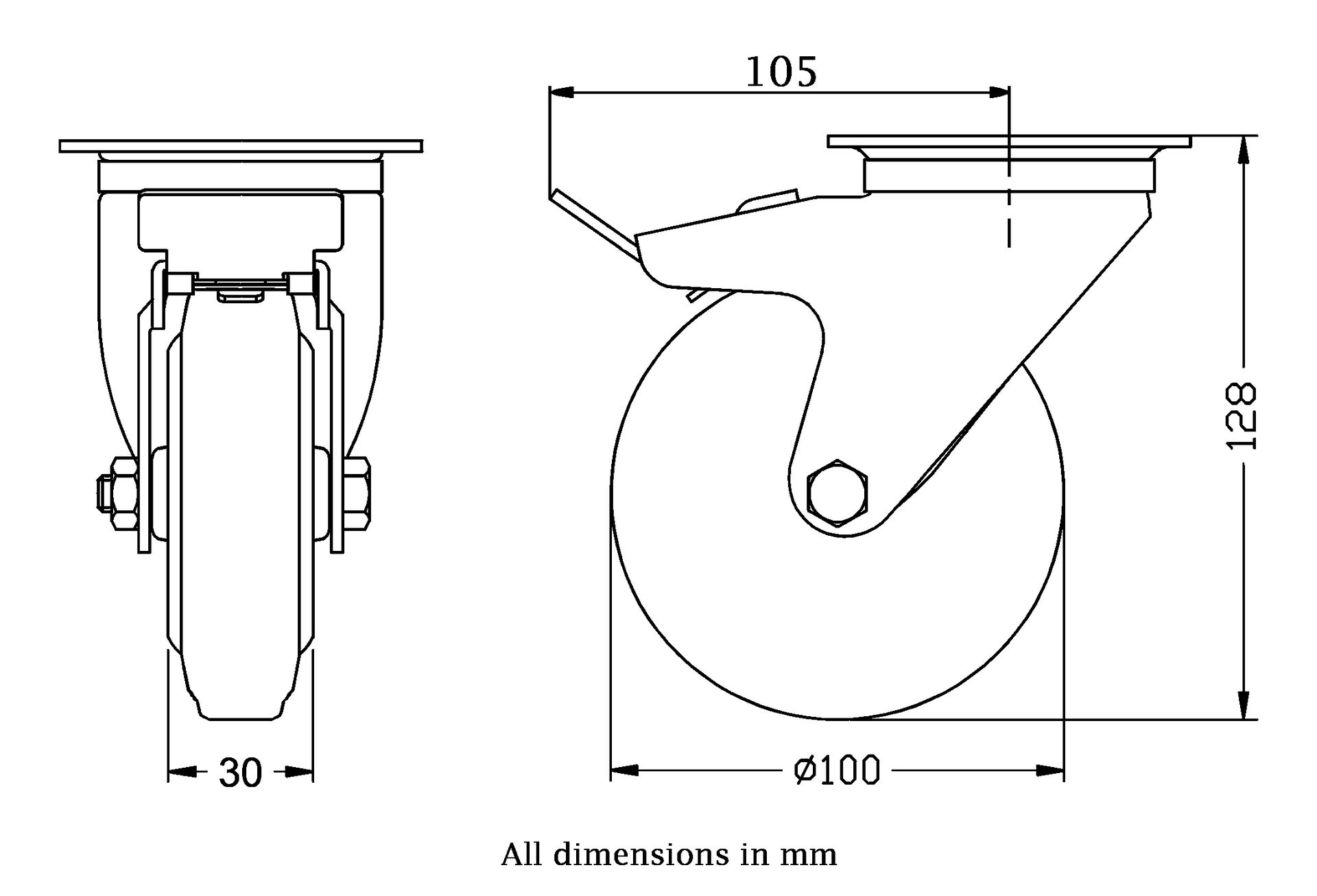

Dimensions for 798677.jpg
Download

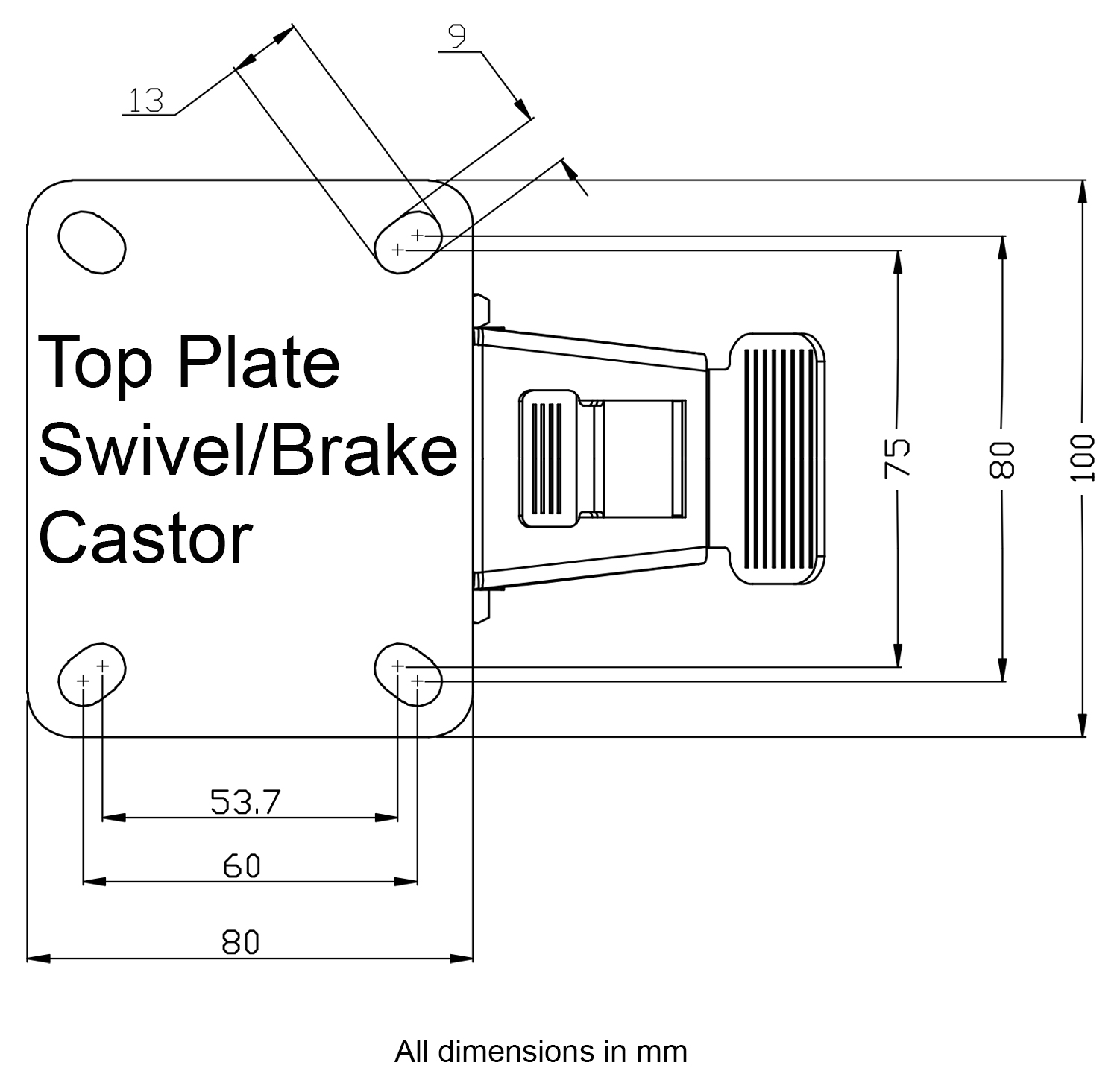

Dimensions for top plate brake, 080-125mm.jpg
Download

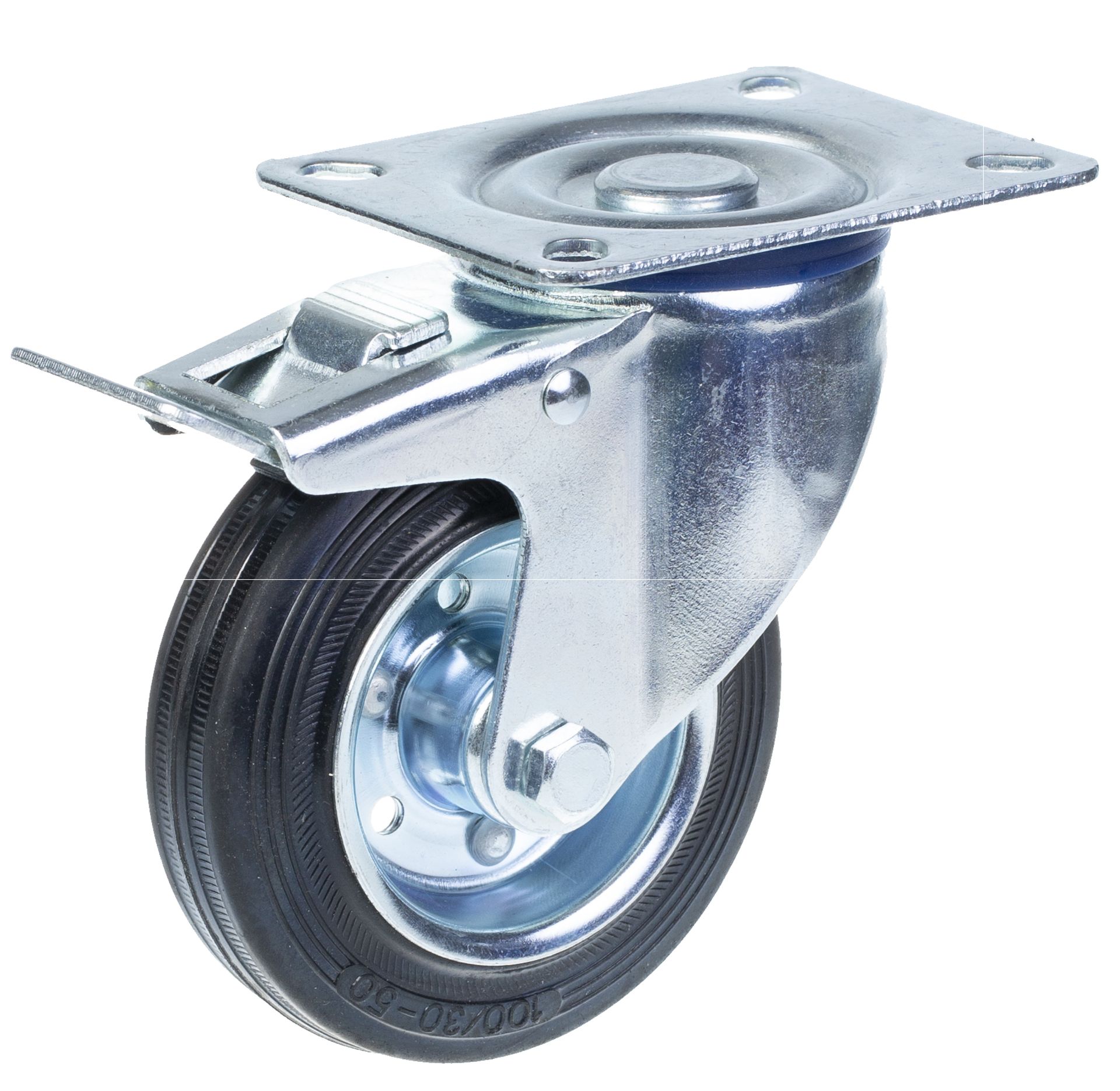

Image for 798677.jpg
