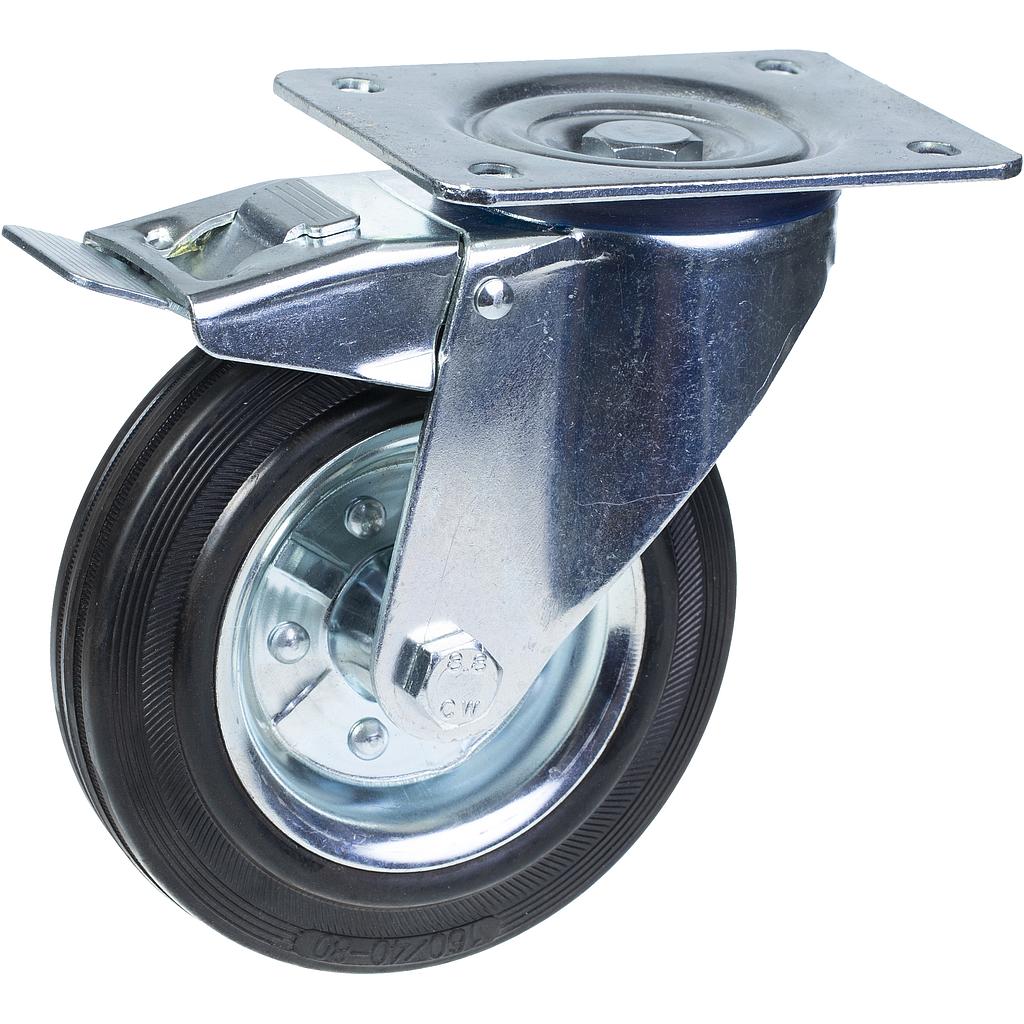

300 series 160mm swivel/brake top plate 140x110mm castor with black rubber on pressed steel centre roller bearing wheel 150kg

160mm swivel/brake castor with black rubber on pressed steel centre wheel, 150kg

  • Swivel/brake castor with top plate bracket made of zinc plated steel with double row ball race in swivel head and dust protection ring.

  • Foot operated brake that locks both swivel and wheel simultaneously.

  • Wheel with black rubber on pressed steel centre.

  • The hardness of the tread is 85° Shore A.

  • Bolted wheel axle.

  • Reasonable rolling resistance, low operating noise, and very good floor preservation.

  • Good chemical resistance, except to oils.



Add to cart

Sign in

Pay

Get Delivered

Part Number 798680
Wheel Diameter (mm) 160
Tread Width (mm) 40
Bearing Type Roller bearing
Top Plate Size (mm) 140x110
Fixing Hole Spacing (mm) 105x80
Fixing Hole Size (mm) 11
Overall Height (mm) 193
Load Capacity 3km/h (kg) 150
