80mm round groove wheel 16.5mm groove in countersunk bracket

https://www.parnells.eu/web/image/product.template/31445/image_1920?unique=7327445

Part Number: 80-R-FX1
Wheel Diameter: 78mm
Bracket and Wheel Material: Zinc Plated Steel
Load Capacity: 150kg

20.56 € 20.56 EUR 20.56 €

23.88 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter (mm)
  • Brand
  • Groove Diameter (mm)
  • Bracket Size (mm)
  • Height from ground to base of mounting bracket (mm)
  • Tread Width (mm)
  • Load Capacity (kg)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

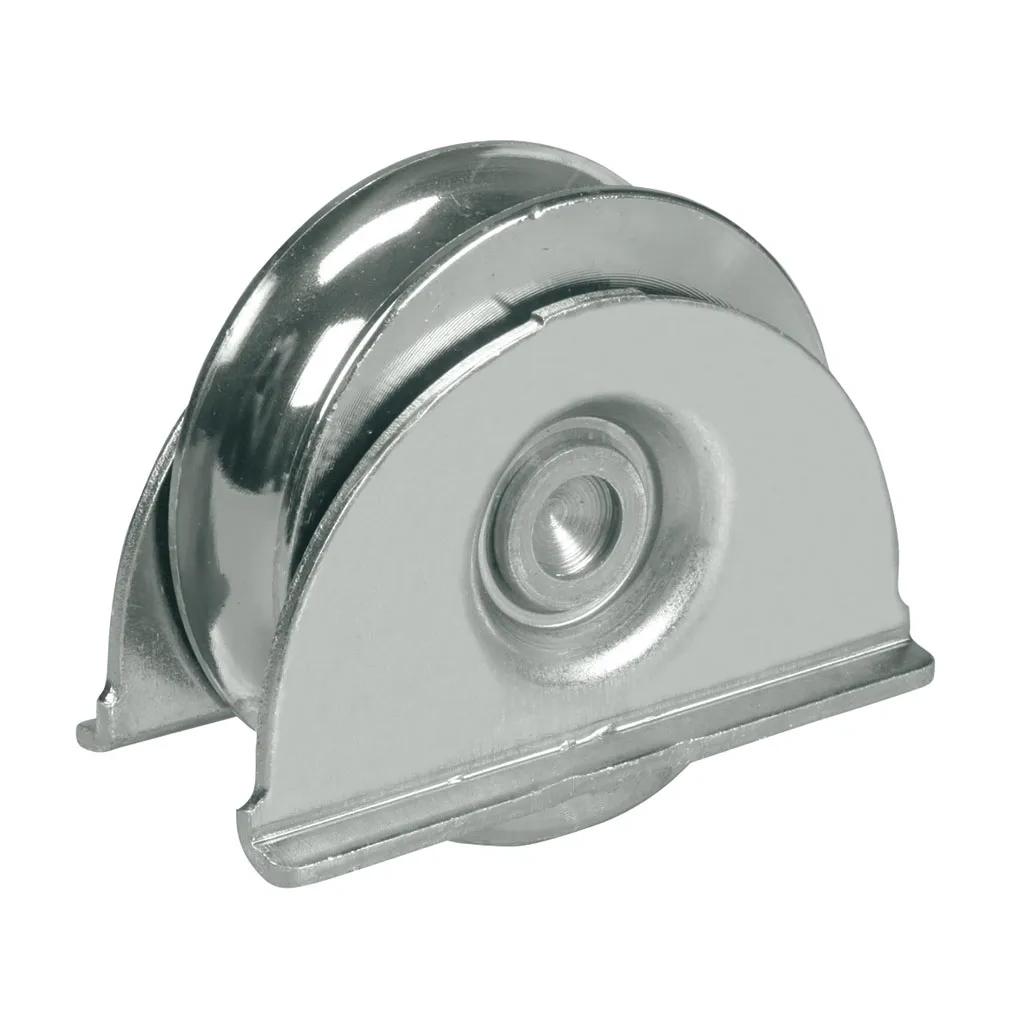

80mm round groove wheel 16.5mm groove in countersunk bracket

80mm round groove wheel 16.5mm groove in countersunk bracket

  • Wheel for sliding gate.
  • Wheel with 1 Precision ball bearing.
  • Bracket and wheel made of zinc plated steel.
  • To run on round shapes.
Part Number 80-R-FX1
Wheel Diameter (mm) 78
Brand IBFM
Groove Diameter (mm) 16.5
Bracket Size (mm) 95x33
Height from ground to base of mounting bracket (mm) 15
Tread Width (mm) 22
Load Capacity (kg) 150

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Image for wheel in countersunk bracket.jpg
Download
Spec Sheet for 80-R-FX1.pdf
Download

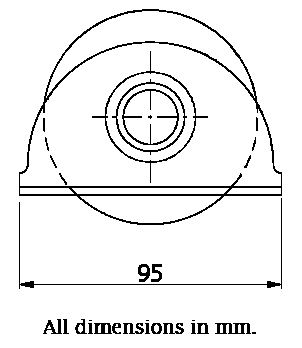

Dimensions for 80-R-FX1 side view.jpg
Download

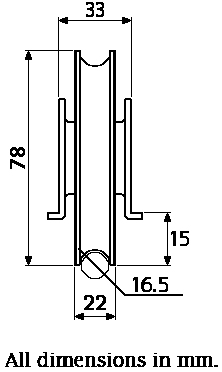

Dimensions for 80-R-FX1.jpg
Download
