100mm flanged cast iron wheel, 800kg

https://www.parnells.eu/web/image/product.template/31979/image_1920?unique=d596104
(0 review)

Part Number: 845800
Wheel Diameter Without Flange: 100mm (4" inches)
Bearing Type: Plain Bearing
Load Capacity: 800kg

59.21 € 59.21 EUR 59.21 €

68.77 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter Without Flange (mm)
  • Wheel Diameter With Flange (mm)
  • Wheel Diameter (mm)
  • Wheel Width (mm)
  • Tread Width (mm)
  • Flange Width (mm)
  • Bearing Type
  • Wheel Bore (mm)
  • Hub Length (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock
Wheel series 100mm flanged cast iron 20mm plain bore hub length 52mm plain bearing 800kg

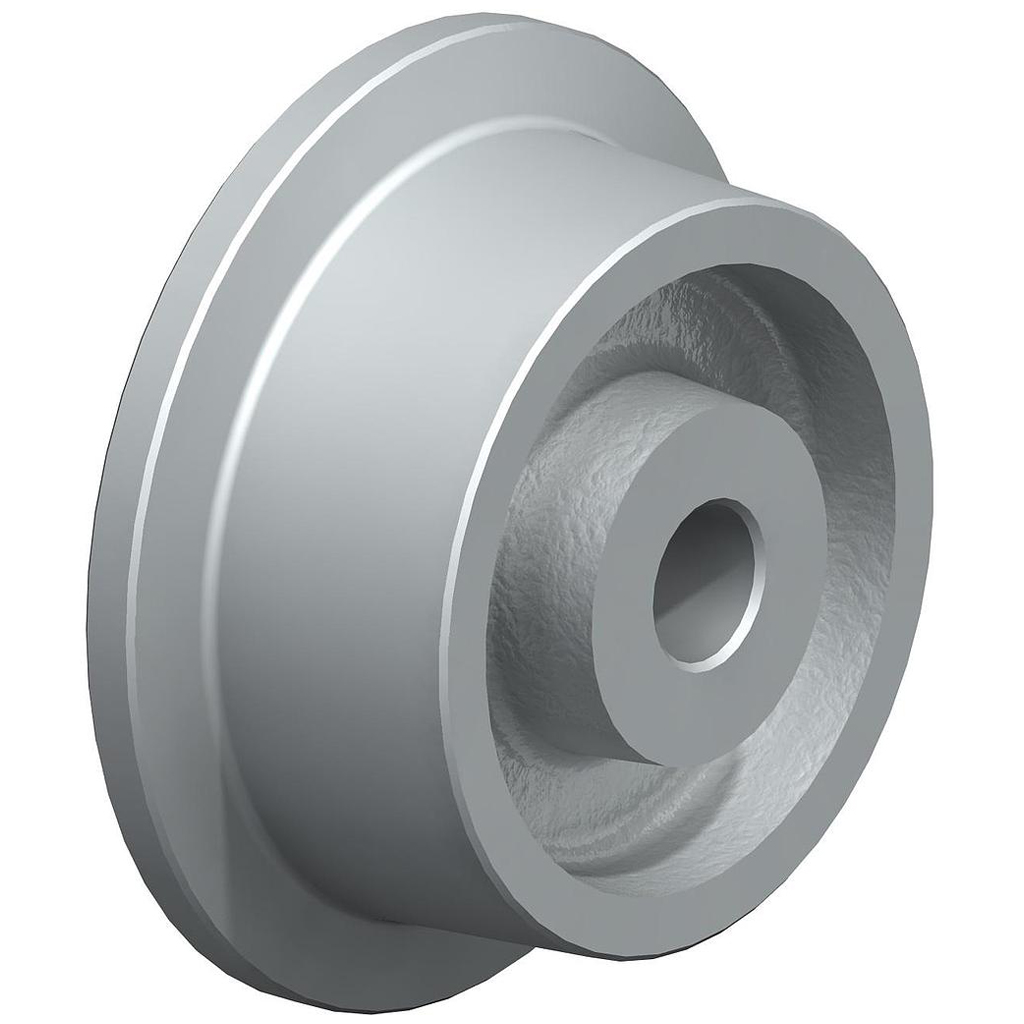

100mm flanged cast iron wheel, 800kg

  • Machined flange and tread.

  • 3° taper tread to axle.

  • High wear resistance and very low rolling resistance on clean and even surface.

  • Wheel colour silver.

  • Good chemical resistance to many substances.

Add to cart

Sign in

Pay

Get Delivered

Part Number 845800
Wheel Diameter Without Flange (mm) 100
Wheel Diameter With Flange (mm) 125
Wheel Diameter (mm) 100
Wheel Width (mm) 46
Tread Width (mm) 36
Flange Width (mm) 13
Bearing Type Plain bearing
Wheel Bore (mm) 20
Hub Length (mm) 52
Load Capacity 3km/h (kg) 800
Blickle Reference SPK 100G
Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery

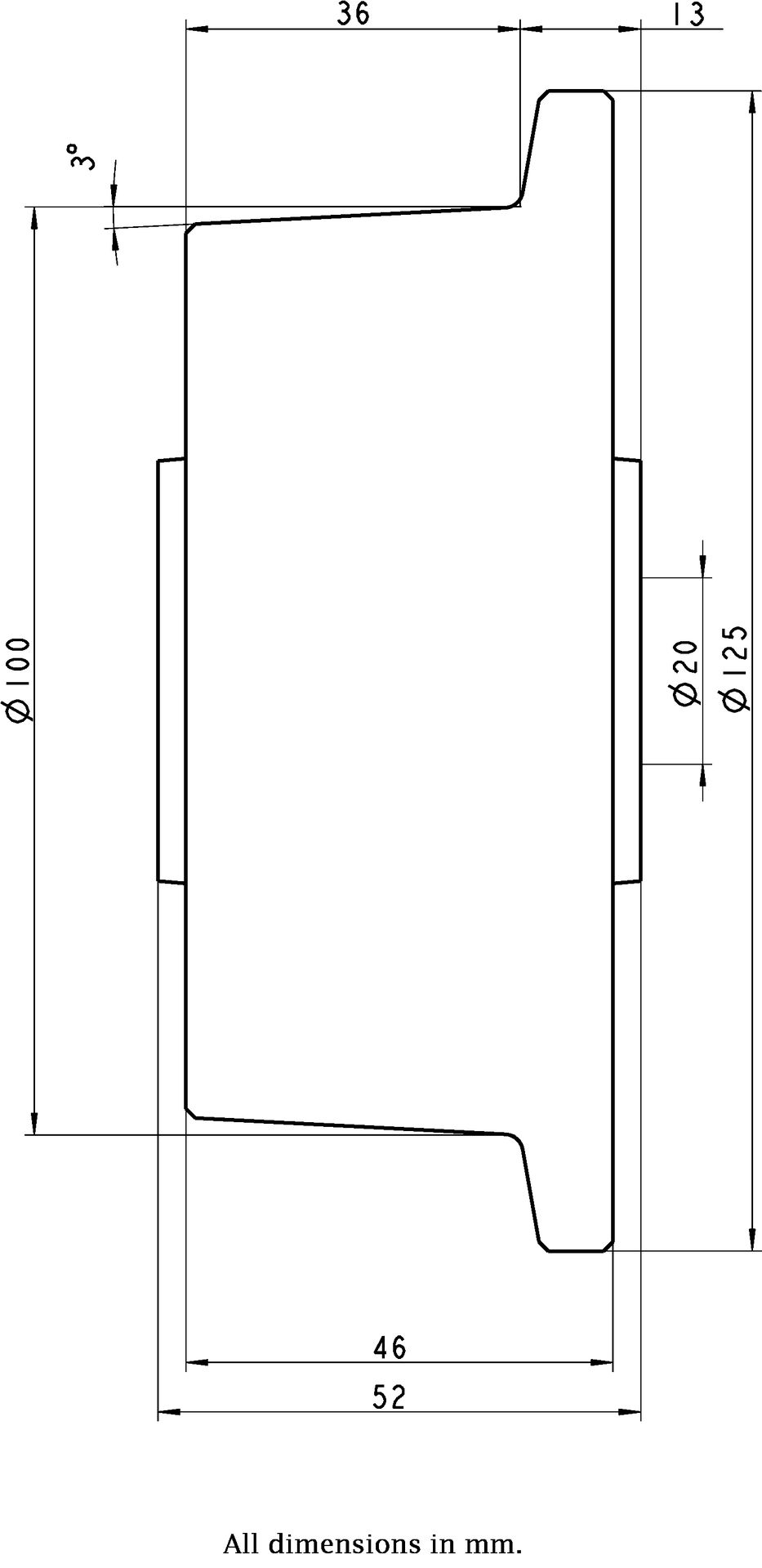

Dimensions for 845800.jpg
