Wheel series 125mm heat resistant thermoplastic 12mm bore hub length 45mm plain bearing 180kg
Wheel series 125mm heat resistant thermoplastic 12mm bore hub length 45mm plain bearing 180kg
35.04 €
35.04 €
Wheel series 160x50mm Extrathane polyurethane on cast iron centre bore 25mm H7 hub length 60mm plain bearing with keyway 8x3.3mm 700kg
Wheel series 160x50mm Extrathane polyurethane on cast iron centre bore 25mm H7 hub length 60mm plain bearing with keyway 8x3.3mm 700kg
189.13 €
189.13 €

100mm flanged cast iron wheel, 800kg

https://www.parnells.eu/web/image/product.template/31980/image_1920?unique=33924a9

Part Number: 847400
Wheel Diameter Without Flange: 100mm (4" inches)
Bearing Type: Ball Bearings
Load Capacity: 800kg

72.60 € 72.60000000000001 EUR 72.60 €

84.32 €

Login for trade prices

Not Available For Sale


  • Wheel Diameter Without Flange (mm)
  • Wheel Diameter With Flange (mm)
  • Wheel Diameter (mm)
  • Wheel Width (mm)
  • Tread Width (mm)
  • Flange Width (mm)
  • Bearing Type
  • Wheel Bore (mm)
  • Hub Length (mm)
  • Load Capacity 3km/h (kg)
  • Blickle Reference

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

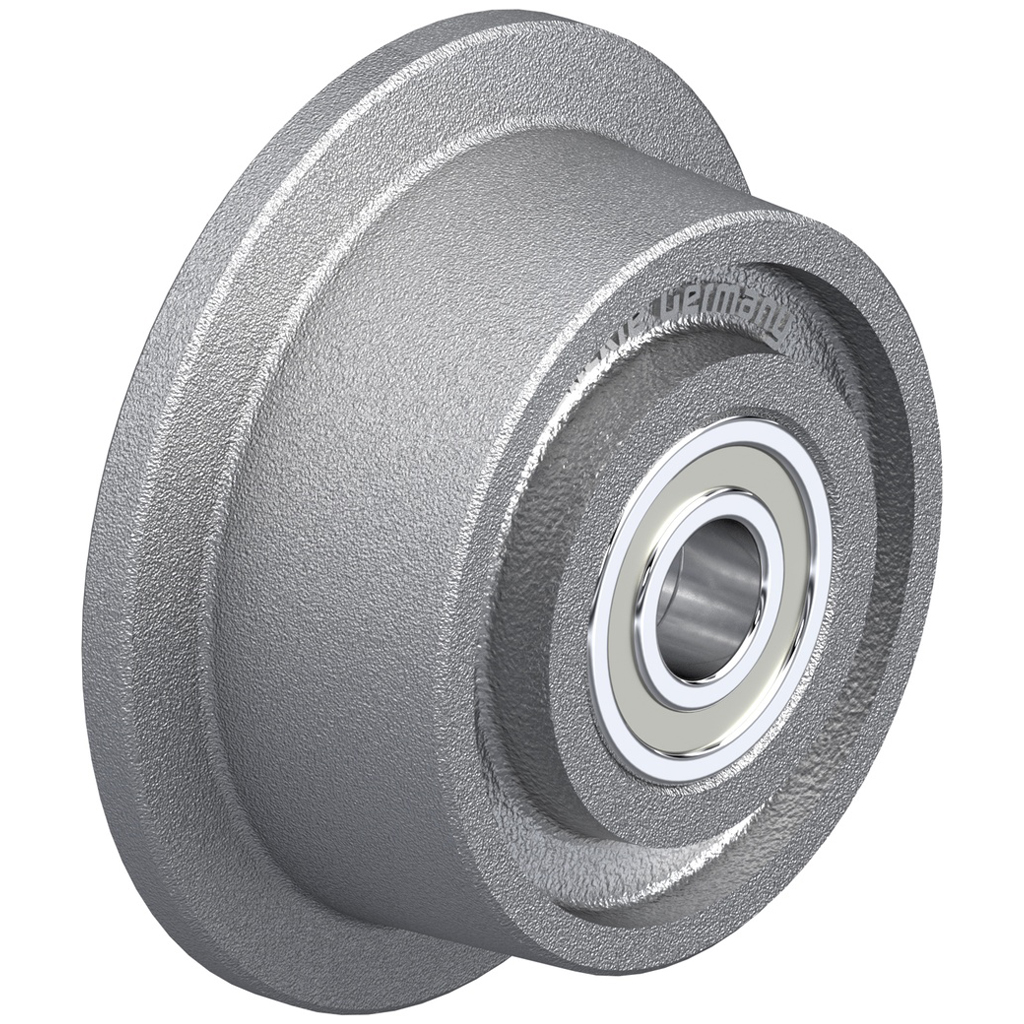

Wheel series 100mm flanged cast iron 20mm bore ball bearing hub length 52mm ball bearing 800kg

100mm flanged cast iron wheel, 800kg

  • Machined flange and tread.

  • 3° taper tread to axle.

  • High wear resistance and very low rolling resistance on clean and even surface.

  • Wheel colour silver.

  • Good chemical resistance to many substances.

Part Number 847400
Wheel Diameter Without Flange (mm) 100
Wheel Diameter With Flange (mm) 125
Wheel Diameter (mm) 100
Wheel Width (mm) 46
Tread Width (mm) 36
Flange Width (mm) 13
Bearing Type Ball bearings
Wheel Bore (mm) 20
Hub Length (mm) 52
Load Capacity 3km/h (kg) 800
Blickle Reference SPK 100K

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery
Spec Sheet for 847400.pdf
Download

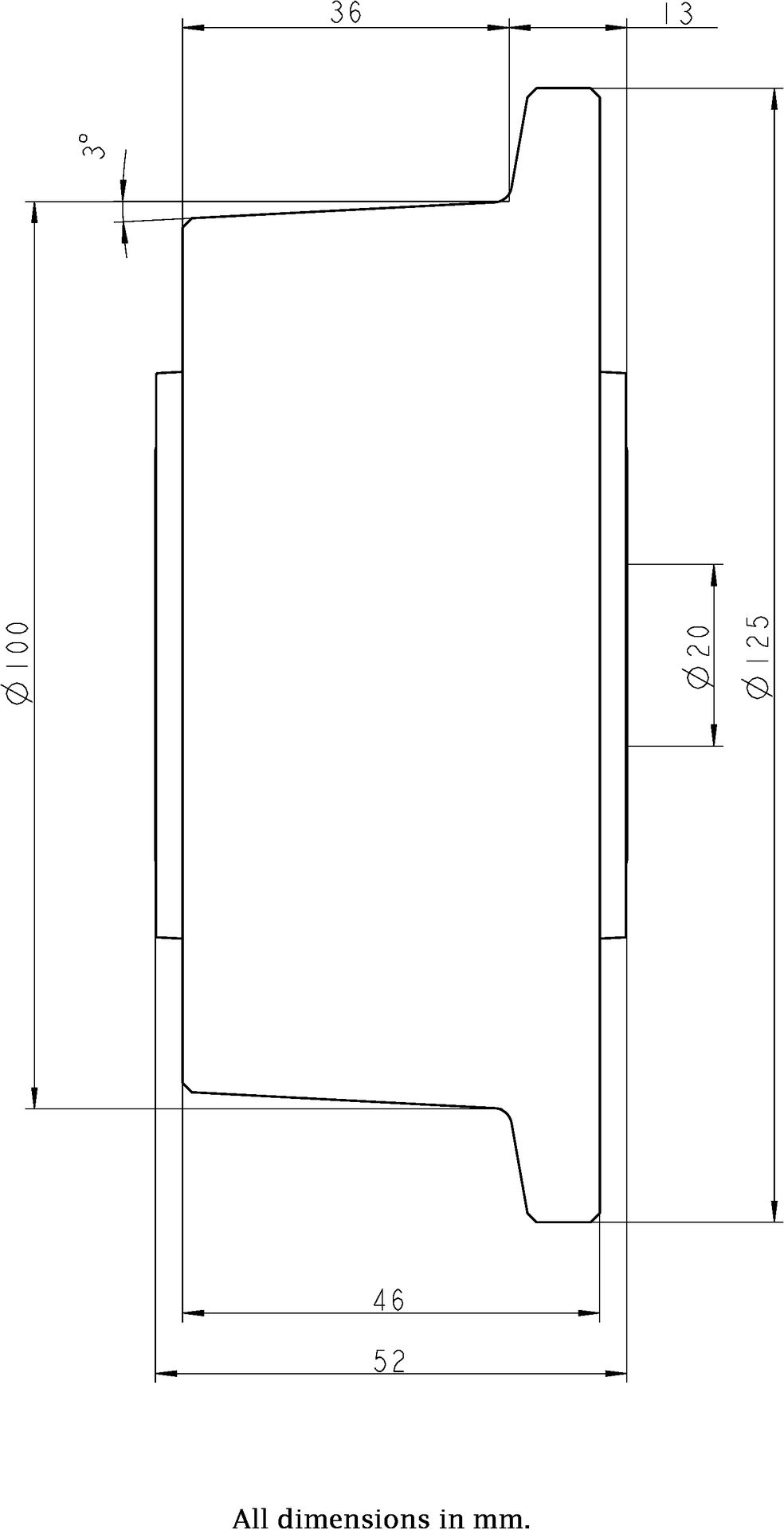

Dimensions for 847400.jpg
