SPK 200G 200mm flanged cast iron wheel
15 sold in last 24 hours
Reference: 857300
Wheel Diameter Without Flange: 200mm (8" inches)
Bearing Type: Plain Bearing
Load Capacity: 1500kg
Wheel Diameter Without Flange: 200mm (8" inches)
Bearing Type: Plain Bearing
Load Capacity: 1500kg

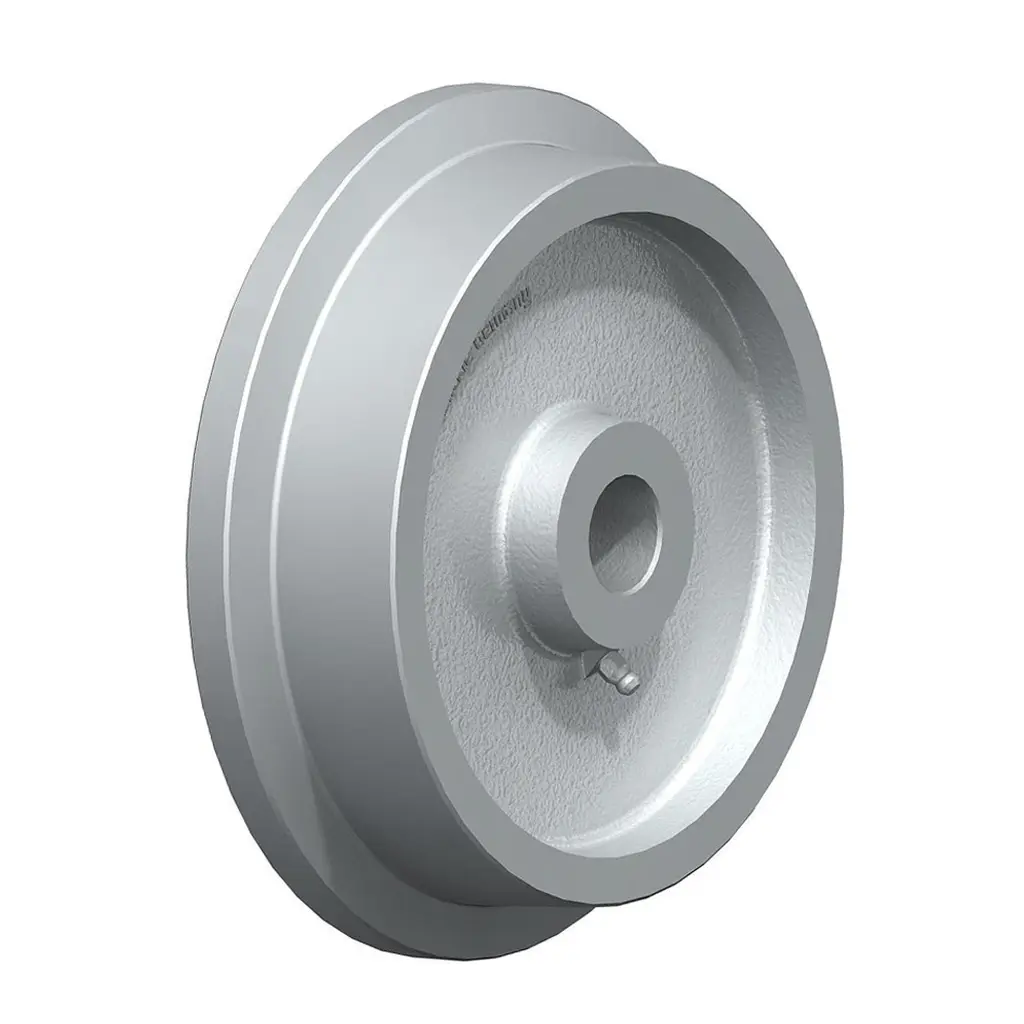

SPK 200G 200mm flanged cast iron wheel
- A wheel made of silver lacquered cast iron with exceptionally low rolling resistance on clean and even surface.
- High wear resistance.
- The hardness of the tread is 180-220 HB.
- Machined flange and tread.
- 3° taper tread to axle.
- Chemical resistance to many aggressive substances.
- The load capacities provided in the table refer to the allocation of flanged wheels to rail profiles in accordance with DIN 536 specified below (crane rail standard):
SPK 50G–SPK 200K, SPK 250G, SPK 250K: A45
SPK 201K, SPK 251K: A55

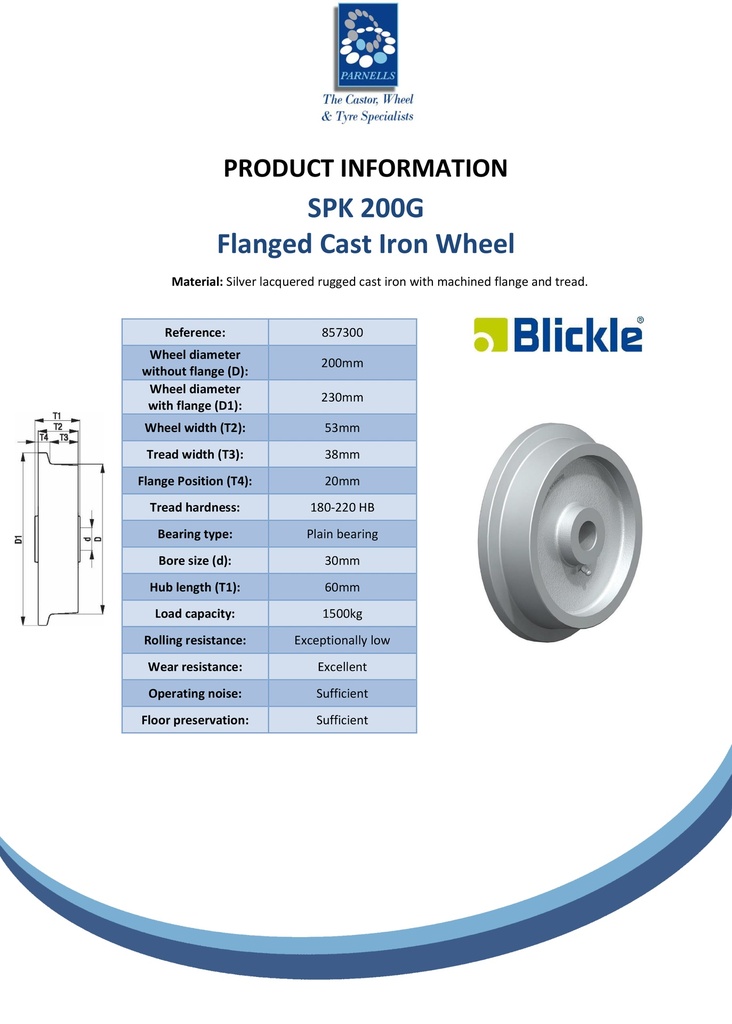

| Part Number | 857300 |
| Wheel Diameter Without Flange (mm) | 200 |
| Wheel Diameter With Flange (mm) | 230 |
| Wheel Width (mm) | 53 |
| Tread Width (mm) | 38 |
| Flange Position (mm) | 20 |
| Bearing Type | Plain Bearing |
| Bore Size (mm) | 30 |
| Hub Length (mm) | 60 |
| Load Capacity (kg) | 1500 |
| Tread Material | Cast Iron |
| Wheel Rim Material | Cast Iron |
| Rolling Resistance | Exceptionally Low |
| Wear Resistance | Excellent |
| Operating Noise | Sufficient |
| Floor Preservation | Sufficient |
| Brand | Blickle |
Add to cart
Sign in
Pay
Get Delivered
Shipping & Delivery
We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.
All parcels are shipped with courier with tracked parcel shipping service.
See below table which show shipping times and approx.
price for parcel delivery throughout Europe.
| Country | Average Delivery Time | Approx Delivery Cost |
|---|---|---|
| Austria | 4-5 Days | €17.00 (per parcel) |
| Belgium | 3-4 Days | €16.00 (per parcel) |
| Bulgaria | 6-7 Days | €35.00 (per parcel) |
| Croatia | 5-7 Days | €35.00 (per parcel) |
| Czech Republic | 4-5 Days | €19.00 (per parcel) |
| Denmark | 4-5 Days | €17.00 (per parcel) |
| Estonia | 5-6 Days | €25.00 (per parcel) |
| Finland | 5-6 Days | €30.00 (per parcel) |
| France | 3-4 Days | €16.00 (per parcel) |
| Germany | 3-4 Days | €16.00 (per parcel) |
| Hungary | 5-6 Days | €21.00 (per parcel) |
| Ireland | 1-2 Days | €8.00 (per parcel) |
| Italy | 4-5 Days | €25.00 (per parcel) |
| Latvia | 5-7 Days | €25.00 (per parcel) |
| Lithuania | 4-5 Days | €22.00 (per parcel) |
| Luxembourg | 3-4 Days | €16.00 (per parcel) |
| Netherlands | 3-4 Days | €16.00 (per parcel) |
| Northern Ireland | 1-2 Days | €8.00 (per parcel) |
| Poland | 5-6 Days | €19.00 (per parcel) |
| Portugal | 4-5 Days | €30.00 (per parcel) |
| Romania | 5-6 Days | €35.00 (per parcel) |
| Slovakia | 5-6 Days | €21.00 (per parcel) |
| Slovenia | 5-6 Days | €21.00 (per parcel) |
| Spain | 4-5 Days | €25.00 (per parcel) |
| Sweden | 5-6 Days | €21.00 (per parcel) |
| United Kingdom | 2-4 Days* | €14.00 (per parcel) |
| *Shipped DDP, Seller responsible for all Tax or Duty on delivery |

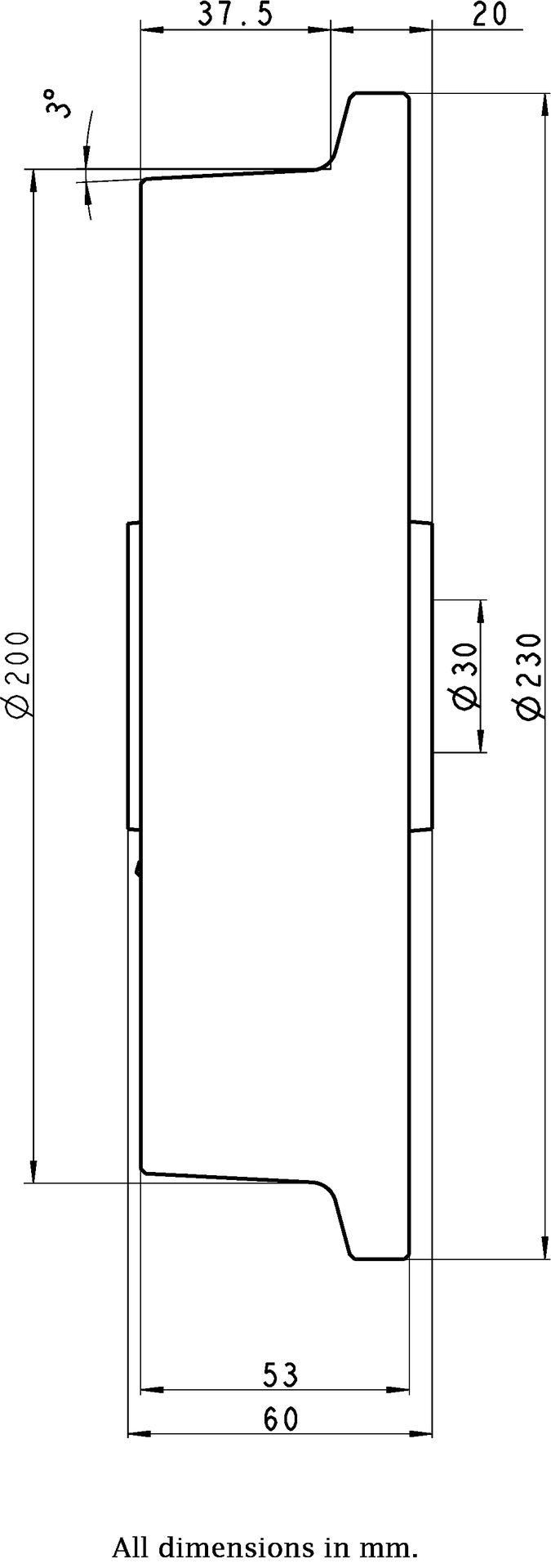

Dimensions for 857300.jpg
