LH series 100mm swivel top plate 100x85mm castor with nylon plain bearing wheel 500kg

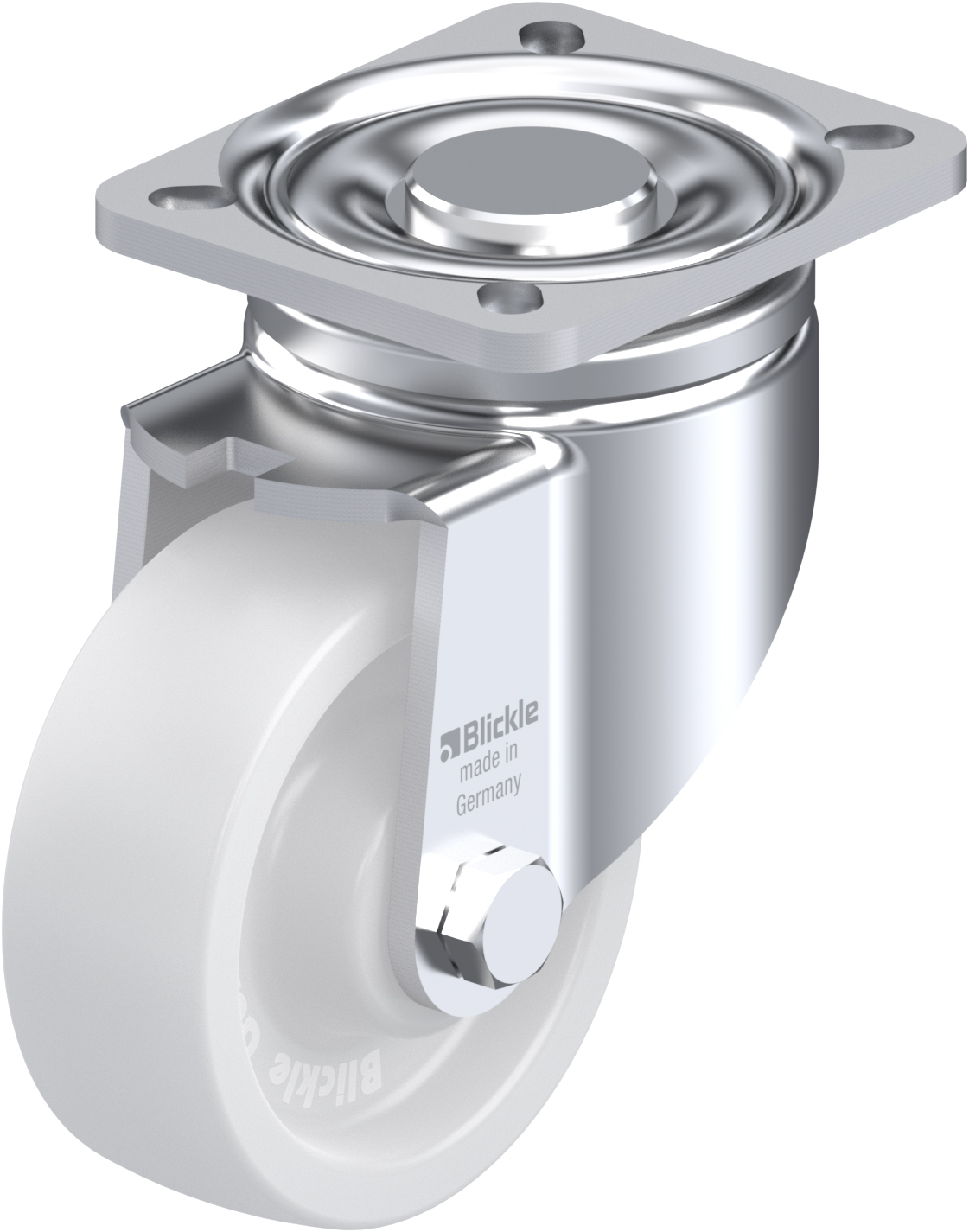

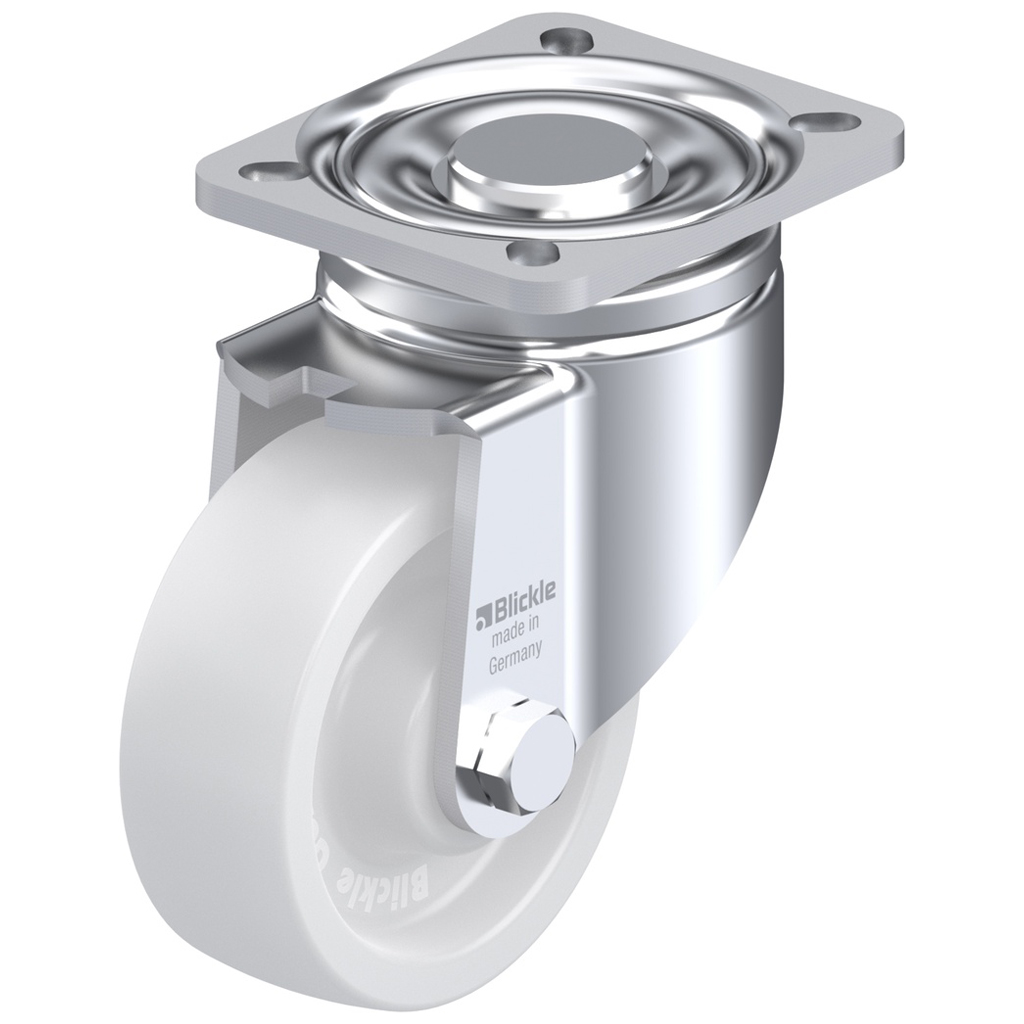

100mm swivel castor with white nylon wheel, 500kg

  • Swivel castor with strong top plate bracket made of zinc plated steel with hardened double row ball race in swivel head.

  • Wheel made of white nylon.

  • The hardness of the tread is 70° Shore D.

  • Bolted wheel axle.

  • Very low rolling resistance on clean and even surface.

  • Good chemical resistance to many aggressive substances.

Part Number 914540
Wheel Diameter (mm) 100
Brand Parnells
Tread Width (mm) 37
Bearing Type Plain bearing
Top Plate Size (mm) 100x85
Fixing Hole Spacing (mm) 80x60
Fixing Hole Size (mm) 9
Overall Height (mm) 140
Load Capacity 3km/h (kg) 500
Blickle Reference LH-SPO 100G-1

Add to cart

Sign in

Pay

Get Delivered

Info Block Image 01

 Shipping & Delivery


We ship products every day throughout Europe from our head office & warehouse in Dublin Ireland.

All parcels are shipped with courier with tracked parcel shipping service.

See below table which show shipping times and approx. price for parcel delivery throughout Europe.

Info Block Image 02
Country Average Delivery Time Approx Delivery Cost
Austria 4-5 Days €17.00 (per parcel)
Belgium 3-4 Days €16.00 (per parcel)
Bulgaria 6-7 Days €35.00 (per parcel)
Croatia 5-7 Days €35.00 (per parcel)
Czech Republic 4-5 Days €19.00 (per parcel)
Denmark 4-5 Days €17.00 (per parcel)
Estonia 5-6 Days €25.00 (per parcel)
Finland 5-6 Days €30.00 (per parcel)
France 3-4 Days €16.00 (per parcel)
Germany 3-4 Days €16.00 (per parcel)
Hungary 5-6 Days €21.00 (per parcel)
Ireland 1-2 Days €8.00 (per parcel)
Italy 4-5 Days €25.00 (per parcel)
Latvia 5-7 Days €25.00 (per parcel)
Lithuania 4-5 Days €22.00 (per parcel)
Luxembourg 3-4 Days €16.00 (per parcel)
Netherlands 3-4 Days €16.00 (per parcel)
Northern Ireland 1-2 Days €8.00 (per parcel)
Poland 5-6 Days €19.00 (per parcel)
Portugal 4-5 Days €30.00 (per parcel)
Romania 5-6 Days €35.00 (per parcel)
Slovakia 5-6 Days €21.00 (per parcel)
Slovenia 5-6 Days €21.00 (per parcel)
Spain 4-5 Days €25.00 (per parcel)
Sweden 5-6 Days €21.00 (per parcel)
United Kingdom 2-4 Days* €14.00 (per parcel)
*Shipped DDP, Seller responsible for all Tax or Duty on delivery

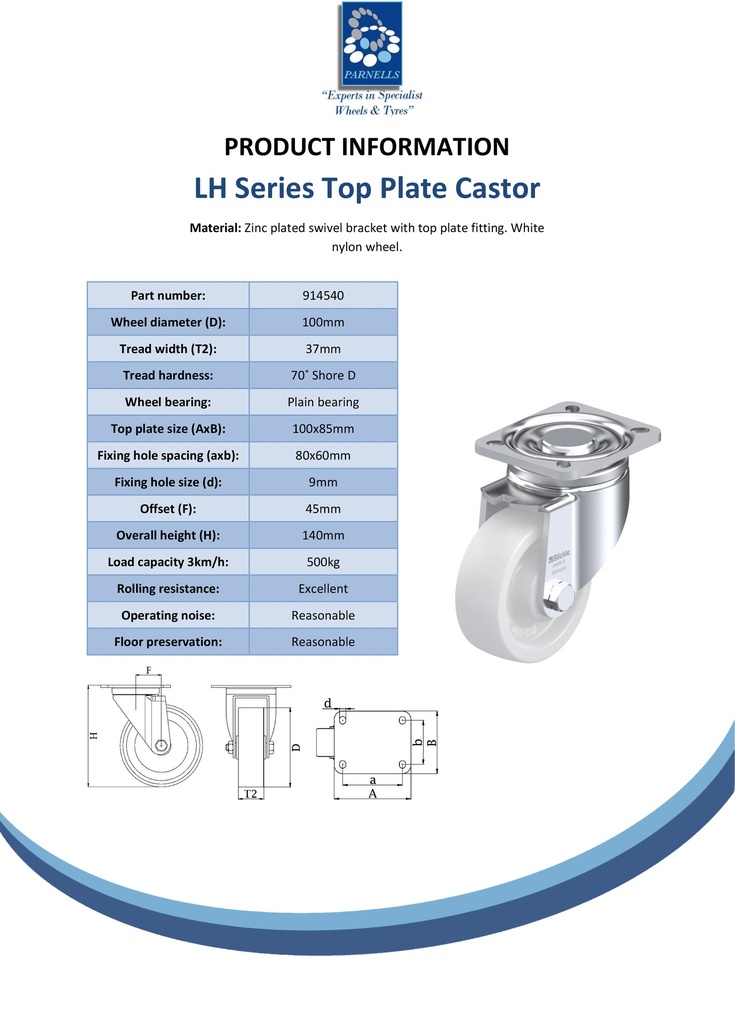

Spec Sheet for 914540.pdf
Download

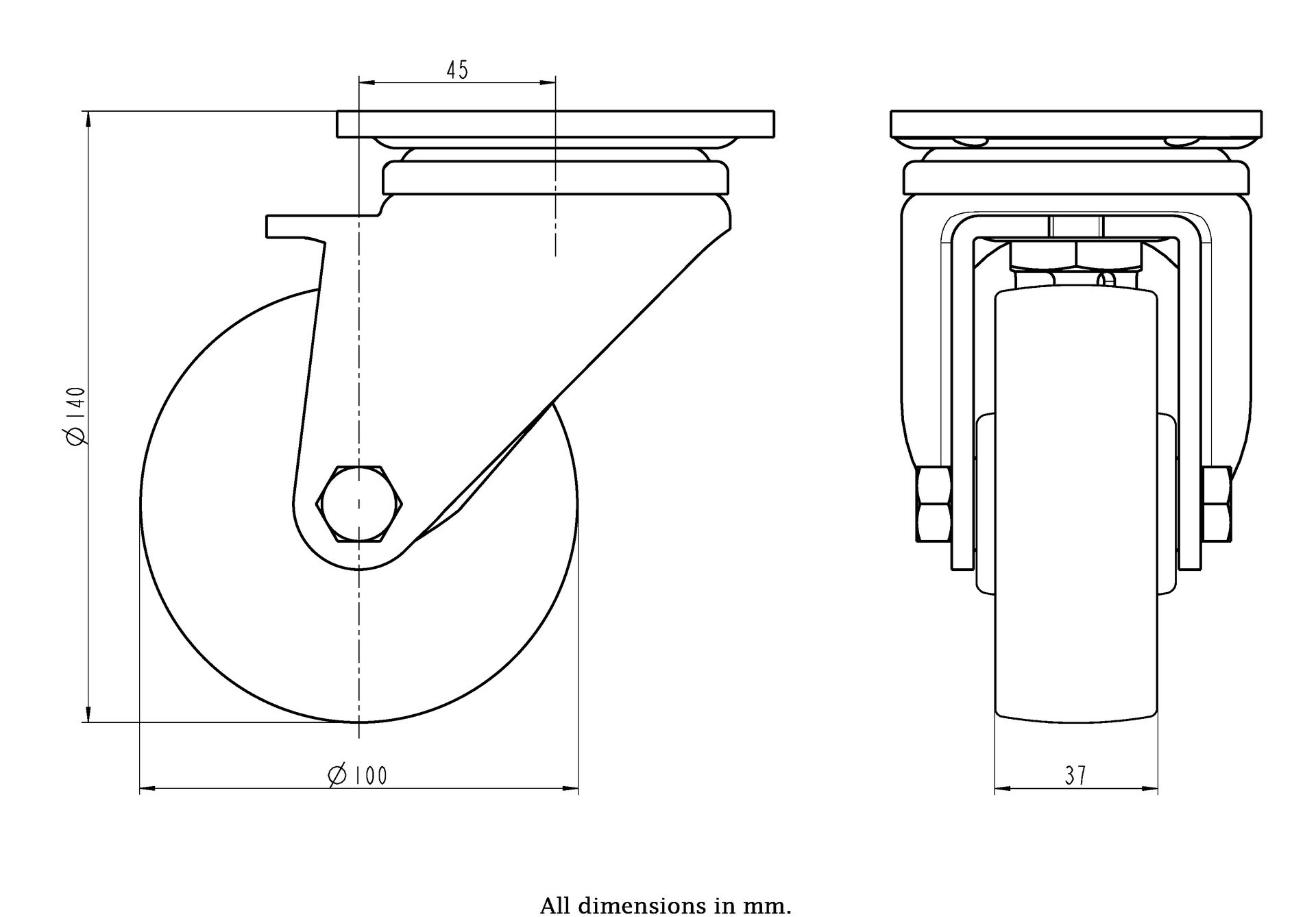

Dimensions for 914540.jpg
Download

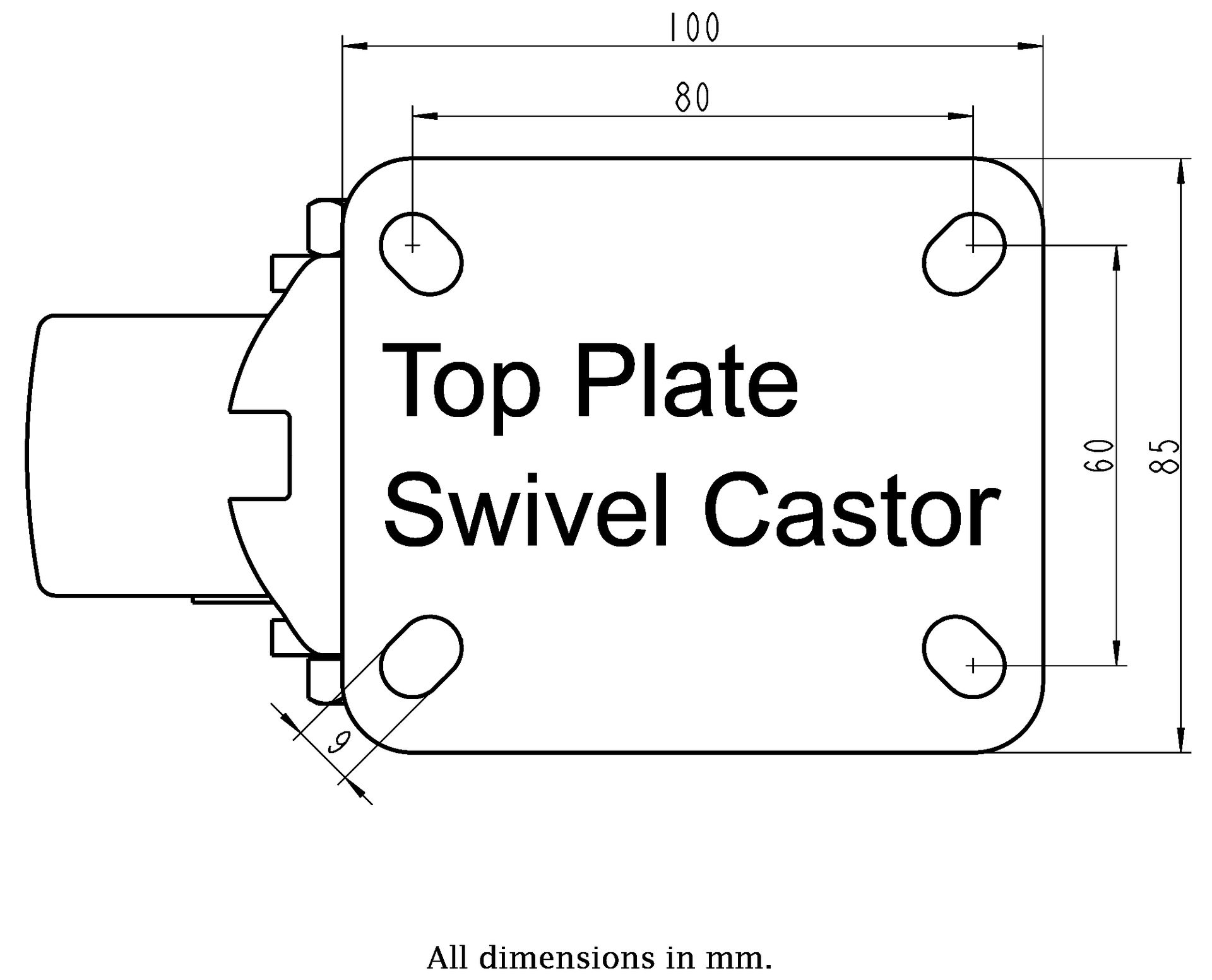

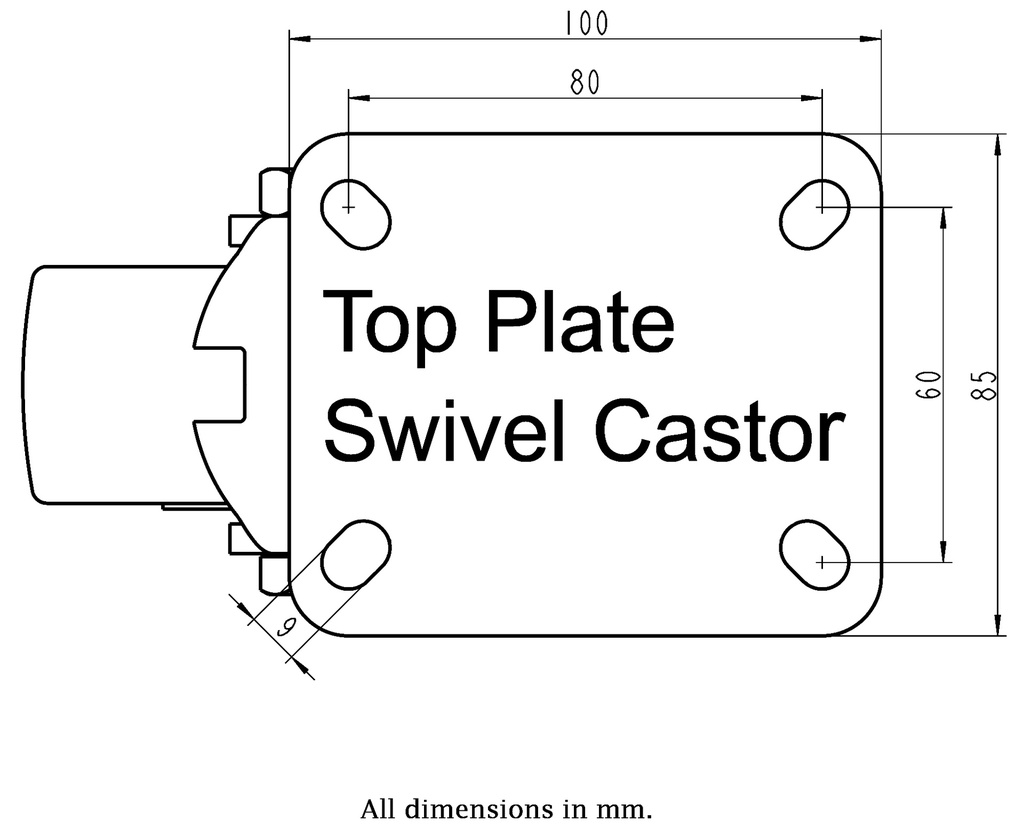

Dimensions for top plate swivel, 065-125mm (1).jpg
