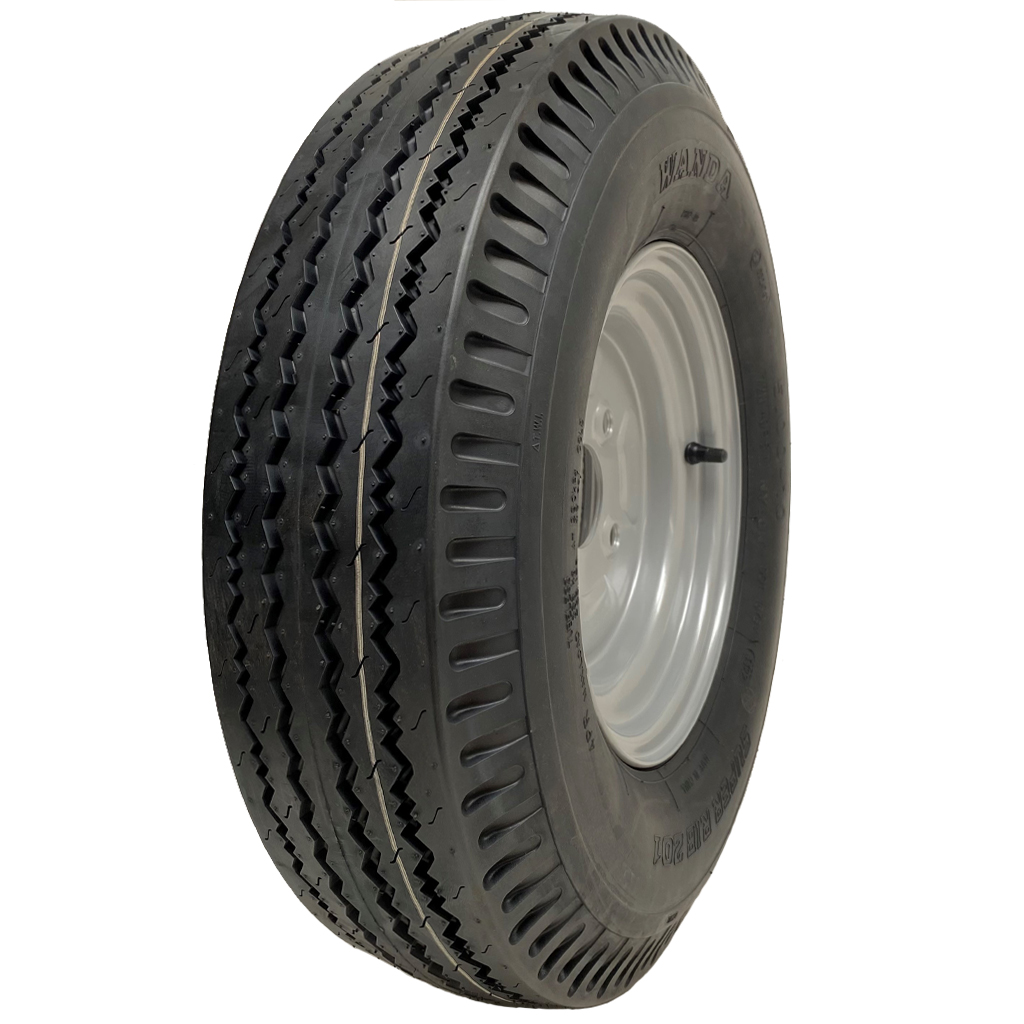

5.00-10 Trailer tyre & wheel assembly 4 stud 4" PCD, 355kg load capacity
Part Number: AS7009
Wheel Size: 5.00-10
Pitch Circle Diameter: 4" PCD
Load Capacity: 355kgs
5.00-10 trailer wheel.
Wanda super rib 201 high speed road legal trailer tyre fitted on rim.
These are tubeless wheels & are E marked road legal for Europe and the UK.
They are hard wearing 4ply tyres with a tread depth of 6mm.
Wheel Specification:
Overall diameter: 508mm,
Max section width: 137mm,
Max load: 785lbs (335kg),
PSI Rating: 40psi,
Speed & Load Rating: 72N,
Max speed: 140km/h (86mph),
Brand: Wanda,
Tyre Pattern Number: P802, (super rib 201),
Road Legal Number: E4-0024767.
Rim Specification:
3.50x10 Steel heavy duty rim,
Pitch Circle diameter: 4" PCD,
Centre hole size: 67mm (with notch cut out for a grease nipple),
Stud hole size: 12.5mm,
This rim has zero offset: ETO,
Rim colour is silver.
The Wanda P802 is a classic pattern for high speed trailers.
This tyre is non-directional.
These are crossply tyres, for excellent high speed stability and water dispersal.
Part Number | AS7009 |
Brand | Tyreline |
Rim Colour | Silver |
Tyre Size | 5.00-10 |
Ply | 4 |
TT/TL | TL |
Pattern | P802 |
Tread Depth (mm) | 6.0 |
Rim Width (in) | 3.5 |
SW (mm) | 137 |
OD (mm) | 508 |
PSI | 40 |
Stud / PCD | 1/101.6 |
E-Mark | E4-0024767 |
Max Load (Kg) | 355 |
