20.5x8.0-10 Trailer tyre & wheel assembly 4 stud 100mm PCD, 412kg load capacity

https://www.parnells.eu/web/image/product.template/34493/image_1920?unique=dae4998

Part Number: AS7014
Tyre Size: 20.5x8.00-10
PCD: 100mm
Load Capacity: 412kg

108.96 € 108.96000000000001 EUR 108.96 €

141.51 €

Login for trade prices

Not Available For Sale

  • Brand
  • Rim Colour
  • Tyre Size
  • Ply
  • TT/TL
  • Tread Depth (mm)
  • SW (mm)
  • OD (mm)
  • PSI
  • Load/Speed Index
  • Stud / PCD
  • E-Mark
  • Max Load (Kg)

This combination does not exist.

Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

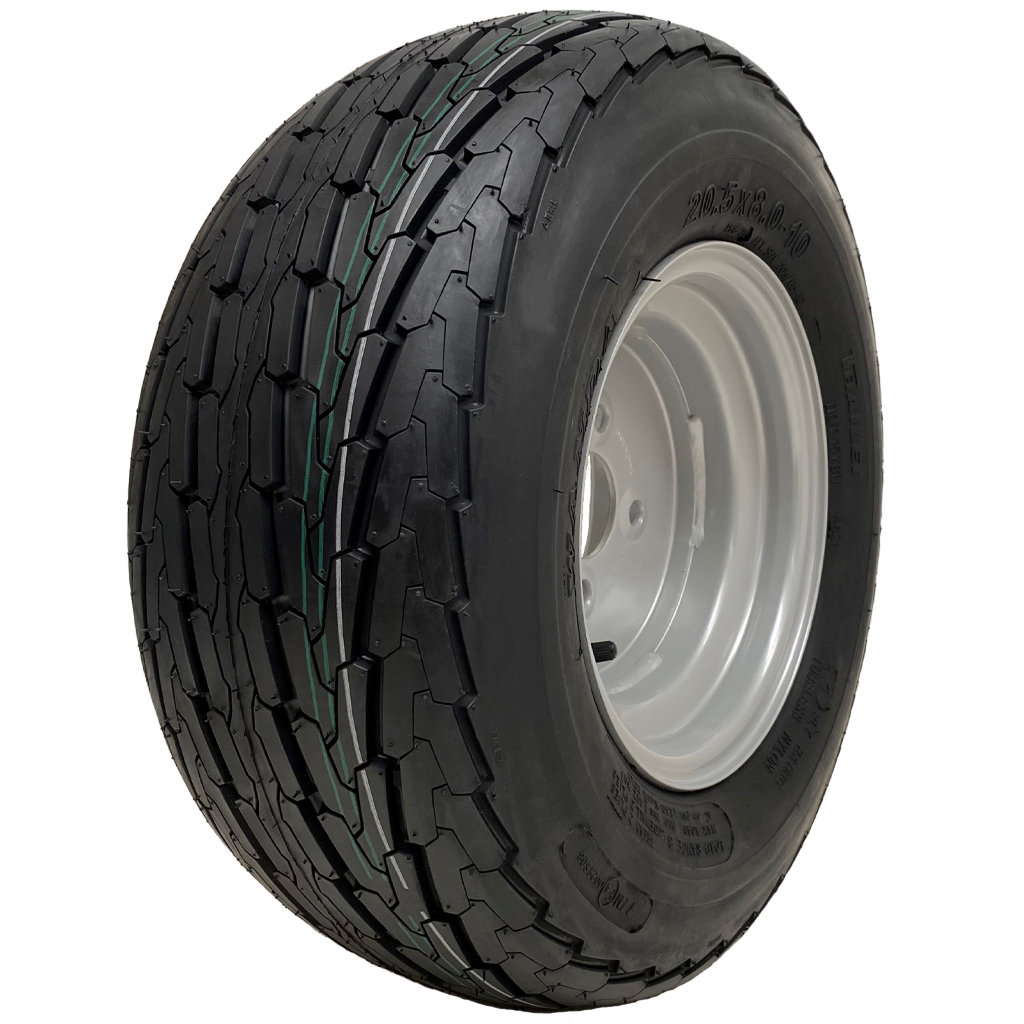

20.5x8.0-10 Trailer Wheel.


Wanda P815 trailer tyre fitted to a heavy duty 4 stud 100mm PCD steel rim. These are tubeless tyres.

They are E marked for road legal use in Europe and the UK.

They are hard wearing 4ply tyres with a tread depth of 7mm.

The wheels are heavy duty steel rims with 4 studs 100mm PCD,

(the centre hole is 60mm).


Wheel dimensions:

Overall diameter: 520mm,

Max section width: 205mm,

Max load: 910lbs (412kg),

tread Depth: 7mm,

Brand: Wanda,

Tyre pattern: P815,

PSI: 35,

Max speed: 130km/h (81mp/h).

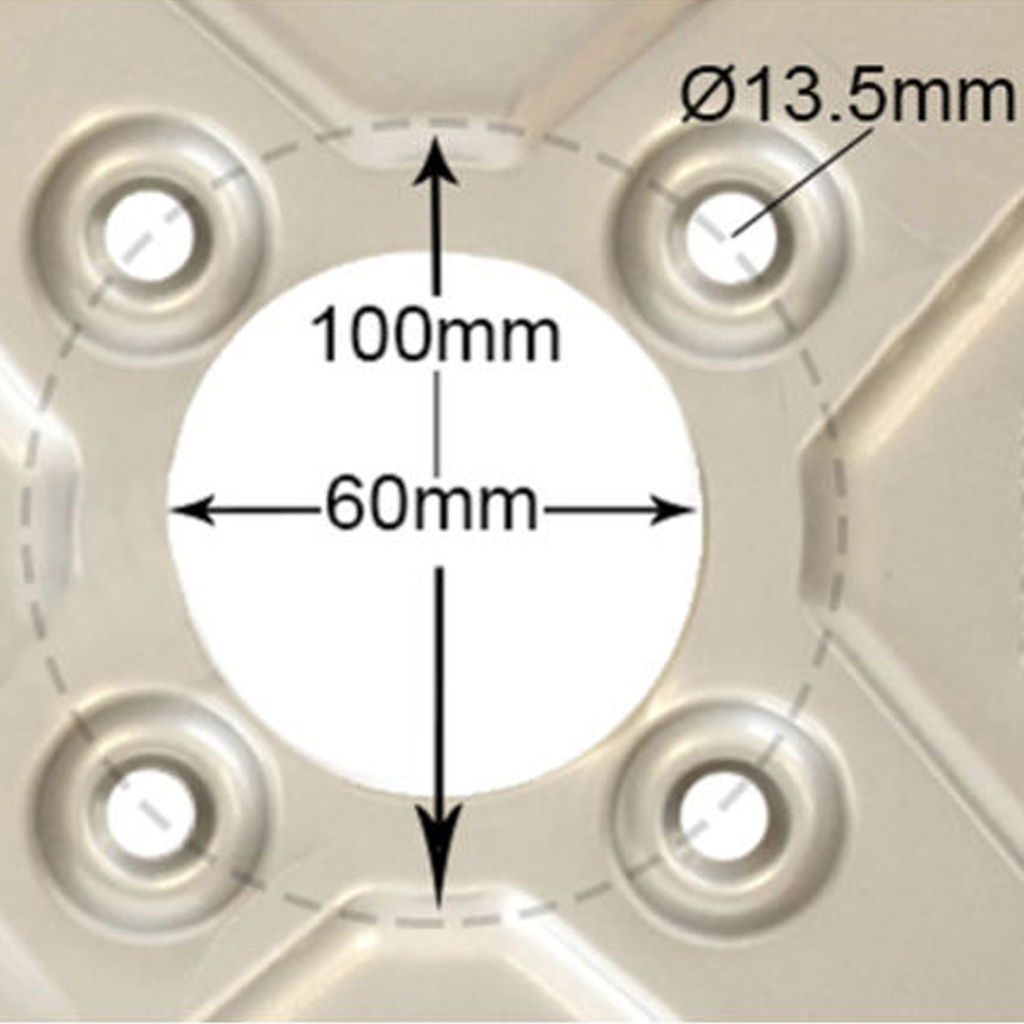

Rim Specifications:

Rim Size: 6.00x10,

Pitch Circle Diameter: 100mm PCD,

Centre Hole Size: 60mm,

Stud Hole Size: 13.5mm,

Rim Offset: ET-4 (offset 4mm towards the inside edge),

Silver powder coated finish with electro coating.


Non directional Tyre.

The Wanda P815 is a classic high speed trailer tyre pattern.

The wide profile gives increased stability.

Crossply construction gives the tyre pattern excellent water dispersal capability.
