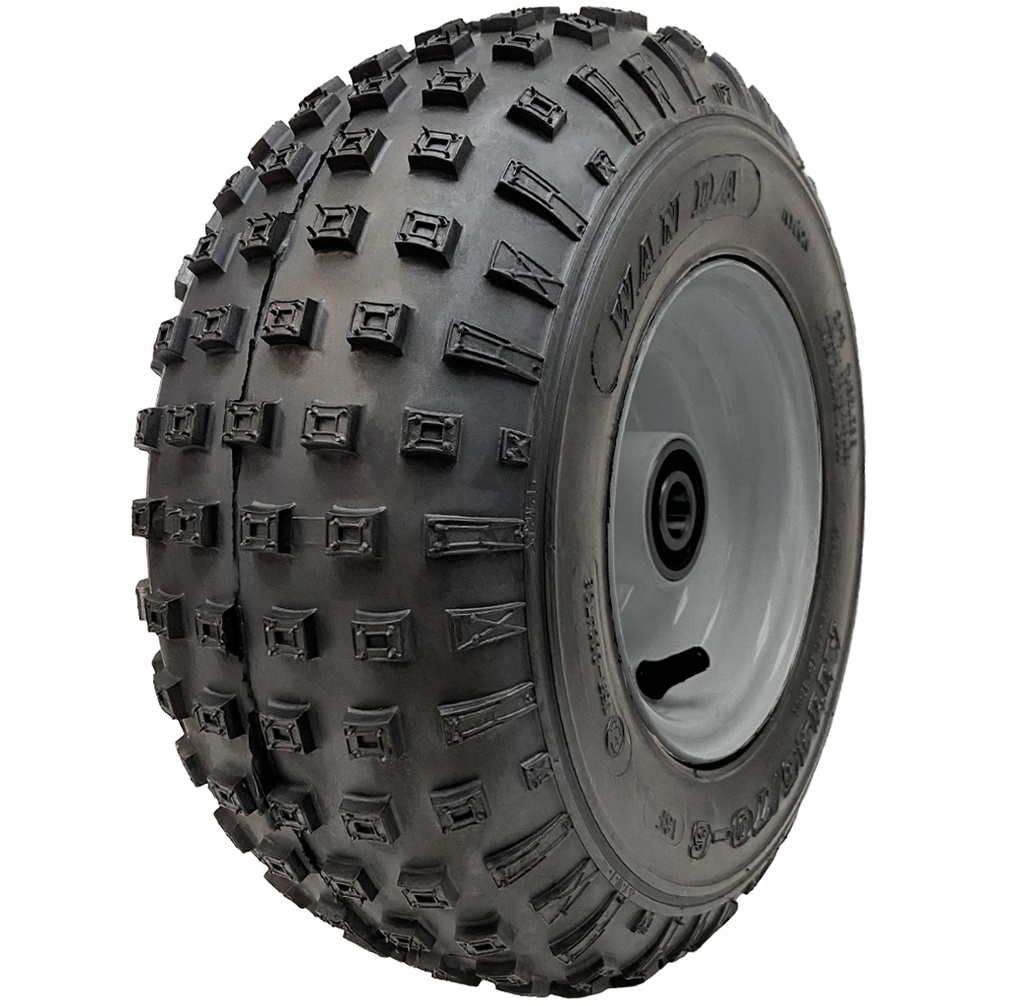

145/70-6 Knobby tyre on steel wheel rim with 20mm ball bearing, 75kg load capacity
Part Number: AS8193
Tyre Size: 145x70-6
Tyre Pattern: P319
Load Capacity: 75kgs
145/70-6 ATV wheel.
ATV tyre fitted to heavy duty steel rim with ball bearings.
Versatile tyre pattern with knobby dimples.
Non direction tread pattern.
The tread pattern keeps the tread clean and provides more bite in loose pack terrain.
These wheels are mainly for off-road use,
But they are E-Marked road legal up to 80km/h.
Tyre Specification:
Overall diameter: 355mm,
Max section width: 140mm,
Ply rating: 2 Ply,
PSI: 5,
Tread Depth: 5.5mm,
Max load capacity: 75kg,
Speed and load rating: 18F,
E-Marking: E4-75R-0004708.
Rim Specifications:
Heavy duty steel rims,
Rim Size: 3.50x6,
Powder coat paint with E-coating anti-corrosion treatment for superior finish,
Two 6304 ball bearings with 20mm internal bore,
The hub length is 90mm,
Flush bearings.
These wheels can be used for ATV's, quads, quad trailers, buggy's, karts, & small agricultural machinery.
| Part Number | AS8193 |
| Brand | Parnells |
| Rim Colour | Silver |
| Hub Length (mm) | 90 |
| Tyre Size | 145X70-6 |
| Ply | 2 |
| TT/TL | TL |
| Pattern | P319 |
| Rim Width (in) | 4.5 |
| SW (mm) | 140 |
| OD (mm) | 355 |
| Load/Speed Index | 18F |
| Bearing | 20mm (6304-2RS) |
| E-Mark | E4-75R-0004708 |
| Max Load (Kg) | 75 |
