22x11.00-8 4ply P334 UTILITY on 4/100 RIM & Hub & Stub axle 4/100 M12stud 40x40 High speed (waterproof) (Set of 4)

https://www.parnells.eu/web/image/product.template/86441/image_1920?unique=85b0a4c
(0 review)

Part Number: EC1090
Wheel Size: 22x11.00-8
Stub axles: 40mm square, 125mm long
Load capacity: 1800kg

761.74 € 761.74 EUR 761.74 €

884.72 €

Login for trade prices

Not Available For Sale


  • Rim Colour
  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • SW (mm)
  • OD (mm)
  • PSI
  • Load/Speed Index
  • Stud / PCD
  • E-Mark
  • Max Load (Kg)
  • Hub & Stub Axle (2pcs)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

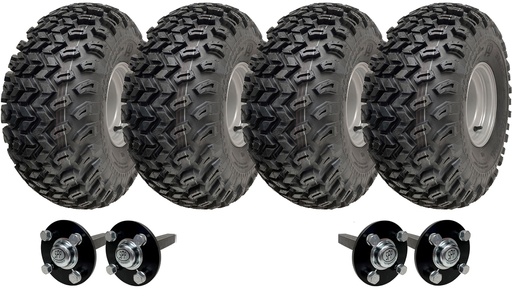

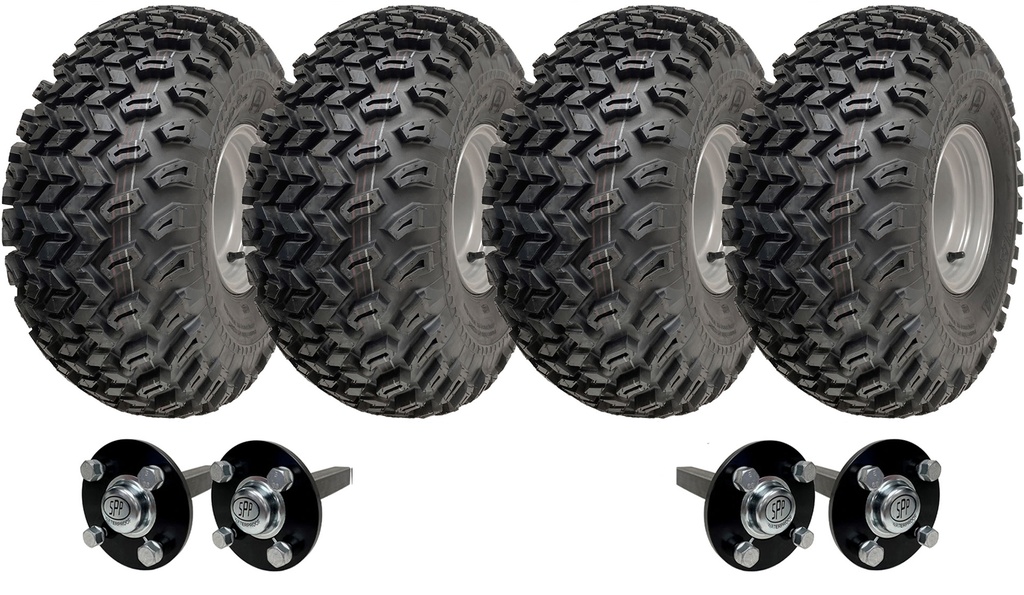

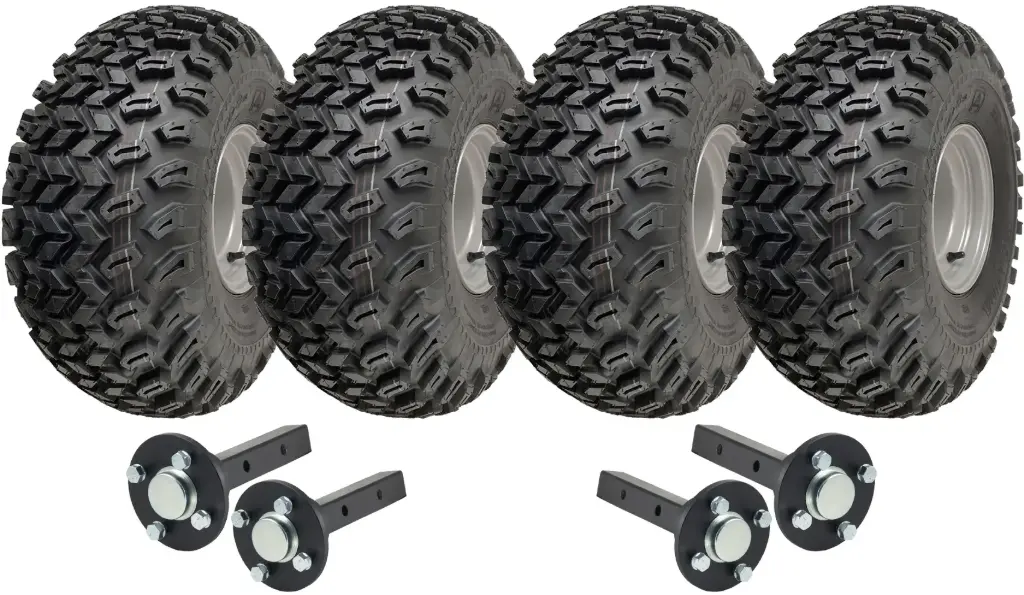

Set of 4 - 22x11.00-8 4ply P334 UTILITY on 4/100 RIM & Hub & Stub axle 4/100 M12stud  40x40 High speed (waterproof)

These kits can be used for making trailers for off road use

The hubs are high speed


Specifications:

Wheels (4pcs)

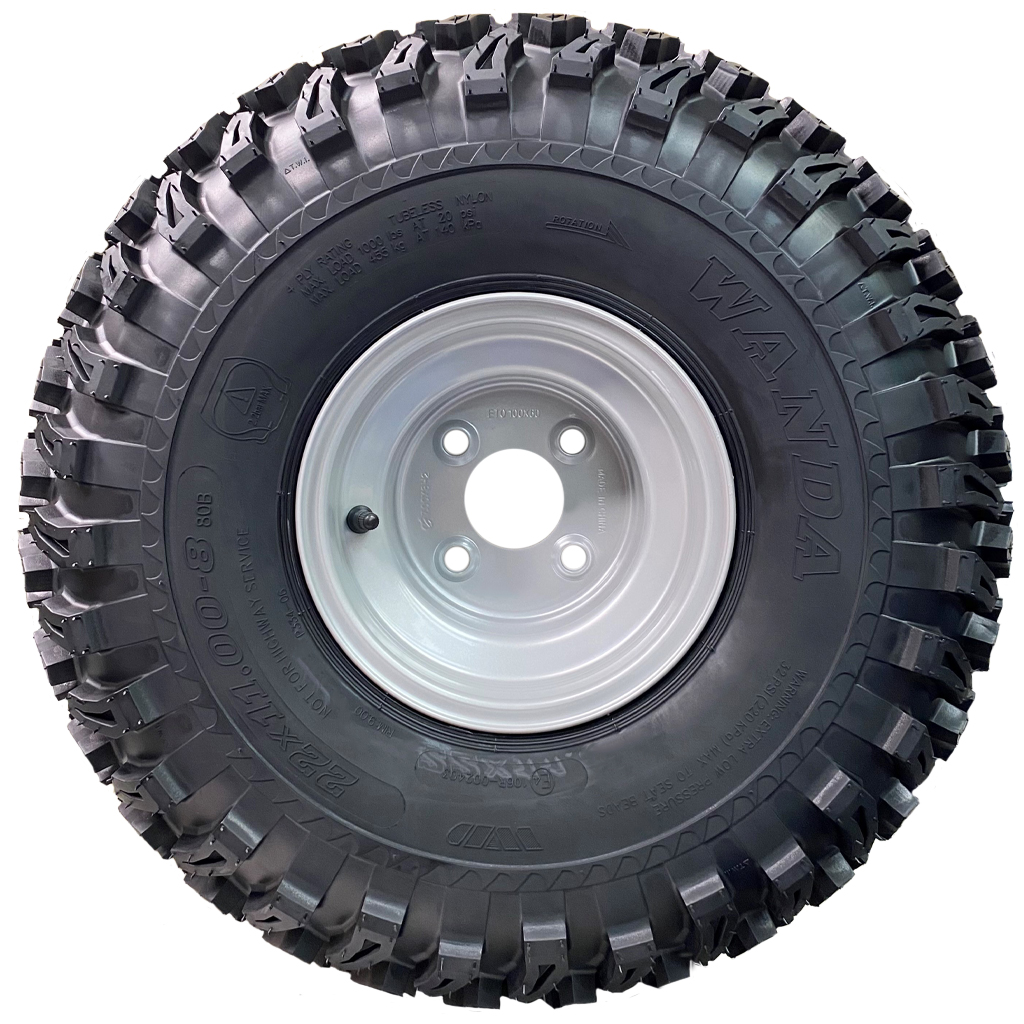

The tyres are 22x11.00-8 4ply P334 Wanda, fitted to 7.00x8 4/100 silver wheel rims

They are hard wearing 4ply tyres with a tread depth of 15.5mm

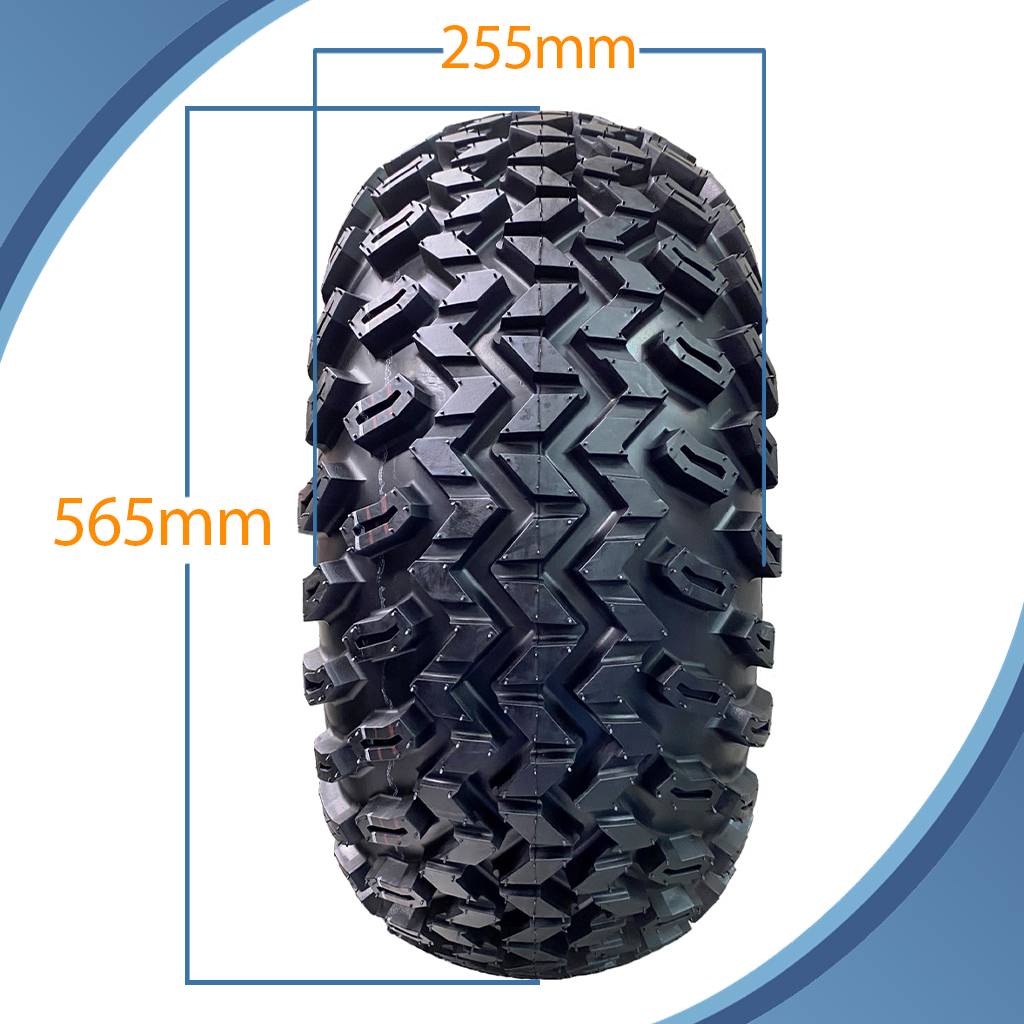

Overall diameter: 565mm

Max section width: 255mm

Max load: 1000lbs (455kg) @ 20psi

Max speed: 63mph (100kph)

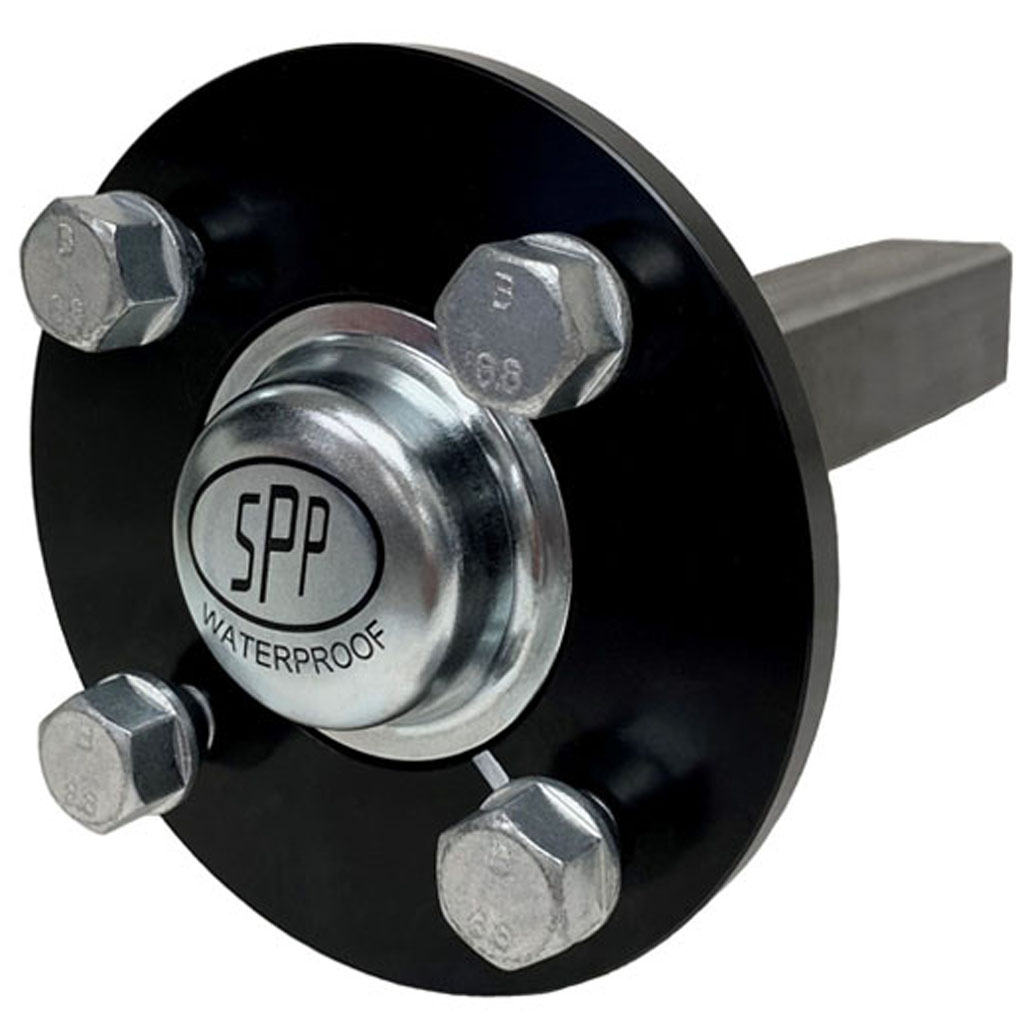

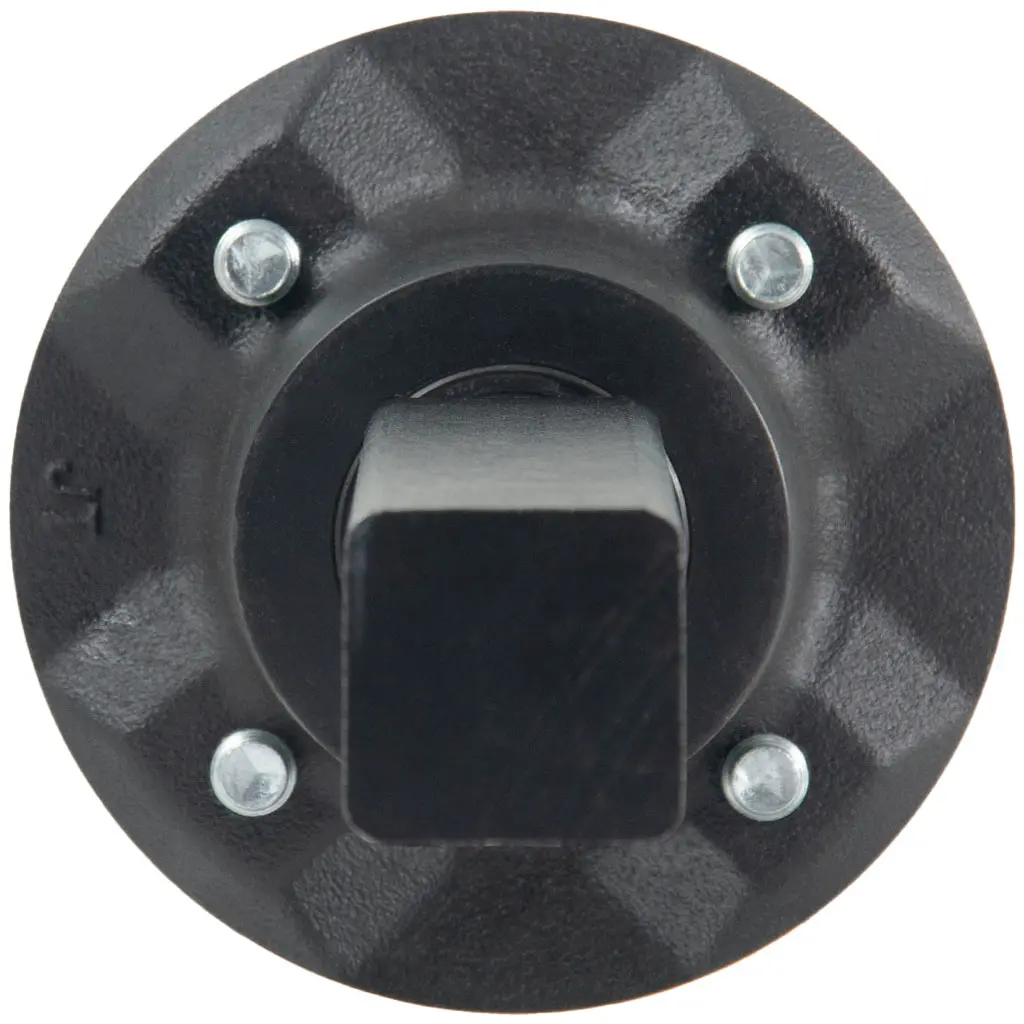

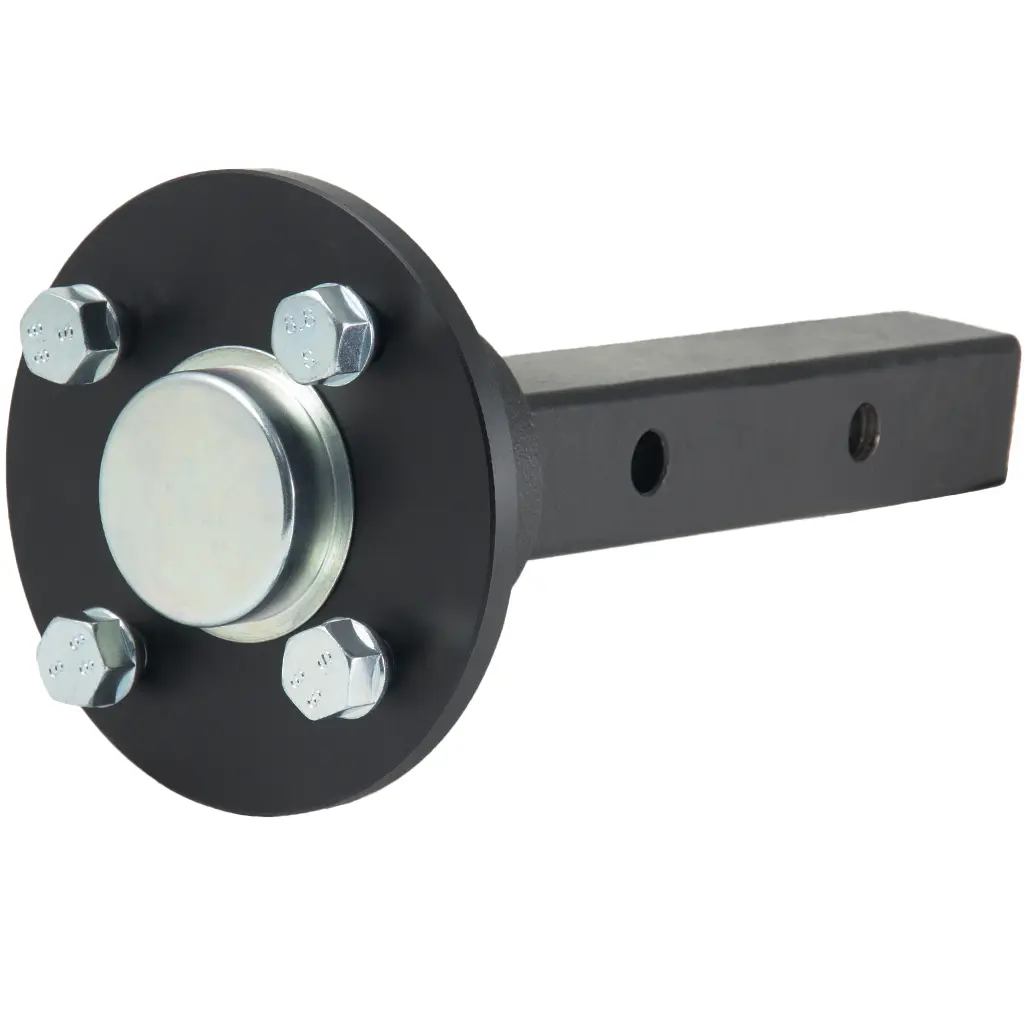

Hub & Stub axles (4pcs)

These are genuine 'SPP'

They are fully waterproof

These hubs are rated to 80mph, They are fully legal to use on the road,

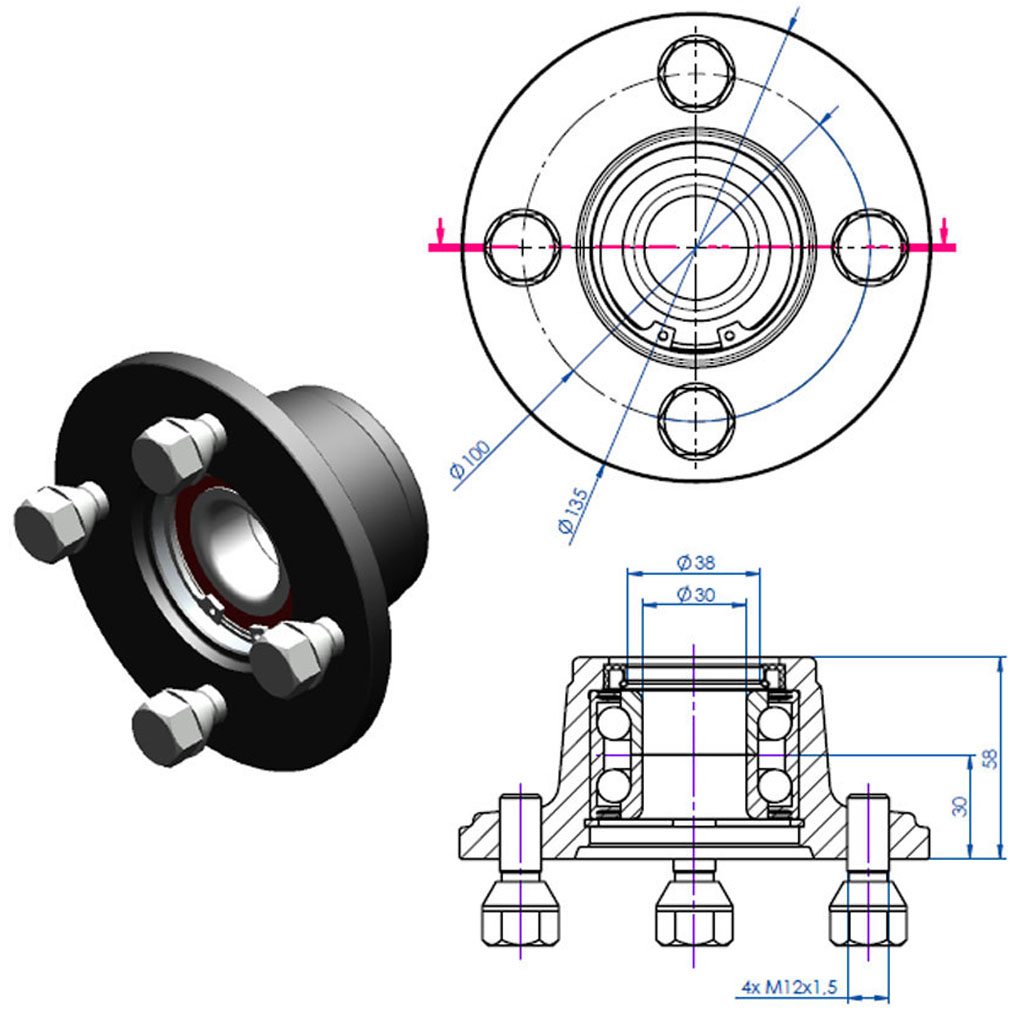

They have sealed precision ball bearings, they never need to be greased

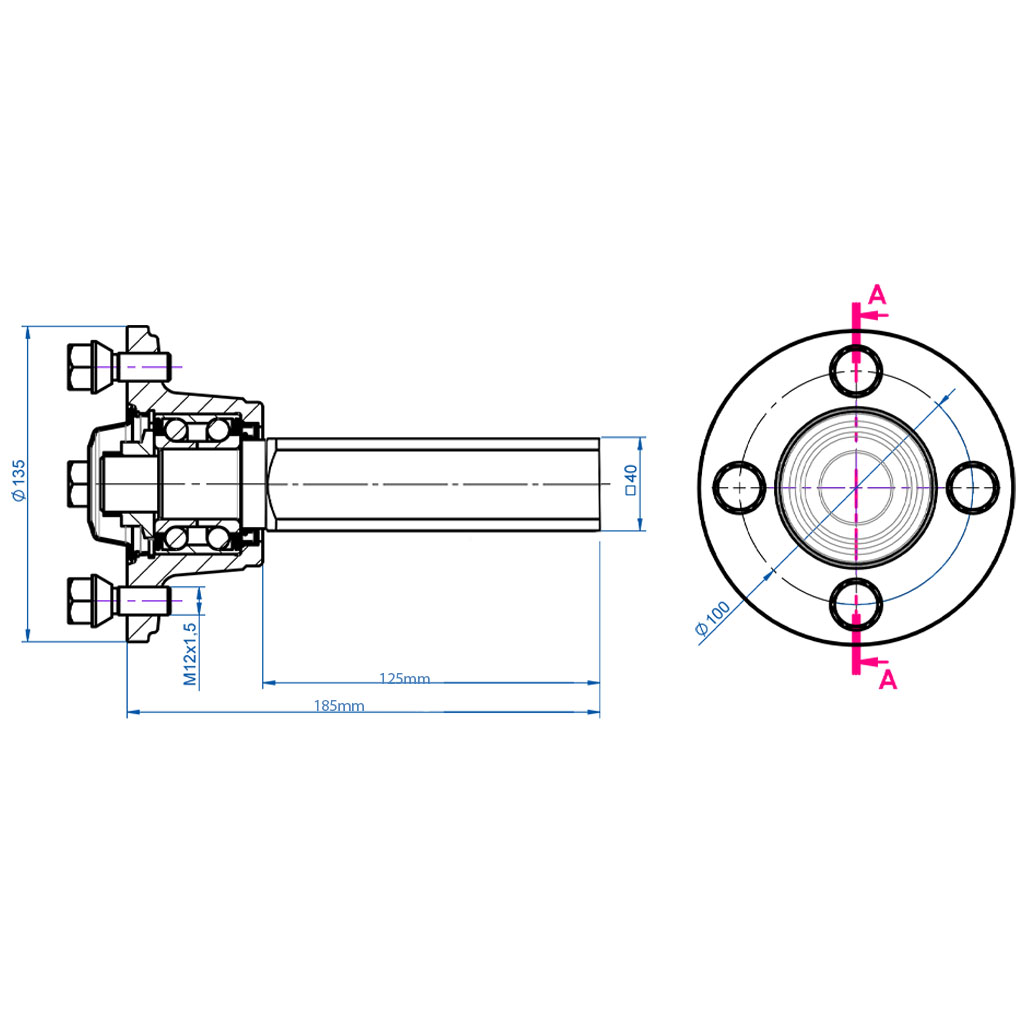

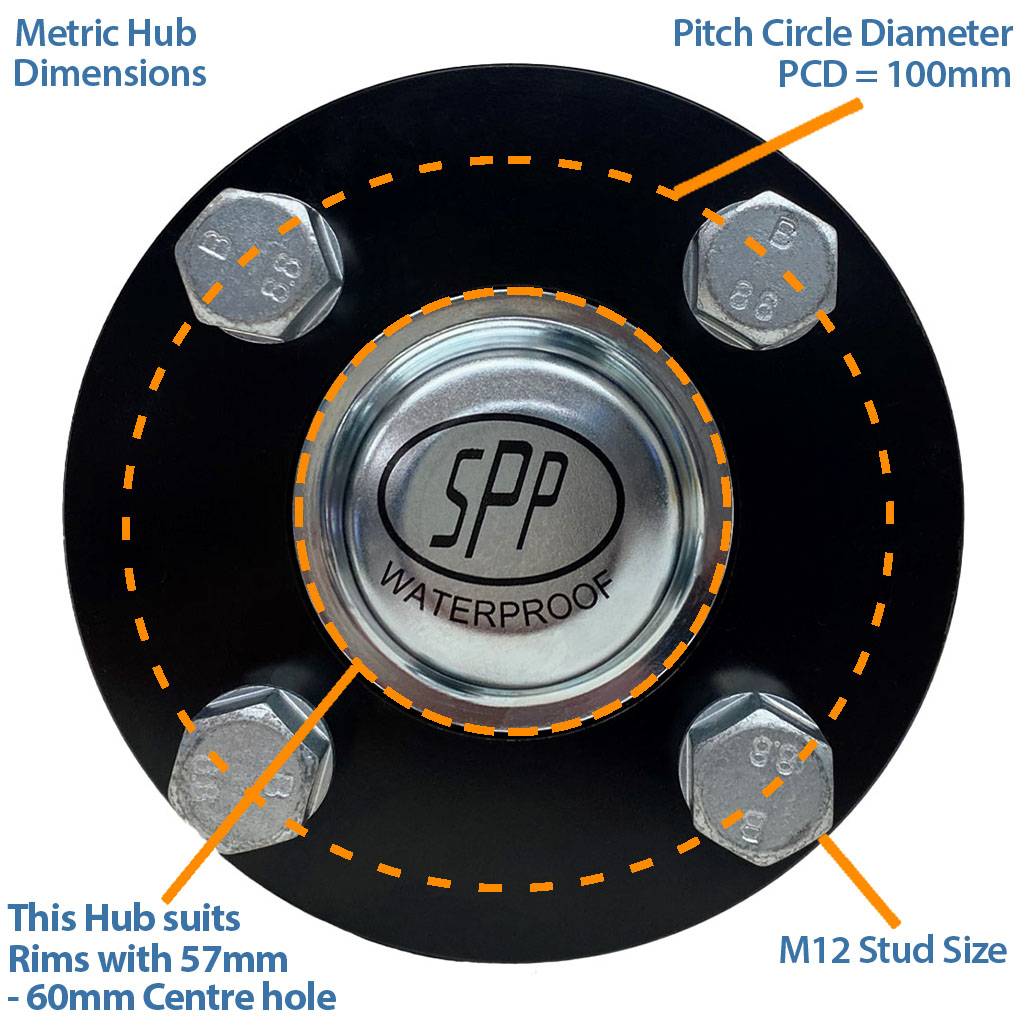

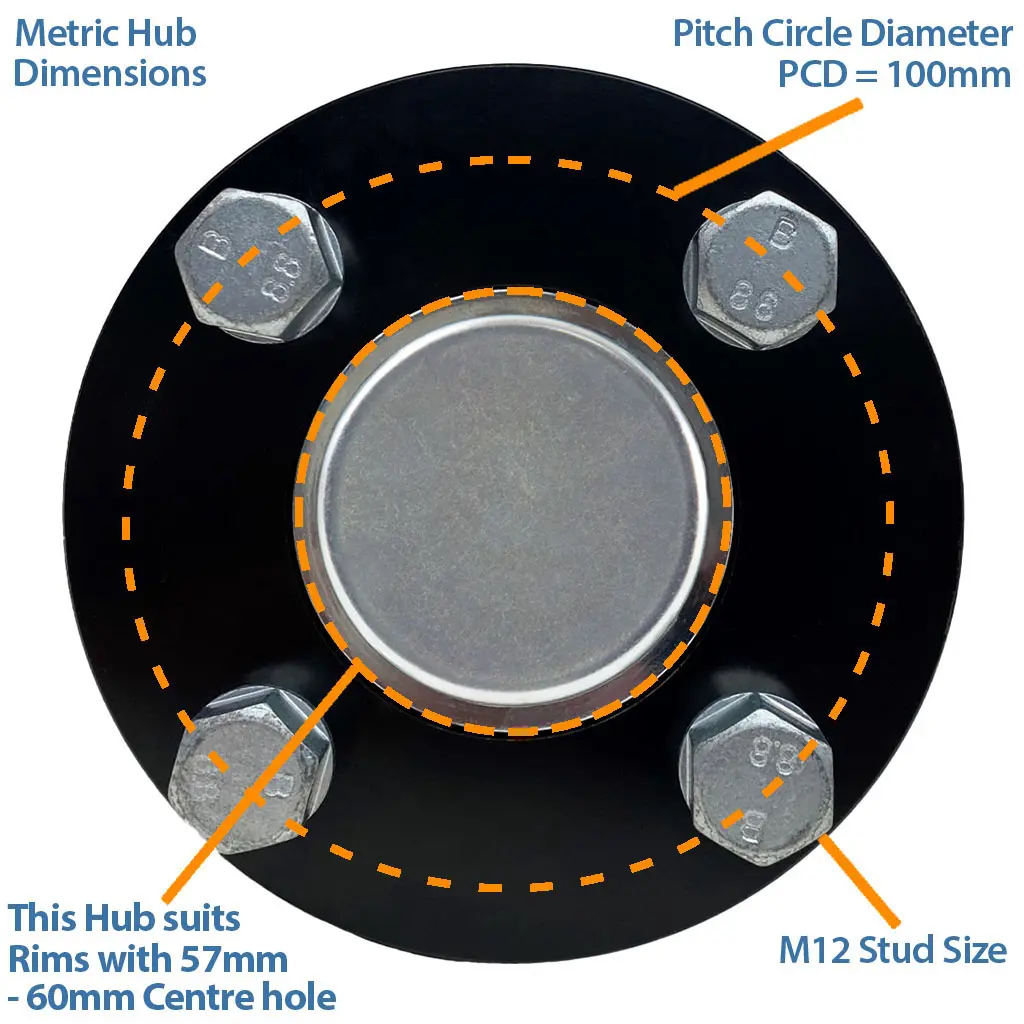

The hub has 4 x M12 studs, the PCD is 100mm

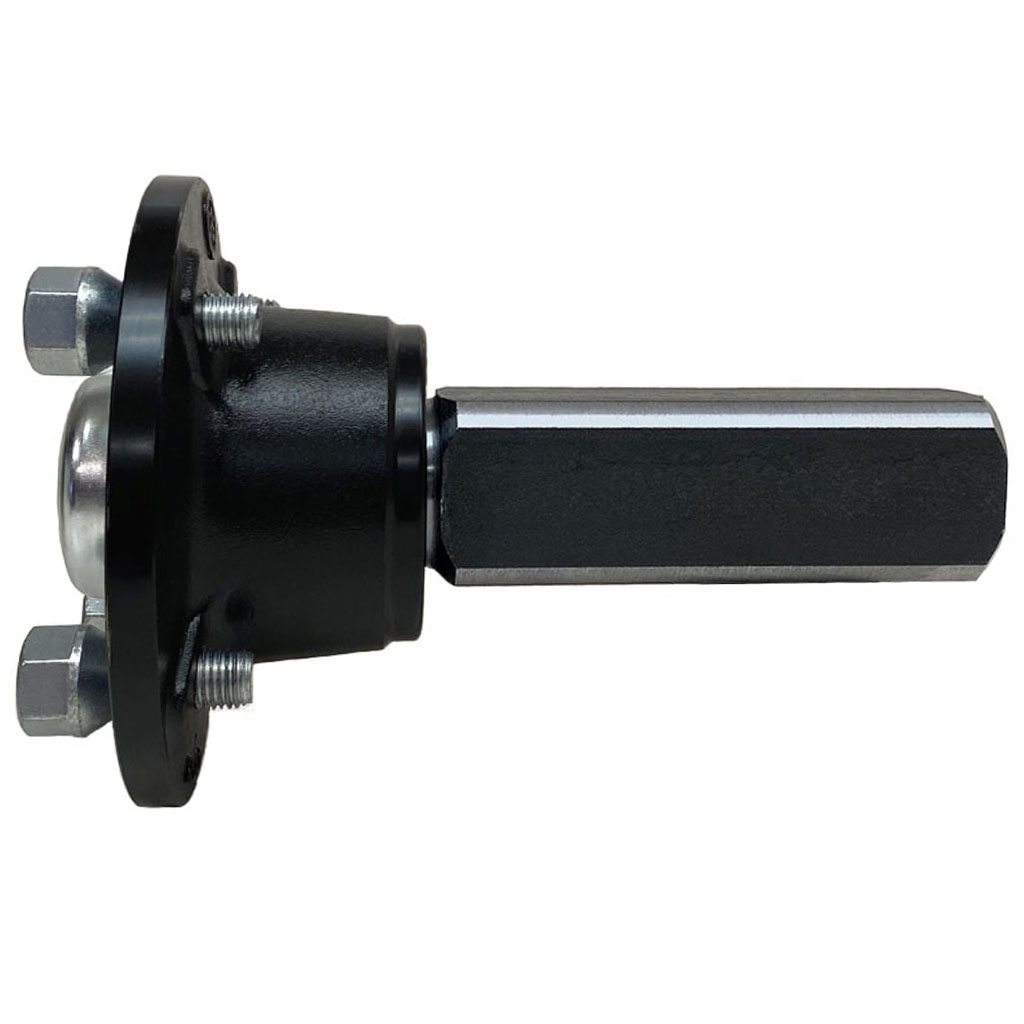

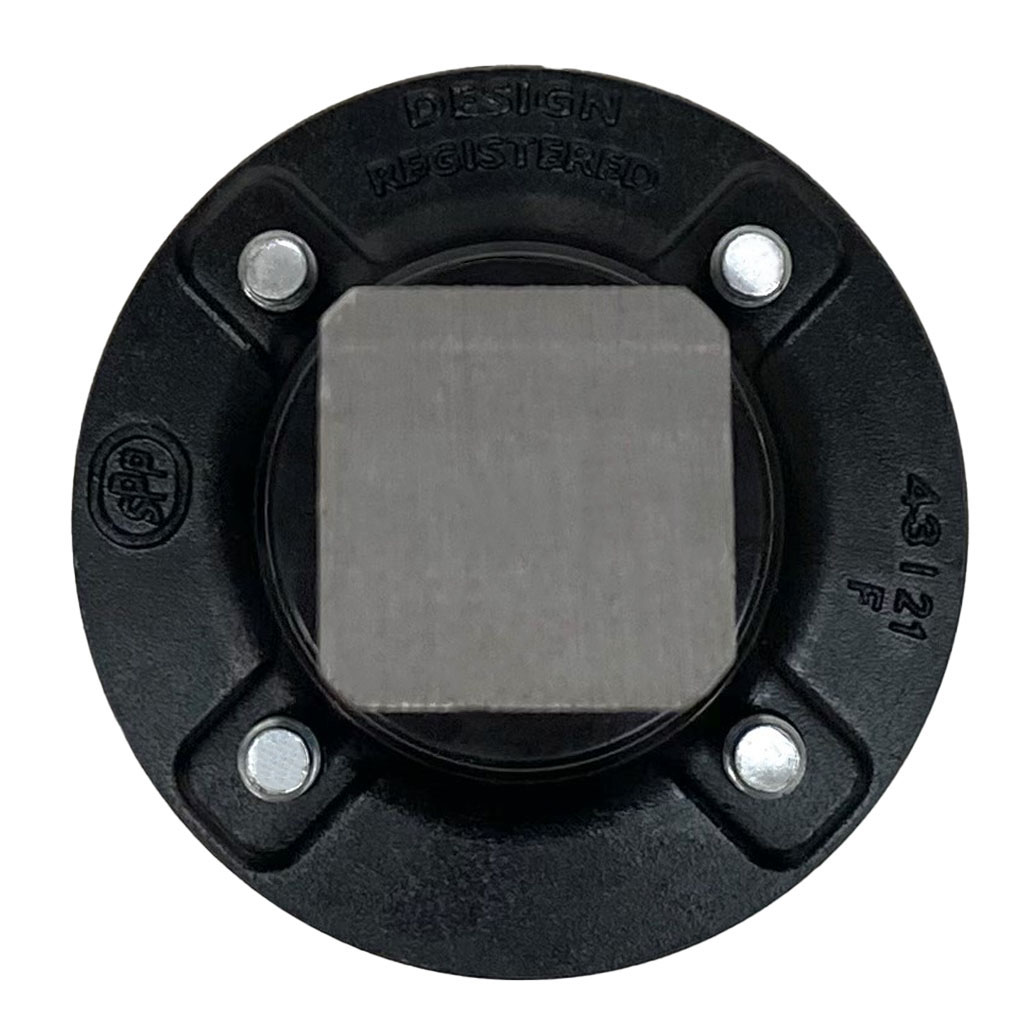

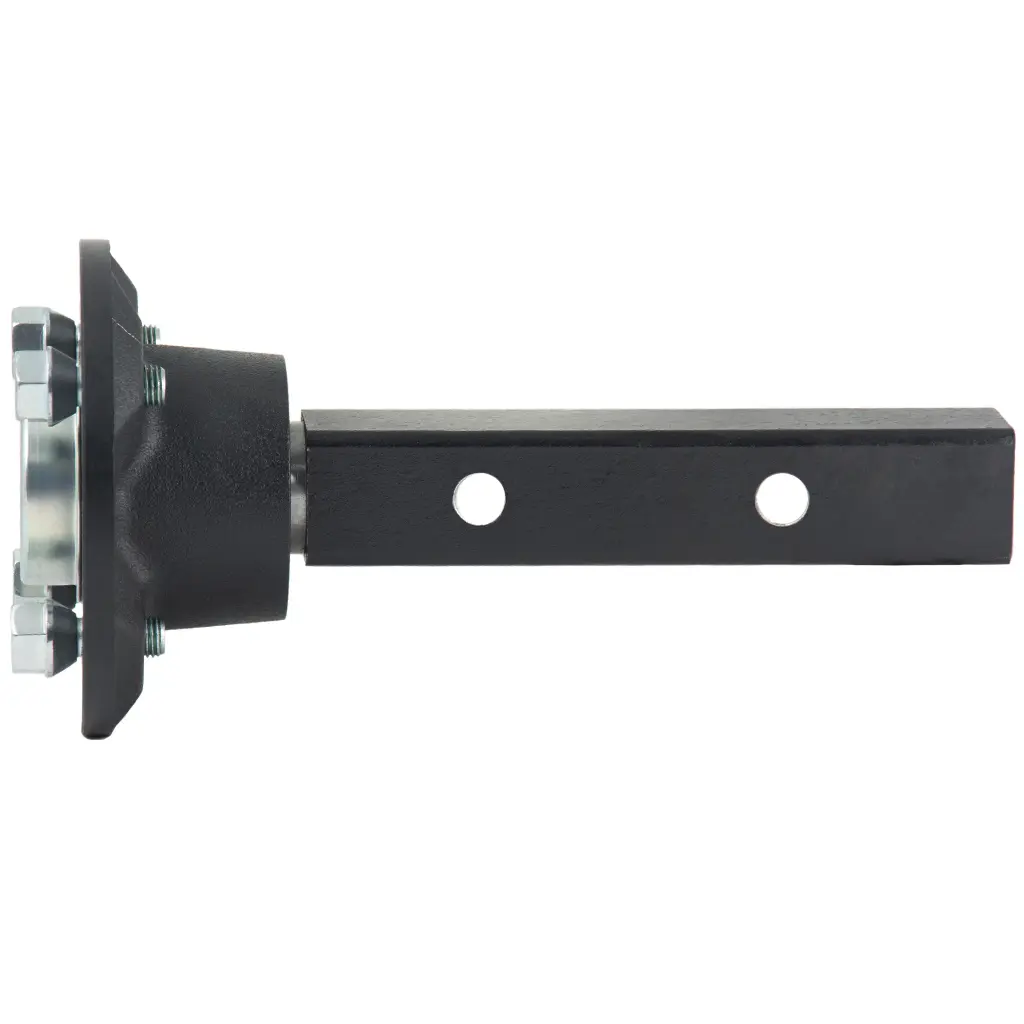

The shaft is 40x40mm square - 125mm long (solid steel) with rounded edges for ease of fitment

Weight capacity is 900kg per pair. (1800kgs total)

Add to cart

Sign in

Pay

Get Delivered

Part Number EC1090
Rim Colour Silver
Tyre Size 22x11.00-8
Ply 4
TT/TL TL
Pattern P334
Tread Depth (mm) 15.5
SW (mm) 255
OD (mm) 565
PSI 20
Load/Speed Index 80B
Stud / PCD 4x100mm
E-Mark E4-106R-002403
Max Load (Kg) 455
Hub & Stub Axle (2pcs) hub & Stub axle 4/100 M12 wheel bolt 40x40
