Heavy duty ATV quad trailer kit 1800kg, Twin axle 4 wheels (No Hitch)
Part Number: EC1096
Wheel Size: 20x10.00-8
Stub Axle: 40x40mm Square, 100mm PCD
Load Capacity: 1800kgs

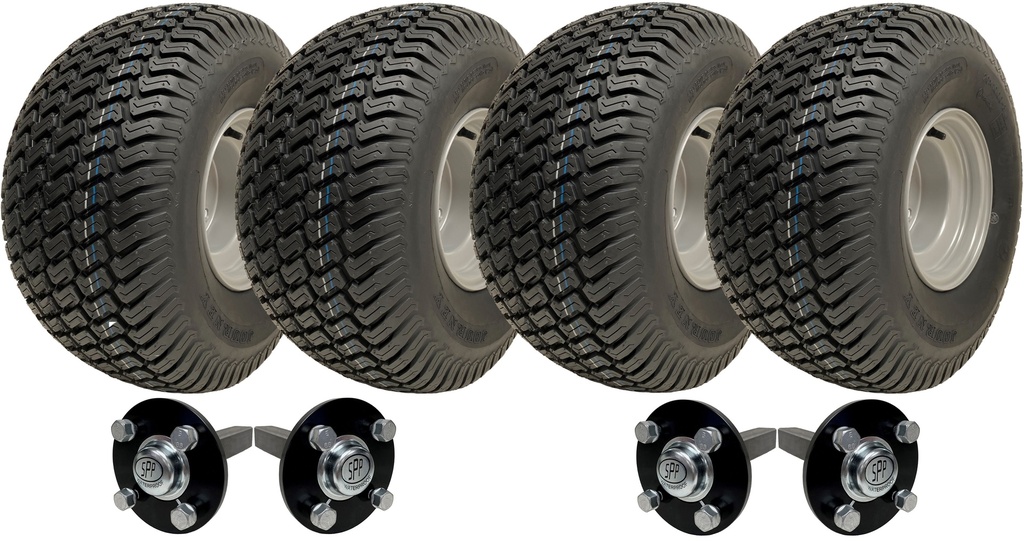

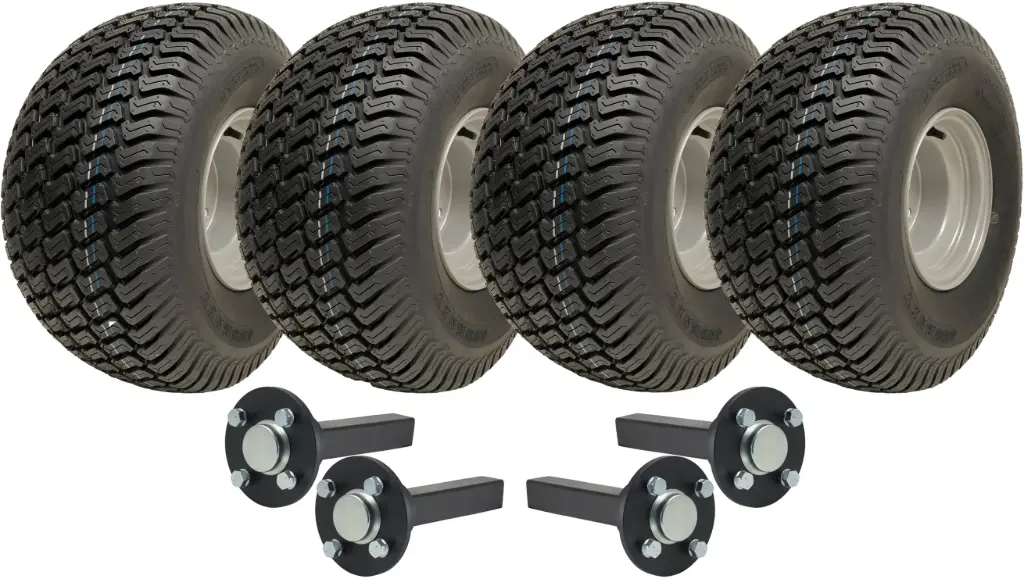

20x10.00-8 twin axle ATV trailer kit.
This kit contains:
Four – 20x10.00-8 wheels
&
Four - 40mm x 40mm hub and stub axles.
Wheel Specification:
Size: 20x10.00-8,
Brand: Wanda (Journey),
Tyre pattern: P332,
Ply rating: 4ply,
Load capacity: 545kgs at 22 PSI,
Tyre height: 500mm,
Tyre width: 240mm,
Tread Depth: 7.1mm,
Speed rating A4: 20km/h,
E Marked road legal: E4-106R-003460.
Solid steel heavy duty rims.
100mm PCD stud spacing.
60mm centre hole diameter.
13.5mm stud hole diameter.
Hub & Stub Specification:
These are genuine 'Steelpress Production' parts, manufactured in the EU.
High Speed road legal axles, rated up to 80mp/h (130km/h).
They have sealed precision ball bearings, they never need to be greased.
The hub has 4 x M12 studs, the PCD is 100mm.
The shaft is 40x40mm square, 125mm long (solid steel) with rounded edges for ease of fitment.
This kit is for on and off road use, up to a maximum of 20km/h.
The grass tyre maximizes load capacity while offering protection to turf and sensitive surfaces.
The hubs are fitted with sealed automotive precision bearings, they are maintenance free and fully waterproof.
Maximum kit weight capacity 1800kgs for off road use (750kgs on public roads).
| Part Number | EC1096 |
| Rim Colour | Silver |
| Tyre Size | 20x10.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P332 |
| Tread Depth (mm) | 7.1 |
| Rim Width (in) | 7.0 |
| SW (mm) | 240 |
| OD (mm) | 500 |
| PSI | 22 |
| E-Mark | E4-106R-003460 |
| Max Load (Kg) | 545 |
| Wheel & Tyres (2pcs) | (87997, '[EC1293] Set of 2 - 20x10.00-8 4ply P332 GRASS on 4/100') |
| Hub & Stub Axle (2pcs) | (86250, '[EC1060] Set of 2 - Hub & Stub axle 4/100 M12stud 40x40 High speed (waterproof)') , hub & Stub axle 4/100 M12 wheel bolt 40x40 |
