22x11.00-8 Twin Axle Utility ATV Trailer kit, 4 Wheels, 4 Hub & Stub Axles, & Cast Tow Hitch
Part number: EC1136
Wheel Size: 22x11.00-8
Stub axles: 40mm square, 125mm long
Load capacity: 1800kg

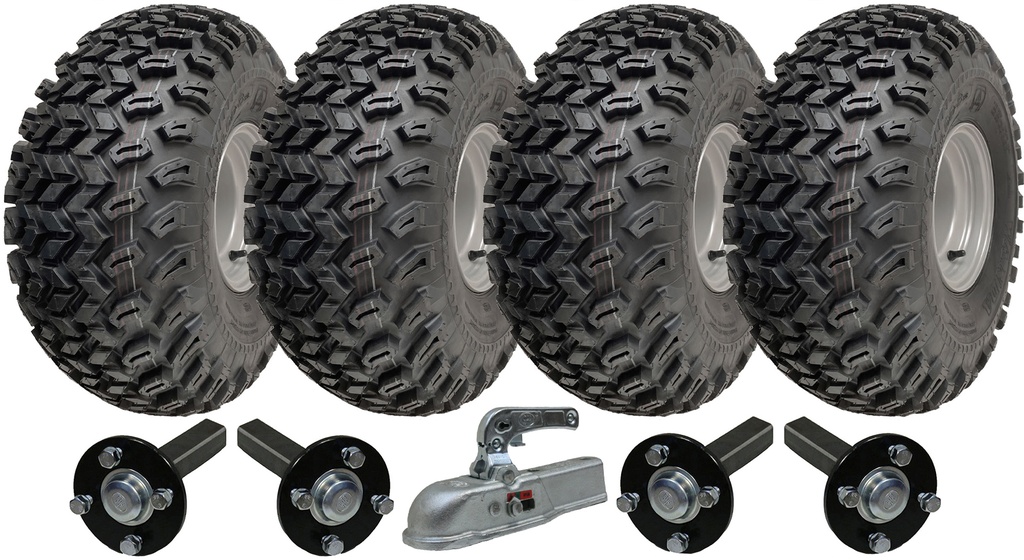

This kit contains:
Four - 22x11.00-8 wheels
&
Four - 40mm x 40mm hub and stub axles.
One - Cast steel tow hitch.
Rugged & tubeless utility Wheels.
They are hard wearing 4ply tyres with a tread depth of 15.5mm.
Suitable for both on and off-road use.
Road legal up to 50km/h in Europe and the UK.

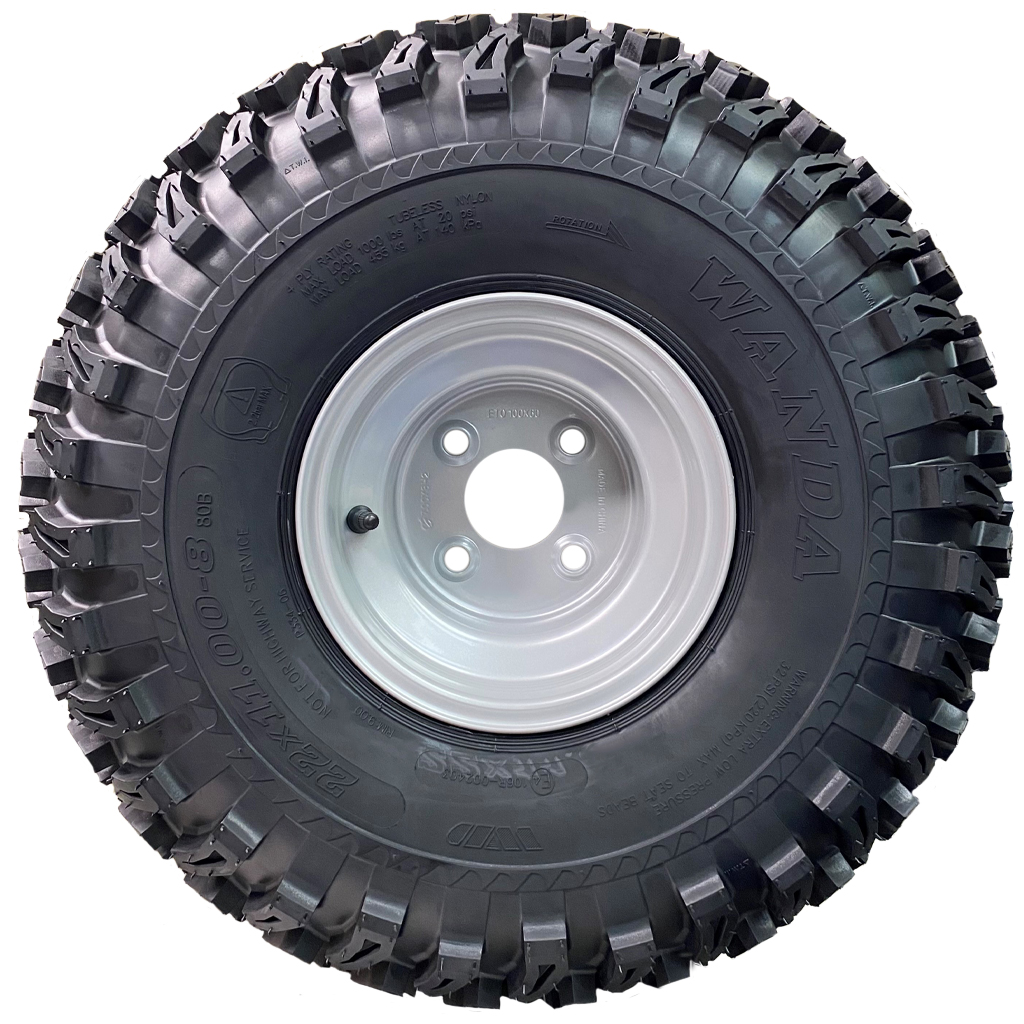

Tyre Specifications:
• 22x11.00-8 4ply Wanda P334 Utility tyres,

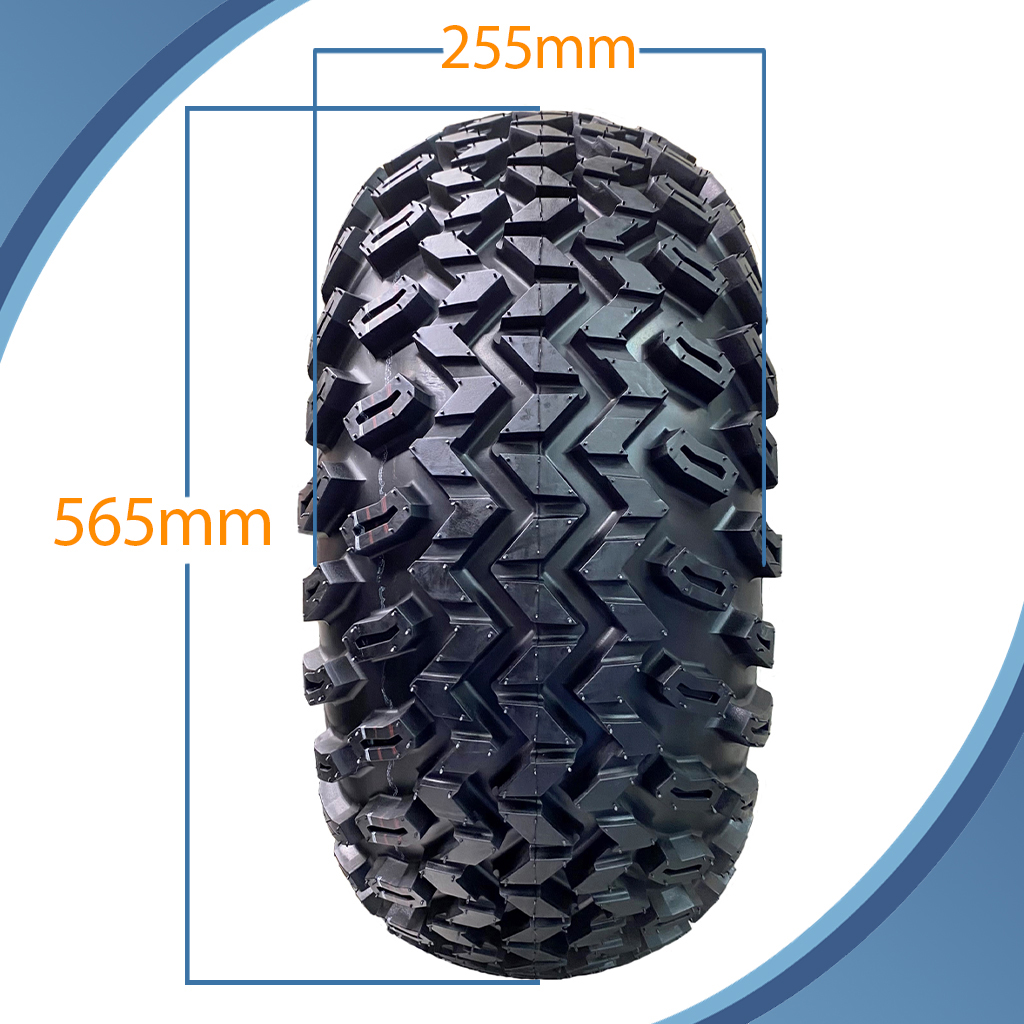

• Overall diameter: 565mm,
• Max width of tyre: 255mm,
• Tread depth: 15.50mm,
• Inflation PSI: 20psi,
• Max load per wheel: 455kg @ 50km/h,
• load/speed index: 80B,
• E-marked tyres: E4-75R-0005149,
Wheel rims:
Heavy duty welded rims,
Powder coat paint with E-coating anti-corrosion treatment for superior finish,
Pitch Circle Diameter: 100mm,
Centre hole diameter: 60mm.

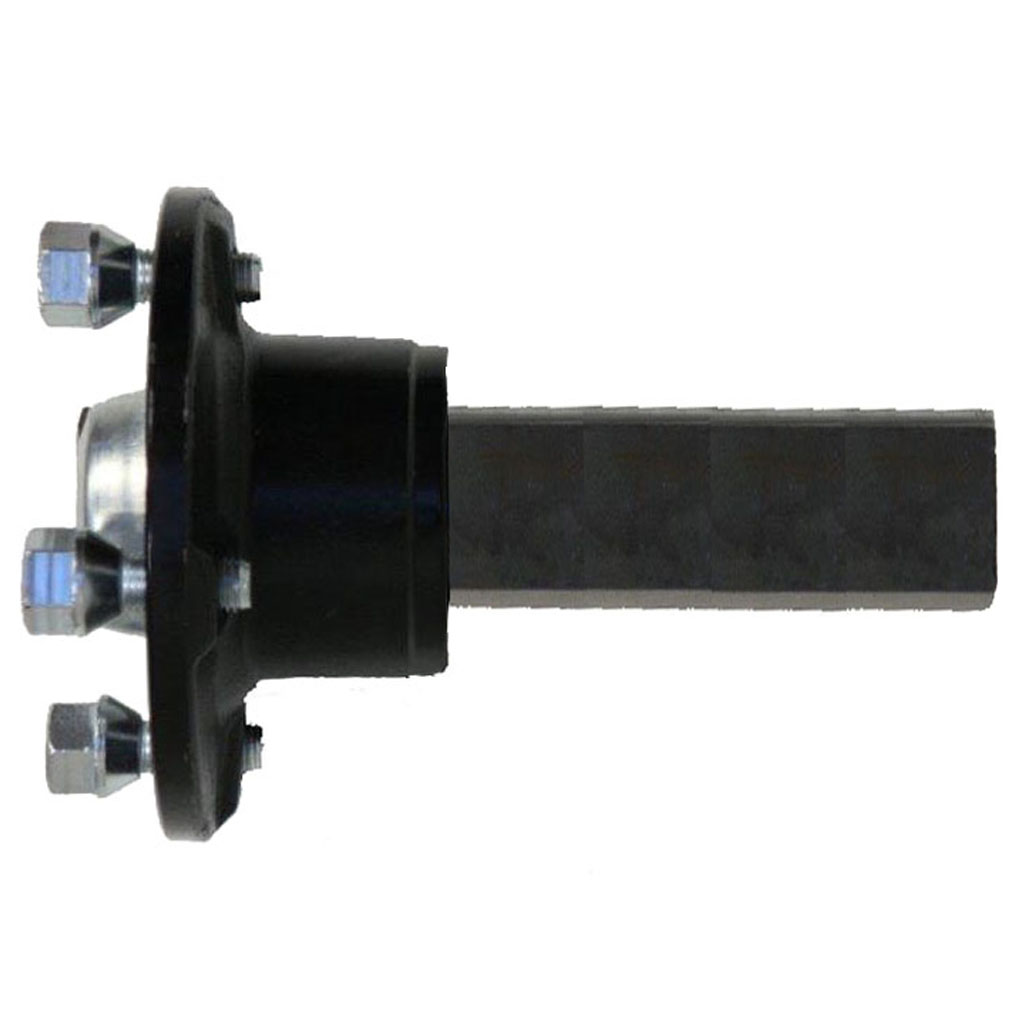

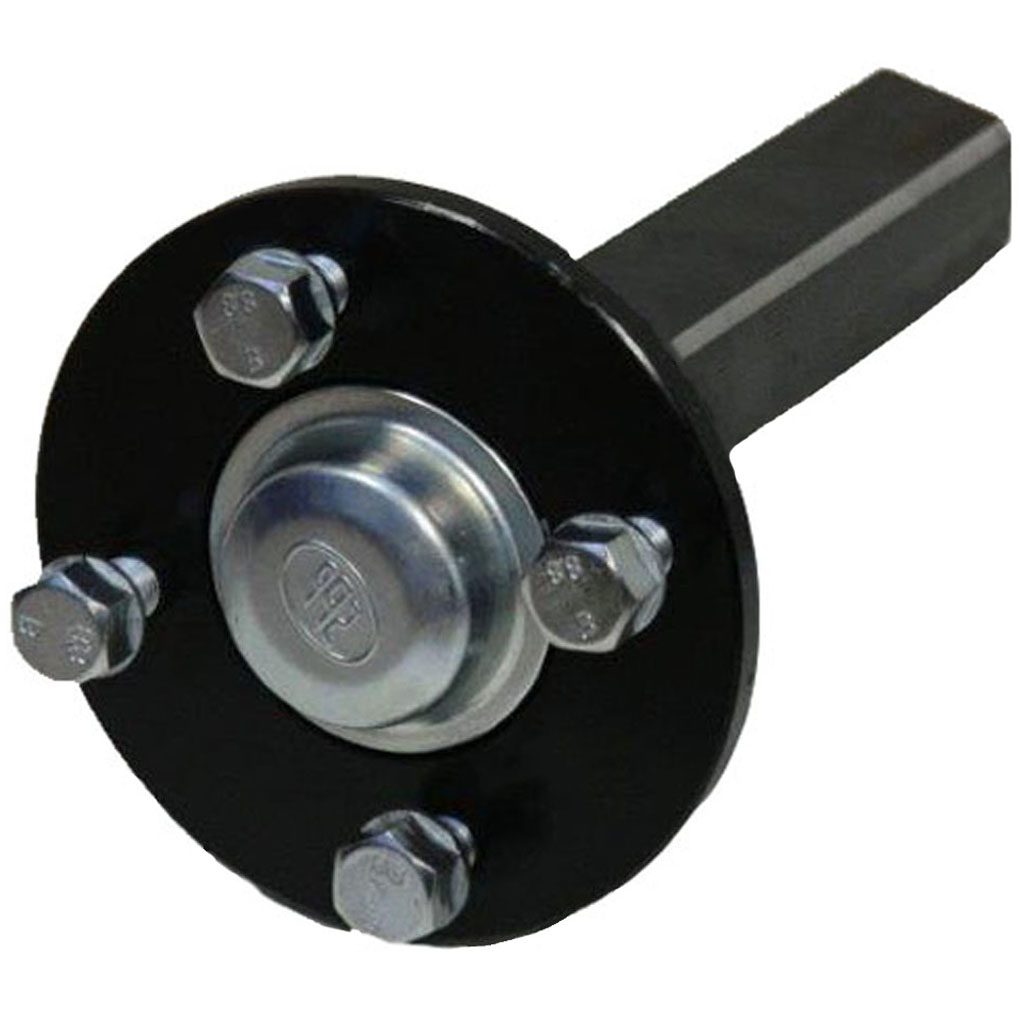

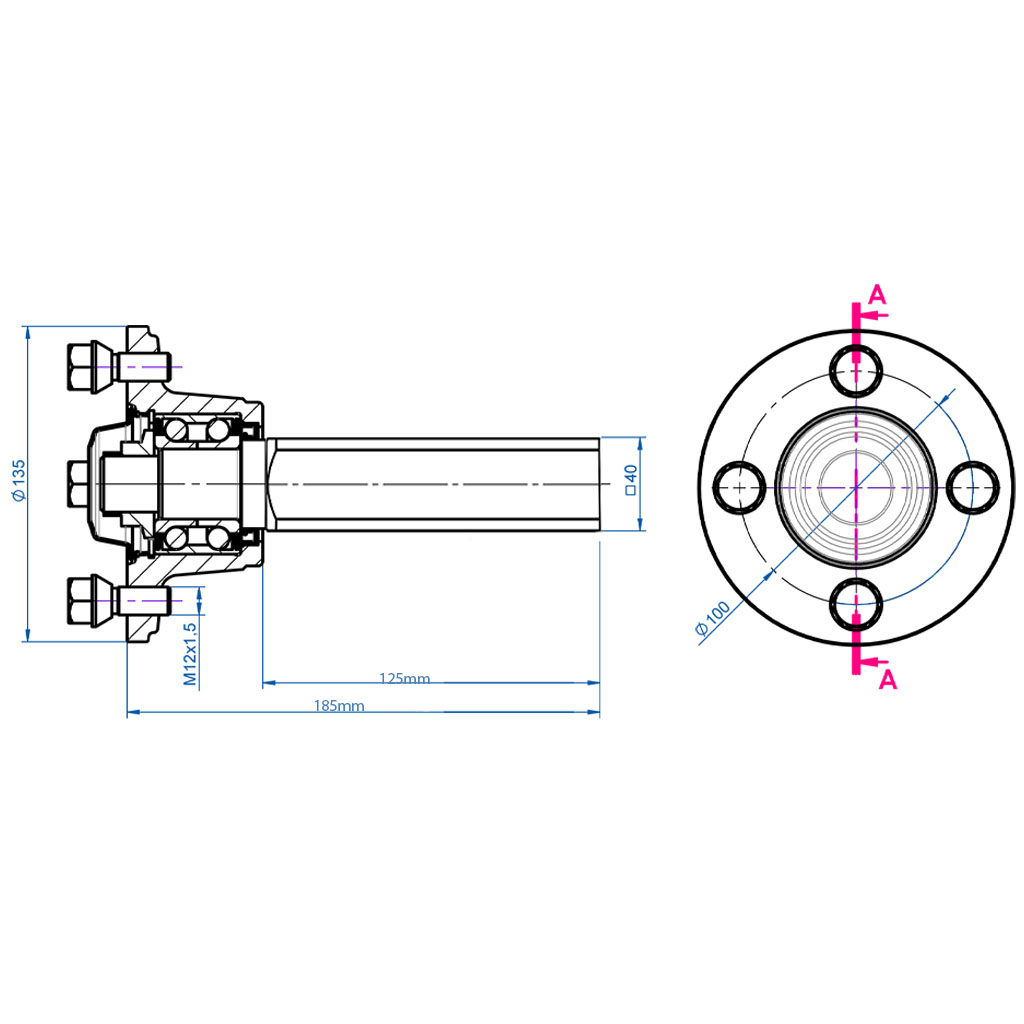

Item specifications: Stub axles.

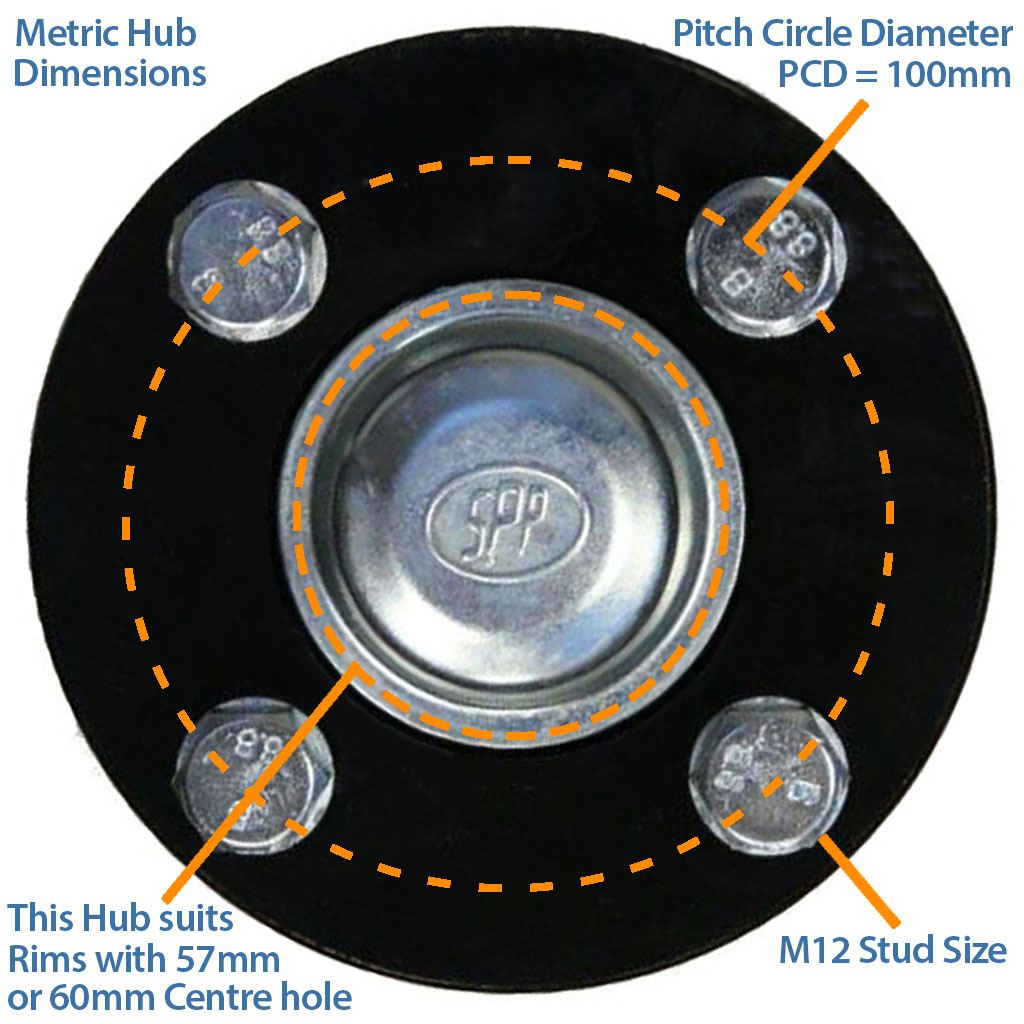

• Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,
• PCD is 100mm,
• Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,
• The hubs are waterproof,
• The shaft is 40x40mm x 125mm long, solid steel,
• Manufactured by SPP (Steelpress, Poland).

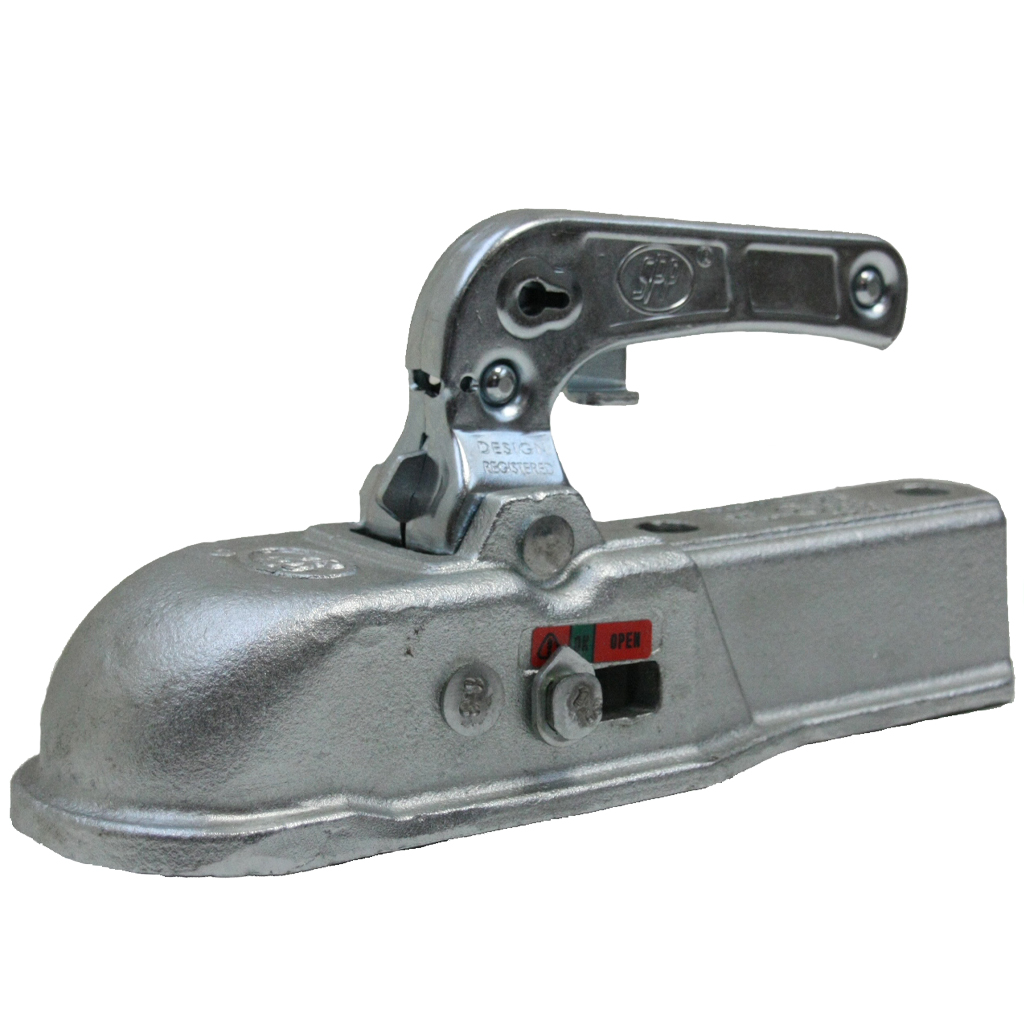

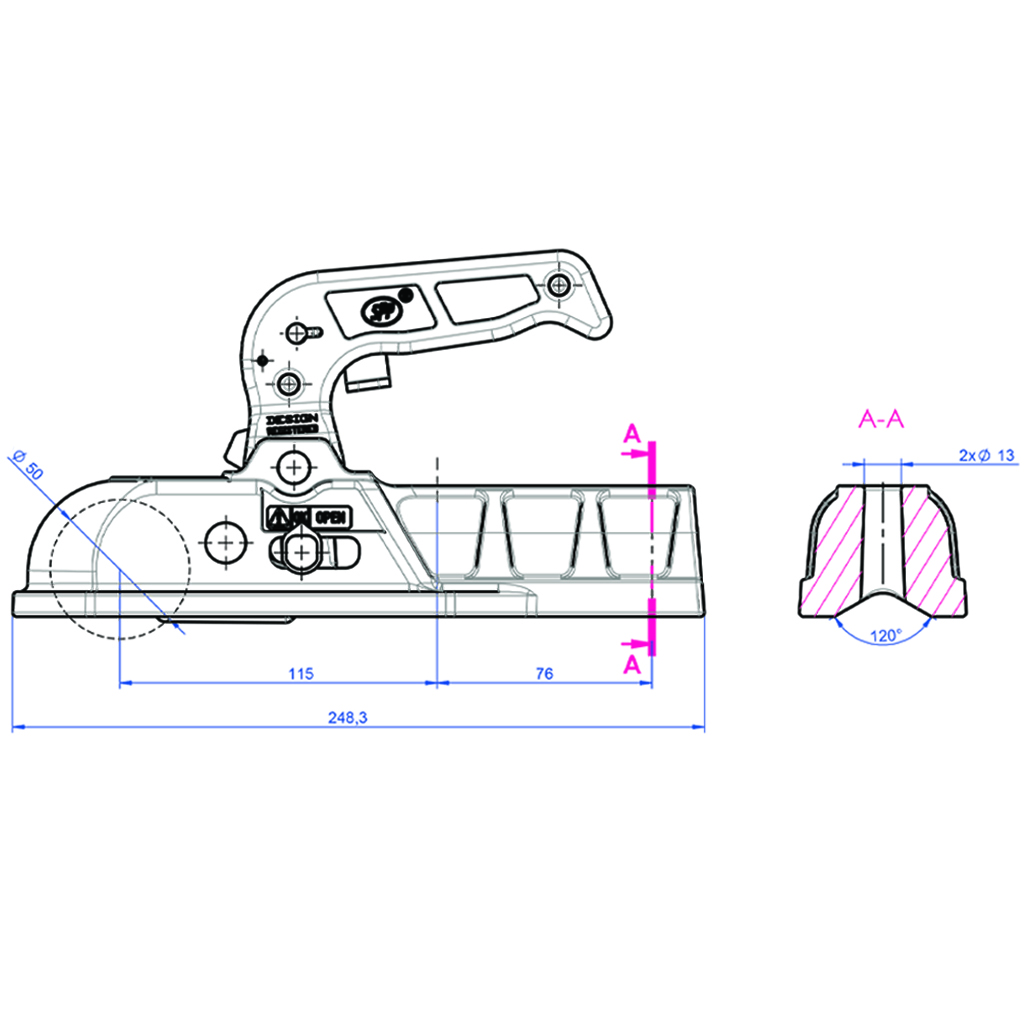

Item specifications: Hitch.
SPP SteelPress Production European manufactured.
High quality trailer coupling, Cast iron body with pressed steel handle. Double movement opening.
To fit on round or square bar.
Weight capacity is 900kg per pair. 1800kgs total.
(750kgs is road legal maximum for trailer without brakes).
| Part Number | EC1136 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 22x11.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P334 |
| Tread Depth (mm) | 15.5 |
| SW (mm) | 255 |
| OD (mm) | 565 |
| PSI | 20 |
| Load/Speed Index | 80B |
| Stud / PCD | 4x100mm |
| E-Mark | E4-106R-002403 |
| Max Load (Kg) | 1800 |
| Hub & Stub Axle (2pcs) | hub & Stub axle 4/100 M12 wheel bolt 40x40 |
| Hitch (1pcs) | SPP 3000kg Cast Hitch |
