22x11.00-8, 4ply P334 UTILITY on 4/100 RIM. Hub & Stub axle 40mm x 40mm

https://www.parnells.eu/web/image/product.template/86577/image_1920?unique=e0d8784

Part Number: EC1145
Wheel Size: 22x11.00-8
Stub Axle Size: 40mm x 40mm x 125mm long
Load Capacity: 900kg

309.65 € 309.65000000000003 EUR 309.65 €

442.36 €

Login for trade prices

Not Available For Sale


  • Brand
  • Rim Colour
  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • SW (mm)
  • OD (mm)
  • PSI
  • Load/Speed Index
  • Stud / PCD
  • E-Mark
  • Max Load (Kg)
  • Hub & Stub Axle (2pcs)

This combination does not exist.



Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

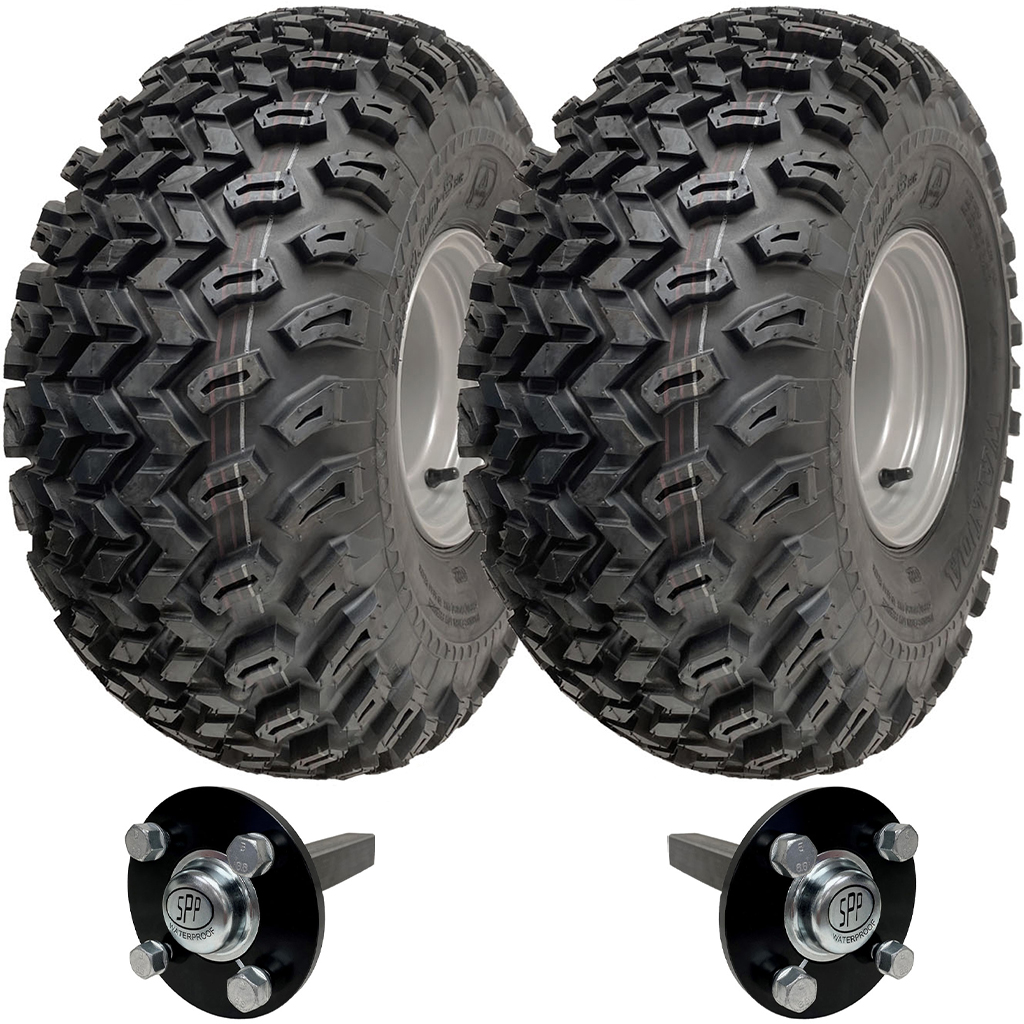

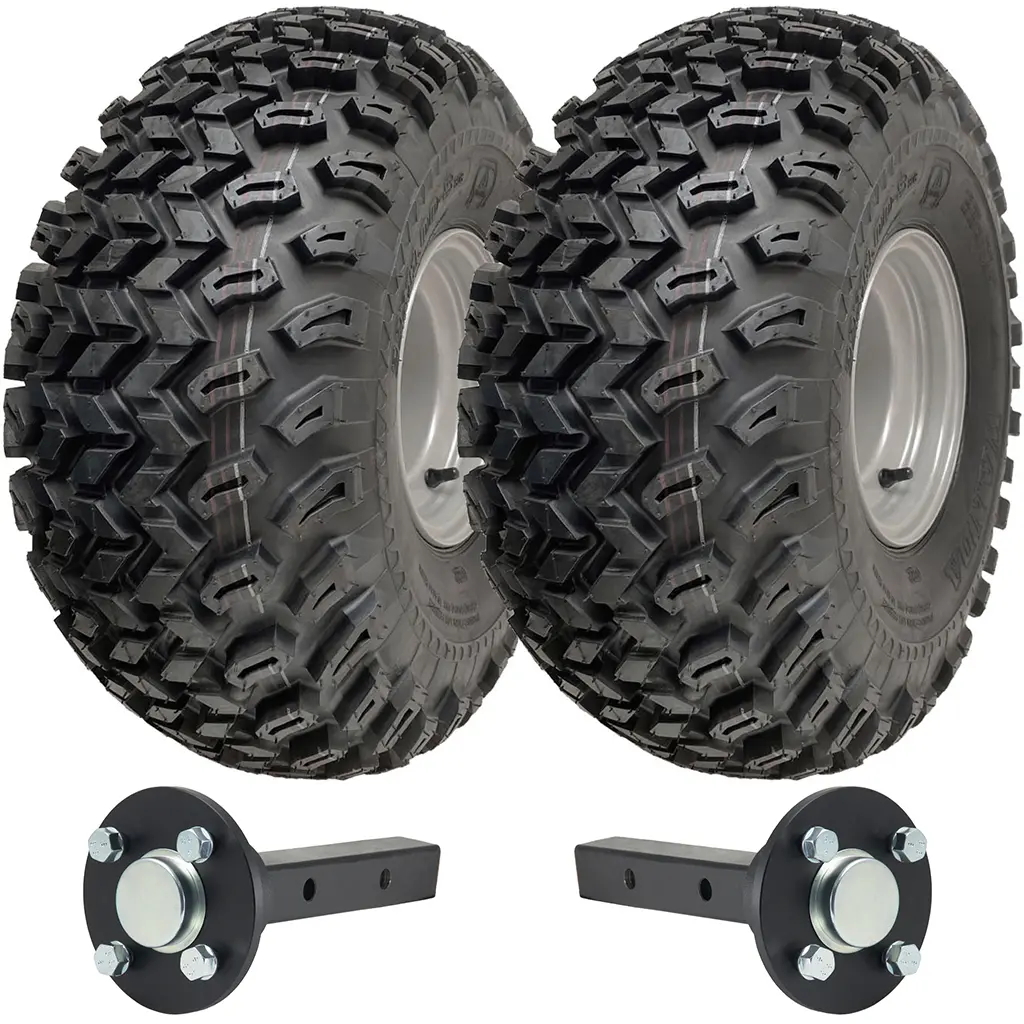

Set of 2 - 22x11.00-8 4ply P334 UTILITY on 4/100 RIM & Hub & Stub axle 4/100 M12stud 40x40 High speed (waterproof)

Contents of this kit include:

2 x Wheels, 22x11.00-8.

2 x Stub axles, 40x40x125mm solid stub.


Rugged & tubeless utility Wheels.

They are hard wearing 4ply tyres with a tread depth of 15.5mm.

Suitable for both on and off-road use.

Road legal up to 50km/h in Europe and the UK.


Tyre Specifications:

• 22x11.00-8 4ply Wanda P334 Utility tyres,

• Overall diameter: 565mm,

• Max width of tyre: 255mm,

• Tread depth: 15.50mm,

• Inflation PSI: 20psi,

• Max load per wheel: 455kg @ 50km/h,

• load/speed index: 80B,

• E-marked tyres: E4-75R-0005149,


Wheel rims:

Heavy duty welded rims,

Powder coat paint with E-coating anti-corrosion treatment for superior finish,

Pitch Circle Diameter: 100mm,

Centre hole diameter: 60mm.


Item specifications: Stub axles.

• Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,

• PCD is 100mm,

• Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,

• The hubs are waterproof,

• The shaft is 40x40mm x 125mm long, solid steel,

• Manufactured by SPP (Steelpress, Poland).


Maximum Kit Load Capacity 900kgs.

Part Number EC1145
Brand Parnells
Rim Colour Silver
Tyre Size 22x11.00-8
Ply 4
TT/TL TL
Pattern P334
Tread Depth (mm) 15.5
SW (mm) 255
OD (mm) 565
PSI 20
Load/Speed Index 80B
Stud / PCD 4x100mm
E-Mark E4-106R-002403
Max Load (Kg) 455
Hub & Stub Axle (2pcs) hub & Stub axle 4/100 M12 wheel bolt 40x40
