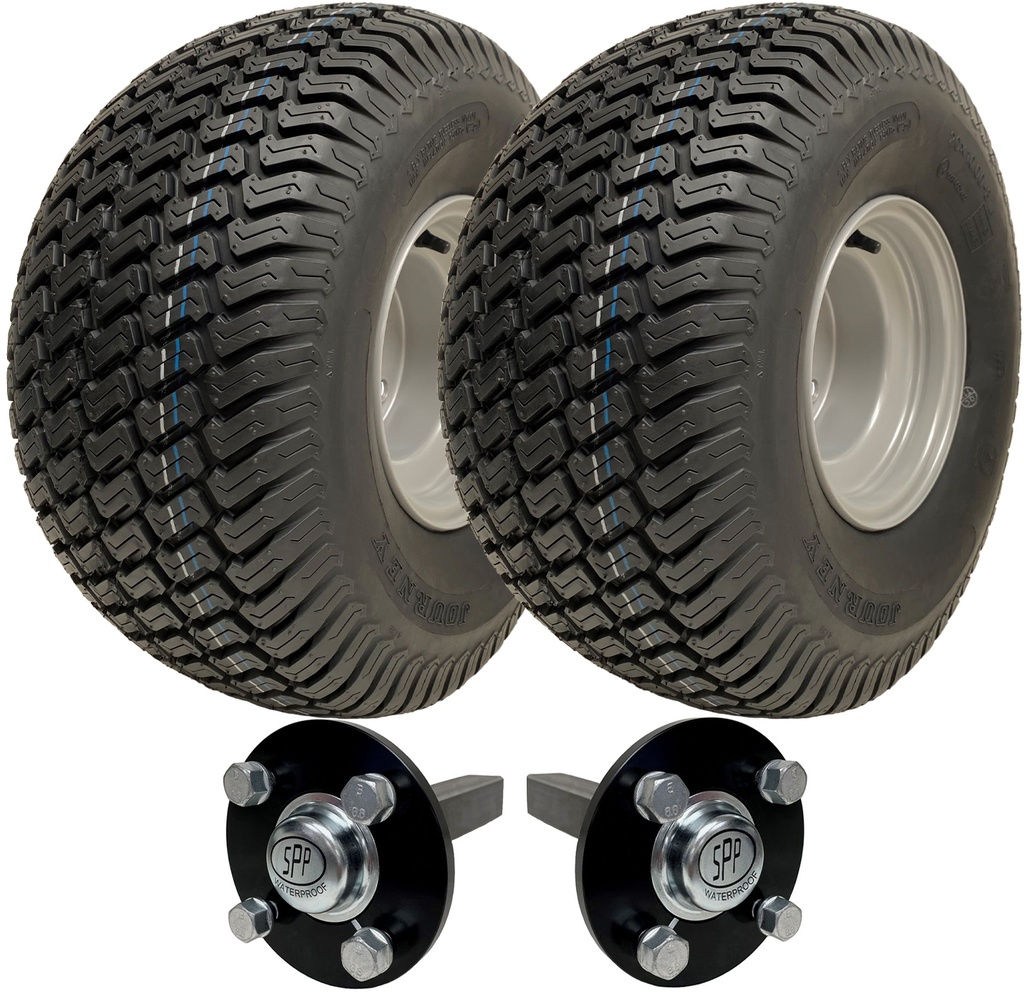

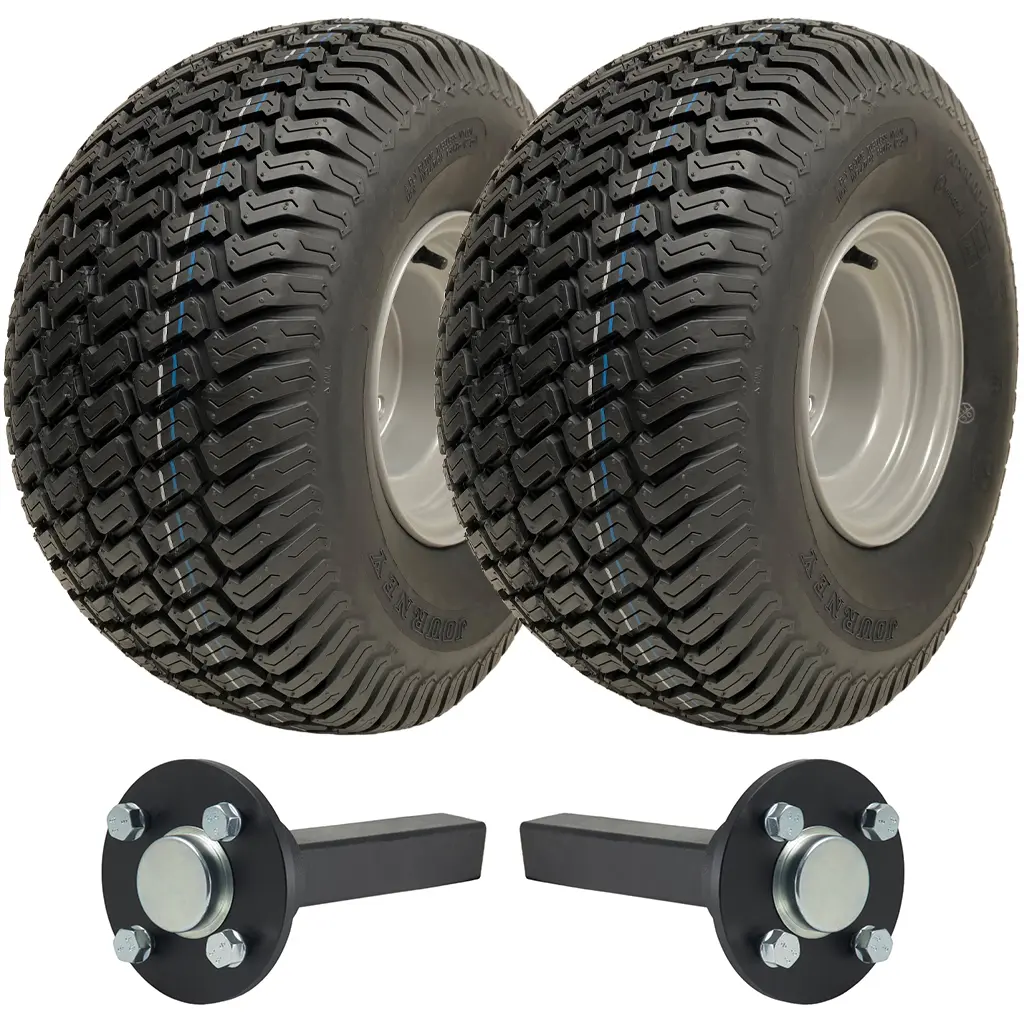

20x10.00-8 ATV Grass Trailer Kit, 4ply P332 GRASS on 4/100 Rims & Hub & Stub axle 4/100 M12stud 40x40
Part Number: EC1288
Tyre Size: 20x10.00-8
Stub axle: 40mm Square, 125mm Long
Load Capacity: 900kg

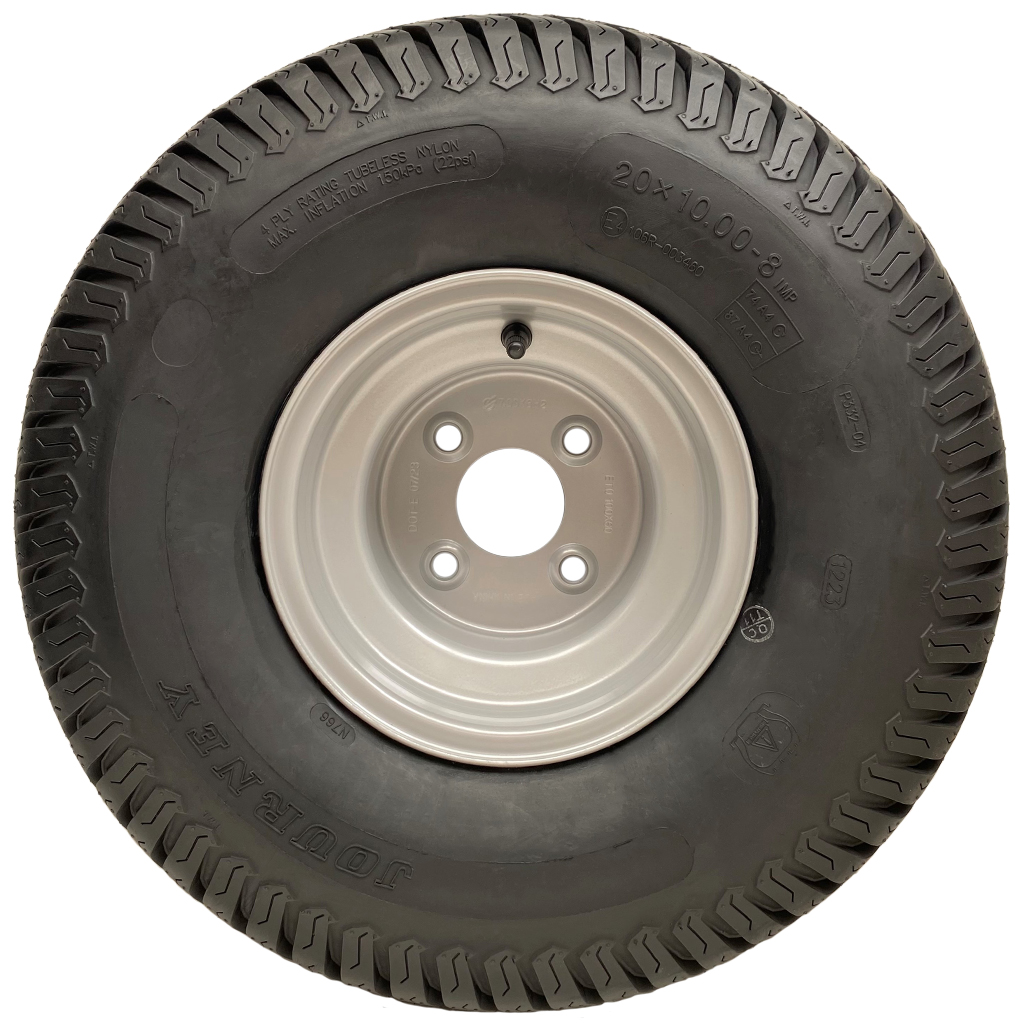

20x10.00-8 4ply block tyres fitted to heavy duty steel rims, 4 stud 100mm PCD .
This is for use on ATV trailers & equipment for on and off Road use up to a maximum of 20km/h.

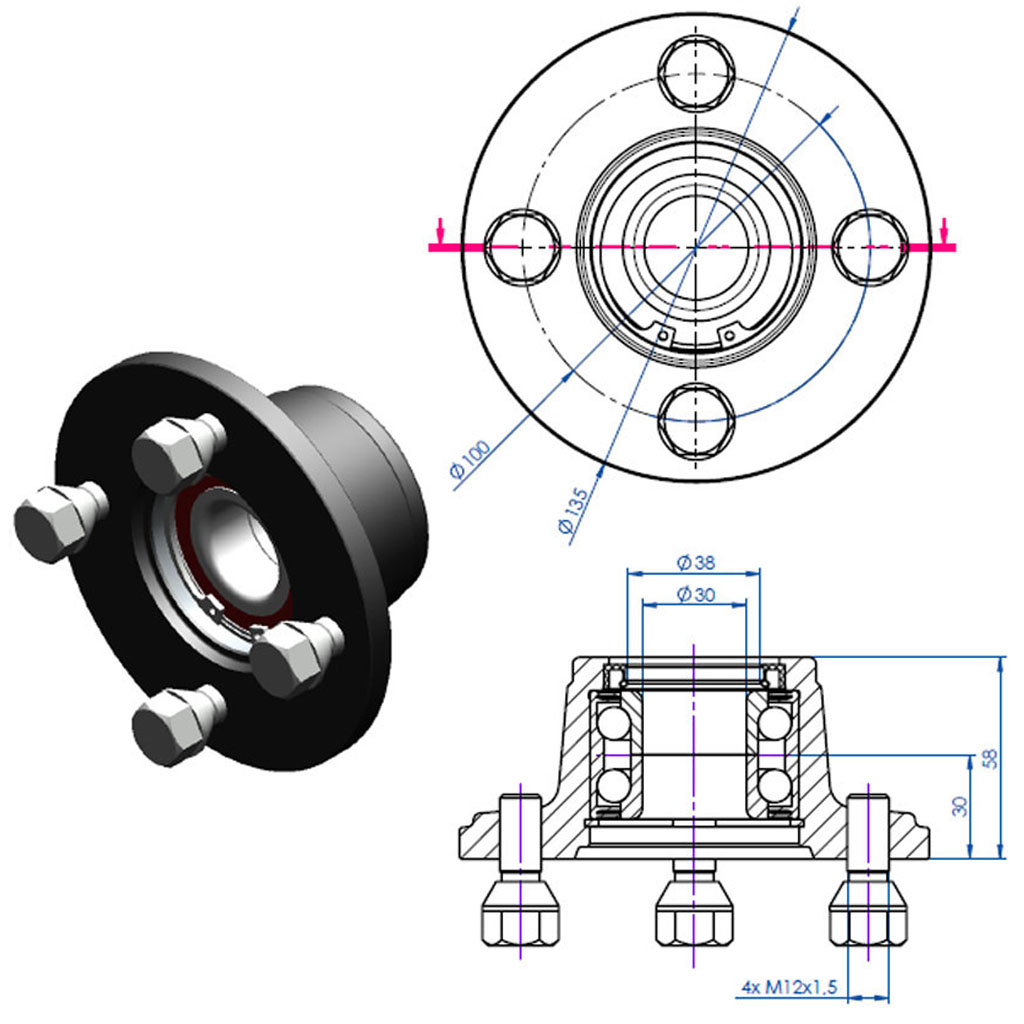

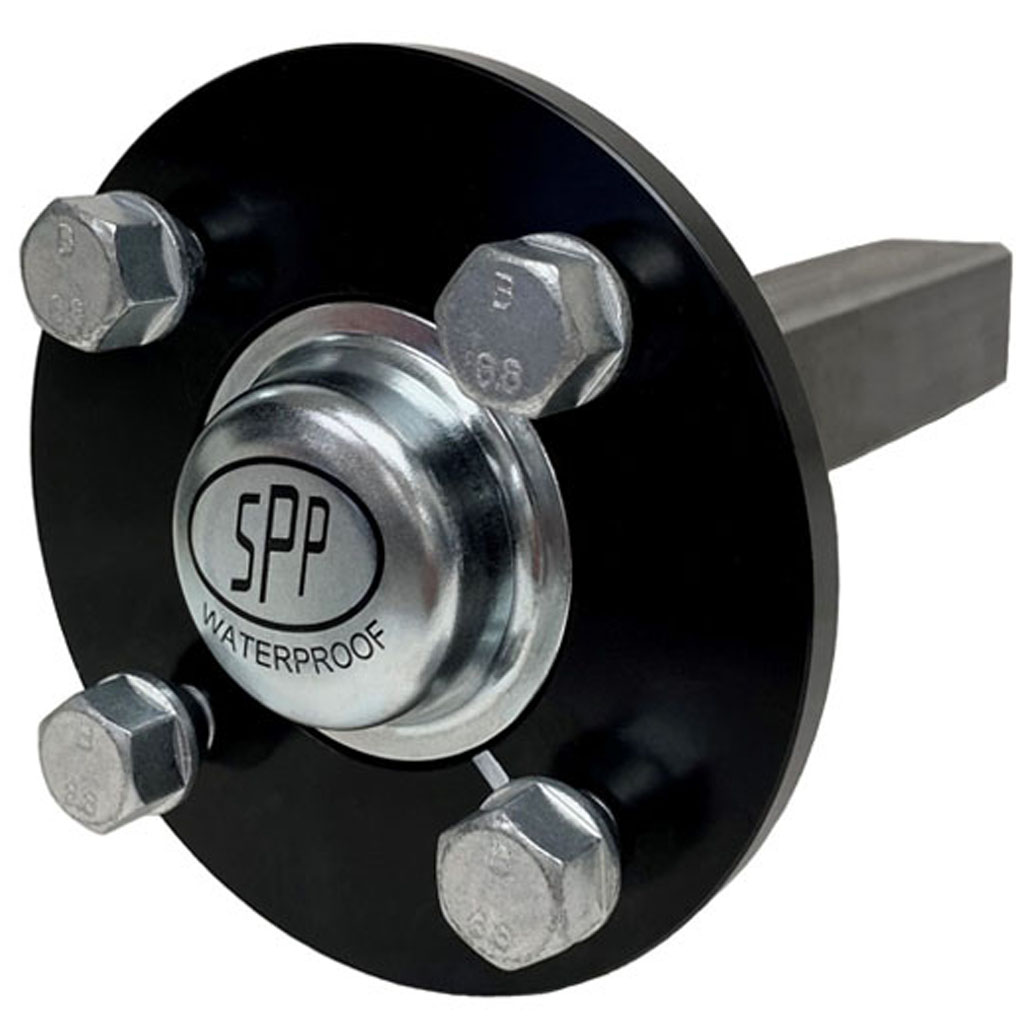

These hubs are fully waterproof & they are fitted with sealed precision ball bearings.

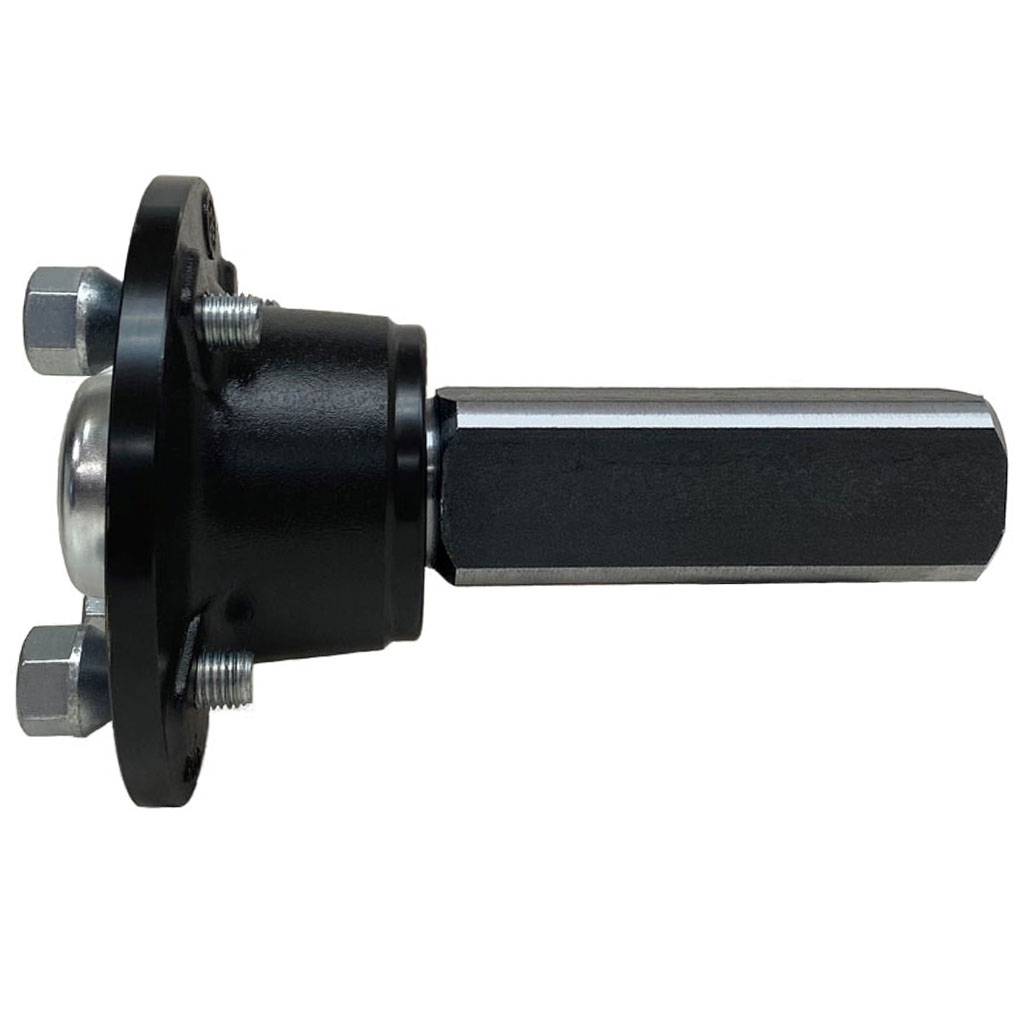

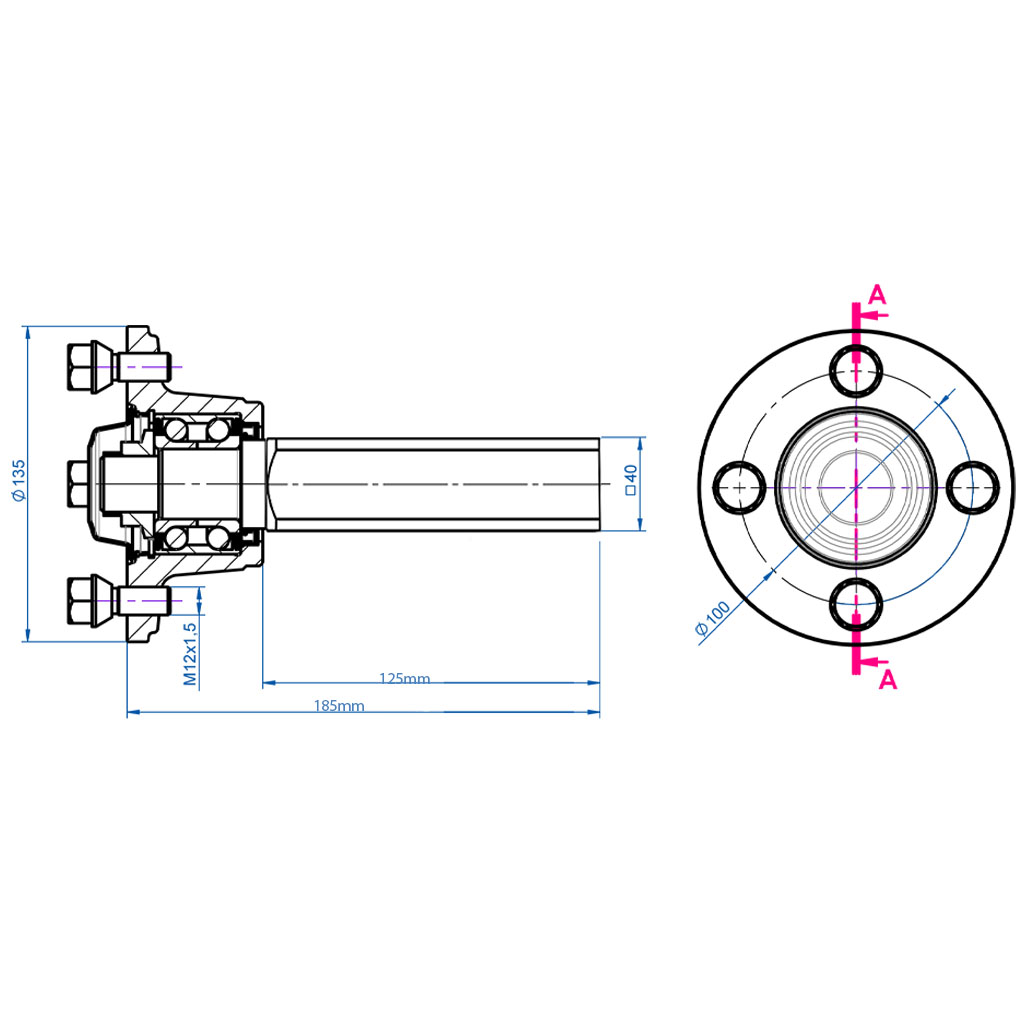

Hub & stub axle - 40x40mm square x 125mm long solid steel shaft.

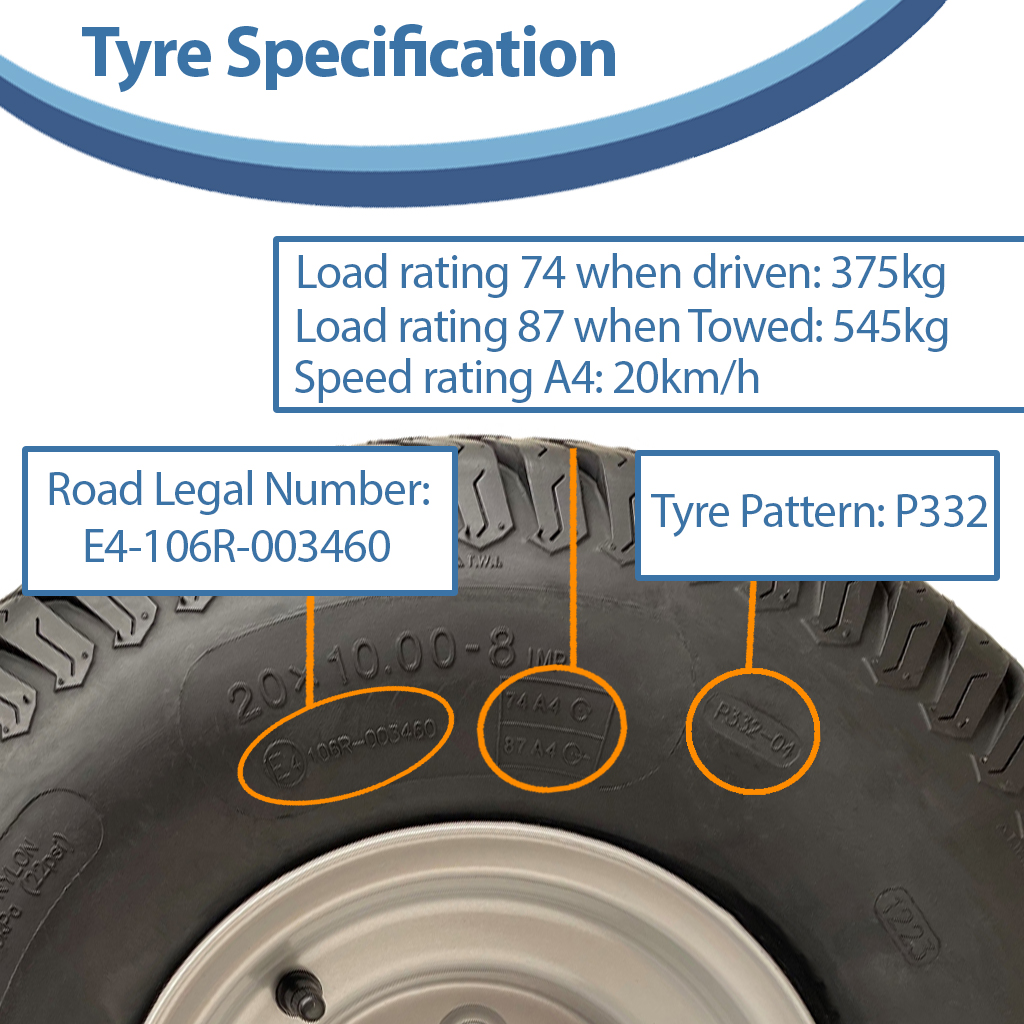

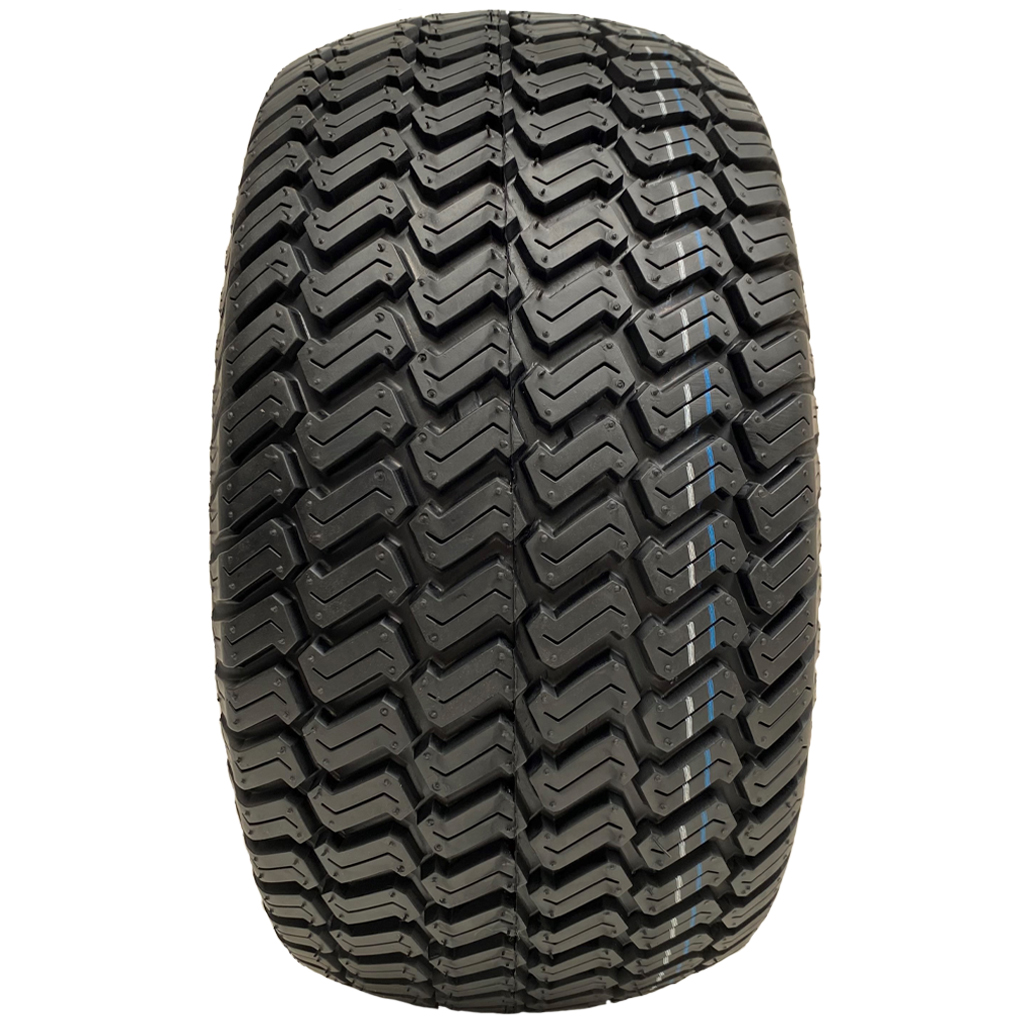

The tyres are "Wanda" P332 they are heavy wearing 4ply with a tread depth of 7.1mm.
| Part Number | EC1288 |
| Brand | Parnells |
| Rim Colour | Silver |
| Tyre Size | 20x10.00-8 |
| Ply | 4 |
| TT/TL | TL |
| Pattern | P332 |
| Tread Depth (mm) | 7.1 |
| Rim Width (in) | 7.0 |

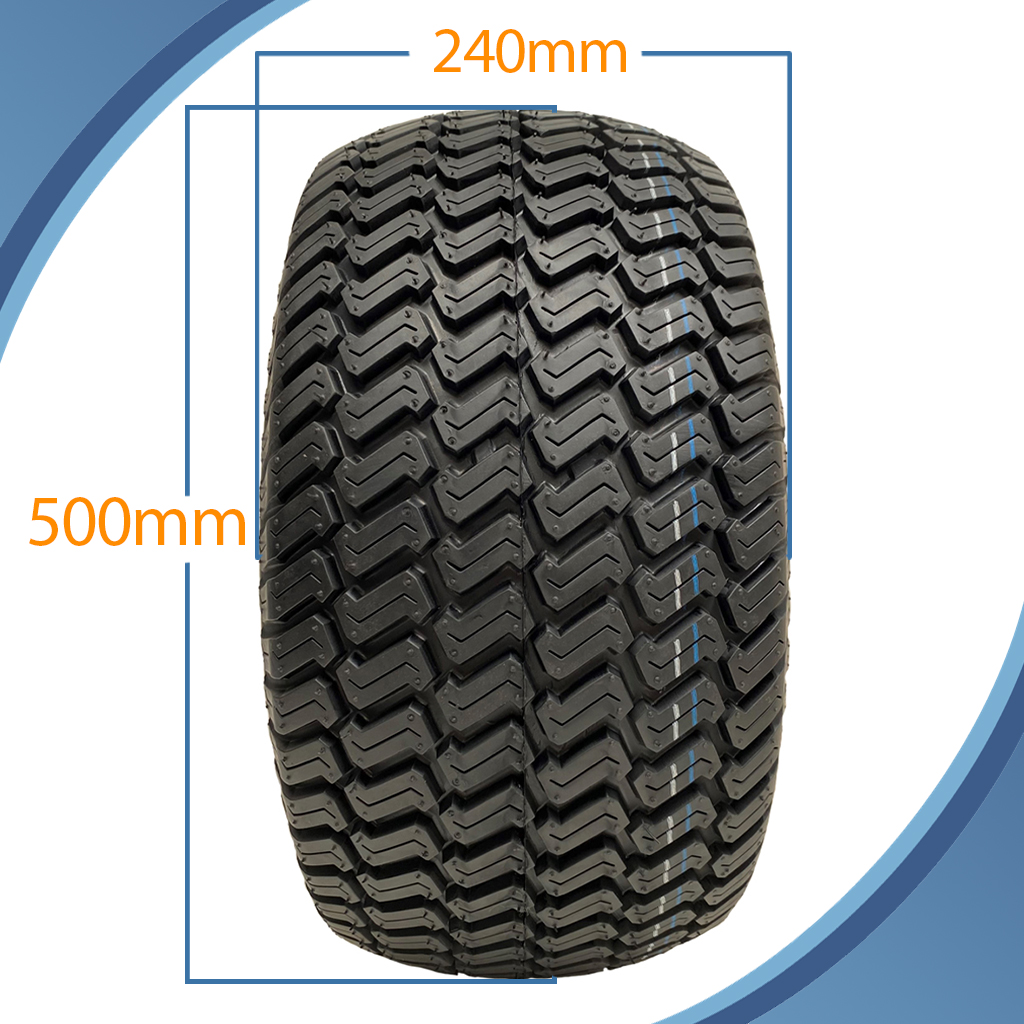

| SW (mm) | 240 |
| OD (mm) | 500 |
| PSI | 22 |
| Load/Speed Index | 74/87 A4 |
| Stud / PCD | 4x100 |
| E-Mark | E4-106R-003460 |
| Item dimensions (mm) | 500x500x240 |
| Max Load (Kg) | 545 |
