Trailer Kit - 22x11.00-10 Quad Trailer Wheels and Hub & Stub axles 900kg

https://www.parnells.eu/web/image/product.template/87017/image_1920?unique=fd8abce
(0 review)

464.91 € 464.91 EUR 464.91 €

539.97 €

Login for trade prices

Not Available For Sale


  • Tyre Size
  • Ply
  • TT/TL
  • Pattern
  • Tread Depth (mm)
  • SW (mm)
  • OD (mm)
  • PSI
  • Load/Speed Index
  • Max Load (Kg)

This combination does not exist.


Share :
Sensible Prices
Fast Delivery
Unlimited Returns
Huge Stock

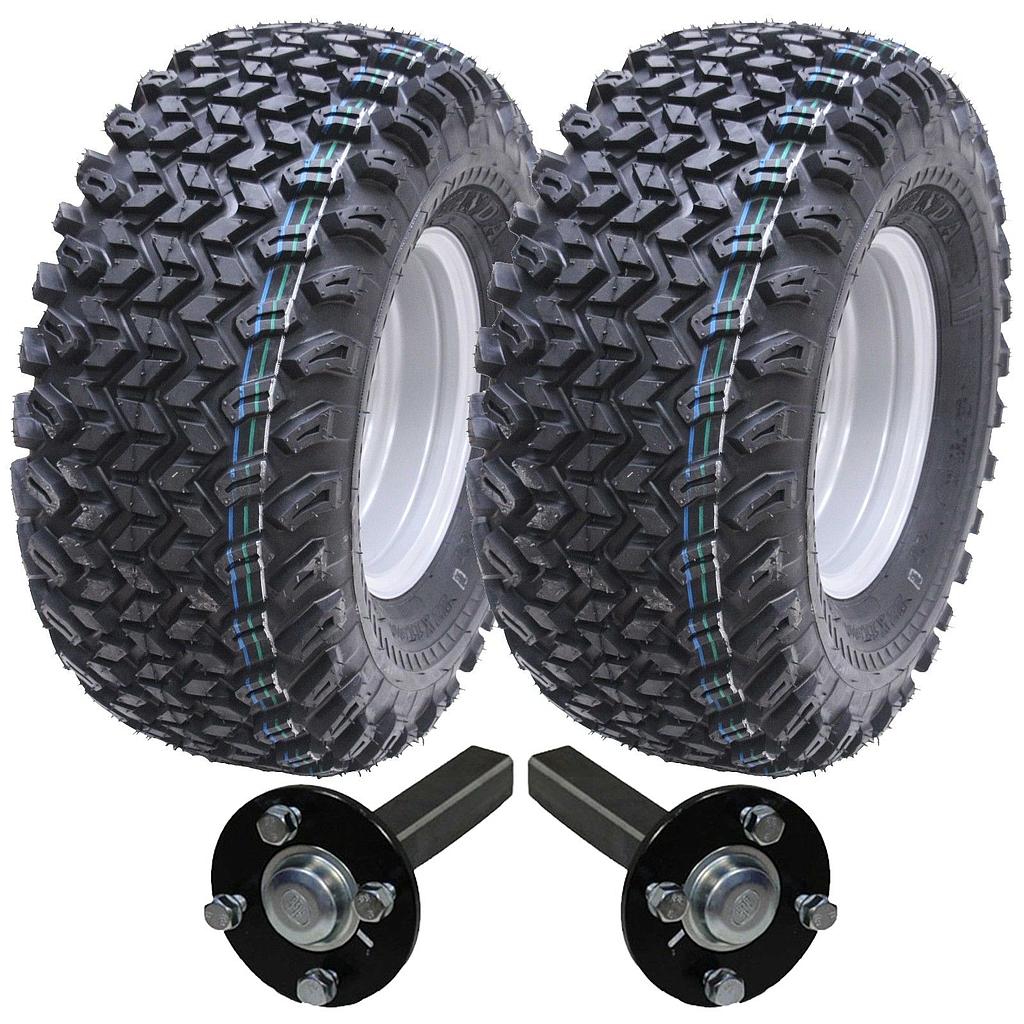

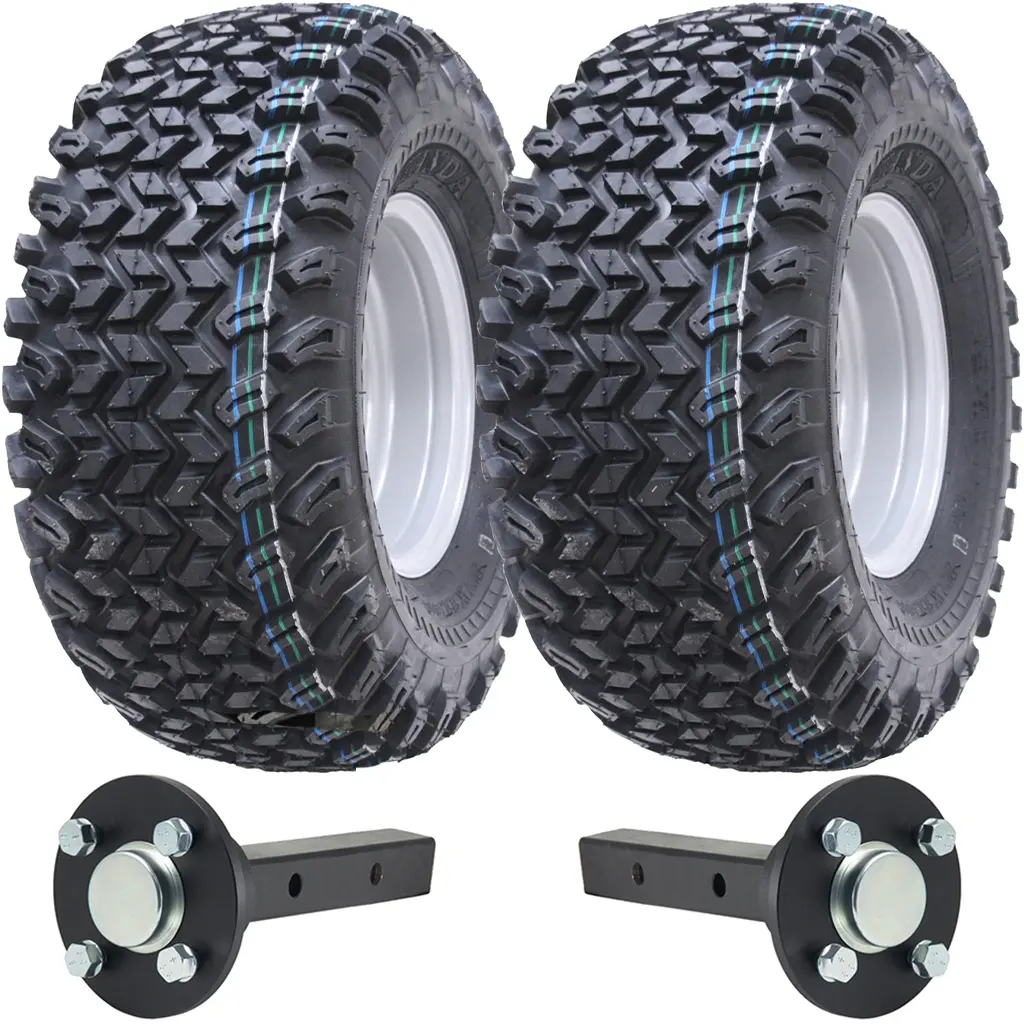

Set of 2 - 22x11.00-10 4ply WANDA P334 UTILITY WHEEL 4/100 Silver RIM & Hub & Stub axle 4/100 M12stud  40x40 High speed (waterproof)

These kits can be used to convert trailers for off-road use and to high-speed hubs.


Technical data:


Wheels (2 pcs.)

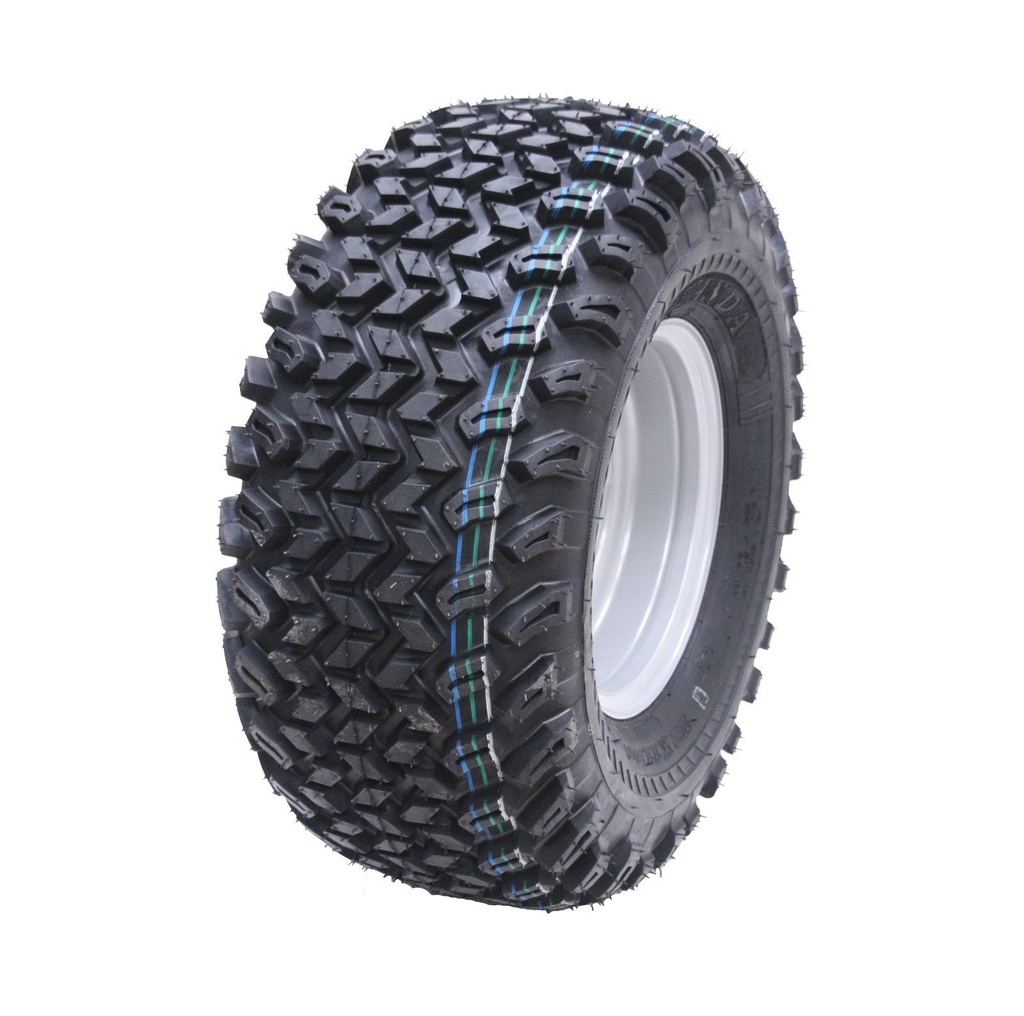

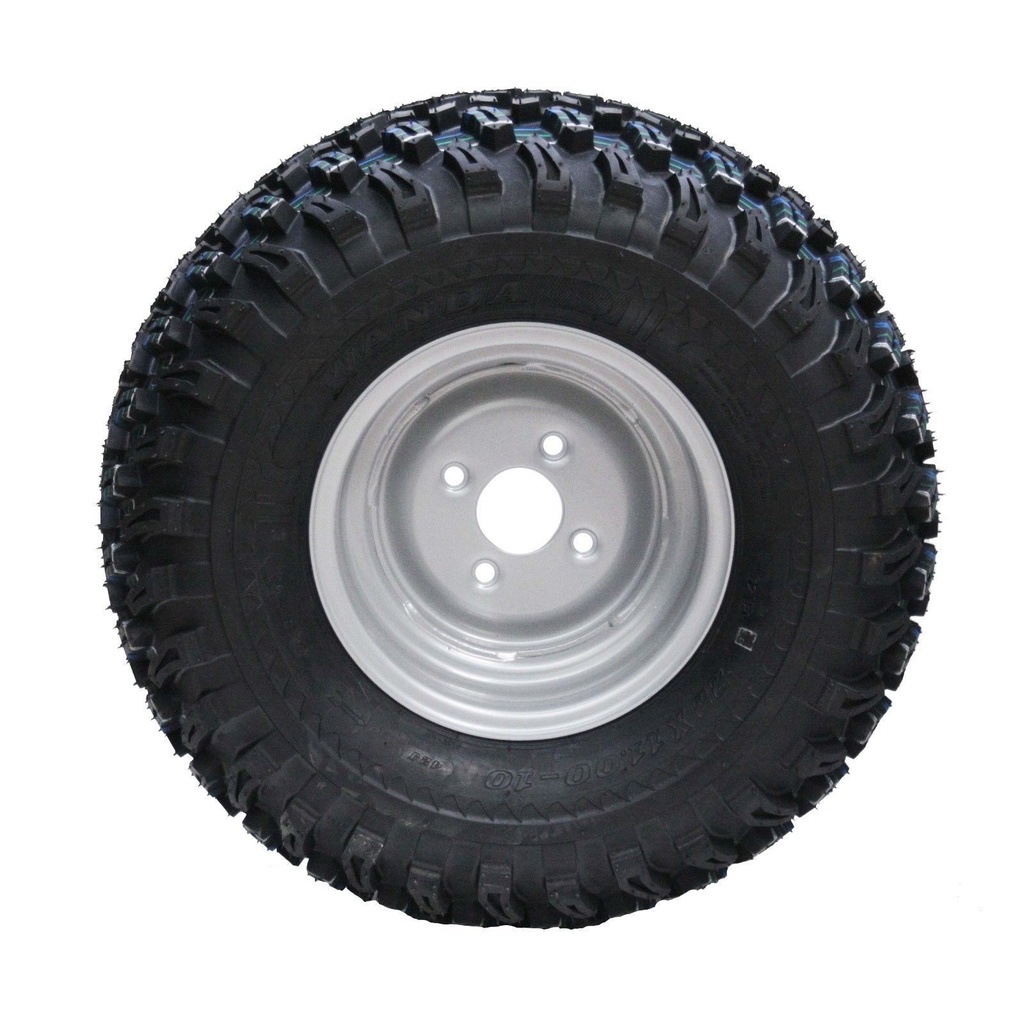

These are 22x11.00-10 4-ply P334 Wanda wheels, on 6.00x10 4/100 silver wheel rims.

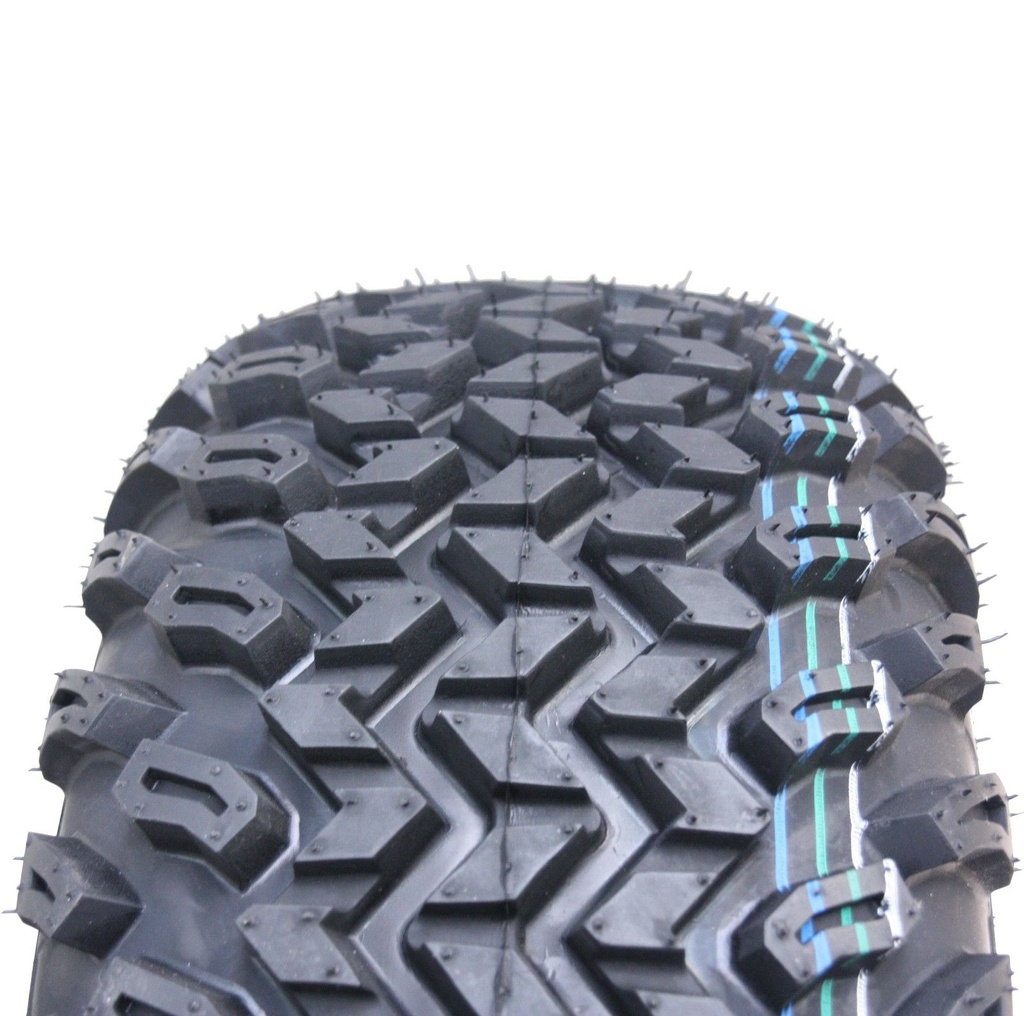

They are heavy-duty 4-ply tyres with a tread depth of 15.8mm.


  • Overall diameter: 585mm
  • Max. Tread width: 257mm

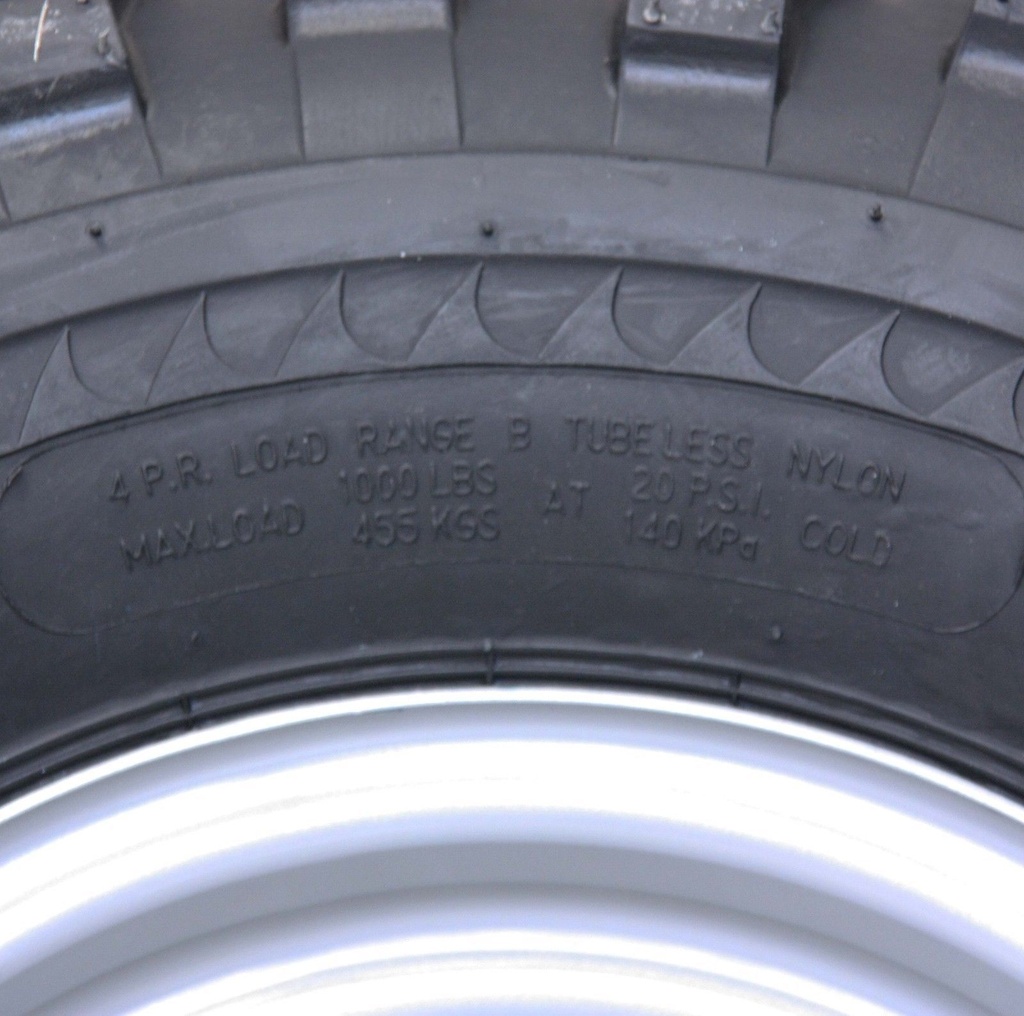

  • Max. Load: 1000lbs (455kg) at 20 psi
  • Max. Speed: 100km/h
  • Maximum load 900kg

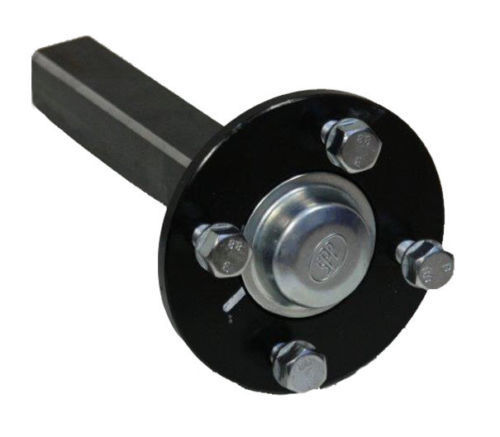

Hub and steering knuckle (2 pcs.)

These are the original "SPP" parts.

Hubs are designed for a rated speed of 80 km/h. with full road approval.

street legal and equipped with sealed precision ball bearings and therefore completely lubrication-free.

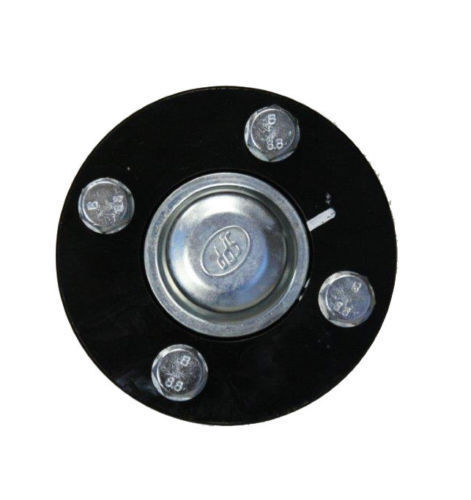

  • The hub is supplied with 4 x M12 bolts.
  • hole diameter 100mm
  • 40x40mm square shaft - 125mm long (solid steel) with rounded edges for easy mounting.
  • The load capacity is 900kg per pair.
  • All parts are fully waterproof.

Add to cart

Sign in

Pay

Get Delivered

Part Number EC1299

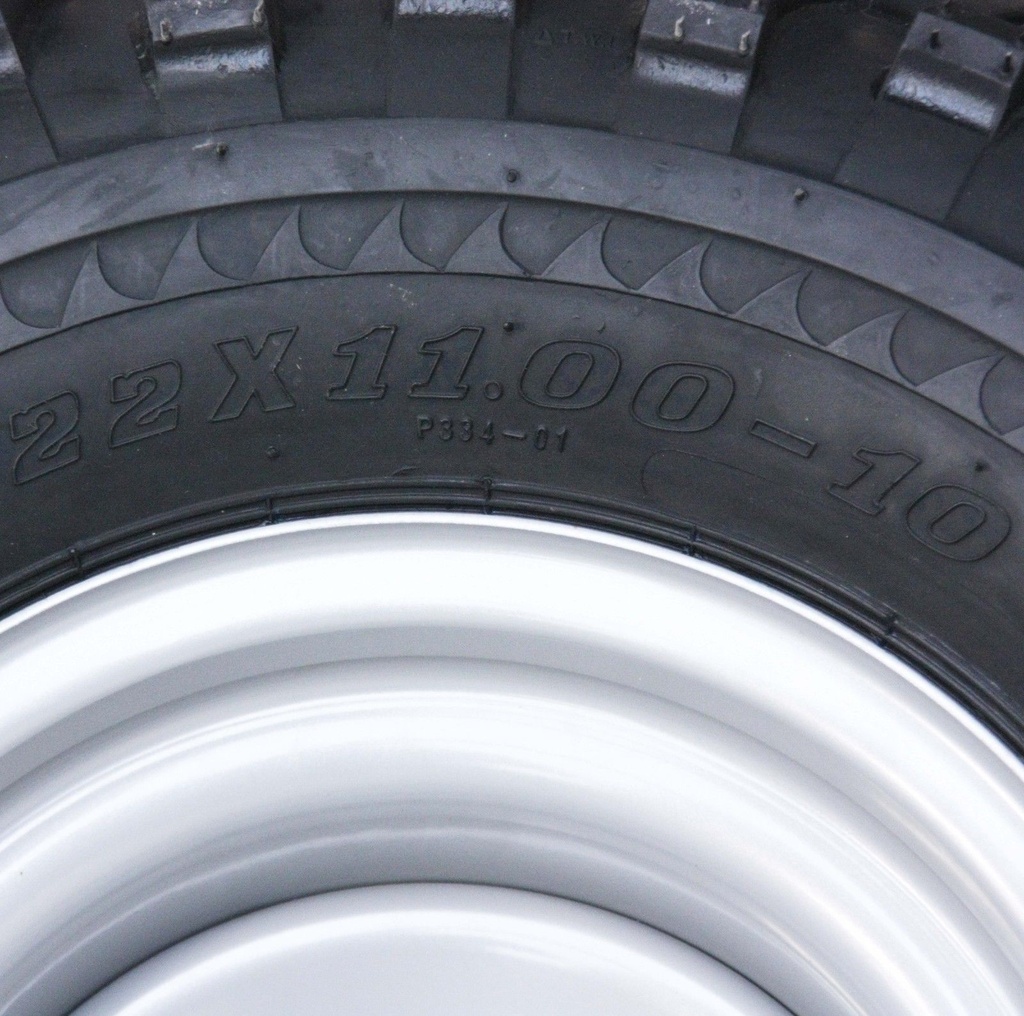

Tyre Size 22x11.00-10
Ply 4
TT/TL TL
Pattern P334
Tread Depth (mm) 15.8
SW (mm) 257
OD (mm) 585
PSI 5
Load/Speed Index 80B
Max Load (Kg) 455
